N9042B

IQ Streaming

Option ST1 and ST2

Keysight X-Series Signal Analyzer

INSTALLATION NOTE

Notices

The information contained in this document is subject to change without notice.

Keysight Technologies makes no warranty of any kind with regard to this material, including but

not limited to, the implied warranties of merchantability and fitness for a particular purpose.

Keysight Technologies shall not be liable for errors contained herein or for incidental or

consequential damages in connection with the furnishing, performance, or use of this material.

Manual Part Number

N042-90011

Edition

Edition 1, January 2023

Supersedes: None

Printed in USA

Published by:

Keysight Technologies, Inc.

1400 Fountaingrove Parkway

Santa Rosa, CA 95403

Installation Note N9042-90011 3

Option ST1 and ST2 – IQ Streaming

This document provides detailed instructions for the installation of the IQ Streaming upgrades for

the N9042B UXA Signal Analyzer.

Please be sure to read this entire document before attempting to perform this upgrade. Then, be

sure to perform the steps in this procedure in the order that they are listed so that the installation

will complete properly, and the instrument will function as desired when completed.

Compatibility

This instrument option requires that the instrument has firmware version A.34.00 or newer. If the

instrument being upgraded does not currently meet this requirement the following procedure

includes a step to update it.

Instrument Calibration

The validity of any existing calibration that the instrument being upgraded may have will not be

affected by the installation of this upgrade.

Products Affected: UXA N9042B

To Be Performed By: (X) Keysight Service Center

( ) Advanced User

()User

Estimated Installation Time:

Estimated Adjustment Time:

Estimated Verification Time:

2.0 Hours

0.0 Hours

1.0 Hours

4Installation Note N9042-90011

Option ST1 and ST2 – IQ Streaming

What you will find in this document

ESD Information............................................................................................................ page 5

Upgrade Contents......................................................................................................... page 7

Tools Required............................................................................................................... page 8

Initial Instrument Functionality Check ........................................................................ page 8

Instrument Software Revision Check .......................................................................... page 8

Instrument Configuration Determination .................................................................... page 9

Option G2H Check................................................................................................... page 9

Option R40 Check.................................................................................................... page 9

Installed Power Supply Check ................................................................................ page 9

Determine Instrument Configuration ..................................................................... page 9

Upgrade Instructions................................................................................................. page 10

Hardware Disassembly......................................................................................... page 10

ODI Cable Installation........................................................................................... page 18

Rear Panel Configuration and Installation .......................................................... page 31

Instrument Button Up .......................................................................................... page 41

Rear Panel Labels ................................................................................................. page 43

Instrument Software Installation ......................................................................... page 45

License Key Retrieval and Installation ................................................................ page 45

Extra Parts.................................................................................................................. page 46

Adjustments and Performance Verification.............................................................. page 47

Manual Procedures Required............................................................................... page 47

Automated Utilities Required............................................................................... page 47

Automated Adjustments Required ...................................................................... page 47

Automated Performance Testing Required ......................................................... page 47

ODI Loopback Test..................................................................................................... page 48

Installation Note N9042-90011 5

Option ST1 and ST2 – IQ Streaming

ESD Information

Protection from Electrostatic Discharge

Electrostatic discharge (ESD) can damage or destroy electronic components. All work on electronic

assemblies should be performed at a static-safe workstation. Figure 1 shows an example of a

static-safe workstation using two types of ESD protection:

— Conductive table-mat and wrist-strap combination.

— Conductive floor-mat and heel-strap combination.

Both types, when used together, provide a significant level of ESD protection. Of the two, only the

table-mat and wrist-strap combination provides adequate ESD protection when used alone. To

ensure user safety, the static-safe accessories must provide at least 1 megohm of isolation from

ground.

Figure 1 Example of a Static-Safe Workstation

Handling of Electronic Components and ESD

The possibility of unseen damage caused by ESD is present whenever components are transported,

stored, or used. The risk of ESD damage can be greatly reduced by paying close attention to how all

components are handled.

These techniques for a static-safe workstation should not be used when working on circuitry

with a voltage potential greater than 500 volts.

6Installation Note N9042-90011

Option ST1 and ST2 – IQ Streaming

— Perform work on all components at a static-safe workstation.

— Keep static-generating materials at least one meter away from all components.

— Store or transport components in static-shielding containers.

Test Equipment Usage and ESD

— Before connecting any coaxial cable to an analyzer connector, momentarily short the center and

outer conductors of the cable together.

— Personnel should be grounded with a 1 megohm resistor-isolated wrist-strap before touching

the center pin of any connector and before removing any assembly from the analyzer.

— Be sure that all analyzers are properly earth-grounded to prevent build-up of static charge.

For Additional Information about ESD

For more information about preventing ESD damage, contact the Electrical Over

Stress/Electrostatic Discharge (EOS/ESD) Association, Inc. The ESD standards developed by this

agency are sanctioned by the American National Standards Institute (ANSI).

Always handle printed circuit board assemblies by the edges. This will reduce the possibility of

ESD damage to components and prevent contamination of exposed plating.

Installation Note N9042-90011 7

Option ST1 and ST2 – IQ Streaming

Upgrade Contents

This upgrade kits includes enough parts so that all versions of the N9042B instrument can be

successfully upgraded with the IQ streaming option. Because of that, there may be some parts that

will not be needed. The main differentiator for this is the presence of option G2H in the instrument.

Instruments with option G2H are the latest version of hardware and will not require parts such as

the new rear panel and some of the other small metal parts. The upgrade instructions will call out

option G2H instruments when a decision on what parts to install needs to be made.

Table 1 Upgrade Contents

Part Number Description Quantity

0515-0372 Screw-Machine W/Crest-Cup-Con-Washer Pan-HD Torx-T10 M3X0.5 8mm-LG 6

0515-1946 Screw-Machine w/Patch lock 90-DEG-flat-HD Torx-T10 M3X0.5 6mm-LG 18

0515-2151 Screw-Machine 90-DEG-FLT-HD TORX-T6 M2X0.4 4mm-LG 1

0515-2332 Screw-Machine W/PATCH-LK Pan-HD Torx-T10 M3X0.5 6mm-LG 4

0535-0031 Nut-HEX W/Lock-Washer M3X0.5 2.4mm-THK 5.5mm-A/F 2

1005-1388 Fiber Optic Adapter MPO-Shutter Female-Female flange-mount 1

1400-0053 Clamp-Cable Screw-mount 2

9030-0000 License Entitlement Certificate 1

M8121-60004 Connector-Fiber Optic Multimode MPO-Loopback 1

M8121-61614 Cable AY, Patch cord, ODI, F-F, 24 fiber, Type C, 3 M lg 1

M9484-80048 Label, FDA Laser 1

N9041-00043 Rear Panel 1

N9041-00052 Nut Plate, ODI 1

N9041-00053 Mount Plate, ODI 1

N9041-00055 Power Supply Adaptor Plate 1

N9041-20154 Heatsink, FireFly 1

N9041-20181 Insertion Tool, FireFly 1

N9041-61063 Cable Assembly, Optical Firefly TX/RX 1

N9042-80007 Label, KCC, 1220705 – Configuration A and B 1

N9042-80008 Label, KCC, 1222838 – Configuration C 1

U3020-80032 Label, FDA certification 1

8Installation Note N9042-90011

Option ST1 and ST2 – IQ Streaming

Tools Required

—Torx Driver T-10

—Torx Driver T-20

—Multi-Bit Torque Driver

—5/8” Nut Driver

—5/16” Wrench

Initial Instrument Functionality Check

Power on the instrument and allow it to complete its boot up process. Verify that there are no

instrument messages that would indicate that there is an issue with either the instrument hardware

or software. If there are any issues, investigate and fix the problem before continuing with this

upgrade.

Instrument Software Revision Check

While the instrument is still powered on check to see what version of the instrument software is

installed. To do so press System, Show System and look on the System Information screen for the

Instrument S/W Revision. Record the software revision below.

Instrument S/W Revision Installed: __________

Installation Note N9042-90011 9

Option ST1 and ST2 – IQ Streaming

Instrument Configuration Determination

The following instrument condition and configuration checks need to be performed before any work

on upgrading the instrument is done. This information will assist in knowing what needs to be done

to the instrument and what parts will be needed.

Option G2H Check

While the instrument is still powered on check to see if the instrument has option G2H installed. To

do so press System, Show System and look on the System Information screen for option G2H.

Note whether option G2H is installed or not below.

Option G2H Installed: __________ Yes _________ No

Option R40 Check

While the instrument is still powered on check to see if the instrument has option R40 installed. To

do so press System, Show System and look on the System Information screen for option R40. Note

whether option R40 is installed or not below.

Option R40 Installed: __________ Yes _________ No

Installed Power Supply Check

Looking at the writing on the rear panel of the instrument for the power supply maximum power

rating. It will either be 850 W Max or 900 W Max. Enter the value found below.

Maximum Power Rating: __________ Watts Max

Determine Instrument Configuration

If the Maximum Power Rating is 850 watts, the instrument has Configuration A.

If the Maximum Power Rating is 900 watts and the instrument does not have Option G2H, the

instrument has Configuration B.

If the Maximum Power Rating is 900 watts and the instrument has Option G2H, the instrument

has Configuration C.

The instrument configuration determined above will be used when it comes to reinstalling the

instrument rear panel and the associated the rear panel ODI connector.

10 Installation Note N9042-90011

Option ST1 and ST2 – IQ Streaming

Upgrade Instructions

Hardware Disassembly

Dress Cover Removal

1. Turn the instrument off and disconnect the power cord.

2. Referring to Figure 2, remove the two screws (1) that attach the strap handle (2) from both

sides and remove the strap handles.

Figure 2 Dress Cover Removal

3. Remove the four rear feet (4) by removing the four screws (3) and washers that attach them.

4. Remove the four bottom feet (6) by first removing the locking keys and then lifting the tabs

and sliding the foot toward the tabs.

5. Carefully slide the dress cover (5) off the instrument.

Autres manuels pour X Series

Table des matières

Autres manuels Keysight Technologies Instrument de mesure

Keysight Technologies

Keysight Technologies E4981A Manuel utilisateur

Keysight Technologies

Keysight Technologies NFA X-Series Manuel utilisateur

Keysight Technologies

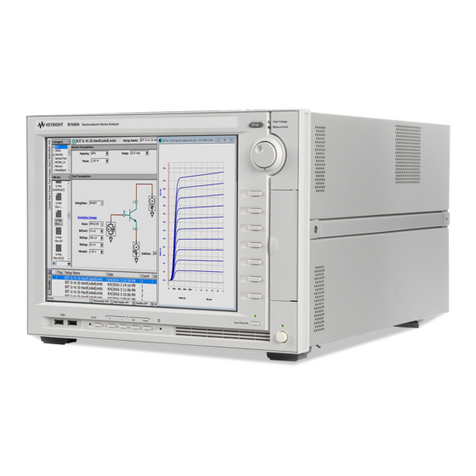

Keysight Technologies B1500A Mode d’emploi

Keysight Technologies

Keysight Technologies U4431A Manuel utilisateur

Keysight Technologies

Keysight Technologies 8163A/B Mode d'emploi

Keysight Technologies

Keysight Technologies N8262A P Series Manuel utilisateur

Keysight Technologies

Keysight Technologies E5052B Manuel du propriétaire

Keysight Technologies

Keysight Technologies N9000B Manuel d'installation et d'exploitation

Keysight Technologies

Keysight Technologies EPM Series Manuel utilisateur

Keysight Technologies

Keysight Technologies N524 A Series Manuel d'installation et d'exploitation

Keysight Technologies

Keysight Technologies U5309A Guide de l'utilisateur

Keysight Technologies

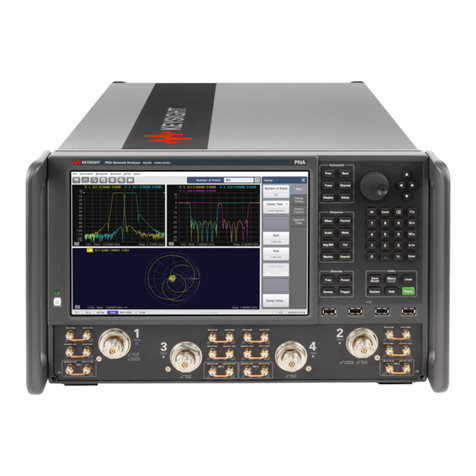

Keysight Technologies N5221B Manuel utilisateur

Keysight Technologies

Keysight Technologies E4981A Manuel du propriétaire

Keysight Technologies

Keysight Technologies N2893A Manuel utilisateur

Keysight Technologies

Keysight Technologies Agilent Technologies PXI Express M9202A Guide de l'utilisateur

Keysight Technologies

Keysight Technologies B1507A Manuel utilisateur

Keysight Technologies

Keysight Technologies P Series Manuel utilisateur

Keysight Technologies

Keysight Technologies N5245-60106 Manuel d'installation et d'exploitation

Keysight Technologies

Keysight Technologies EXA Manuel d'installation et d'exploitation

Keysight Technologies

Keysight Technologies V3500A Manuel utilisateur

Keysight Technologies

Keysight Technologies N4960A Manuel utilisateur

Keysight Technologies

Keysight Technologies N5221B Manuel utilisateur

Keysight Technologies

Keysight Technologies N9040B Manuel d'installation et d'exploitation

Keysight Technologies

Keysight Technologies N9041B Manuel d'installation et d'exploitation

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
