Keysight Technologies W3301A Manuel utilisateur

Keysight W3301A LPDDR3

BGA Interposers

Installation Guide

2Keysight W3301A LPDDR3 BGA Interposers Installation Guide

Notices

No part of this manual may be reproduced in

any form or by any means (including elec-

tronic storage and retrieval or translation

into a foreign language) without prior agree-

ment and written consent from Keysight

Technologies as governed by United States

and international copyright laws.

Manual Part Number

W3301-97000

Edition

First Edition, October 2016

Available in electronic format only

Keysight Technologies

1900 Garden of the Gods Road

Colorado Springs, CO 80907 USA

Warranty

THE MATERIAL CONTAINED IN THIS DOCU-

MENT IS PROVIDED "AS IS," AND IS SUB-

JECT TO BEING CHANGED, WITHOUT

NOTICE, IN FUTURE EDITIONS. FURTHER,

TO THE MAXIMUM EXTENT PERMITTED BY

APPLICABLE LAW, KEYSIGHT DISCLAIMS

ALL WARRANTIES, EITHER EXPRESS OR

IMPLIED WITH REGARD TO THIS MANUAL

AND ANY INFORMATION CONTAINED

HEREIN, INCLUDING BUT NOT LIMITED TO

THE IMPLIED WARRANTIES OF MERCHANT-

ABILITY AND FITNESS FOR A PARTICULAR

PURPOSE. KEYSIGHT SHALL NOT BE LIABLE

FOR ERRORS OR FOR INCIDENTAL OR CON-

SEQUENTIAL DAMAGES IN CONNECTION

WITH THE FURNISHING, USE, OR PERFOR-

MANCE OF THIS DOCUMENT OR ANY

INFORMATION CONTAINED HEREIN.

SHOULD KEYSIGHT AND THE USER HAVE A

SEPARATE WRITTEN AGREEMENT WITH

WARRANTY TERMS COVERING THE MATE-

RIAL IN THIS DOCUMENT THAT CONFLICT

WITH THESE TERMS, THE WARRANTY

TERMS IN THE SEPARATE AGREEMENT WILL

CONTROL.

Technology Licenses

The hardware and/or software described in

this document are furnished under a license

and may be used or copied only in accor-

dance with the terms of such license.

U.S. Government Rights

The Software is "commercial computer soft-

ware," as defined by Federal Acquisition

Regulation ("FAR") 2.101. Pursuant to FAR

12.212 and 27.405-3 and Department of

Defense FAR Supplement ("DFARS")

227.7202, the U.S. government acquires

commercial computer software under the

same terms by which the software is cus-

tomarily provided to the public. Accordingly,

Keysight provides the Software to U.S. gov-

ernment customers under its standard com-

mercial license, which is embodied in its

End User License Agreement (EULA), a copy

of which can be found at http://www.key-

sight.com/find/sweula. The license set

forth in the EULA represents the exclusive

authority by which the U.S. government may

use, modify, distribute, or disclose the Soft-

ware. The EULA and the license set forth

therein, does not require or permit, among

other things, that Keysight: (1) Furnish tech-

nical information related to commercial

computer software or commercial computer

software documentation that is not custom-

arily provided to the public; or (2) Relinquish

to, or otherwise provide, the government

rights in excess of these rights customarily

provided to the public to use, modify, repro-

duce, release, perform, display, or disclose

commercial computer software or commer-

cial computer software documentation. No

additional government requirements beyond

those set forth in the EULA shall apply,

except to the extent that those terms, rights,

or licenses are explicitly required from all

providers of commercial computer software

pursuant to the FAR and the DFARS and are

set forth specifically in writing elsewhere in

the EULA. Keysight shall be under no obliga-

tion to update, revise or otherwise modify

the Software. With respect to any technical

data as defined by FAR 2.101, pursuant to

FAR 12.211 and 27.404.2 and DFARS

227.7102, the U.S. government acquires no

greater than Limited Rights as defined in

FAR 27.401 or DFAR 227.7103-5 (c), as

applicable in any technical data.

Safety Notices

CAUTION

A CAUTION notice denotes a hazard. It

calls attention to an operating proce-

dure, practice, or the like that, if not

correctly performed or adhered to,

could result in damage to the product

or loss of important data. Do not pro-

ceed beyond a CAUTION notice until

the indicated conditions are fully

understood and met.

WARNING

A WARNING notice denotes a hazard.

It calls attention to an operating pro-

cedure, practice, or the like that, if not

correctly performed or adhered to,

could result in personal injury or

death. Do not proceed beyond a

WARNING notice until the indicated

conditions are fully understood and

met.

Keysight W3301A LPDDR3 BGA Interposers Installation Guide 3

In This Guide

This guide provides information on how to set up and use the following Keysight products in a

LPDDR3 probing setup:

• W3301A LPDDR3 178-ball, BGA Interposer

• E5406A/B Pro Series Soft Touch Connectorless Single-ended Probes

• U4201A 90-pin Cable Connectors (connects to the E5406A/B probes and Logic analyzer)

4Keysight W3301A LPDDR3 BGA Interposers Installation Guide

Keysight W3301A LPDDR3 BGA Interposers Installation Guide 5

Contents

In This Guide 3

1 Introduction to W3301A Interposers

W3301A LPDDR3 BGA Interposers - An Overview 8

Compatibility with Logic Analyzer Modules 9

Software Configuration 9

W3301A Technical Features Summary 9

W3301A Riser 9

E5406A/B Pro Series Soft Touch Connectorless Single-ended Probes 11

U4201A 90-pin Logic Analyzer Cable 12

Hard ware and Software Requirements 13

Mechanical Considerations 15

W3301A Interposer Dimensions 15

W3301A Riser Dimensions 16

W3301A Keep-Out Volume 16

2 W3301A Interposer and Riser Soldering Guidelines

Recommended Soldering Guidelines 21

Soldering Steps 22

Interposer Fabrication Notes 23

3 Setting up the W3301A Interposer

W3301A Interposer Setup - Overview 26

Step 1 - Soldering the W3301A Interposer 27

Step 2 - Connecting the W3301A Interposer to E5406A/B Probes 28

Step 3 - Connecting the E5408A/B Probe Pods to the U4201A Logic Analyzer Cable

Pods 30

Step 4 - Connecting the U4201A Cables to Logic Analyzer Module Pods 31

W3301A Interposer Connectorless Footprints Pinout 33

Logic Analyzer Channels to Signals Mapping 34

Signals not probed by the Logic Analyzer 35

6Keysight W3301A LPDDR3 BGA Interposers Installation Guide

Contents

4 Setting Up the Logic Analyzer for W3301A Interposers

Before You Start 38

Loading a Configuration File 39

To save a configuration file 39

5 Characteristics, Regulatory, Safety and Storage Information

Operating Characteristics 42

Storage, Inspection, and Baking Guidelines 43

Guidelines for Shelf Life and Solder-ability of W3301A Interposers 43

Regulatory Notices 44

WEEE Compliance 44

China RoHS 44

Index

Keysight W3301A LPDDR3 BGA Interposers

Installation Guide

1Introduction to W3301A Inter-

posers

W3301A LPDDR3 BGA Interposers - An Overview / 8

E5406A/B Pro Series Soft Touch Connectorless Single-ended Probes / 11

U4201A 90-pin Logic Analyzer Cable / 12

Hardware and Software Requirements / 13

Mechanical Considerations / 15

This chapter introduces the hardware components that are needed for a W3301A LPDDR3 BGA

interposer setup. It also lists the software requirements as well as describes the mechanical

considerations such as various dimensions and KOV that you should know before you start setting up

and using this interposer.

1 Introduction

8Keysight W3301A LPDDR3 BGA Interposers Installation Guide

W3301A LPDDR3 BGA Interposers - An Overview

The W3301A LPDDR3 BGA Interposer enables probing of 178-pin JEDEC standard footprint directly

at the ball grid array using the Keysight logic analyzers.

This interposer supports:

• probing of all CA and DQ/DQS signals between a single-channel x32 DRAM and a PC board.

• data rates up to 1.6 Gb/s

•smallerKOV

Using this interposer, you can capture LPDDR3 signals up to 1.6 Gb/s for a system under test that

can operate under probe load.

A W3301A interposer interposes between the DRAM being probed and the PC board where the

DRAM would normally be soldered. The interposer is designed to be soldered to the PCB footprint for

the DRAM on top of either the LPDDR riser included with the W3301A interposer or an optional

Grypper socket (not included with the interposer) or both. The DRAM being probed is then soldered

to the top side of the interposer.

Each LPDDR signal in the common footprint passes directly from the bottom side of the interposer to

the top side of the interposer.

The following figure shows a W3301A interposer’s top view.

Figure 1 W3301A LPDDR3 Interposer

NOTE

The W3301A interposer is tested for via connections through the interposer.

Keysight W3301A LPDDR3 BGA Interposers Installation Guide 9

Introduction 1

The W3301A interposer has two connectorless footprints, J1 and J2 on its top side. A retention

module (shipped with the E5406A/B Soft Touch Series Connectorless probe) is soldered to each

footprint. Each retention module attaches to an E5406A/B probe. These probes are then connected

to the U4201A Logic Analyzer 90-pin cable connectors which then connect to the Logic Analyzer

module’s pods.

Compatibility with Logic Analyzer Modules

The W3301A interposers are compatible with the following Keysight logic analyzer modules.

• U4164A AXIe-based logic analyzer modules

• U4154A/B AXIe-based logic analyzer modules

Software Configuration

The W3301A interposer can be used in the following logic analyzer software configuration:

• State mode under 2500 Mb/s (double edge clocking and dual sampling mode)

You can use the W3301A interposer with the compatible logic analyzer module’s dual clock edge

clocking and dual sample mode. The U4164A module’s dual sampling with dual thresholds allows

you to capture separate Read and Write samples per clock edge.

W3301A Technical Features Summary

• Probes a JEDEC LPDDR3 BGA 178 ball standard footprint. Maximum of 11 mm wide X 11.5 mm

long LPDDR3 DRAM package can fit on top of the W3301A interposer without an additional riser

or a socket to provide clearance for the RC components. A 13 mm wide X 13.5 mm long LPDDR3

DRAM package can also fit without a riser but will cover the silk screen marking and overlap vias

slightly.

• Logic analyzer connections are made using E5406A/B Pro Series Soft Touch Connectorless

Single-ended probes and U4201A logic analyzer cables. The E5406A/B probes attach to the

connectorless footprints on the top of the W3301A interposer using retention modules.

• An isolation Tip Resistor (100 Ohms) for each signal probed by the Logic Analyzer is present on

the top of the W3301A interposer. No RC network present on the E5406A/B probes or on the top

or bottom of the interposer.

W3301A Riser

An LPDDR3 BGA 178 ball riser is provided with each W3301A interposer to allow the interposer to

clear surrounding devices. Optionally, you can use a Grypper socket. It is not provided with the

interposer.

The following figure displays the riser that is provided with the W3301A interposer.

Figure 2 Riser that accompanies the W3301A interposer

1 Introduction

10 Keysight W3301A LPDDR3 BGA Interposers Installation Guide

To know how to solder the riser to the W3301A interposer and PC board, refer to the chapter

“W3301A Interposer and Riser Soldering Guidelines" on page 19.

NOTE

The LPDDR3 178 ball riser includes ground planes for optimal signal integrity. Due to these

ground planes, the riser’s alignment with the DRAM should be such that the TOP side of the

riser must point towards the DRAM and the Pin 1 indicator on the riser must orient towards the

“A1” pin of the DRAM.

Table des matières

Autres manuels Keysight Technologies Instrument de mesure

Keysight Technologies

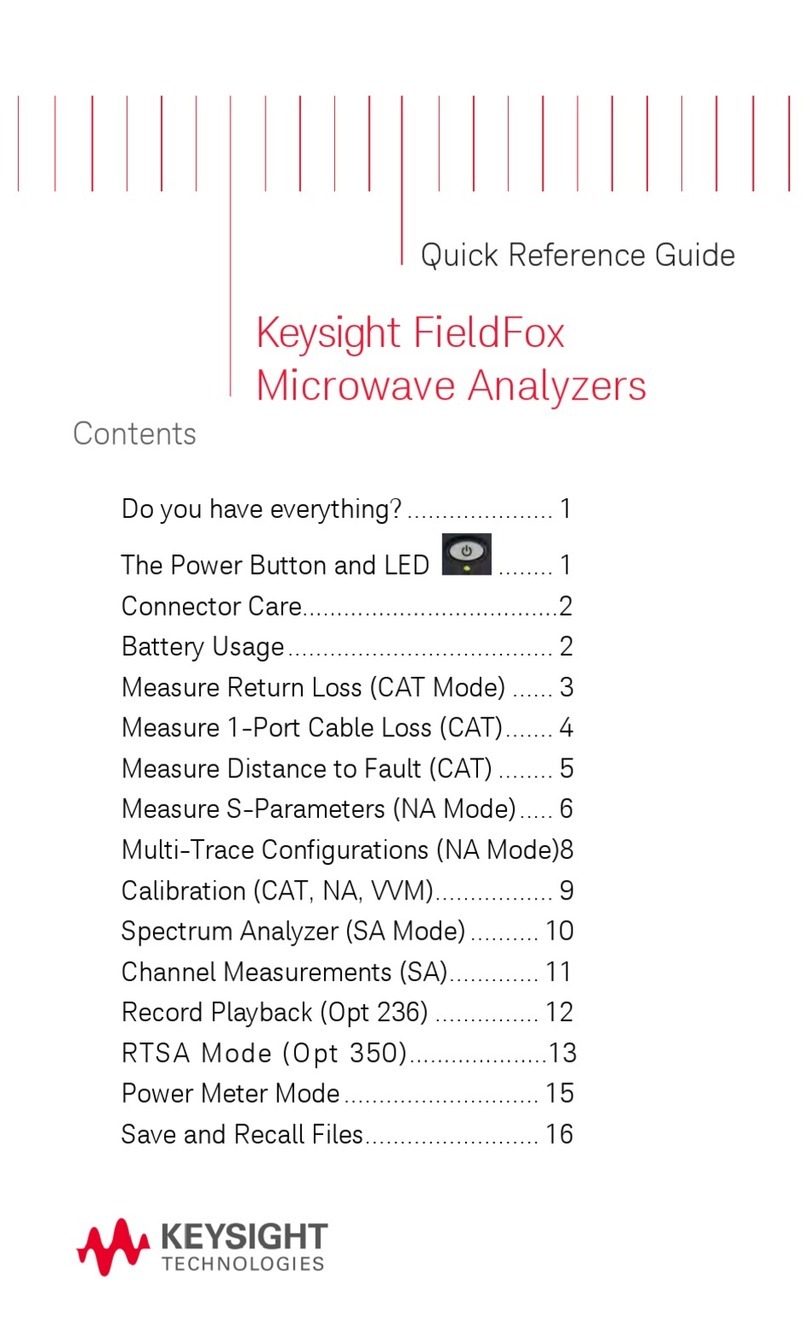

Keysight Technologies FieldFox A Series Manuel utilisateur

Keysight Technologies

Keysight Technologies UXA N9040B Manuel utilisateur

Keysight Technologies

Keysight Technologies N9020A Manuel d'installation et d'exploitation

Keysight Technologies

Keysight Technologies M9216A Guide de l'utilisateur

Keysight Technologies

Keysight Technologies EXA N9010B Manuel d'installation et d'exploitation

Keysight Technologies

Keysight Technologies EPM Series Manuel utilisateur

Keysight Technologies

Keysight Technologies U4301 Manuel utilisateur

Keysight Technologies

Keysight Technologies M8131A Manuel utilisateur

Keysight Technologies

Keysight Technologies N9020B Manuel

Keysight Technologies

Keysight Technologies N5222B Guide de démarrage rapide

Keysight Technologies

Keysight Technologies InfiniiMax III Series Manuel utilisateur

Keysight Technologies

Keysight Technologies X Series Manuel d'installation et d'exploitation

Keysight Technologies

Keysight Technologies N9030B Manuel d'installation et d'exploitation

Keysight Technologies

Keysight Technologies N9020A Manuel d'installation et d'exploitation

Keysight Technologies

Keysight Technologies PNA-X N5249A Manuel utilisateur

Keysight Technologies

Keysight Technologies PXA N9030A Manuel utilisateur

Keysight Technologies

Keysight Technologies LTE Manuel d'installation

Keysight Technologies

Keysight Technologies N774 C Series Manuel utilisateur

Keysight Technologies

Keysight Technologies N9030B Manuel d'installation et d'exploitation

Keysight Technologies

Keysight Technologies B1507A Manuel utilisateur

Keysight Technologies

Keysight Technologies N6705C Manuel de service

Keysight Technologies

Keysight Technologies PNA Series Manuel utilisateur

Keysight Technologies

Keysight Technologies N9030B Manuel d'installation et d'exploitation

Keysight Technologies

Keysight Technologies N99xxA Series Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
