Keysight Technologies U9361F Manuel utilisateur

Keysight Technologies

U9361F/M Receiver Calibrator

Quick Start

Guide

Notices

The information contained in this document is subject to change without notice.

Keysight Technologies makes no warranty of any kind with regard to this material, including but

not limited to, the implied warranties of merchantability and fitness for a particular purpose.

Keysight Technologies shall not be liable for errors contained herein or for incidental or

consequential damages in connection with the furnishing, performance, or use of this material.

Manual Part Number

U9361-90001

Edition

Edition 1, February 2021

Supersedes: October 2020

Printed in USA

Published by:

Keysight Technologies, Inc.

1400 Fountaingrove Parkway

Santa Rosa, CA 95403

U9361F/M Receiver Calibrator Quick Start Guide 3

What You Will Find in this Document

Where to Find the Latest Information....................................................................................4

ESD Information......................................................................................................................5

Protection from Electrostatic Discharge.....................................................................5

Handling of Electronic Components and ESD............................................................6

For Additional Information about ESD ........................................................................6

Overview..................................................................................................................................7

Keysight Products Supported...................................................................................... 7

Unpack, Inspect and Verify Box Contents.............................................................................7

Initial Inspection ........................................................................................................... 7

Shipping Problems .......................................................................................................8

Calibrators Covered by This Guide ........................................................................................9

Operation...............................................................................................................................10

Operating Precautions ...............................................................................................10

Warnings and Cautions..............................................................................................10

Instrument Information ..............................................................................................11

Environmental Conditions ...................................................................................11

Environmental Information..................................................................................11

Regulatory Information........................................................................................11

EMC Compliance..................................................................................................11

Regulatory Markings............................................................................................12

Setup Procedure.........................................................................................................14

LED Definition.............................................................................................................16

Example: RCal Calibration Using a UXA Signal Analyzer ........................................17

Care and Maintenance .........................................................................................................22

Connector Care...........................................................................................................22

Making Connections...................................................................................................24

Cleaning Connectors..................................................................................................31

Returning a U9361F/M Receiver Calibrator for Service.....................................................32

4 U9361F/M Receiver Calibrator Quick Start Guide

Where to Find the Latest Information

Documentation is updated periodically. For the latest information about these products,

including instrument software upgrades, application information, and product information,

browse to one of the following URLs, according to the name of your product:

http://www.keysight.com/find/u9361f

http://www.keysight.com/find/u9361m

To receive the latest updates by email, subscribe to Keysight Email Updates at the following

URL:

http://www.keysight.com/find/MyKeysight

Information on preventing instrument damage can be found at:

http://keysight.com/find/PreventingInstrumentRepair

Product specific information and support, software and documentation updates:

http://www.keysight.com/find

Is your product software up-to-date?

Periodically, Keysight releases software updates to fix known defects and incorporate product

enhancements. To search for software updates for your product, go to the Keysight Technical

Support website at:

http://www.keysight.com/find/techsupport

U9361F/M Receiver Calibrator Quick Start Guide 5

ESD Information

Protection from Electrostatic Discharge

Electrostatic discharge (ESD) can damage or destroy electronic components. All work on

electronic assemblies should be performed at a static-safe workstation. Figure 1 shows an

example of a static-safe workstation using two types of ESD protection:

— Conductive table-mat and wrist-strap combination.

— Conductive floor-mat and heel-strap combination.

Both types, when used together, provide a significant level of ESD protection. Of the two, only

the table-mat and wrist-strap combination provides adequate ESD protection when used alone.

To ensure user safety, the static-safe accessories must provide at least 1 megohm of isolation

from ground.

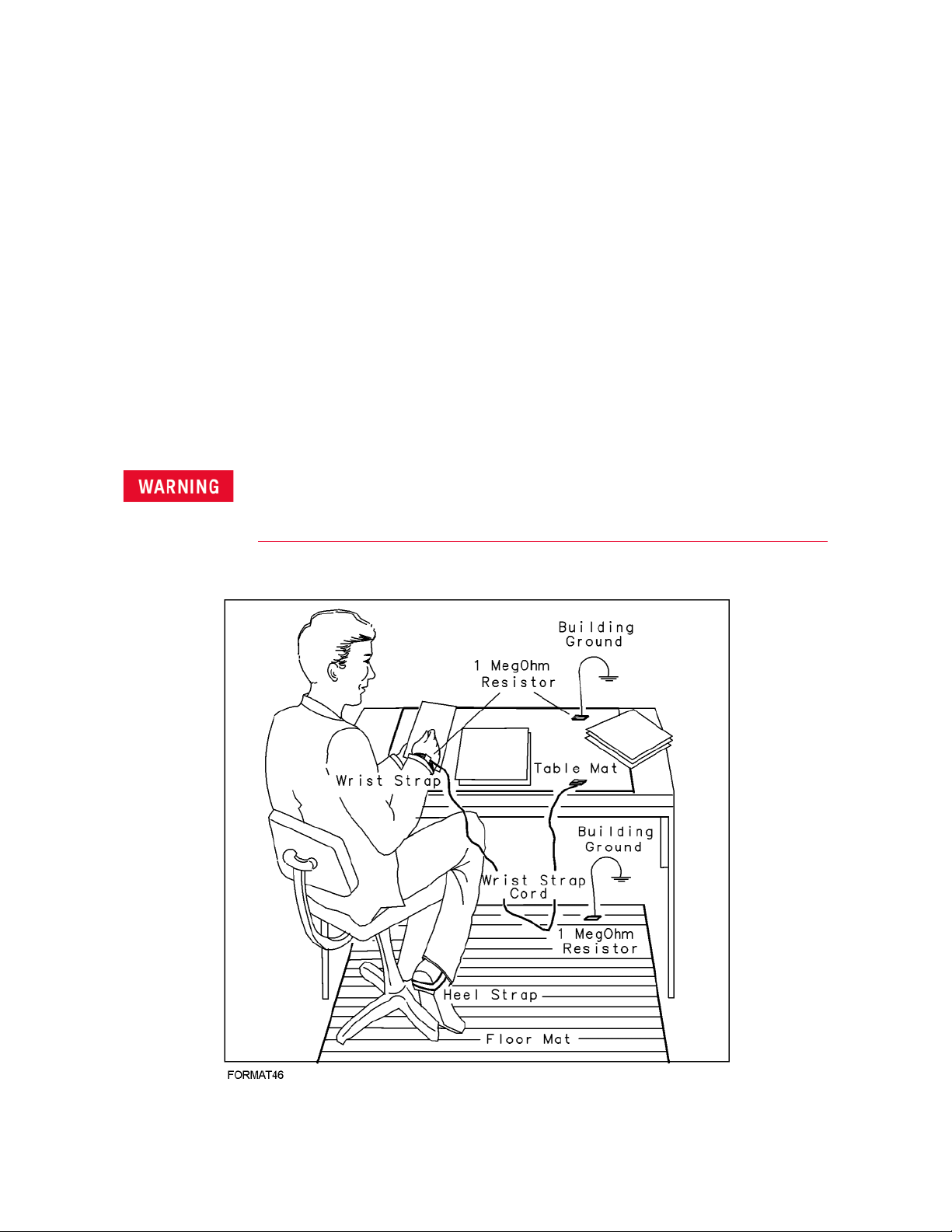

Figure 1 Example of a Static-Safe Workstation

These techniques for a static-safe workstation should not be used when

working on circuitry with a voltage potential greater than 500 volts.

6 U9361F/M Receiver Calibrator Quick Start Guide

ESD Information

Handling of Electronic Components and ESD

The possibility of unseen damage caused by ESD is present whenever components are

transported, stored, or used. The risk of ESD damage can be greatly reduced by paying close

attention to how all components are handled.

— Perform work on all components at a static-safe workstation.

— Keep static-generating materials at least one meter away from all components.

— Store or transport components in static-shielding containers.

For Additional Information about ESD

For more information about preventing ESD damage, contact the Electrical Over

Stress/Electrostatic Discharge (EOS/ESD) Association, Inc. The ESD standards developed by this

agency are sanctioned by the American National Standards Institute (ANSI).

Always handle printed circuit board assemblies by the edges. This will

reduce the possibility of ESD damage to components and prevent

contamination of exposed plating.

U9361F/M Receiver Calibrator Quick Start Guide 7

Overview

The Keysight U9361F/M Receiver Calibrator is a palm sized USB reference signal source that is

used to calibrate and improve the accuracy of products and systems for which the U9361F/M is

a Keysight-approved accessory.

With emphasis on ease-of-use, the embedded features of the calibrator will automatically

transfer calibration data from the calibrator memory to the signal analyzer through the USB

plug-and-play feature. The analyzer will also auto-detect the model, serial number, and options

present on the calibrator.

Keysight Products Supported

— N9020B MXA Signal Analyzer

— N9030B PXA Signal Analyzer

— N9040B/41B UXA Signal Analyzer

Unpack, Inspect and Verify Box Contents

Initial Inspection

Inspect the shipping container and the cushioning material for signs of stress. Retain the

shipping materials for future use, as you may wish to ship the instrument to another location or

to Keysight Technologies for service.

Figure 2 Shipping Case

To access the cables located on the bottom level, remove the top cushion that holds the

instrument and wrench by lifting up on the corner cutouts provided.

Top Level

Instrument

and wrench

Bottom Level

Cables

8 U9361F/M Receiver Calibrator Quick Start Guide

Unpack, Inspect and Verify Box Contents

Shipping Problems

If the shipping materials are damaged or the contents of the container are incomplete:

— Contact the nearest Keysight Technologies office.

— Keep the shipping materials for the carrier’s inspection.

— If you must return the calibrator to Keysight Technologies, use the original (or comparable)

shipping materials. See “Returning a U9361F/M Receiver Calibrator for Service” on page 32.

Table 1 Standard Shipped Items

Item Description

Startup Guide Provides instructions on usage, safety, troubleshooting, specifications, and general information.

Certificate of calibration Provides information regarding the instrument calibration.

Shipping Case Case-Plastic Rcal

Wrench Torque 8lb-in, 5/16 Inch (U9361F) or,

Torque Special Double-end 14mm-open end 4 and 10-in-lb (U9361M)

USB Cable Cable-Assembly USB 3.0 Type-A Plug to Type-C Plug, 1 meter long

Coaxial Cable Cable Assembly-Coaxial BNC Male to SMB-Female, 1 meter long

U9361F/M Receiver Calibrator Quick Start Guide 9

Calibrators Covered by This Guide

— U9361M: 10 MHz to 110 GHz Receiver Calibrator, 1.0 mm RF out connector

— U9361F: 10 MHz to 50 GHz Receiver Calibrator, 2.4 mm RF out connector

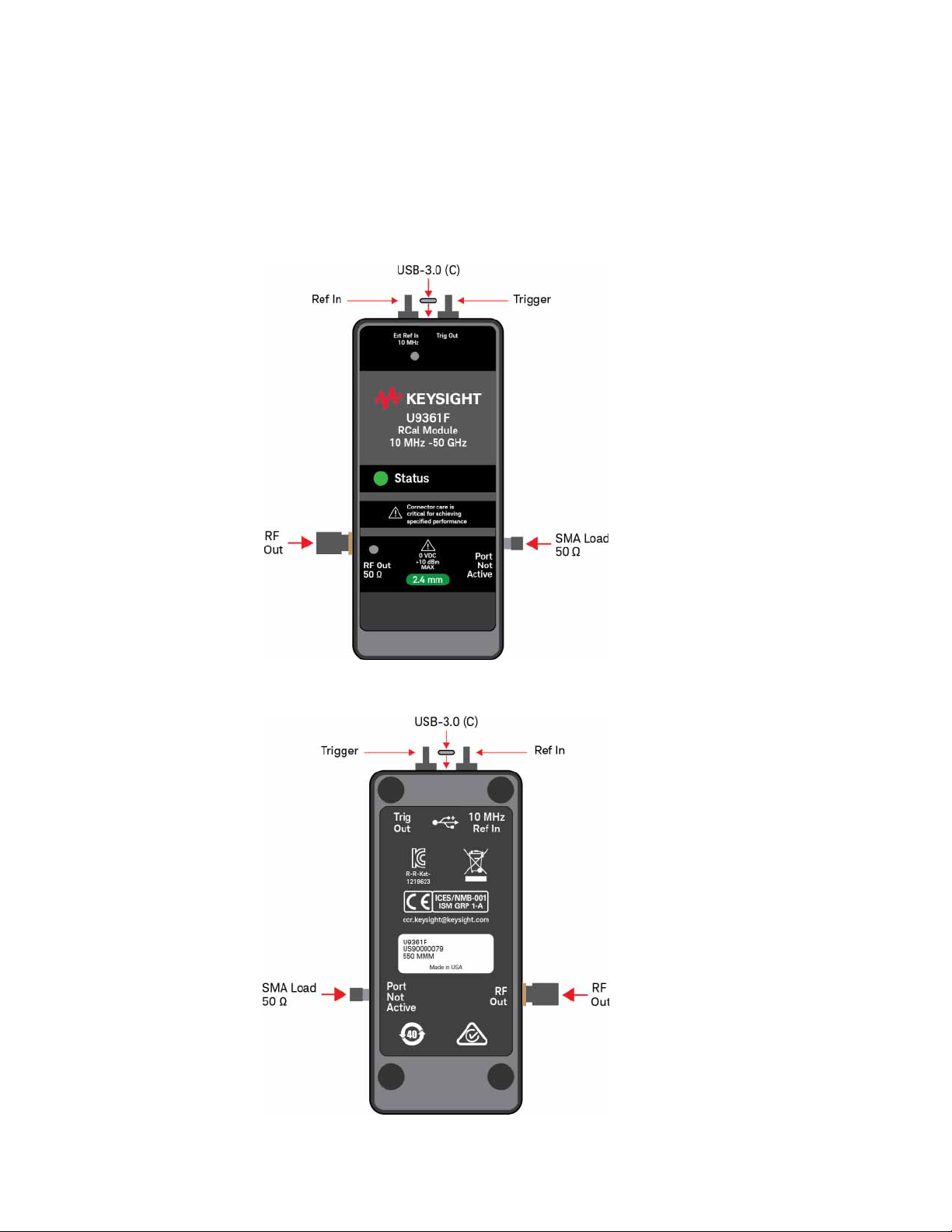

Figure 2 Calibrator Front View

Figure 3 Calibrator Rear View

10 U9361F/M Receiver Calibrator Quick Start Guide

Operation

Operating Precautions

Electrostatic discharge

When connecting the U9361F/M USB cable, always connect the USB-A end of the cable to the

receiver (signal analyzer) BEFORE connecting the USB-C end of the cable to the calibrator unit.

Avoiding calibrator RF connector damage

See “Connector Care” on page 22.

Warnings and Cautions

Do not exceed the maximum ratings listed below or permanent damage to

the calibrator will result.

A WARNING notice denotes a hazard. It calls attention to an operating

procedure, practice, or the like that, if not correctly performed or adhered

to, could result in personal injury or death. Do not proceed beyond a

WARNING notice until the indicated conditions are fully understood and

met.

A CAUTION notice denotes a hazard. It calls attention to an operating

procedure, practice, or the like that, if not correctly performed or adhered

to, could result in damage to the product or loss of important data. Do not

proceed beyond a CAUTION notice until the indicated conditions are fully

understood and met.

No operator serviceable parts inside. Refer servicing to qualified

personnel. To prevent electrical shock do not remove covers.

Safety of any system incorporating the equipment is the responsibility of

the assembler of the system.
