Keysight Technologies N9030B Manuel d'installation et d'exploitation

Option C35, 3.5 mm Input Connector

Retrofit Kit

Keysight Technologies

N9030B PXA Spectrum Analyzer

Installation Note

Notices

The information contained in this document is subject to change without notice.

Keysight Technologies makes no warranty of any kind with regard to this material, including but

not limited to, the implied warranties of merchantability and fitness for a particular purpose.

Keysight Technologies shall not be liable for errors contained herein or for incidental or

consequential damages in connection with the furnishing, performance, or use of this material.

Manual Part Number

N9030-90078

Edition

Edition 1, February 2016

Printed in USA/Malaysia

Published by:

Keysight Technologies, Inc.

1400 Fountaingrove Parkway

Santa Rosa, CA 95403

Installation Note N9030-90078 3

Option C35, 3.5 mm Input Connector Retrofit Kit

Introduction

The Option C35 retrofit kit provides all the parts and instructions necessary to install the 3.5 mm

input connector into the Keysight N9030B Option 526 (26.5 GHz spectrum analyzer).

Products Affected: N9030B - Option 526

Serial Numbers: US00000000/US99999999

MY00000000/MY99999999

SG00000000/SG99999999

To Be Performed By: (X) Keysight Service Center

(X) Personnel Qualified by Keysight

( ) Customer

Estimated Installation Time:

Estimated Adjustment and Verification Time:

1 Hour

3 Hours

The latest revision of the X-Series Signal Analyzers software may be downloaded from

http://www.keysight.com/find/xseries_software.

This option is licensed for one instrument model/serial number combination. The license key will

only install on the designated instrument.

The instrument must be performance tested to assure it meets specifications following the

hardware installation. It is possible that installing the input connector and different input cable

might cause frequency response to be out of specifications. The X-Series Performance

Verification and Adjustment Software must be used. All adjustments are automated.

4Installation Note N9030-90078

Option C35, 3.5 mm Input Connector Retrofit Kit

Contents

Tools Required

— T-20 Torx driver

— T-10 Torx driver

— 5/16-inch open end wrench

— N9030B PXA Service Guide can be found online at the following URL:

www.keysight.com/find/N9030B_service_guide

— Personal computer with internet access and USB port

— USB storage device with > 2 GB free memory

If adjustments and performance testing is required:

— Keysight Calibration and Adjustment Software, N7814A

— Test equipment and computer supported by the X-Series Performance Tests and Adjustment

Software.

Quantity Description Keysight Part Number

1 Option Upgrade Entitlement Certificate ---

1 Installation Note this note

2 Screws, M3x0.5 8mm-LG (Crest Washer-Pan Head-TORX) 0515-0372

1 3.5 mm Input Connector Assembly

The input connector assembly is made up of:

Input connector, 3.5 mm

Bracket, Input Connector

Nut, connector mounting

N9020-60196

1 Cable, RF semi-rigid, RF Input to Attenuator N9020-20139

1 EMI O-Ring 8160-1637

Before you disassemble the instrument, turn the power switch to Standby and unplug the

instrument. Failure to unplug the instrument can result in personal injury.

Electrostatic discharge (ESD) can damage or destroy electronic components. All work on

electronic assemblies should be performed at a static-safe workstation. Refer to the

documentation that pertains to your instrument for information about static-safe workstations

and ordering static-safe accessories.

Installation Note N9030-90078 5

Installation Procedure

Remove the Instrument Outer Case, Front Panel Assembly, and Right Side

Chassis (RF Bracket)

See the Instrument Outer Case, Front Frame Assembly and RF Area (RF Bracket) removal

procedures in the Service Guide's “Assembly Replacement Procedures” chapter.

Remove the Type-N Input Connector Assembly and Cable

See the Input connector assembly removal procedure in the Service Guide's “Assembly

Replacement Procedures” chapter.

Remove the other end of semi-rigid cable W2 from the attenuator and carefully remove the cable

from the instrument.

Install the 3.5 mm Input Connector and Cable

1. Locate the semi-rigid cable in the retrofit kit.

2. Position the semi-rigid cable between the input attenuator and the location where the Type N

connector had been.

3. Connect the semi-rigid cable to the attenuator, but only tighten the connection hand tight.

4. Locate the 3.5 mm input connector assembly in the kit.

5. Install the input connector assembly onto the chassis with the two M3 x 0.5 screws from the

retrofit kit, but leave the mounting screws loose to allow the connector assembly to move

when connecting the cable.

6. Connect the semi-rigid cable to the connector assembly, but only tighten the connection hand

tight.

7. Torque the two screws securing the connector assembly to the chassis to 9 inch-lbs.

8. Torque both ends of the semi-rigid cable to 10 inch-lbs.

9. Locate the O-ring in the kit and slide the O-ring over the input connector so it seats at the base

of the connector.

Re-Install the Right Side Chassis, Front Frame Assembly, and Instrument

Outer Case

See the Instrument Outer Case, Front Frame Assembly and RF Area procedures in the Service

Guide's “Assembly Replacement Procedures” chapter if needed.

If the instrument is placed on its face during any of the following procedures, be sure to use a soft

surface or soft cloth to avoid damage to the front panel, keys, or input connector.

6Installation Note N9030-90078

Installation Procedure over USB

1. Locate the Option Upgrade Entitlement Certificate from the kit.

2. Redeem the Option Upgrade Entitlement Certificate by following the instructions on the

Certificate.

3. After redeeming your Option Upgrade Entitlement Certificate you will receive an email with an

attached License File.

4. Locate a USB storage device. Perform a virus scan on this device before use.

5. Save the License File to the root directory of the USB Storage Device.

6. Connect the USB Storage Device to the signal analyzer USB port. Windows will detect the new

hardware and may display the configuration menu shown in Figure 1. This menu may be

configured according to your preferences.

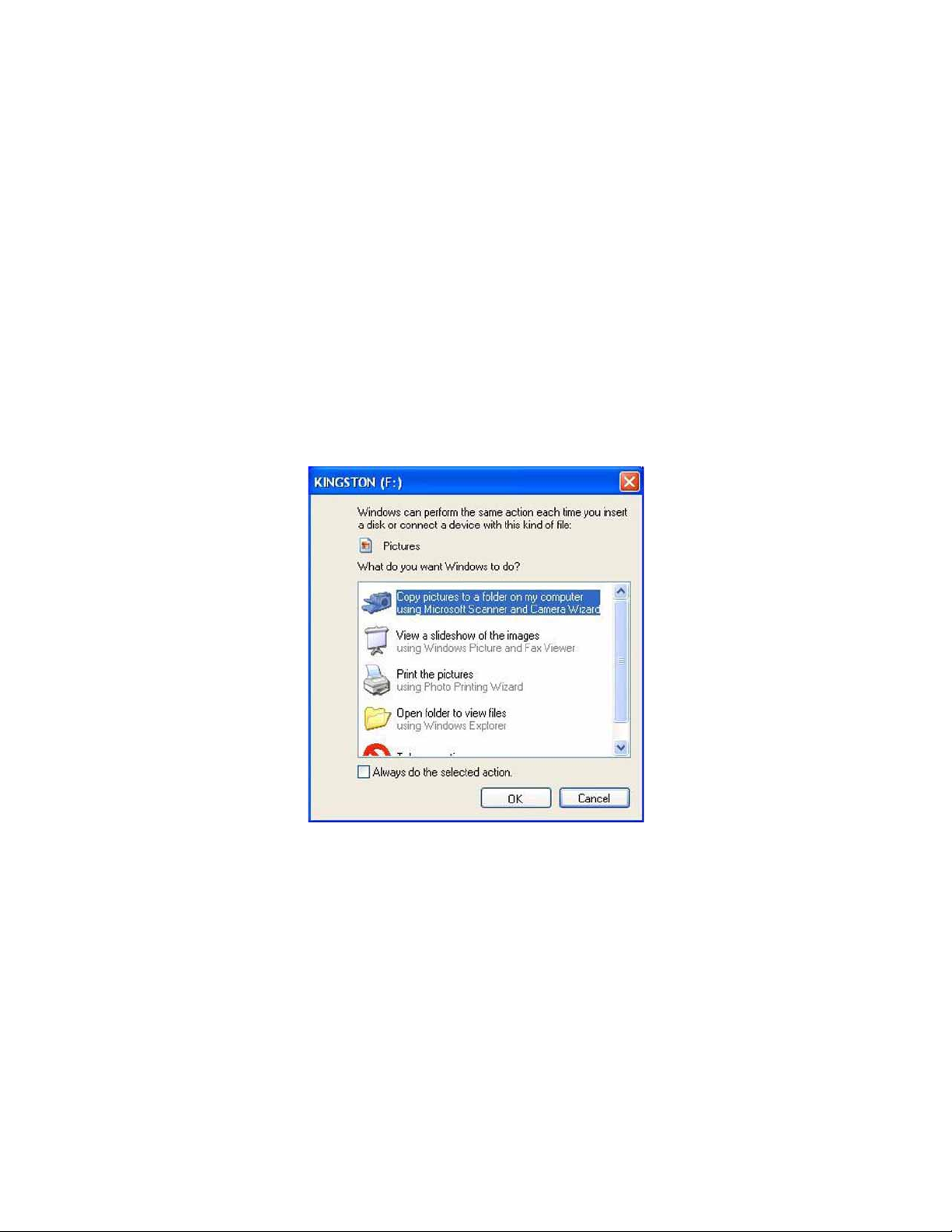

Figure 1 USB Storage Device Configuration Menu

Installation Note N9030-90078 7

Installation Procedure over USB

7. The signal analyzer will automatically consume the License File. (This may take a few minutes)

When the License File is consumed the Keysight License Manager will display a “Successful

License Installation” message similar to the one shown in Figure 2.

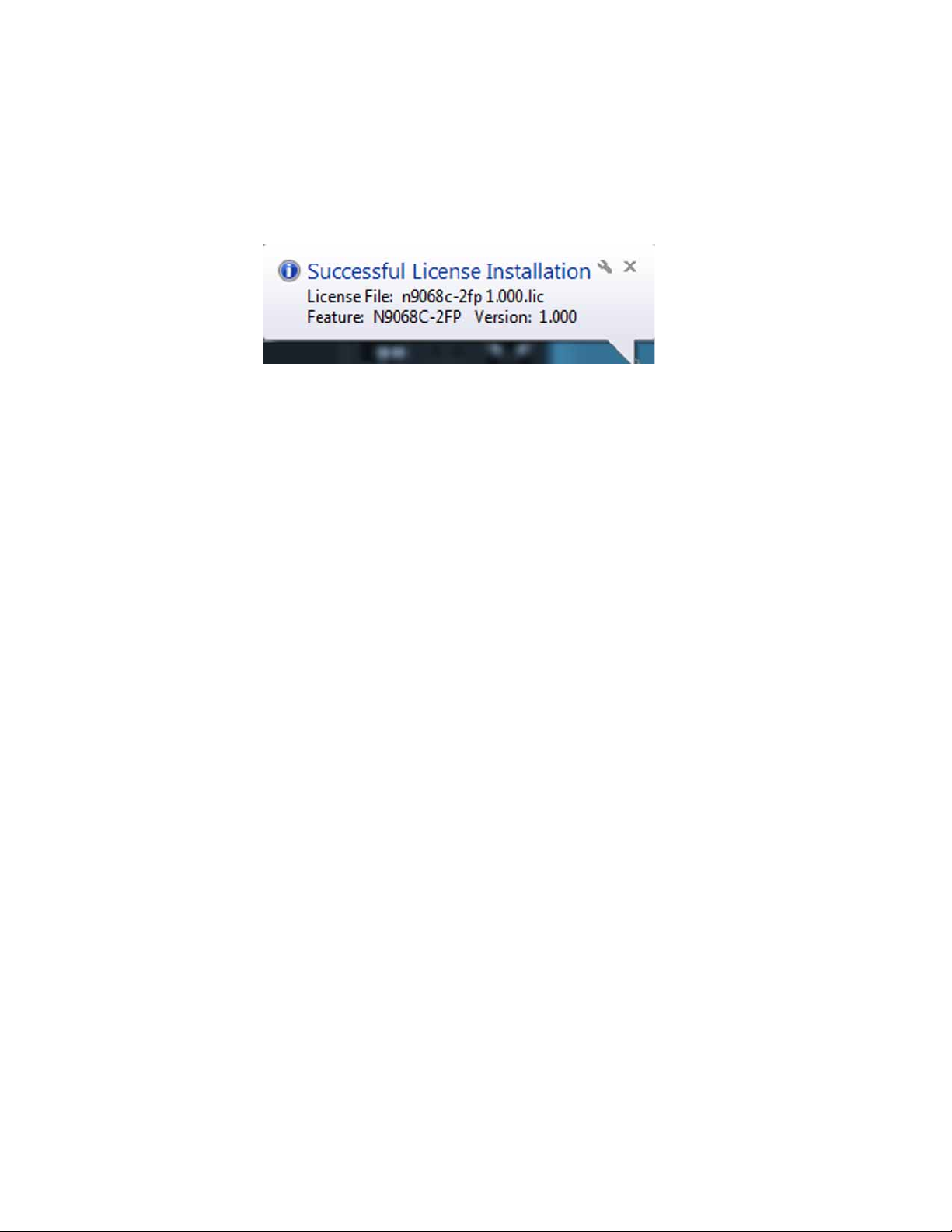

Figure 2 Successful License Installation

Alternate Installation Procedure

The License File can be manually installed over USB or LAN by placing the license file in the

following folder on the signal analyzer

C:\Program Files\Agilent\licensing

Verify the Installation

1. Press System, Show System to display a list of installed options.

2. Verify that N9030B-C35 appears on the list.

8Installation Note N9030-90078

Adjustments, and Performance Verification Tests

Calibration Software and specified test equipment is required to perform the adjustments and the

performance verification testing. Information on how to obtain this software can be found at

http://www.keysight.com/find/calibrationsoftware

Adjustments Required

Performance Testing Required

The following performance verification tests are the minimum set required to ensure that this newly

installed option is functioning properly. Performing only these tests does not guarantee the

instrument meets all specifications.

A full calibration is required to assure the instrument meets all specifications

The end user must ultimately determine whether they want a full calibration to be performed after

the installation of this upgrade or not. If a full calibration is required, arrangements regarding the

level of calibration must be made between the end user and the calibration provider.

For assistance, contact your nearest Keysight Technologies Sales and Service Office. To find your

local Keysight office access the following URL, or if in the United States, call the following

telephone number:

http://www.keysight.com/find/assist

1-800-829-4444 (8 am - 8 pm ET, Monday - Friday)

Adjustments

None anticipated, but dependent on possible performance test results.

Performance Verification Tests

Frequency Response (all available tests)

Residual Responses

This information is subject to change

without notice.

Edition 1, February 2016

N9030-90078

www.keysight.com
