Jabra 9350e Mode d’emploi

Installing the 9350e & HHC

(H d i h H d C l)

h H

set

ontro

for use with Cisco Phones

Ph & PC U d El t i H k it h C bilit

one

& PC U

d El

ron

h C

apa

bilit

*Soft phone instructions for Windows users are the

later portion of the instructions

Click to Begin

Step 1

Unpack the package contents to prepare for installation.

If you need assistance call 1-800-964-6444 Monday – Friday 8am-8pm EST

NextBack

Step 2

Remove the cover from the headset base.

If you need assistance call 1-800-964-6444 Monday – Friday 8am-8pm EST

NextBack

Connect one end of the provided straight connection cable to

Step 3

Connect one end of the provided straight connection cable to

the Cisco telephone base in the headset port and the other

to the headset base in the full telephone port. «

Straight Connection Cable Telephone Port

Headset Port «

If you need assistance call 1-800-964-6444 Monday – Friday 8am-8pm EST

Back Next

Enlarge Picture

Connect the

rovided USB cable to the headset base in

Step 4

the USB port. Do not connect to the PC at this

time.

USB Cable USB Port

If you need assistance call 1-800-964-6444 Monday – Friday 8am-8pm EST

Back Next

Connect the

rovided AC

ower ada

ter to the headset

Step 5

ppp

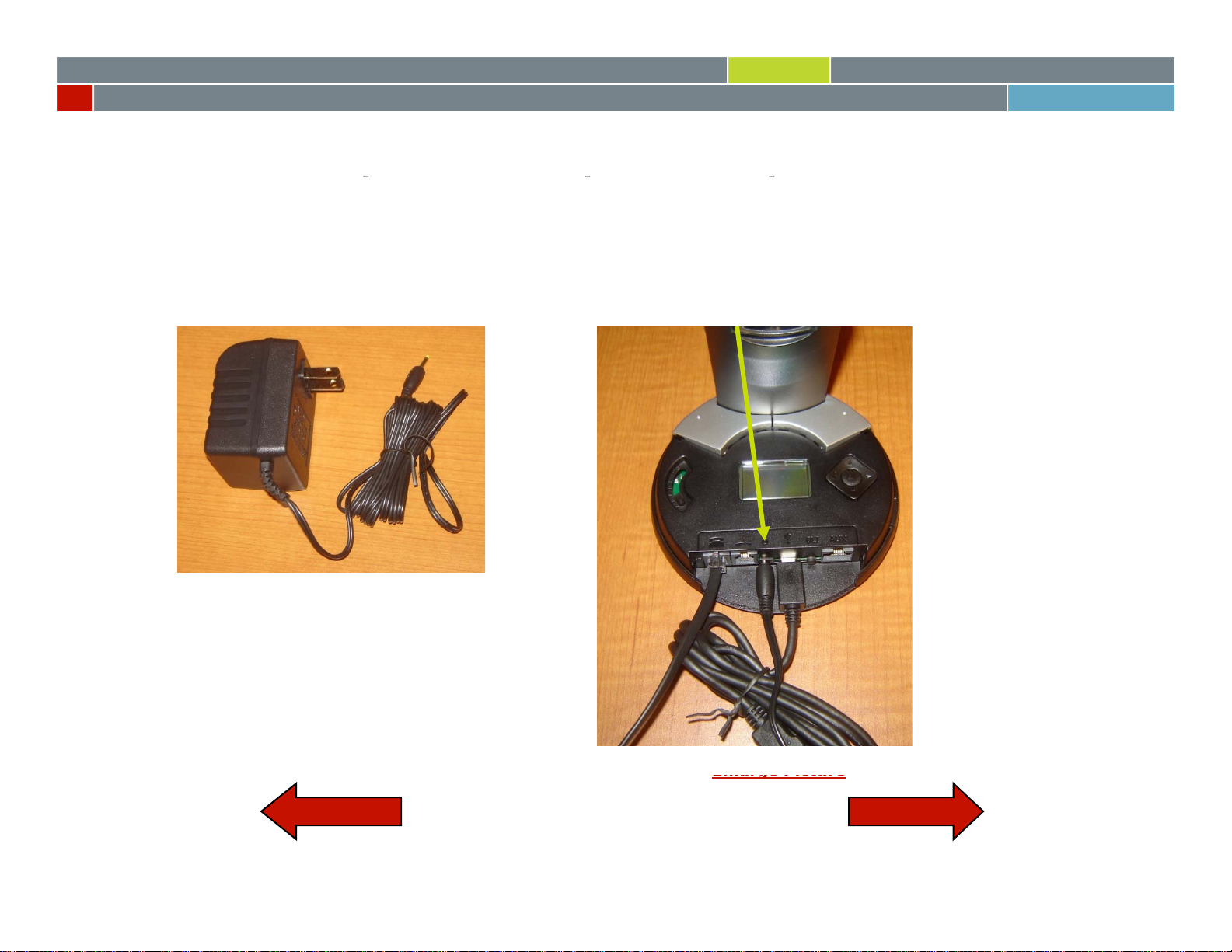

base in the AC power adapter port. Do not connect to

an electrical outlet at this time.

AC Adapter AC Power Adapter Port

Enlarge Picture

If you need assistance call 1-800-964-6444 Monday – Friday 8am-8pm EST

Enlarge Picture

Back Next

Connect one end of the Jabra HHC Adapter to the

headset base in the AUX port and the other to the

Step 6

headset base in the AUX port

and the other to the

Cisco telephone base in the AUX port.

HHC Cord

AUX Port

AUX Port on Phone

HHC Cord

AUX Port

AUX Port on Phone

Enlarge Picture

If you need assistance call 1-800-964-6444 Monday – Friday 8am-8pm EST

Back Next

Connect the headset microphone to the speaker A blue

Step 7

Connect the headset microphone to the speaker

A blue

light will flash briefly when attached.

Microphone and battery

1. 2.

3. 4.

If you need assistance call 1-800-964-6444 Monday – Friday 8am-8pm EST

Back

Attach your wearing style of choice to the speaker

Step 8

Attach your wearing style of choice to the speaker

Click hyperlinks below to see wearing styles attached to the speaker

Headband Behind the Neck Earhook

If you need assistance call 1-800-964-6444 Monday – Friday 8am-8pm EST

Back

Dock the headset on the headset base The contacts

Step 9

Dock the headset on the headset base

The contacts

under the headset speaker should rest on the contacts

on the base.

Fully DockedUnderside of Headset Base

If you need assistance call 1-800-964-6444 Monday – Friday 8am-8pm EST

Back
