Intellinet 560665 Manuel utilisateur
8-PORT PoE
WEB-MANAGED
DESKTOP GIGABIT
SWITCH
USER
MANUAL
MODEL 560665
INT-560665-UM-0114-02
intellinet-network.com
FCC Warning
This Equipment has been tested and found to comply with the limits for a Class-A
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy. It may
cause harmful interference to radio communications if the equipment is not installed
and used in accordance with the instructions. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
CE Mark Warning
This is a Class-A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
1
Content
Content 1
Introduction 2
Hardware Description 5
UserLogIn 7
Administrator 8
Port Management 13
VLAN Setting 17
Per Port Counter 21
QoSSetting 22
Security 24
Spanning Tree 26
Trunking 29
Backup/Recovery 30
Miscellaneous (IGMP) 31
Logout 32
2
Introduction
Product Overview
This 8 ports 10/100 Mbps high power PoE+ web-smart switch includes
auto-MDI/MDIX crossover detection function. 8 of those ports are all built with
PoE+ functionality, providing the ultimate choice in network flexibility. With this
added PoE+ feature, this switch is an ideal solution for building wireless, IP
surveillance, and VoIP networks.
This 8 ports web-smart PoE+ switch provides a port-based and 802.1Q tag
VLAN function to provide better traffic management, reduce latency, improve
security and save bandwidth. This is also a cost-saving feature as it reduces
the need to add additional hardware to the network.
The switch has 8 10/100BASE-TX ports that support the IEEE 802.3af/at PoE+
protocol. Each port and transmit a maximum power 15.4 watts. User can also
enable or disable power supply on PoE+ ports from UI.
Web Management Features
Port Management
Port Configuration
Port Mirroring
Bandwidth Control
Broadcast Strom Control
PoE+ On/Off Setting
VLAN Setting
Port-based/ Tag-based
VLAN ID: 1~4094
Trunking
Link Aggregation Setting
2 groups (1~4 port for each group)
QoS Setting
Priority Mode
Class of Service Configuration
TCP/UDP Port-based
Security Setting
MAC address filtering
3
TCP/UDP Port filtering
Spanning Tree Protocol
STP Bridge Settings
STP Port Settings
Backup Recovery Configuration
Miscellaneous
IGMP Snooping V1/V2
Specifications
Standard
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3x Full-duplex and Flow Control
IEEE 802.af PoE+
IEEE 802.at High power PoE+
IEEE 802.3ad Link Aggregation
IEEE 802.1d Spanning tree protocol
IEEE 802.1w Rapid Spanning tree protocol
IEEE 802.1Q VLAN
IEEE 802.1p Class of Service
Number of Port
8-port 10/100BaseTX with high power PoE+
Mechanical
LED Indicator
Per Port: Link/ Act
PoE+ Port: Act/Status
Per Unit: Power
Power Consumption: 130Watts (Max)
Power Input: 100~240V/AC, 50~60HZ
Power Output: 48V/DC per Port Output – 30W Max per Port
Product Dimensions/ Weight
266 × 160 × 44 mm (L × W ×H) / 1.6kg
4
Performance
MAC Address: 4K
Buffer Memory: 1.625Mb
Transmission Method: Store and Forward

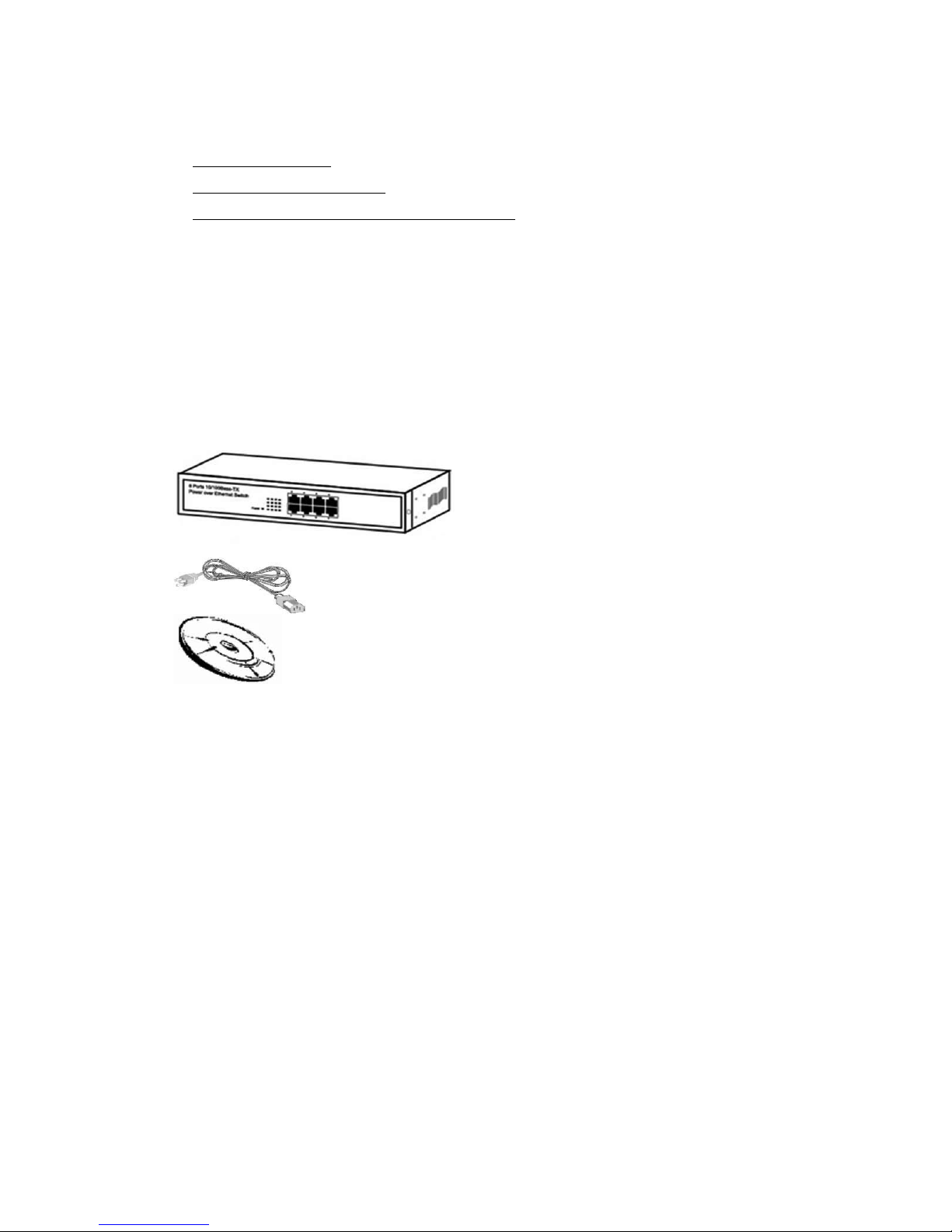

Package Contents
Before you start to install this switch, please verify your package that
contains the following items:
One Fast Ethernet PoE+ Switch
One Power Cord
User Manual
5
Hardware Description
This section mainly describes the hardware of the 8 PoE+ port Ethernet
Combo Web-Smart Switch and gives a physical and functional overview on the
certain switch.
Physical Dimensions/ Weight
260 × 160 × 44 mm (L × W × H) / 1.6kg
Front Panel
The front Panel of the Web Managed Switch consists of 8 10/100Base-TX
RJ-45 ports. The LED Indicators are also located on the front panel.
LED Indicators
The LED Indicators present real-time information of systematic operation
status. The following table provides description of LED status and their
meaning.
Table 1-1 LED Indicators
LED Status Description
Power On Power is on.
Off Power is off.
Blink Reset Button for 3 seconds
PoE+ On Port is Linked to Power Device
Off No Power Device is connected
Link/Act
On The port works in 10/100M
Blinks
(continuously) Networking is active
Off No device attached
LED
Display RJ-45 Port
Reset
Button
6
Rear Panel
The 3-pronged power plug is placed at the rear panel of the switch right side
shown as below.
Hardware Installation
Set the switch on a large flat space with a power socket close by. The flat
space should be clean, smooth, level and sturdy. Make sure there is enough
clearance around the switch to allow attachment of cables, power cord and
allow air circulation. The last, use twisted pair cable to connect this switch to
your PC then user could start to operate the switch.
7

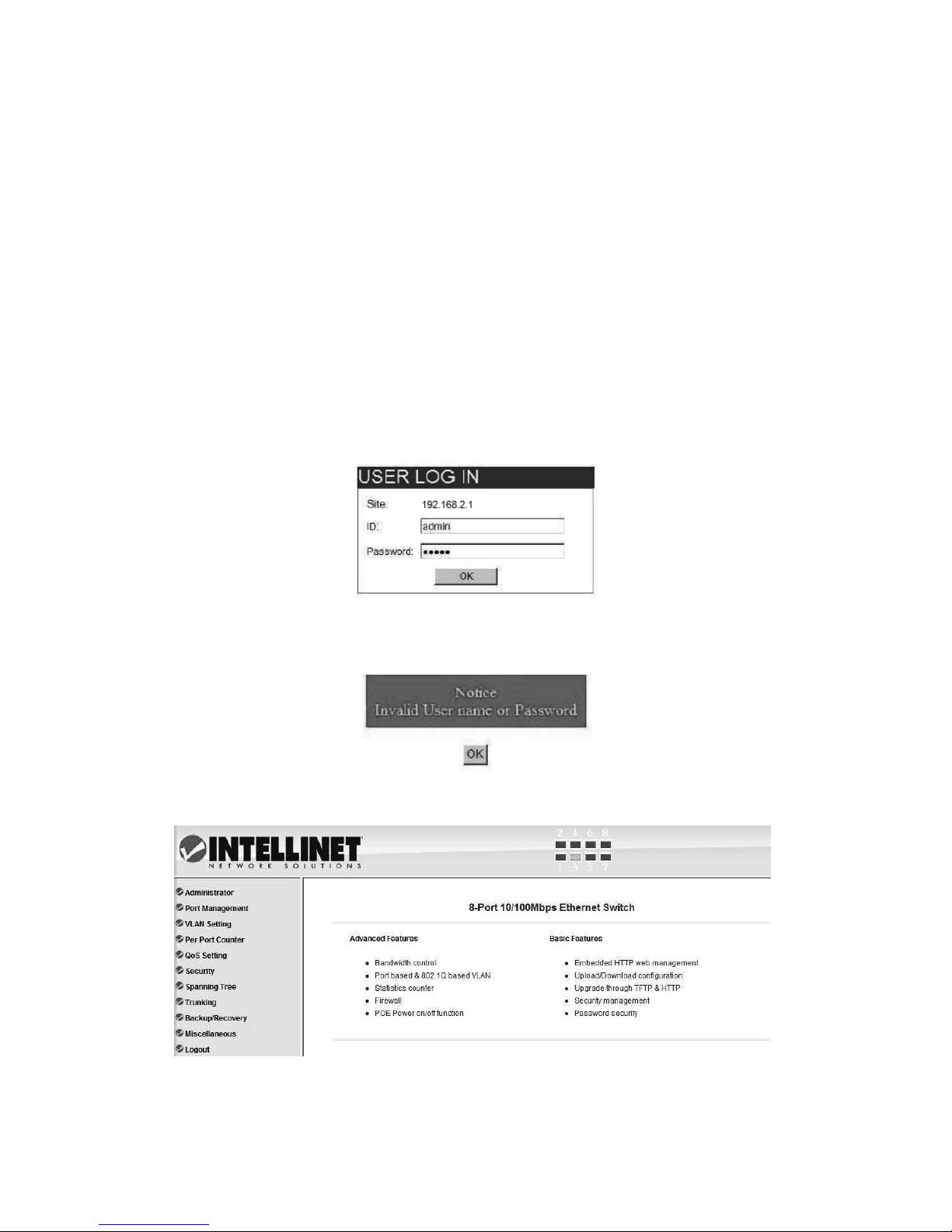

User Log In
This part instructs user how to set up and manage the switch through the web
user interface. Please follow the description to understand the procedure.
At the first, open the web browser, and go to 192.168.2.1 site then the user will
see the login screen. Key in the password to pass the authentication then
clicks the OK.The log in process is completed and comes out the sign
“Password successfully entered”.
Log in
ID: admin
Password: admin
Figure 1-1-1
※Note: It will show error message if you key in wrong user name or password.
Figure 1-1-2
Main Page
Figure 1-2
8
Administrator
Authentication Configuration
This page shows authentication configuration information. User can set new
Username and Password in this page.
Figure 1-3
System IP Configuration
This page shows system configuration including the current IP address and
sub-net mask and gateway.
Figure 1-4
User can configure the IP settings, Subnet Mask, Gateway as below:
IP address: Manually assign the IP address that the network is using. The
default IP is 192.168.2.1
Subnet Mask: Assign the subnet mask to the IP address.
Gateway: Assign the network gateway for industrial switch. The default
