Intellinet 156066 Manuel utilisateur

DVI

KVM

SwItch

uSer

Manual

MODEL 156066

INT-156066-UM-0808-01

IntroDuctIon

Thank you for purchasing the INTELLINET NETWORK SOLUTIONS™

DVI KVM Switch, Model 156066.

This convenient device lets you control up to four USB computers with

one PS/2 keyboard, PS/2 mouse and DVI-I video monitor. Easy switching

can be done using hot keys or logically designed push-button selectors,

and setup is relatively simple since no software needs to be installed.

Follow the steps in this user manual and you’ll also soon be enjoying

the benets of these additional features:

• Flash upgradeable for rmware compatibility

• Built-in microphone and speaker jacks for multimedia environments

• LEDs for easy monitoring of selected computers

• AutoScan mode for monitoring computers

• Supports digital video resolutions of up to 1600 x 1200

• Supports Windows 98/2000/Me/XP/Vista, Free BSD, Linux

• Lifetime Warranty

FCC Warning

This equipment has been tested and found to comply with the limits for

a Class B digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates uses

and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a circuit different from the

receiver’s.

• Consult the dealer or an experienced radio/TV technician for help.

Operation is also subject to these two conditions: 1) This device may not

cause harmful interference; and 2) This device must accept any interference

received, including interference that may cause undesired operation.

Shielded interface cables must be used to comply with emission limits, and

changes or modications not expressly approved by the party responsible

for compliance could void your authority to operate the equipment.

CE Mark Warning

This is a Class B product. In a domestic environment, this product may

cause radio interference, in which case the user may be required to

take adequate measures.

connectorS & InDIcatorS

FRONT PANEL

LEDs (1–4) — Red indicates the corresponding connected computer is

on; green indicates it’s currently selected by the switch.

REAR PANEL

Port

LEDs (4)

Headphone

jack

Microphone

jack

USB input

ports (2)

Console

audio

jack

Console DVI-I port Computer DVI-I ports (4)

Console

PS/2 keyboard

& mouse ports

Computer

USB keyboard

& mouse ports (4)

Flash

upgrade

port

Power jack

Computer

audio/mic

ports (4 pr.)

InStallatIon

When deciding where to place the DVI KVM Switch, consider the cable

lengths required to make all conguration connections, particularly of USB

cables, which typically maintain optimal signal strength when limited to

about 4.5 m (15 ft.). NOTE: Avoid placing cables near devices that output

electrical “noise” (for example, A/C equipment and uorescent lights).

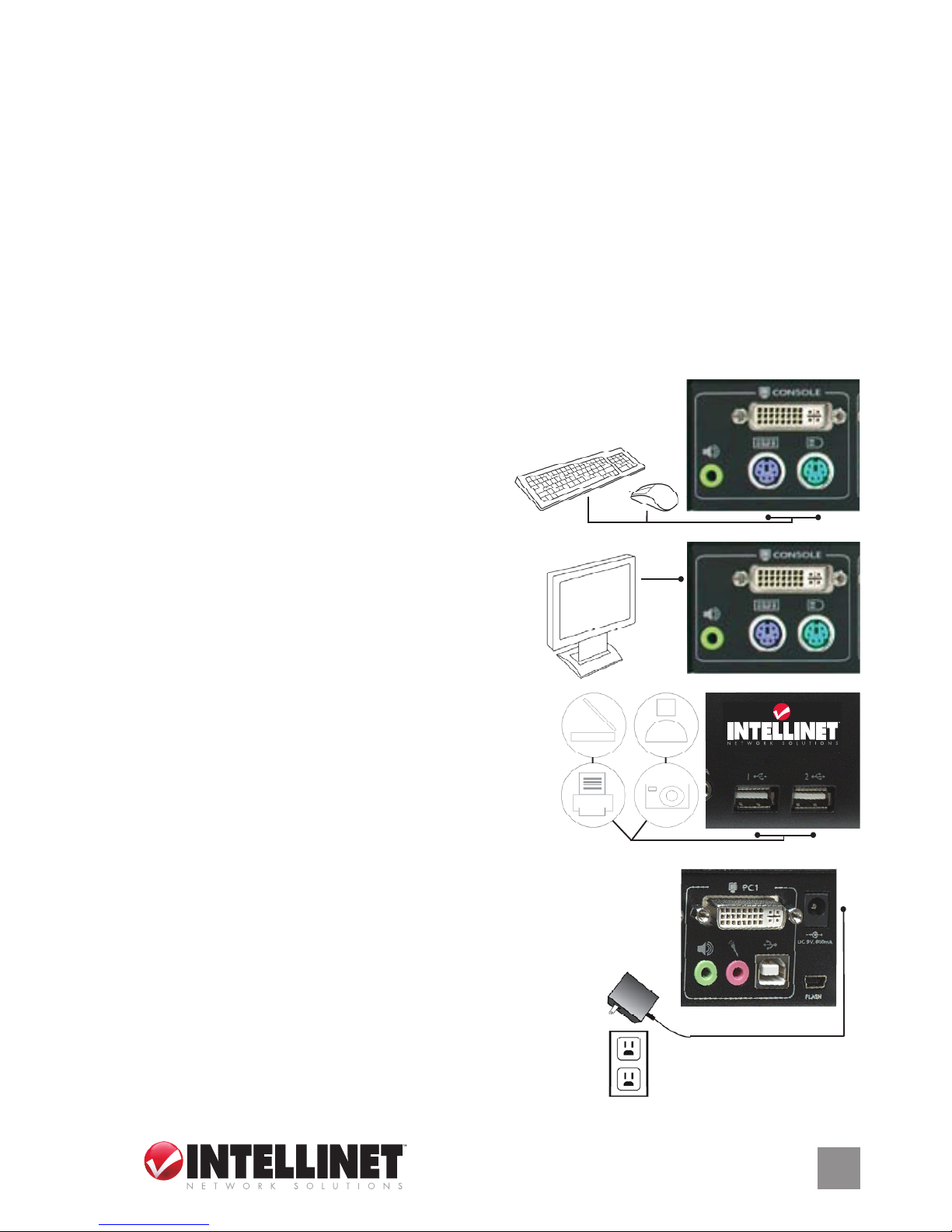

CONNECTING THE CONSOLE

1. Turn off all computers to be connected to the switch.

2. Connect your PS/2 keyboard and PS/2 mouse to

the rear-panel PS/2 keyboard and mouse ports

(as designated by the keyboard and

mouse icons on the switch).

3. Connect your DVI monitor cable to

the console DVI monitor port (as

designated by the console monitor

icon on the rear of the switch).

4. Connect any USB devices you wish

to share as “USB Device 1” or “USB

Device 2” to the USB input ports on

the front panel of the switch. NOTE:

When sharing USB devices, do not

switch while the devices are operating.

5. Connect the included power adapter to the power

jack on the rear panel of the switch, then plug the

adapter into an available AC power outlet.

CONNECTING OPTIONAL COMPONENTS

1. If desired, connect your speakers (3.5mm rear-

panel jack) and headphones/microphone (3.5mm

front-panel jacks) as designated

by the speaker, headphone and

microphone symbols. NOTE: The

switch’s front speaker and audio port

or the rear panel console speaker and

audio port can be used, but using both

front and rear speaker / audio ports

simultaneously will result in loss of audio.

CONNECTING THE COMPUTERS

1. Using a USB cable, connect the

computer’s USB port to the USB

port on the switch. Using a DVI

cable, connect one male end to the

DVI port on the computer and the other

male end to the PC1 DVI port on the switch.

OPTIONAL: Using audio cable, connect the speaker

jack on the computer to the audio jack on the switch,

and do the same for the microphone. NOTE: Audio and microphone

support is designed on a one-computer-at-a-time basis.

2. Repeat Step 1 for all computers in the conguration.

3. Turn on the computers.

operatIon

Once all cables have been connected and all computers have been

turned on, the switch emulates mouse and keyboard signals on each

port, allowing your computer to boot normally.

Accessing and controlling the computer(s) can now be done by using

either the front-panel port buttons (selectors) or keyboard hot keys.

SELECTING COMPUTERS USING HOT KEYS

You can directly change the DVI KVM Switch focus to any computer

using a simple keyboard command sequence: the Scroll Lock key and

the switch port number. Each computer is assigned a numeric ID.

1. To activate the Hot Key mode, press the SCROLL LOCK key twice

within two seconds. A beep will sound as conrmation.

2. Enter your desired switch port number (1-4). For example, if you press

SCROLL LOCK / SCROLL LOCK / 2, the computer on Port 2 will be

selected. You can also

use the Up or Down

arrow keys in lieu of a

number key to shift the

focus to the previous

(Up) or next (Down)

port.

NOTE: After switching

ports, there’s a delay of

1-2 seconds before the

video displays. This is

normal, and is due to the refresh rate of the video signal.

ADDITIONAL HOT KEY CONTROLS

Selecting USB Devices Connected to the 2-Port USB Hub

The DVI KVM Switch’s built-in two-port USB hub allows you to connect

additional shared peripherals on a “one-computer-at-a-time” basis. When

you connect a USB device to the switch, the device can be accessed

through any connected computer by using the hot key command sequence

SCROLL LOCK / SCROLL LOCK / Function Key, where F1 = PC1, F2 =

PC2, F3 = PC3 and F4 = PC4. For example, pressing SCROLL LOCK /

SCROLL LOCK / F2 switches USB hub access to the computer on Port 2.

Switching Computers But Not USB Device Access

You can change the switch’s focus without re-directing access to the

attached USB device(s). For example, you can print from one computer

Ho t Ke y Co m m a n d s

Switch to PC “X”

Switch to USB device only

Previous active PC

Next active PC

Auto Scan

Stop Auto Scan Any key

X = 1, 2, 3 or 4 Y = F1, F2, F3 or F4

and change the switch’s focus to another computer at the same time.

Just use the SCROLL LOCK / SCROLL LOCK / X sequence as explained

above to switch ports: The selected USB device will remain as it was.

NOTE: Not all USB storage devices are suitable for such dynamic port-

switching applications.

AutoScan Mode

The AutoScan feature allows you to monitor the activity of the connected

computers at regular 10-second intervals so that you can monitor the

computers’ activity without actually switching to them. NOTE: This time

interval cannot be changed.

The AutoScan hot key command sequence is SCROLL LOCK / SCROLL

LOCK / 0 (zero). NOTE: The interval between pressing these keys should

be no more than a half second. Once scanning begins, it continues until

you press any key to exit the AutoScan mode.

Flash Upgrade

With Internet ash-upgrade capability, you can update your DVI KVM

Switch with the latest rmware upgrades via a parallel connection. To do

so, you would need:

• A separate computer (not connected to the DVI KVM Switch) running

Windows 95, 98, ME, 2000, XP or Vista.

• An available parallel port on the computer.

• A custom ash cable (mini USB B-type to USB A-type).

SpecIfIcatIonS

General

• Computer connections: 4

• Selection buttons with 2-color LEDs: 4

• Port selection: hot key / push button

• Resolution: 1600 x 1200

• Flash upgrade port: mini USB A-type

Computer Ports

• VGA: 4 sets, DVI-I 29-pin female

• Keyboard & mouse: 4 sets, USB 1.1 B-type

• Speaker: 4 sets, 3.5 mm audio jack

• Microphone: 4 sets, 3.5 mm audio jack

Console Ports

• Monitor: 1 set, DVI-I 29-pin female

• Keyboard: 1 set, PS/2 mini-DIN 6

• Mouse: 1 set, PS/2 mini-DIN 6

• Device: 2 sets, USB 1.1 A-type

• Speaker: 1 set, 3.5 mm audio jack

• Microphone: 1 set, 3.5 mm audio jack

• Headset: 1 set, 3.5 mm audio jack

Environmental

• Power supply: 9 V DC, 600 mA adapter

• Dimensions (W x D x H): 235 x 133 x 44.5 mm (9.25 x 5.23 x 1.75 in.)

• Weight: 1 kg (2.2 lbs.)

• Enclosure: metal, with plastic front panel

• Operating temperature: 0 – 40˚C (32 – 104˚F)

• Storage temperature: -20 – 60˚C (-4 – 140˚F)

• Humidity: 0 – 80% RH, non-condensing

Package Contents

• 4-Port DVI KVM Switch

• DC power adapter

• Four 3-in-1 spider cables (1.8 m x 6 ft.)

• User manual
