Intellinet 524698 Manuel utilisateur
Wireless
150N UsB
AdApter
qUick
iNstAll
gUide
MODEL 524698
INT-524698-QIG-0709-02
3
Thank you for purchasing the INTELLINET NETWORK SOLUTIONS
™
Wireless 150N USB Adapter, Model 524698.
This quick install guide presents the basic steps required for setting up
and operating this device. For more detailed instructions and specications
(including FCC and CE warnings and statements), refer to the user
manual 1) on the CD enclosed with this product; 2) on the Web site
listed below; or 3) in some cases, printed and enclosed with this
product. Contact your INTELLINET NETWORK SOLUTIONS dealer
with comments or questions, or visit www.intellinet-network.com
for information on the latest software and rmware updates, related
products and additional contact information.
System Requirements
• Notebook or desktop PC with Pentium 1 GHz-compatible processor
or higher
• Windows 2000/XP/Vista
• Available Hi-Speed USB 2.0 type-A port
Package Contents
• Wireless 150N USB Adapter with detachable antenna
• USB extension cable
• Quick installation guide
• Setup CD with user manual
NOTE: Some screen images have been modied to t the format of this
guide. Screen images on all compatible operating systems are similar.
3
4
AdApter iNstAllAtioN
1. Remove the adapter’s protective cap and
attach the antenna to the adapter by
securely screwing it onto the antenna
connector.
2. With your computer on, gently insert the
adapter into a USB 2.0 port. NOTE: If the
adapter doesn’t easily slide into the port,
ip the adapter over and try again.

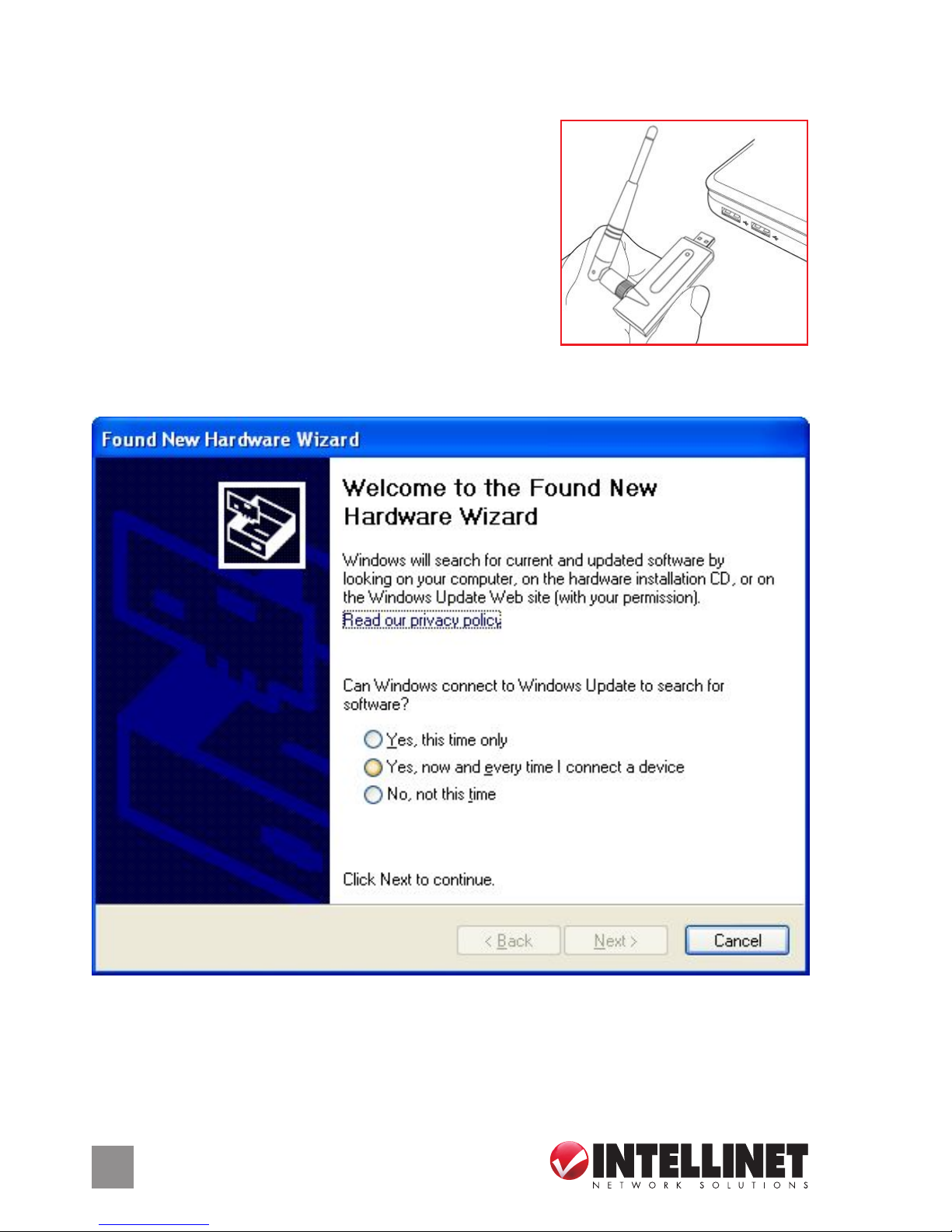

3. The Welcome to the Found New Hardware Wizard screen will display
automatically. Click “Cancel” to continue.
4. Place the included setup CD in your CD/DVD-ROM drive and run the
“Setup.exe” program. When the License Agreement displays, select “I
accept the terms of the license agreement” and click “Next” to continue.
4
5. The rst of two Setup Type screens will display. If the adapter is being
installed for the rst time, it’s recommended that you select “Install
driver and INTELLINET WLAN Utility.” To simply update the driver,
select “Install driver only.” Click “Next” to continue.
6. The second Setup Type screen presents two options for conguring
the adapter. “INTELLINET Conguration Tool” is recommended, as it
provides full access to all of the adapter’s functions. If you prefer to
use the wireless conguration tool provided by Windows XP or Vista,
select “Microsoft Zero Conguration Tool.” Click “Next.”
5
7. When the Ready to Install the Program screen displays, click “Install.”
To change any previous selections/settings, click “Back”; to exit the
InstallShield Wizard, click “Cancel.” NOTE: If the Found New Hardware
Wizard screen displays again, wait until the InstallShield Wizard
Complete screen displays.
8. When the InstallShield Wizard Complete screen displays, click “Finish.”
Wireless Ap coNNectioN
The conguration utility is a powerful application that helps you congure
the adapter and monitor link status and statistics during the communication
process.
1. Once the adapter’s installation process is complete, the icon for the
wireless conguration
utility will automatically
appear on the computer
desktop and at the
lower-right corner of
the system tray. Right-click the icon and select the conguration utility
or switch the adapter to AP mode (refer to the user manual for details).
2. The conguration utility will scan for wireless APs and access any
unencrypted wireless APs automatically. To connect to one, select/
highlight it and click “Connect.” NOTE: If a wireless access point you
want to connect to doesn’t appear in the AP List eld, click “Rescan.”
6
3. If the wireless access point uses encryption, you need to input a WEP
key or WPA preshared key. Obtain it from the owner of the wireless
AP you want to connect to, enter it in the corresponding text eld, and
click “OK.” NOTE: The authentication type is selected automatically
and shouldn’t be changed.
4. When a wireless access point is successfully connected, a blue pointer
appears to the left of its name on the AP list.
For details about advanced settings and conguration instructions for
the many additional features of the Wireless 150N USB Adapter, refer
to the user manual on the included setup CD.
7
INTELLINET NETWORK SOLUTIONS™offers a complete line
of active and passive networking products.
Ask your local computer dealer for more information or visit
www.intellinet-network.com.
Copyright © INTELLINET NETWORK
SOLUTIONS
All products mentioned are trademarks or registered trademarks of their respective owners.
