Intellinet 503273 Manuel utilisateur

PowerLine

etHernet

ADAPter

QUiCK inStALL

GUiDe

MODEL 503273

INT-503273-QIG-0407-03

Thank you for purchasing the INTELLINET NETWORK SOLUTIONS PowerLine

HD Ethernet Adapter, Model 503273. This quick install guide presents the basic

steps for setting up and operating this device. For troubleshooting suggestions

and speciﬁcations, refer to the user manual on the included CD and at www.

intellinet-network.com.

ConneCtionS

Adapter Connections & LED Indicators

NOTE: To connect the powerline network to the Ethernet network, this device can

be attached to a LAN switch port; however, each PC or server on the powerline

network needs to be directly attached to its own PowerLine adapter.

1. Plug the Cat5 cable into the Ethernet ports of the computer and the adapter.

2. Plug the adapter into an AC outlet.

IMPORTANT: Because the adapter sends data over a home’s power

lines, plug it directly into an electrical outlet. It’s recommended not to plug

the device into a power strip with surge protection. And do not plug the device

into a UPS: The adapter has its own power ﬁlter for protection against surges.

To connect the adapter to a router, disconnect the network cable from the PC

and connect it to the uplink port of the router. If only a LAN port is available on

the router, use a crossover Category 5 Ethernet network cable to connect the

adapter to the router. The installation of the adapter is complete.

ConfiGUrAtion UtiLity

After installing the adapter, run the Setup Wizard to install the PowerPacket

Conﬁguration Utility. Use this utility to check the PC’s direct connection to the AC

power line network, search for PowerLine devices on your network, and set up

security using a network password.

NOTE: If you want the devices on your PowerLine network to share

high-speed Internet access, connect the adapter to a router after you

run the PowerPacket Conﬁguration Utility (refer to the previous section).

LED STATUS DESCRIPTION

Power On Power on

Off Power off

Link/Act On AC power line port detects another PowerLine device

Blinking Looking for more PowerLine devices

Off AC power line port is not detecting another

PowerLine device

Ethernet On Ethernet port link

Blinking Ethernet activity

Off No Ethernet port link

Utility Installation

1. Insert the included utility CD, then run the

setup.exe program to begin the installation. (You

can also run the setup program using the CD’s

autorun program.)

2. When the Welcome to the PowerPacket Utility Setup Wizard screen displays,

click “Next.”

3. When the Select Installation Folder screen displays, click “Browse” to select a

folder other than the one in the “Folder” ﬁeld, and click “Next.”

4. When the Conﬁrm Installation screen displays, click “Next”; when the

Installation Complete screen displays, click “Close.”

Accessing the PowerPacket Conﬁguration Utility

To open the conﬁguration utility, double-click the PowerPacket

Utility icon on your desktop or click to open the “PowerPacket

Utility” listing in your Start menu. The Main screen will display

initially, with tabs for three other menu/screen options —

Privacy, Diagnostics and About — also described below.

Main

Local Device(s) on your computer: Devices connected locally to the host computer

are listed here (in most cases, only one device will be presented).

Connect: To choose a device if there’s more than one connected, highlight it

and click “Connect.“

Upgrade Firmware: Click to update one of the two ﬁles (PIB and NVM) that

may require updating (and display the screen below). NOTE: Proceed only

if you know that a new version f either ﬁle is available on the INTELLINET

Web site or if you’re instructed to do so by INTELLINET Tech Support.

PL65000

001

00120E000

000

MNMD-VVRD-CSNO-

OZFX

PowerLine HD Ethernet Adapter

Device Detected / Network Type / Autoscan: The number or status of these

three references is listed just above the lower-panel window: a count of all

HomePlug AV remote devices discovered to be currently on the logical

network; public or private network; and whether Autoscan is on or off.

Device Name: Devices are listed in this column by their default name (as shown)

unless re-deﬁned by clicking “Rename” or by highlighting the name and editing

it in place. An icon is usually displayed alongside the name, with a color

distinction between HomePlug 1.0 and Turbo devices.

Password: By default, this column is blank;

however, clicking “Enter Password” with

a device selected on the Main screen

allows you to set the password, which

is required when creating a private

network. When the Set Device Password

screen displays, the name of the selected

device appears above the “Password”

text ﬁeld. Enter the password, which

appears on the back panel of the

adapter, then click “OK.” NOTE: The

password is accepted regardless of the

font case entered, but do

include any dashes that

separate the four- character

alphanumeric segments. A

conﬁrmation box appears if

the password was correctly

entered. If a device isn’t found on the network, a notiﬁcation prompt will

appear, along with suggested solutions.

Quality: This indicates the quality of the transmission between two devices.

Rate: This indicates the current transmission rate of the selected device.

MAC Address: This is the device’s MAC address.

Add: Click to add a remote device to the

existing network. When the Add Device

to Network screen displays, ﬁll in the

“Device Name” and “Password” text

ﬁelds, then click “OK.” A conﬁrmation

box appears if the entries are correct. If

a device isn’t found on the network, a

notiﬁcation prompt will appear, along

with suggested solutions.

Scan: Click to search for devices that are

connected to the network. By default,

the utility automatically scans every few

seconds and updates the Local Devices list.

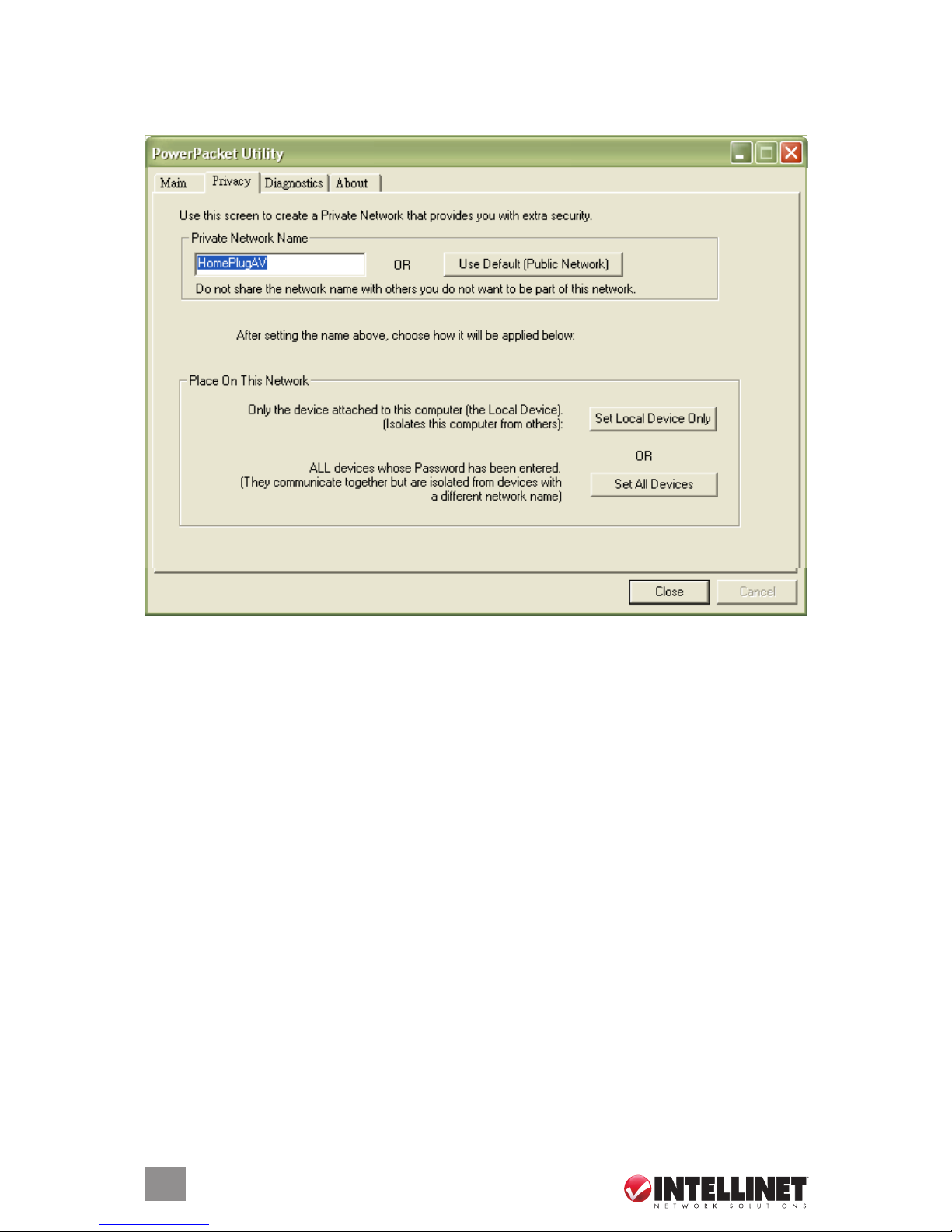

Privacy

This screen allows you to maintain security for the logical network and select

the devices to be included in the network.

Private Network Name: All PowerLine HD devices are set with a default logical

network (network name): This is normally “HomePlugAV,” and will display in

the text ﬁeld when you click “Use Default (Public Network).” Alternatively, you

can change to a private network by changing the network name (network

password) of devices. You can always reset to the PowerLine HD network

(Public) by entering “HomePlugAV” as the network name.

Set Local Device Only: Click to change the network name (network password)

of the local device. If a new network password is entered, all the devices

previously listed on the Main screen will no longer be present in the new

network, effectively preventing the local devices from communicating with

the devices in the “old” logical network. Devices previously set up with the

same logical network (same network name) will appear in the device list

after selecting this option.

Set All Devices: Click to change the logical network of all devices that appear

on the Main screen and whose passwords had been entered for the same

logical network. A dialog window will appear to report the success of this

operation. For devices whose passwords were not entered, this operation

will fail and a failure message will display.

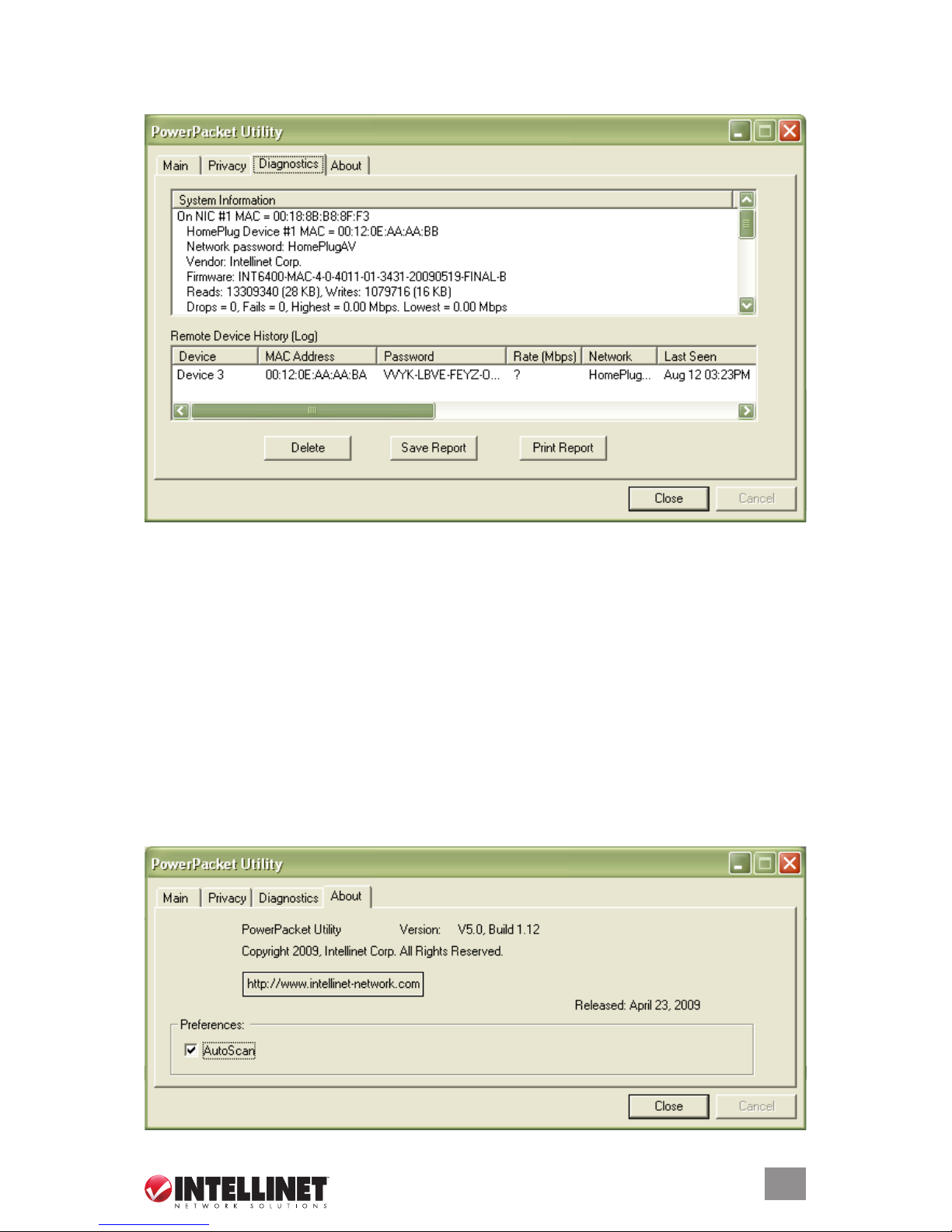

Diagnostics

This screen displays detailed information about both local and remote devices.

System Information: This window presents device names, user names, ﬁrmware

versions, packets sent/dropped/missed/failed, and other data that can be

useful in monitoring and identifying a device.

Remote Device History (Log): This window presents historical data of all remote

devices. Those currently active on the logical network show a transfer rate in

the “Rate” column; those that are inactive or no longer exist on the network

show a question mark (?) and a “Last Seen” time/date.

Delete / Save Report / Print Report: Diagnostics data can be removed, printed or

saved to a text ﬁle for later reference by clicking the appropriate button.

About

This screen displays the software version and company information. The Autoscan

feature can also be selected/activated on this screen.

www.intellinet-network.com

INTELLINET NETWORK SOLUTIONS™offers a complete line

of active and passive networking products.

Ask your local computer dealer for more information or visit

www.intellinet-network.com.

SOLUTIONS

All products mentioned are trademarks or registered trademarks of their respective owners.
