Intellinet 523974 Manuel utilisateur

WIRELESS

802.11n

USB

ADAPTER

QUICK

INSTALL

GUIDE

MODEL 523974

INT-523974-QIG-0108-01

INTRODUCTION

Thank you for purchasing the INTELLINET NETWORK SOLUTIONS

™

Wireless 802.11n USB Adapter, Model 523974.

This Quick Install Guide presents the rudimentary steps required to

set up and operate this device. For more detailed instructions and

specications, refer to the user manual 1) on the CD enclosed with this

product; 2) on the Web site listed below; or 3) in some cases, printed

and enclosed with this product. Contact your INTELLINET NETWORK

SOLUTIONS dealer with comments or questions.

NOTE: Some of the screen images have been modied to t the format

of this guide.

HARDWARE INSTALLATION

1. With the computer switched on, insert the Wireless 802.11n USB

Adapter into an empty USB 2.0 port. CAUTION: Never use force to

insert the adapter.

SOFTWARE INSTALLATION

Driver Installation

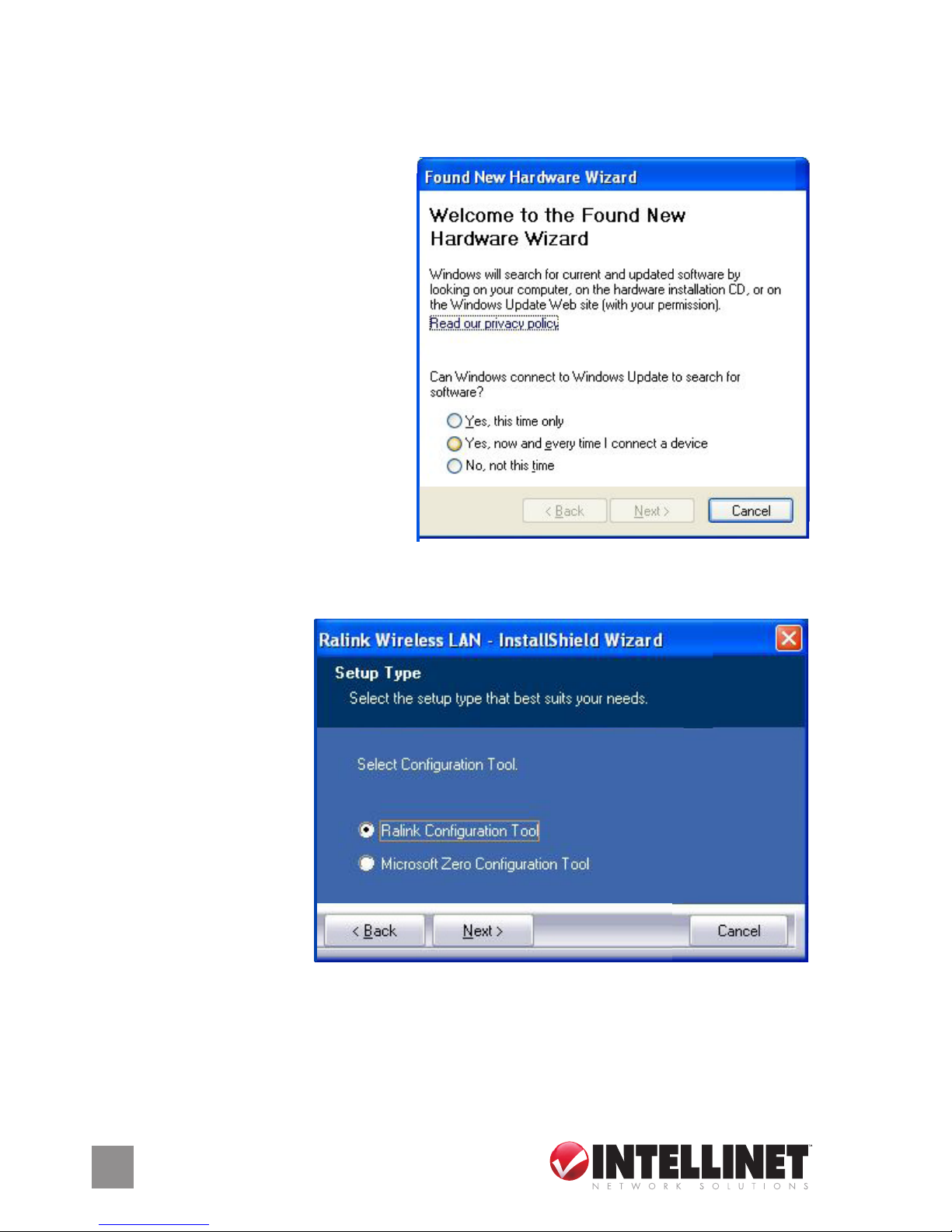

1. With the Wireless 802.11n

USB Adapter inserted and the

computer on, the Found New

Hardware Wizard displays a

welcome screen. Click

“Cancel” to continue with the

driver installation.

2. Insert the enclosed driver CD

in the CD-ROM drive and

run the “Setup.exe” program

in the “Driver” folder. When

the license agreement screen

displays, select “I accept the

terms of the license agreement,” then click “Next” to continue with the

installation.

3. When the rst

Setup Type screen

displays, the Select

Conguration Tool

panel presents two

options: “Ralink

Conguration Tool”

is recommended

because it provides

full access to all the

functions available

with this Wireless

802.11n USB Adapter; “Microsoft Zero Conguration Tool” can be

selected if you prefer using the option provided by Windows XP or

Vista. Once either of the Select Conguration Tool options has been

chosen, click “Next” to continue with the software installation.

4. When the second

Setup Type screen

displays, select

“Optimize for WiFi

mode” for wireless

compatibility, then

click “Next.” If you

want to enhance

your wireless

performance, you

can select “Optimize

for performance

mode”; however, wireless compatibility is not guaranteed in this mode.

(Refer to the user manual for details of performance mode.) NOTE: If

the Found New Hardware screen displays again, ignore it and wait for

the next screen.

5. When the InstallShield Wizard Complete screen displays, click “Finish”

to complete the driver installation.

Connecting to a Wireless Access Point

1. After compleing the

driver installation, the

wireless conguration

utility icon displays

in the lower-right

corner of your

Windows desktop. Right-click on the icon and select “Launch Cong

Utilities” from the pop-up menu.

2. The conguration utility will automatically scan for wireless access

points, and all those found will be displayed (see above). Select an

access point and click “Connect.” NOTE: If the wireless access point

you want to connect to doesn’t show here, click “Rescan.”

3. If the wireless access point uses encryption (see above), a WEP password

or WPA preshared key needs to be entered. (Obtain whichever is

needed from the owner of the wireless access point you want to connect

to.) Once the correct entry is made, click “OK.” If the value entered here

is wrong, you will not be able to connect to the wireless access point.

NOTE: Authentication Type is automatically selected and should not

be changed.

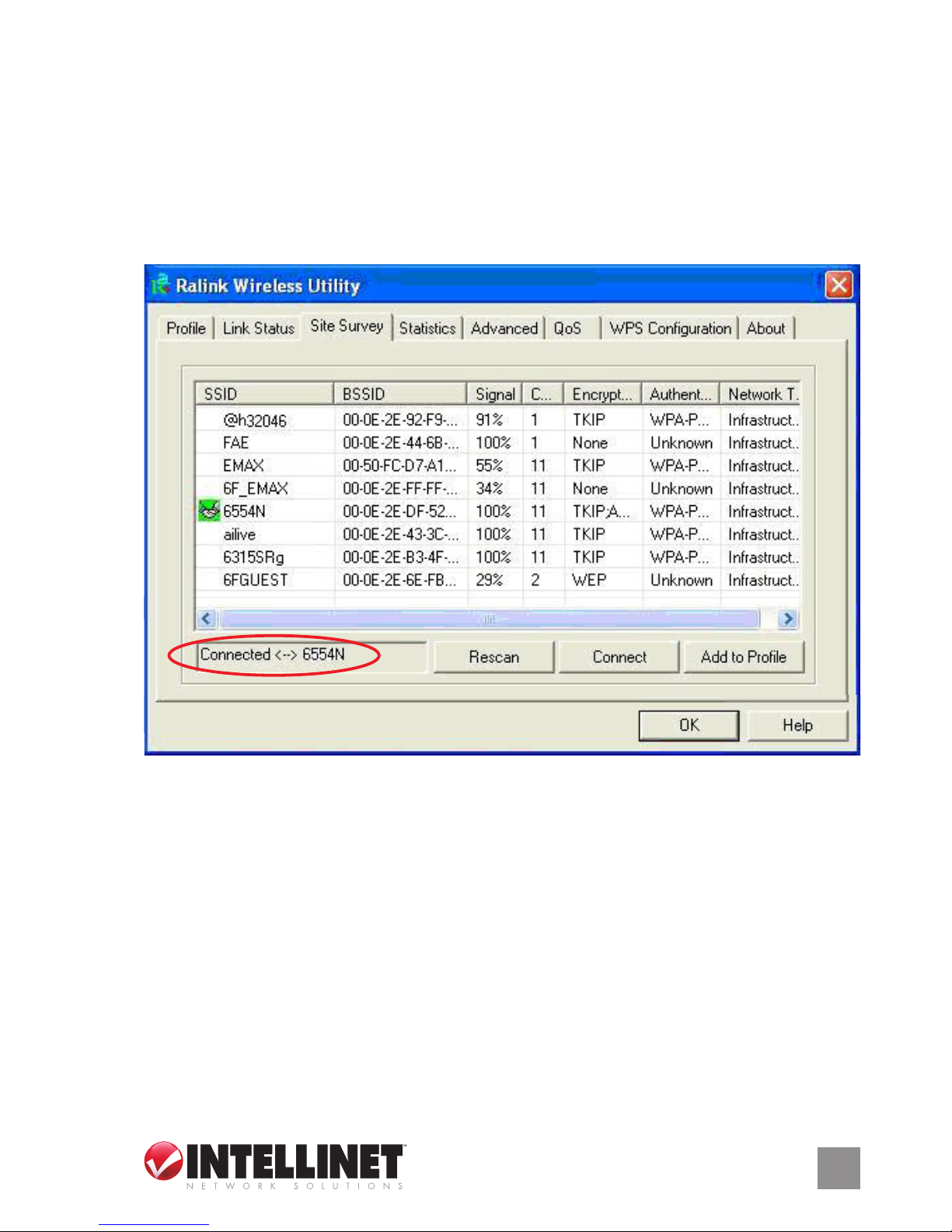

4. If the wireless access point is successfully connected, a “Connected”

message displays at the lower-left corner of the wireless conguration

utility window. Click “OK” to exit.

NOTE: For advanced settings and other features of this Wireless 802.11n

USB Adapter, refer to user manual on the enclosed CD.

INTELLINET NETWORK SOLUTIONS™offers a complete line

of active and passive networking products.

Ask your local computer dealer for more information or visit

www.intellinet-network.com.
