Intellinet 503457 Manuel utilisateur

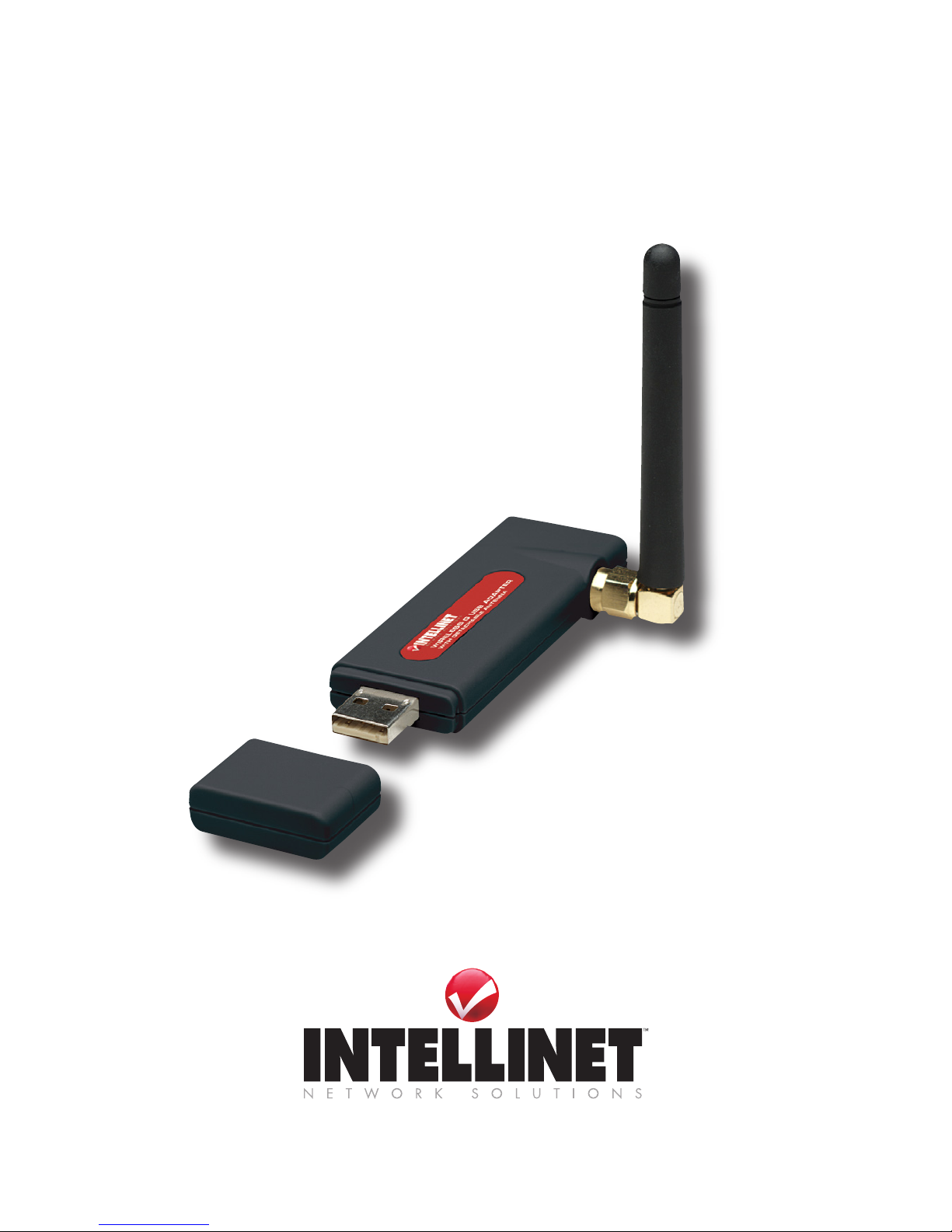

Wireless G

UsB AdApter

User mAnUAl

MODEL 503457

INT-503457-UM-1207-01

Thank you for purchasing the INTELLINET NETWORK SOLUTIONS

™

Wireless G USB Adapter, Model 503457.

Compatible with 802.11b and 802.11g wireless access points and routers,

this adapter lets you upgrade your wireless network without the need to

replace existing equipment. Transfer or receive digital images, videos

and MP3 les with link speeds of up to 54 Mbps using proven and reliable

Wireless G technology. With the easy-to-follow instructions in this manual,

you’ll soon be able to enjoy the benets of these additional features:

• Detachable 4 dBi high-gain antenna with reverse SMA connector

• Turbo Mode technology for enhanced wireless throughput

• Supports WMM (IEEE 802.11e QoS standard), prioritizing bandwidth

for multi-media applications

• Supports 64/128-bit WEP, WPA (TKIP with IEEE 802.11x), WPA2

(AES with IEEE 802.11x), providing a high level of security

• Supports Hi-Speed USB 2.0/1.1 interface

• Supports CCX 2.0 (Cisco Compatible Extensions) for radio monitoring

and fast roaming

• Lifetime Warranty

FCC CertiFiCations

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment to an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

CAUTION: Any changes or modications not expressly approved by the

party responsible for compliance could void the user’s authority to operate

the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject

to the following two conditions: (1) This device may not cause harmful

interference; and (2) this device must accept any interference received,

including interference that may cause undesired operation.

FCC rF radiation exposure statement

This equipment complies with FCC RF radiation exposure limits set forth

for an uncontrolled environment, and should be installed and operated with

a minimum distance of 2.5 cm (1 in.) between the radiator and your body.

SAR (specic absorption rate) compliance has been established in laptop

computer congurations with a USB port on the side near the center, as

tested in the application for certication, and can be used in laptops with

substantially similar physical dimensions, construction and electrical and

RF characteristics. Use in other devices, such as PDAs or lap pads, is

not authorized. This transmitter is restricted for use with the specic

antenna(s) tested in the application for certication. The antenna(s) used

for this transmitter must not be co-located or operated in conjunction with

any other antenna or transmitter.

r&tte ComplianCe statement

This equipment complies with all the requirements of Directive 1999/5/EC

of the European Parliament and the Council of March 9, 1999, on radio

equipment and telecommunication terminal equipment (R&TTE) and the

mutual recognition of their conformity. The R&TTE directive repeals and

replaces Directive 98/13/EEC (Telecommunications Terminal Equipment

and Satellite Earth Station Equipment) as of April 8, 2000.

eu Countries intended For use

The ETSI version of this device is intended for home/ofce use in Austria,

Belgium, Denmark, Finland, France, Germany, Greece, Ireland, Italy,

Luxembourg, the Netherlands, Portugal, Spain, Sweden and the U.K., and

is also authorized for use in EFTA member states Iceland, Liechtenstein,

Norway and Switzerland. (EU countries not intended for use: none.)

tABle of contents

Installation ..........................................................................................6

 ....................................................................................7

Site Survey...................................................................................9

Prole ................................................................................................10

Prole Conguration ............................................................. 11

Prole Authentication & Security .......................................... 12

802.1x Setting/Certication................................................... 16

802.1x Setting/CA Server...................................................... 17

Link Status ................................................................................. 18

Statistics .................................................................................... 19

Advanced ................................................................................... 20

QoS............................................................................................ 23

About.......................................................................................... 24

WPS Conguration .................................................................... 25

SoftAP ..................................................................................................... 26

Conguration ............................................................................. 26

Authentication vs. Security ........................................................ 29

Access Control .......................................................................... 31

MAC Table ................................................................................. 32

Event Log................................................................................... 32

Statistics ....................................................................................33

About..........................................................................................33

...................................................................................34

NOTE: Some screen-shot images have been modied to t the format

of this user manual.

CONTENTS

section page

instAllAtion

Prior to connecting the Wireless G USB Adapter:

• Uninstall any previously loaded versions of the driver and utility.

• Install the software program from the CD. NOTE: The following Windows

XP procedure is similar for Windows 98SE/Me/2000/2003/Vista.

1. Insert the setup CD in the CD-ROM drive and run the setup program.

2. Read the license agreement that displays; click “Yes” to proceed.

3. In Windows XP, a “Microsoft (Windows) Zero Conguration Tool” option

displays. It’s recommended that the alternative “Ralink Conguration

Tool” option be selected, as it features more functions. Click “Next.”

4. To run the adapter at a higher speed, select “Optimize for performance”

to enable the Tx Burst mode. Otherwise, “Optimize for WiFi” sets the

adapter to run with a standard wireless network. Click “Next.”

INSTALLATION

5. Once the software

installation begins,

a Setup Status

screen is followed

by a prompt to

connect the Wireless

G USB Adapter to

your computer. The

system automatically

detects the adapter.

NOTE: In Windows

Vista, a Found New

Hardware screen

appears (as shown) when the adapter is connected. You can ignore

the message, as it will disappear once installation is complete.

6. When the Finish screen appears, click “Finish.”

confiGUrAtion

The conguration utility — which displays automatically once the adapter

is connected — is a powerful application that helps you congure the

adapter and monitor link status and statistics during the communication

process. This adapter will auto-connect to the wireless device that has

the better

signal

strength

and no

wireless

security

setting.

CONFIGURATION

The conguration utility appears as an icon in the Windows system tray

while the adapter is running. You can

open it by double-clicking on the icon.

In Windows XP, there is a “Windows Zero Conguration Tool” option for

setting up wireless clients. If you prefer to use the conguration utility,

there are two ways to switch to it instead of using the Windows tool.

option 1

1. Right-click the utility icon in the

system tray and select “Use

RaCong as Conguration

utility.”

option 2

1. Right-click the icon on the left side

of the system tray and select “View Available Wireless Networks.”

2. Click “Change advanced settings.”

CONFIGURATION

3. Uncheck “Use Windows

to congure my wireless

network settings” to

enable the utility for the

adapter. NOTE: If

“Wireless Zero

Conguration Tool” is

enabled, you can only

congure the advanced

settings or check the

link status and statistics

from the conguration

utility of the adapter.



When you open the conguration utility, the system scans all the channels

to nd access points/stations within the accessible range of the adapter

and automatically connect to the wireless device with the highest signal

strength. On the Site Survey screen, all the networks nearby are listed.

You can change the connection to another network or add one of the

networks to your own prole list.

CONFIGURATION

 This list shows all available wireless networks within

the range of the adapter. It also displays network information: SSID,

BSSID, Signal Strength, Channel, Encryption, Authentication and

Network Type. To connect to a network on the list, double-click the

item and the adapter will connect automatically to it.

 Click “Rescan” to collect the new information of all the wireless

networks nearby.

 Click “Connect” to connect to the selected network.

 Click “Add to Prole” to add the selected network to the

Prole list.



The Prole screen is for managing networks you connect to frequently.

You can add, delete, edit and activate a prole on this screen.

 The Prole List displays all the proles and their related

settings: Prole Name, SSID, Channel, Authentication, Encryption

and Network Type. indicates the activated prole is connecting;

indicates the activated prole is not connecting.

 Click to add, delete or edit the selected prole(s).

 Click “Activate” to connect to the selected prole. When a

prole is activated, the adapter will be initially connected to it.

Clicking “Add” on the Prole screen displays the Add Prole screen,

which presents 1) Conguration and 2) Authentication and Security.

CONFIGURATION

Autres manuels pour 503457

Table des matières

Autres manuels Intellinet Adaptateur

Intellinet

Intellinet 524698 Manuel utilisateur

Intellinet

Intellinet 561495 Manuel utilisateur

Intellinet

Intellinet 501262 Manuel utilisateur

Intellinet

Intellinet 524438 Manuel utilisateur

Intellinet

Intellinet 524179 Manuel utilisateur

Intellinet

Intellinet 525206 Manuel utilisateur

Intellinet

Intellinet 524766 Manuel utilisateur

Intellinet

Intellinet 524773 Manuel utilisateur

Intellinet

Intellinet PowerLine HD Ethernet Adapter 503839 Manuel utilisateur

Intellinet

Intellinet 502641 Manuel utilisateur

Intellinet

Intellinet PowerLine HD Ethernet Adapter 503839 Manuel utilisateur

Intellinet

Intellinet 501545 Manuel utilisateur

Intellinet

Intellinet ISTREAM HD 525282 Manuel utilisateur

Intellinet

Intellinet 522731 Manuel utilisateur

Intellinet

Intellinet 521499 Manuel utilisateur

Intellinet

Intellinet 503273 Manuel utilisateur

Intellinet

Intellinet 524698 Manuel utilisateur

Intellinet

Intellinet 505932 Manuel utilisateur

Intellinet

Intellinet IPI-15 Manuel utilisateur

Intellinet

Intellinet 524698 Manuel utilisateur

Intellinet

Intellinet 522496 Manuel utilisateur

Intellinet

Intellinet 524766 Manuel utilisateur

Intellinet

Intellinet PowerLine Turbo Ethernet Adapter Manuel utilisateur

Intellinet

Intellinet 503457 Manuel utilisateur

Manuels Adaptateur populaires d'autres marques

PCB Piezotronics

PCB Piezotronics 090B274 Manuel utilisateur

Auvidea

Auvidea J20 Manuel du produit

Gossen MetraWatt

Gossen MetraWatt AT3-III E Manuel utilisateur

Akribis

Akribis ITF-21-BISS-MIT Manuel utilisateur

Tenda

Tenda W54U Manuel utilisateur

ROHO

ROHO AGILITY Manuel utilisateur

PROLiNK

PROLiNK WN2001 Manuel utilisateur

Hawking

Hawking HUF2 Manuel utilisateur

Airlink101

Airlink101 AWLC4030 Manuel utilisateur

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Manuel utilisateur

Philips

Philips SWA4554S/10 Manuel utilisateur

JVC

JVC TS-C9D2B Manuel d'instructions

NETGEAR

NETGEAR A6100 Manuel utilisateur

D-Link

D-Link DWA-121 Manuel utilisateur

Philips

Philips SWA2037 Manuel utilisateur

Basalte

Basalte 0610-20 Manuel utilisateur

Yealink

Yealink EHS40 Manuel utilisateur

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Manuel utilisateur
