APOS A8

User Guide

APOS A8

05/18

Contents

1_Introduction 4

2_Presentation

2_1 Content of the box

2_2 Overview of the APOS A8

2_3 Keypad Functions

3_1 Power on/Power off the terminal

3_2 Readings cards

3_Use of the terminal

3_3 Usage of Front Camera

3_4 Headphone jack and Micro USB

4_2_1 SAM1 / SAM2 / SIM

4_2_2 MicroSD memory card

2_4 Touch Panel

4_Installation

4_1 Recommendations

4_2 Installing modules

4_3 Paper roll

4_3_1 Main characteristics of Ingenico paper roll 15

4_3_2 Installing paper roll 16

APOS A8

05/18

4_4 Battery

4_4_1 Charging the battery

4_4_2 Installing the battery

5_Recommendations 18

5_1 Safety

6_Standard

6_1 Environment (WEE, batteries and

Packaging)

7_Troubleshooting

5_2 Security of your terminal 22

5_3 Fixed installation 22

5_4 Cleaning the terminal 24

5_5 Transport and storage 24

APOS A8

05/18

1_Introduction

We hope that you will be fully satised with your new APOS A8

terminal.

Read this guide to understand and make the best use of your terminal.

It presents you the necessary information about use, installation,

maintenance, safety and security recommendations.

WARRANTY / SECURITY

Use only the power supply included with the product to

ensure best performance and safety. Maintenance should

only be provided by Ingenico authorized technician.

Failure to comply with these instructions will void the

manufacturer’s responsibility.

This symbol indicates an important Warning.

This symbol indicates a piece of advice.

APOS A8

05/18

2_Presentation

A battery pack

This user guide

The power supply unit provided with your equipment is

specially designed for Ingenico terminals. Do not use

any other power supply. The use of a power supply with

apparently similar voltage/current characteristics may

damage your terminal.

WARNING

Keep the packaging. It must be re-used whenever the

terminal is shipped.

ADVICE

Power adapter

APOS A8 terminal unit equiped with a paper roll

2_1 Content of the box

APOS A8

05/18

2_2 Overview of the APOS A8

1. Contactless landing zone 1

2. LCD and touch screen

3. Smart card reader

4. Magnetic card reader

5.Microphone

6. Easy Loading Printer

7. Power Key

8. Volume Keys

9. Front scanner

10. LEDs for

Contactless Card

11. Charging LED

12. Battery cover

13. Headphone jack

14. Micro USB connector

12 13

APOS A8

05/18

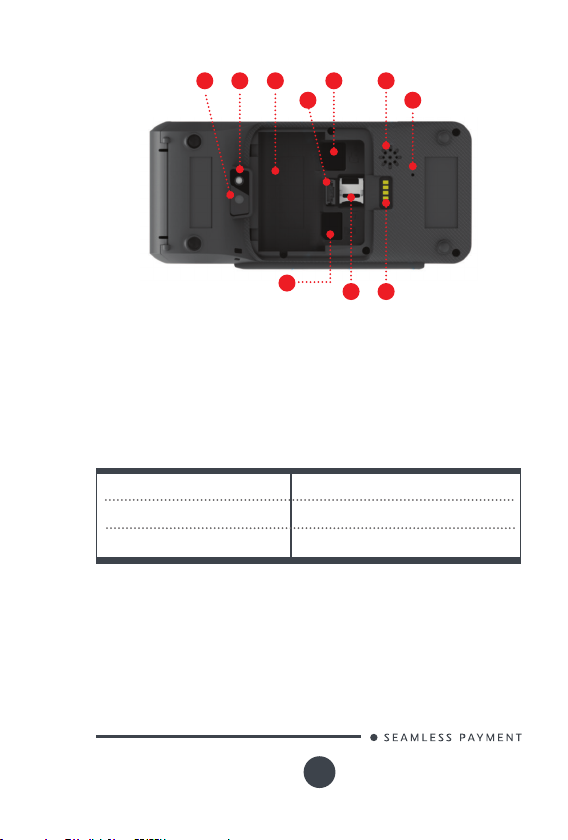

16 17

15. SIM card slot

16. MicroSD slot

17. Extended interface

18. Buzzer

19. Speaker

2224

20. SAM cards slots

21. Battery socket

22. Battery compartment

23. Flash

24. Rear camera

445g (including battery)

183mm x 84mm x 64mm

Weight

Dimension (L x W x H)

100-240VAC/50-60Hz Class II

Electrical mains network

APOS A8

05/18

2_3 Keypad Functions

The terminal has three physical keys at the upper right at the top of the

screen, a power button and two volume keys, and three touch keys at

the bottom, Menu , Home and Back keys.

Power button

2_4 Touch Panel

The APOS A8 device is equipped with touch panel that allows you

capture functions and menus by your nger or use a stylus.

Back

Home

APOS A8

05/18

3_1 Power on/Power off the terminal

3_Use of the terminal

Before using the terminal, always check if the roll of paper

is present.

ADVICE

To power on: Make sure the terminal battery is correctly installed and

Press <Power> button for about 1s until the display is turned up.

To power off: Press <Power> button for more than 2s until the display

show the following gure, then press <Power off>.

If the battery is empty, the terminal automatically shuts off.

Abnormal power off :

When the device works abnormally, for example, it is crashed and no

actions menu popped out while pressing the power button, please

long-press the power button for 6s, the device will be automatically

powered off.

Screen saver mode :

Short-press the power button for about 0.5s, the terminal display will

be turned on or off.

APOS A8

05/18

Magnetic stripe card

3_2 Reading cards

Insert the card horizontally with the metal

chip facing upward and leave in position

throughout the transaction.

Smart card

The card can be read bi-directionally, with the

stripe facing the terminal. Use a regular movement

in order to ensure a reliable card reading.
