Infineon XMC7200 Manuel utilisateur

www.infineon.com/KIT_XMC72_EVK

Quick start guide

XMC7200 evaluation kit

KIT_XMC72_EVK

Kit contents

1. XMC7200 evaluation board

2. USB Type-A to Micro-B cable

3. 12V/3A DC power adapter with additional blades

4. Six jumper wires (five inches each)

5. Quick start guide (this document)

Quick start guide

USB cable connected to the KitProg3

USB connector

Before you start

1. Ensure that you have the following:

• PC with USB port

• UART terminal soware such as Tera Term

or Minicom

2. Visit the kit website to download and install the

required soware.

Connect and power up the board

1. Ensure that jumper J10 is at position 2–3 to select

3.3 V.

2. Connect the power adapter provided with the kit

to the board (J6).

3. Connect the KitProg3 USB connector (J7)

to your PC.

Connect the kit with the UART terminal soware

1. Open the UART terminal soware and connect

to the kit’s USB-UART COM port with the

following settings:

• Baud rate: 115200, Data: 8 bit, Parity: None,

Stop bit: 1 bit, Flow control: None

2. Press the XRES button (SW1) to reset the device.

Run the pre-programmed code example

1. Observe the “Hello World!!!” message on the serial

terminal and confirm that the three user LEDs

blink one aer the other.

2. Press the Enter key to pause or resume blinking

the user LED. Alternatively, use USER BTN1 or

USER BTN2 to pause or resume the blinking.

3. Follow the instructions on the serial terminal

to run other demos.

Next steps

Visit the kit website for information on

code examples supported for this kit and

kit documentation.

Note:

The demos on the serial terminal may diﬀer because

of continuous feature enhancements.

USB-UART COM port setup

Serial terminal

Quick start guide

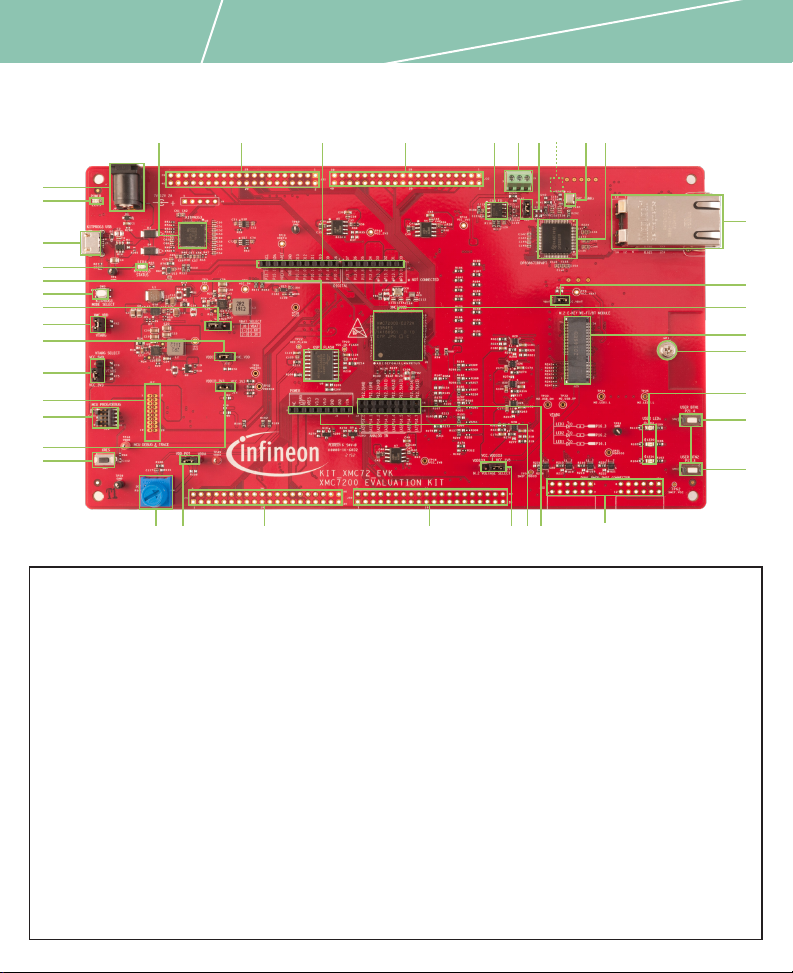

XMC7200 evaluation board details

1 External power supply VIN connector (J6)

2 Power LED (LED5)

3 KitProg3 USB connector (J7)

4 KitProg3 status LED (LED4)

5 512-Mbit serial NOR flash memory (S25FL512S – U9)

6 KitProg3 programming mode selection button (SW3)

7 VBAT power selection jumper (J8)

8 XMC7200D VTARG current measurement jumper (J15)

9 XMC7200D VDDIO2 current measurement jumper (J12)

10 System power (VTARG) selection jumper (J10)

11 XMC7200D 20-pin debug and trace header (J17)*

12 XMC7200D 10-pin SWD/JTAG program and

debug header (J16)

13 XMC7200D target I/O current measurement jumper (J14)

14 XMC7200D reset button (SW1)

15 Potentiometer (R105)

16 Potentiometer connection jumper (J18)

17 XMC7200D extended I/O headers (J29, J30, J31, J32)*

18 M.2 I/O power selection jumper (J27)

19 Power header compatible with Arduino Uno R3 (J1)

20 Analog-IN header compatible with Arduino Uno R3 (J2)

21 SMIF dual header compatible with Digilent Pmod (J21, J22)*

22 XMC7200D user buttons (SW2, SW4)

23 XMC7200D user LEDs (LED1, LED2, LED3)

24 M.2 stand-oﬀ (MT1)

25 M.2 interface connector (J25)

26 XMC7200D microcontroller (XMC7200D-E272K8384 – U1)

27 VBAT current measurement jumper (J28)

28 RJ45 Gigabit Ethernet connector (J23)

29 Ethernet physical layer (PHY) transceiver (U22)

30 25-MHz crystal for Ethernet transceiver (Y3)

31 125-MHz crystal for Ethernet transceiver (Y4)**

32 CAN FD resistor termination jumper (J20)

33 CAN FD interface connector (J19)

34 CAN FD transceiver (TLE9251VSJ – U8)

35 Digital I/O headers compatible with Arduino Uno R3 (J3, J4)

36 KitProg3 programmer and debugger based on

PSoC™ 5LP (CY8C5868LTI-LP039 – U2)

15 16 17 17 18 19 20 21

3132333417351736

* Footprint only, not populated on the board

** Component is located at the bottom side of the board

Quick start guide

See the kit guide available at the kit website for details.

XMC7200 evaluation board pinout details

Note: *Not connected

P0_0

P0_1

P1_1

P1_2

P1_3

P1_4

P2_0

P2_1

P2_2

P2_3

P2_4

P2_5

P2_6

P2_7

P4_0

P4_1

P4_2

P4_3

P4_4

GND

P3_0

P3_1

P3_2

P3_3

P3_4

P3_5

P3_6

P3_7

P5_0

P5_1

P5_2

P5_3

P5_4

P5_5

P30_0

P30_1

P30_2

P30_3

GND

Document number: 002-34393 Rev. *C

GND

P14_1

P14_0

P22_7

P22_6

P22_5

P21_7

P21_6

*P21_5

P21_4

P20_7

P20_6

P20_5

P20_4

P20_3

P20_2

P20_1

P20_0

GND

P15_2/SCL

P15_1/SDA

VREFH/AREF

GND/GND

P10_2/D13

P10_0/D12

P10_1/D11

P10_3/D10

P10_4/D9

P10_5/D8

3.3V

GND

P23_3

P23_2

P23_1

P23_0

P19_4

P19_3

P19_2

P19_1

P19_0

P18_7

P18_6

P18_5

P18_4

P18_3

P18_2

P18_1

P18_0

GND

VTARG/IOREF

XRES/RESET

V3.3/V3.3

V5.0/V5.0

GND/GND

VIN/VIN

P12_0/A8

P12_1/A9

P12_2/A10

P12_3/A11

P12_4/A12

P12_5/A13

P12_6/A14

P12_7/A15

P14_0/A0

P14_1/A1

P14_2/A2

P14_3/A3

P14_4/A4

P14_5/A5

P14_6/A6

P14_7/A7

P13_7/D7

P13_6/D6

P13_5/D5

P13_4/D4

P13_3*/D3

P13_2*/D2

P13_1*/D1

P13_0*/D0

GND

P17_7

P17_6

P17_5

P17_4

P17_3

P17_2

P17_1

P17_0

GND

P16_7

P16_6

P16_5

P16_4

P16_3

P16_2

P16_1

P16_0

GND

P12_7

P12_6

P12_5

P12_4

P12_3

P12_2

P12_1

P12_0

GND

P15_3

P15_0

P11_2

P11_1

P11_0

P10_7

P10_6

GND

P6_0

P6_1

P6_4

P6_7

P7_0

P7_5

P7_6

P7_7

P8_0

P8_1

P8_2

P8_3

P8_4

P9_0

P9_1

P9_2

P9_3

GND

P28_0

P28_1

P28_2

P28_3

P28_4

P28_5

P28_6

P28_7

P29_0

P29_1

P29_2

P29_3

P29_4

P29_5

P29_6

P29_7

P31_0

P31_1

P31_2

GND

SMIF_VDDIO

GND

SMIF_DATA7

SMIF_DATA6

SMIF_RSTON

SMIF_RWDS

SMIF_VDDIO

GND

SMIF_CLKN

SMIF_DATA5

SMIF_DATA4

SMIF_VCC

GND

SMIF_CLK

SMIF_DATA1

SMIF_DATA0

SMIF_CS_L

SMIF_VCC

GND

SMIF_DATA3

SMIF_DATA2

SMIF_RST_L

SMIF_INT_L

I/Os compatible with Arduino Uno R3

XMC7200D I/Os

Dual SMIF interface compatible with Digilent Pmod

LEGEND

*P6_6
