Infineon TRAVEO II CPU BOARD Manuel utilisateur

www.infineon.com

Please note that Cypress is an Infineon Technologies Company.

The document following this cover page is marked as “Cypress” document as this is the

company that originally developed the product. Please note that Infineon will continue

to oﬀer the product to new and existing customers as part of the Infineon product

The fact that Infineon oﬀers the following product as part of the Infineon product

portfolio.

Continuity of document content

portfolio does not lead to any changes to this document. Future revisions will occur

when appropriate, and any changes will be set out on the document history page.

Continuity of ordering part numbers

Infineon continues to support existing part numbers. Please continue to use the

ordering part numbers listed in the datasheet for ordering.

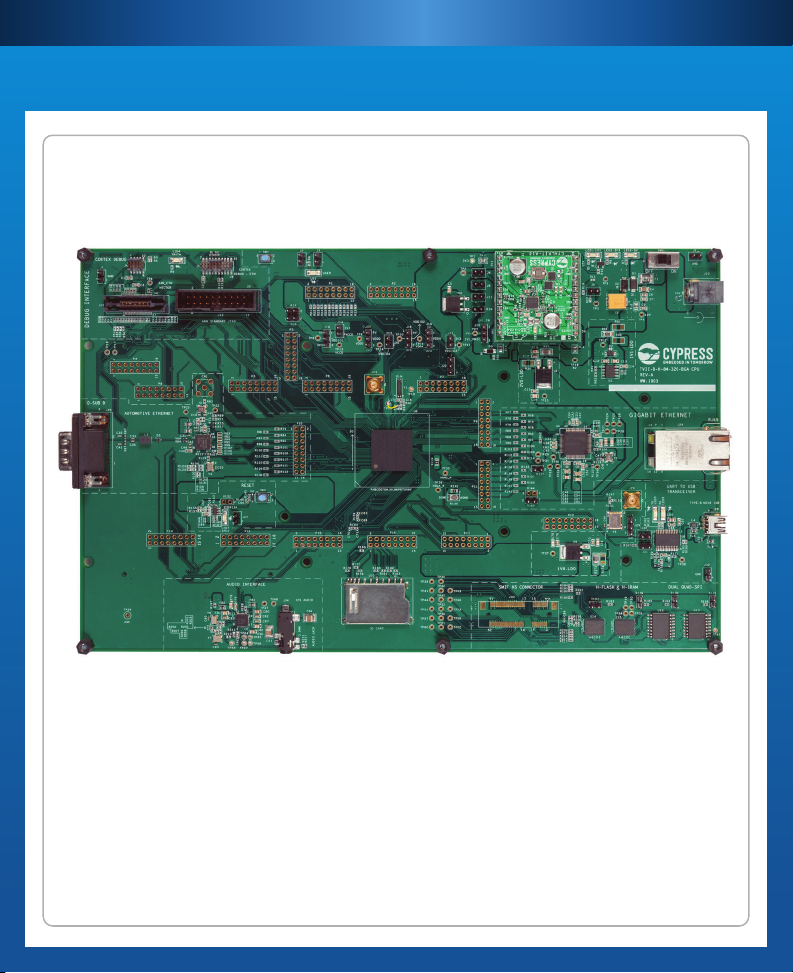

CYTVII-B-H-8M-320-BGA CPU BOARD QUICK START GUIDE

TRAVEO II CPU BOARD

Kit Contents:

1. Traveo II CPU Board CYTVII-B-H-8M-320-BGA CPU BOARD Rev.A

2. Type-B Mini USB Cable

3. 12V AC-DC Universal Power Adapter

4. Quick Start Guide (this document)

5. Screws and Spacers

TRAVEO II CPU BOARD

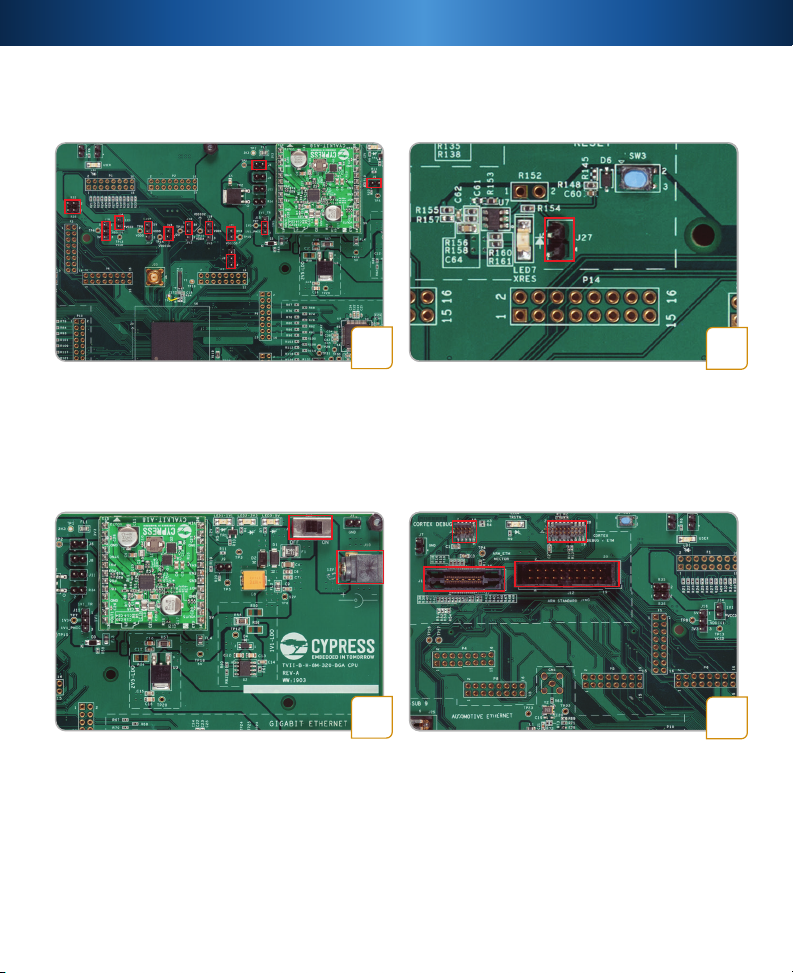

• Ensure that the Reset Jumper (J27) is inserted

CYTVII-B-H-8M-320-BGA CPU BOARD QUICK START GUIDE

•Ensure that Jumpers J14, J20, J21, J6, J9, R35 are

inserted. Jumpers J16, J17, J18, J19 should be in

position 1-2. Jumpers J22, J15 should be in position 2-3

•Connect an appropriate programming tool (IAR/GHS), to

one of the debugging interfaces -(J4, J5, J12, J13)

Use an appropriate IDE on a PC, to load a rmware SREC le into the device ash successfully.

The LED Blink Firmware is available in the Release-Package

•

Connect the 12V Adapter to J10 connector. Toggle the

switch SW2 to ON position to power ON the board

CYTVII-B-H-8M-320-BGA CPU BOARD QUICK START GUIDE

For the following documentation:

• User Guide

•Schematic

• Sample Driver Library (SDL)

• Software examples

Please use the Cypress Customer Support Portal.

Instructions:

• The Traveo II CPU Board can be used standalone to evaluate limited features of the Traveo II MCU

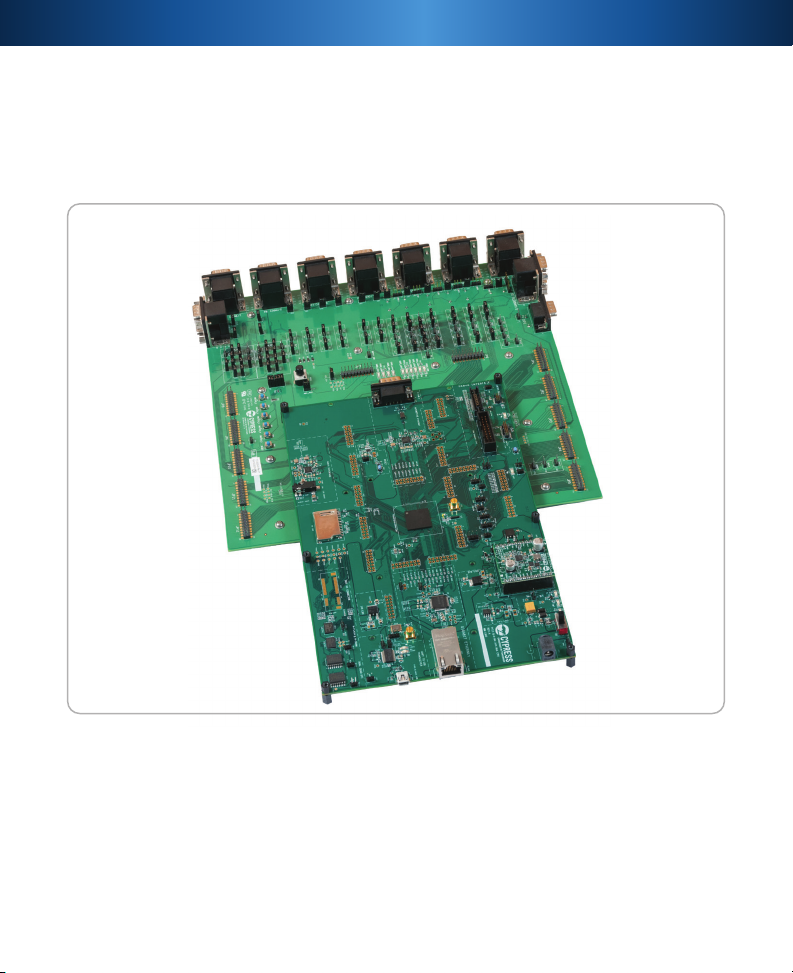

•The board can be used with Body Controller Base Board, to evaluate all the features of the MCU

TRAVEO II CPU BOARD

•To know more about the Base Board and compatibility, please use the Cypress Customer

Support Portal. (cypress.com/support)

CYTVII-B-H-8M-320-BGA CPU BOARD QUICK START GUIDE

TRAVEO II CPU BOARD

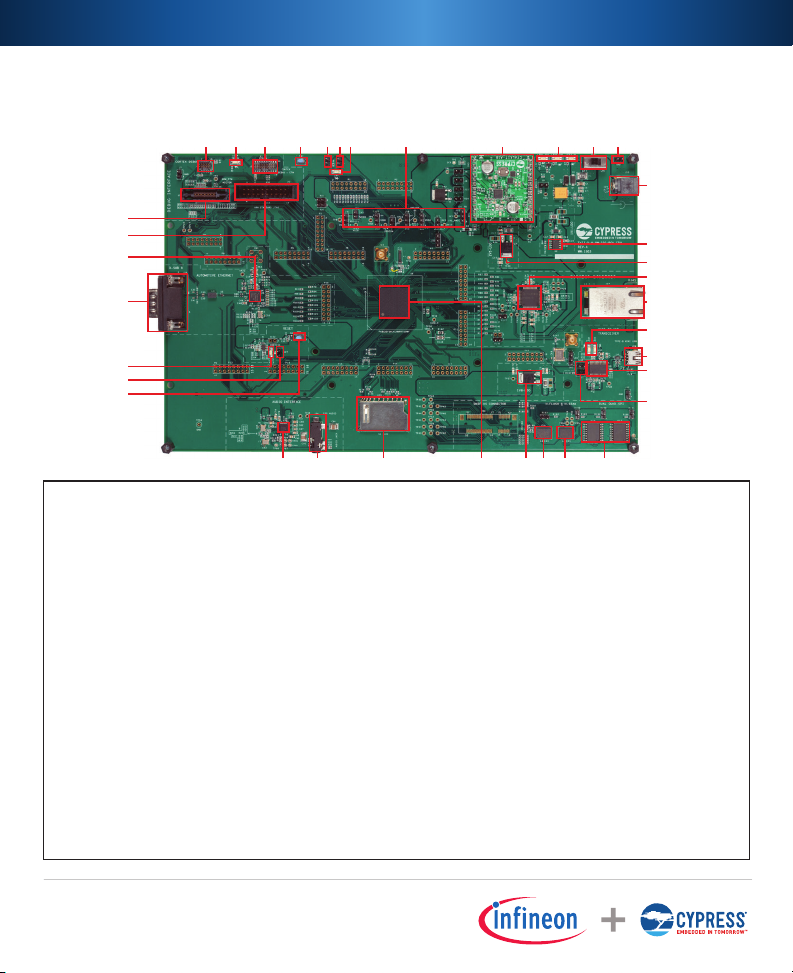

Traveo II CPU Board Details

1. MIPI-10-Cortex Debug Connector

2. MCU TAP Controller Reset LED

3. MIPI-20-Cortex Debug + ETM Connector

4. SW1 – User Switch

5. J2 – Jumper for User Switch

6. J3 – Jumper for User LED

7. LD1 – User LED

8. MCU Power Jumpers

9. Cypress PMIC

10. Power LEDs

11. SW2 – Power Switch

12. J1 – Jumper for GND Probe

13. J10 - Power Jack (12 V)

14. 1.1V LDO

15. 2.5V LDO

16. Gigabit Ethernet Controller

17. RJ45 Gigabit Ethernet Connector

18. UART Rx and Tx LEDs

19. USB Type-B Mini Connector

20. Cypress USB-Serial Controller

21. Rx and Tx Jumpers

22. Quad SPI 256M Flash Memory

23. 512M Hyper Flash Memory

24. 64M Hyper DRAM

25. 1.8V LDO

26. U6 – Cypress TVII-B-H-8M MCU

27. SD Card Connector

28. J34 – Audio Jack

29. Audio Codec

30. SW3 – MCU Reset

31. J27 - MCU Reset Jumper

32. LED7 – MCU Reset LED

33. D-SUB 9 Automotive Ethernet Connector

34. Automotive Ethernet Controller

35. 20 Pin IDC – Arm Standard JTAG Connector

36. Mictor-38- Arm ETM Mictor Connector

1 2 3 4 5 6 7 8 9 10 11 12

2223242526272829

are the property of their respective owners. 002-27228 Rev.*A
