Ikelite 6270.06 Manuel du propriétaire

Size and Weight

Width ................5.9 in (150 mm) including controls

Height ..............4.7 in (119 mm) including controls

Depth................3.0 in (78 mm) including controls & lens port

Weight ..............1 lb. (454g)

Buoyancy..........Slightly positive in fresh water

Supplied Accessories

- 0200.02 Vinyl Port Cover

- 0321.10 Safety Lanyard

- Flash Diffuser

- Flash Deflector

- 0184.1 Silicone Lubricant

- Replacement control tips/sleeves

6 2 70. 0 6 Underwa er Housing for

Panasonic LUMIX TS5, TS6, FT5, FT6

Supplemen al Ins ruc ions

ULTRA

compact

Made in USA

10 11

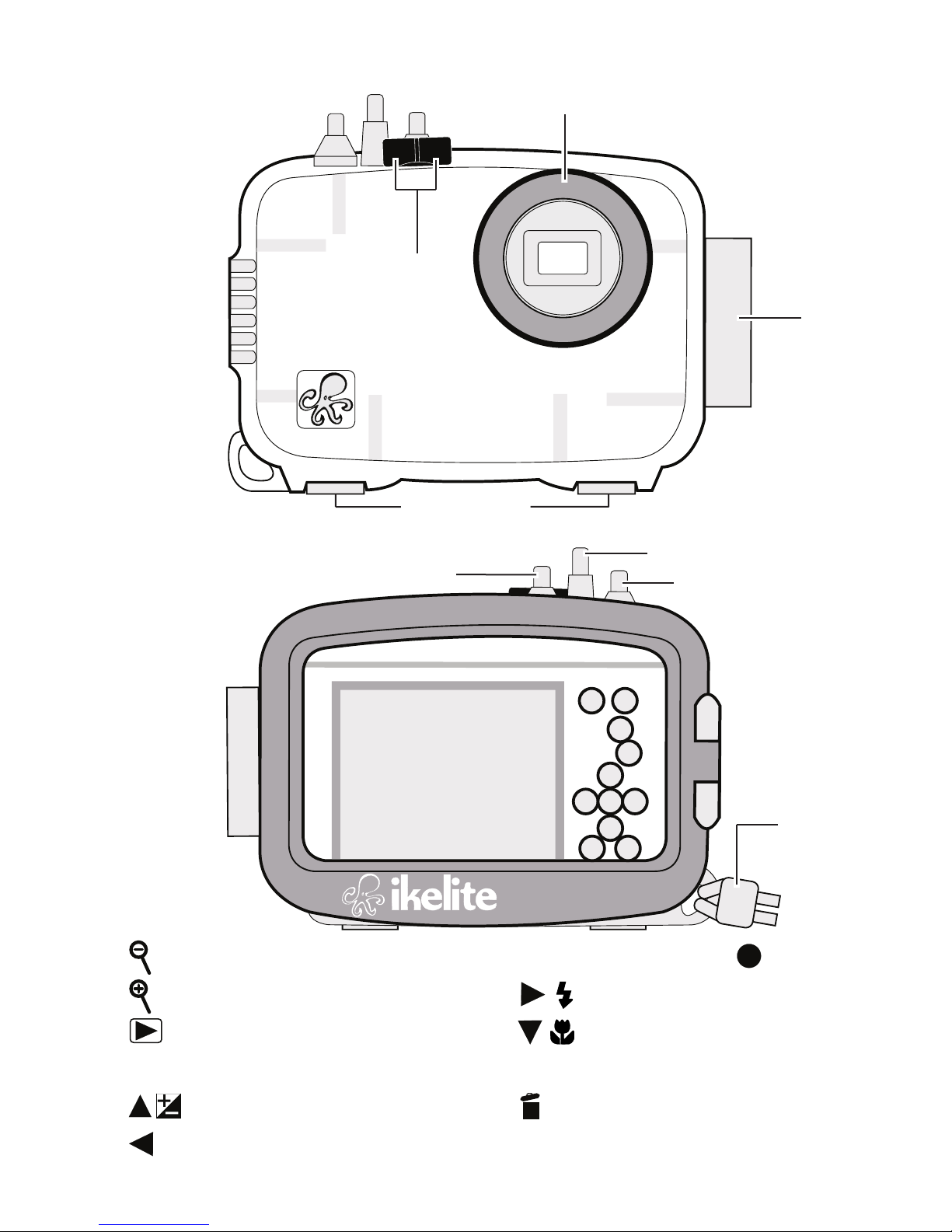

Front View

Back View

Shutter Button

Motion Picture Button

Lens Port

1. Zoom Button (Wide)

2. Zoom Button (Telephoto)

3. Playback Button

4. MODE Button

5. Cursor Up / Exp. Comp.

6. Cursor Left / Self-timer

7. ME U/SET Button

8. Cursor Right / Flash Setting

9. Cursor Down / Macro Mode

10. DISP. Display Button

11. Q. ME U / Delete

Lanyard

Latch

Tray Mounts

O /OFF Button

Parts of the Housing

Fiber Optic

Ports

Initial Camera Settings ( efore placing camera in housing)

- Set Rec Mode to “P” Program AE.

- In Menu Rec:

Set Aspect Ratio to “4:3” and Picture Size to “16m.”

Set ISO Sensitivity to “200” and WB White Balance to “AWB.”

Set AF Mode to “1-Area.”

Set Quick AF to “O .”

Set Face Recognition to “OFF.”

Set i.Exposure to “OFF.”

Set Min. Shtr Speed to “1/30.”

Set i.Resolution to “OFF.”

Set Digital Zoom to “OFF.”

Set AF Assist Lamp and Red-Eye Removal to “OFF.”

Set Image Stabilizer to “O .”

In Clock Set, set the date and time.

- In Menu Setup:

Set LED Light to “OFF.”

In ECO Economy, set Auto Power Off to “5 MI .”

Set Monitor Power Save to “OFF.”

Set Auto Review to “HOLD.”

Insert and Format an SDHC memory Card.

- Set Flash to Fill to “Forced Flash On .”

- Set Macro Mode to “AF Macro .”

Note: If overexposure occurs adjust exposure compensation and/or back

away from the subject and zoom in.

A strobe focusing light is recommended to assist autofocus

underwater.

External Accessory Lenses

Due to the nature of the camera's lens, external wide angle lenses

provide no significant advantage.

6270.06_Panasonic_TS5_TS6_1-0515

Ikelite Underwater Systems

50 West 33rd Street

Indianapolis, IN 46208 USA

ikelite.com

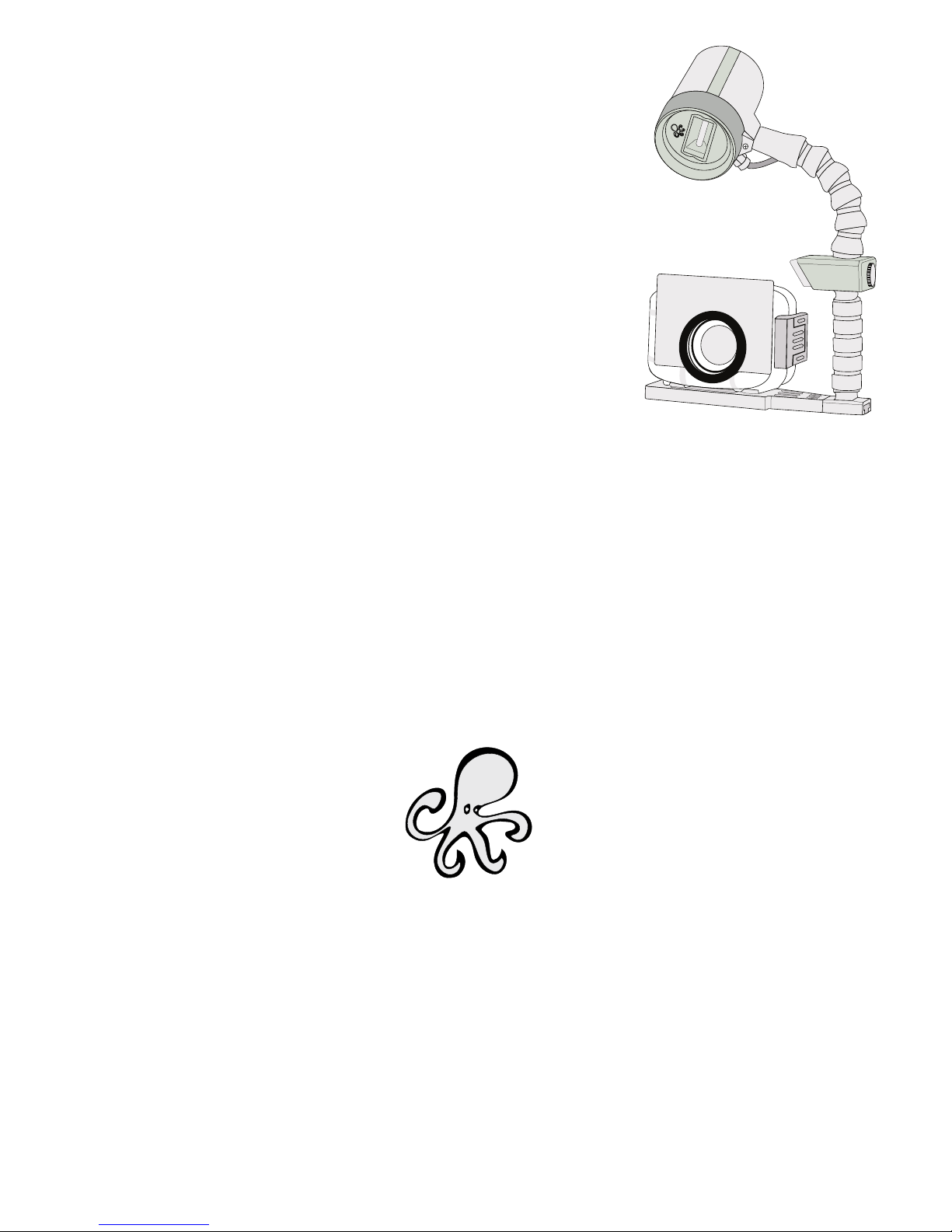

AF35 Stro e Package #4035

The AutoFlash AF35 kit is a great compliment, and

an effortless, affordable way to add a flash to your

new Ikelite point and shoot camera system.

Everything you need to get started is in the box.

Just attach it to the bottom of your housing and

start taking pictures!

AF35 AutoFlash kit includes:

AF35 strobe - Flex arm - AutoFlash sensor

Handle with rubber grip - Tray (single or dual)

Mounting hardware.

ikelite

AUTOFLASH

A full range of accessories is available to support your housing. Please

visit ikelite.com to see the most current information about recommended

accessories for your housing.

Customer Support

Please read the troubleshooting section of the “Instruction Manual”

before contacting Ikelite.
