P/N 506019-40 Rev. A 05/2015

P506019-40 HEARTH PRODUCTS

KITS AND ACCESSORIES

CONTEMPORARY FAÇADE KITS

INSTALLATION INSTRUCTIONS FOR CONTEMPORARY FAÇADE KITS

FOR USE WITH MERIT™ SERIES MLDVTCD-35 GAS FIREPLACES

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. 1

GENERAL INFORMATION

CONTEMPORARY

FAÇADE KITS

The Contemporary Façade Kit is composed of three separate elements

that are purchased separately. Refer to Table 1.

NOTE: To complete one Façade a selection of one Base, one Frame and

one Façade Trim must be made.

The frame must be installed on a properly positioned MLDVTCD ﬁreplace.

Refer to manual number 506015-03 for detailed instructions. Refer to

Figure 1 for façade signiﬁcant dimensions.

NOTE: The ﬁreplace must be positioned at least 18” up the wall to use

the co ntemporary façade

INSTALLATION INSTRUCTIONS FOR CONTEMPORARY FAÇADE KITS

FOR USE WITH MERIT™ SERIES MLDVTCD-35 GAS FIREPLACES

HEARTH PRODUCTS

KITS AND ACCESSORIES

506019-40

REV. N/C 04/2009

Figure 1

44-3/4”

33”

24”

35-1/2”

29”

18” Min. Required

> 28” Recommended

Floor Fireplace

16”

32”

35”

Contemporary Façade Kits

Choose One Base (Largest Piece Immediately Against The Finish Wall)

Cat. No. Model No. Description

H7732 CDFBBK-35 Façade Base, Black

H7733 CDFBSS-35 Façade Base, Stainless

Choose One Frame (Inner Façade Frame Piece Surrounding The Opening)

H7730 CDFFBK-35 Façade Frame, Black

H7731 CDFFSS-35 Façade Frame, Stainless

Choose One Trim (Finishes The Inner Frame Opening)

H7727 CDTKBK-35 Façade Trim, Black

H7728 CDTKSS-35 Façade Trim, Stainless

H7729 CDTKBR-35 Façade Trim, Polished Brass

Table 1

Base

Trim

Frame

TOOLS REQUIRED

1 - Phillips Screwdriver, 1 - 5/16” Nut Driver

fire-parts.com

IHP.US.com 506019-40 A

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

Figure 3

Step 2. Locate two screws (one left and one right) in the ﬁreplace

support structure (see Figure 3 ) and (using a 5/16” nut driver) remove

them. Position the exhaust ramp and install it by replacing the screws

that were removed.

Step 3. Locate and loosen (using a Phillips screwdriver) two screws

attaching the base adjustment bracket to the façade base. Hold the façade

base in front of the ﬁreplace and engage the base tabs in the slots on the

ﬁreplace (see Figure 4 ). Press the façade base back against the wall/ﬁn-

ish materials as far as it will go and tighten the screws (see Figure 5 ).

IMPORTANT: Ensure that the façade base upper ﬂange is above the

exhaust ramp. The exhaust ramp must be unobstructed and properly

engaged with the façade base to allow the exhaust to escape from the

ﬁreplace (See Figure 6 ).

Figure 4

Figure 5

Attaching The Exhaust Ramp

Fireplace Slots

Tighten Screws On Base Adjustment Bracket

Figure 2

INSTALLATION INSTRUCTIONS

Step 1. Install the exhaust ramp in the opening above the ﬁre place front

glass enclosure panel (see Figure 2 ).

Exhaust Ramp

Engage Base Tab

Base Adjustment Bracket

Frame Base

Facade Base

Fireplace

Exhaust

Ramp

Facade Base

Upper Flange

Side View

Figure 6

fire-parts.com

IHP.US.com

506019-40 A 3

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. 3

Figure 7 Figure 8

Insert Trim Piece Engage Frame Tabs

Step 4. Insert Selected trim pieces on the façade frame as indicated in

Figure 7.

Step 5. Hold the façade frame in front of the façade base and align the

tabs on the frame with the slots on the base (see Figure 8 ). Insert the

tabs into the slots, taking care not to scratch the face of the base and

engage the tabs by dropping the frame downwards. A slight amount of

force may be necessary to snap the frame into pace.

fire-parts.com

IHP.US.com 506019-40 A

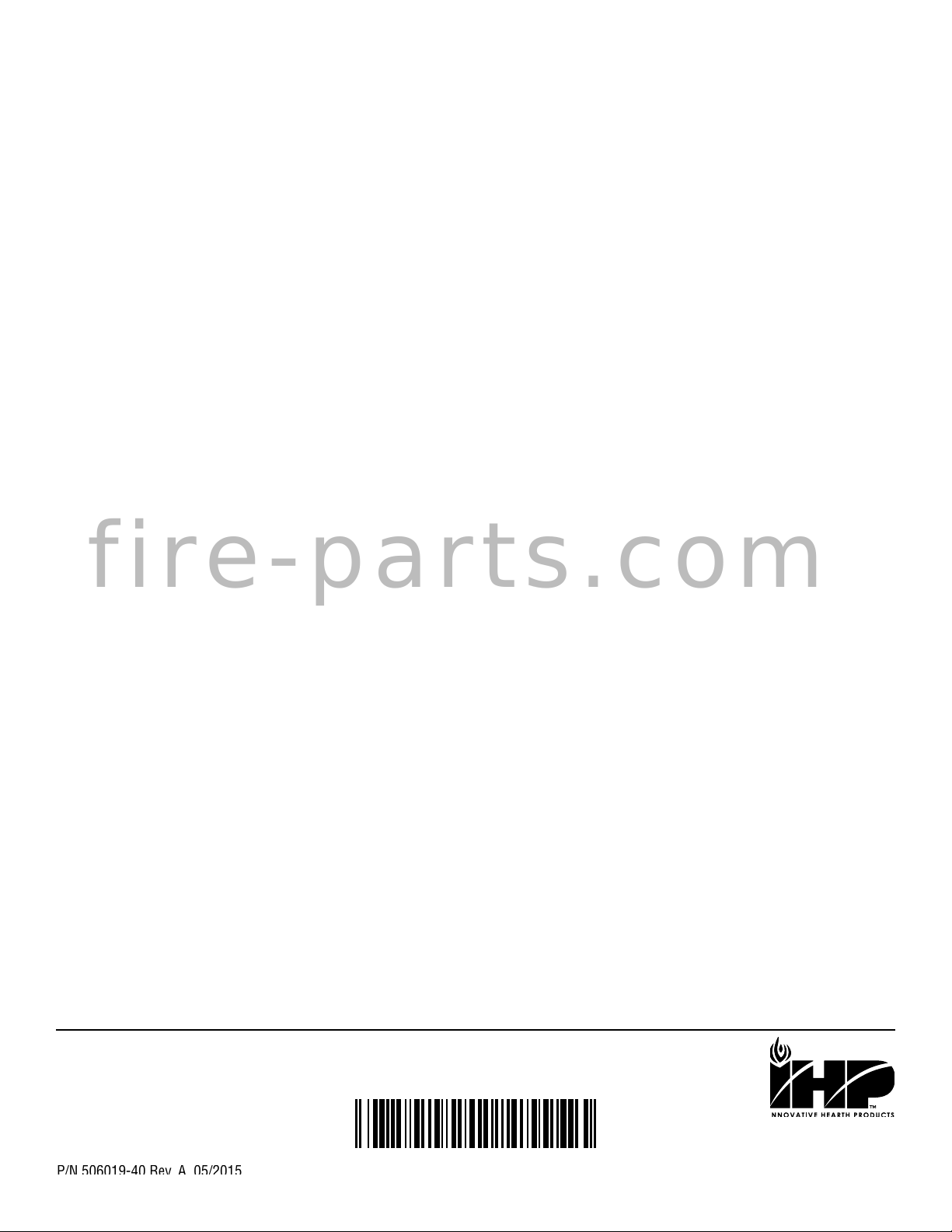

P/N 506019-40 Rev. A 05/2015

1508 Elm Hill Pike, Suite 108

Nashville, TN 37210

IHP.US.com

P506019-40

The manufacturer reserves the right to make

changes at any time, without notice, in design,

materials, speciﬁcations, prices and also to

discontinue colors, styles and products. Consult

your local distributor for ﬁreplace code informa-

tion.
