ICP DAS Co., LTD PM-3133i Quick Start V1.00 Page 1
PM-3133i Quick Start
1. Shipping Package
This shipping package contains the following items
1 x PM-3133i module 1 x Quick Start Screw Driver x 1 Cable ties x 3
1.1.Caution & Warning
The meter contains hazardous voltages, and should
never be disassembled. Failing to follow this practice will
result in serious injury or death. Any work on or near energized meters,
meter sockets, or other metering equipment could induce a danger of
electrical shock. It is strongly recommended that all work should be
performed only by qualified industrial electricians and metering
specialist. ICP DAS assumes no responsibility if your electrical installer
does not follow the appropriate national and local electrical codes.
ICP DAS assumes no liability for any damage resulting from the use of
this product. ICP DAS reserves the right to change this manual at any
time without notice. The information furnished by ICP DAS is believed
to be accurate and reliable. However, no responsibility is assumed by
ICP DAS for its use, not for any infringements of patents or other rights
of third parties resulting from its use.
ICP DAS Co., LTD PM-3133i Quick Start V1.00 Page 2
1.2.Product Warranty & Customer Support
ICP DAS warrants all products free from defects in material and
workmanship for a period of one year from the date of shipping. During
the warranty period, we will, at our position, either repair or replace any
product that proves to be defective. To report any defect, please
Documentation & Utility:
http://ftp.icpdas.com/pub/cd/powermeter/pm-3133i/
1.2.1. Limitation of Warranty
This warranty does not apply to defects resulting from unauthorized
modification, misuse, or use for reason other than electrical power
monitoring. The supplied meter is not a user-serviceable product.
2. Installation
2.1.
Products come with external split type clip-on CT’s. Disconnect the
CT’s or use other CT’s is highly prohibited.
Please read this operation manual carefully before using.
Please re-confirm the measure position.
Reconfirm the RST (ABC) phase sequence of the power system.
Meter auxiliary power for PM-3133i series is DC +12V ~+48V.
ICP DAS Co., LTD PM-3133i Quick Start V1.00 Page 3
2.2.Voltage Input
1. PM-3133i series: Input Voltage up to 600V.
For any higher Input Voltage large than 600V, please add the PT
(power transformer), and Change PT RATIO setup.
2. Confirm the RST (ABC) phase sequence.
2.3.Current Input
1. The external CT’s are fragile, please handle with care.
2. The CT input of PM-3133i-xxxP series is in mV range.
Only the ex-factory attached CT’s can be used. The other CT’s, for
example, from panel will damage the instrument due to its large
current (around 5A or mA).
3. When more than one smart meter (PM-3133i series) are installed,
please do not disconnect the CT with its original meter and mix use
with each other. Since each set of smart meter (PM-3133i series)
and its attached split type clip-on CT are calibrated set by set. The
mix use may cause wrong measurements.
4. To install CT’s correctly, please ensure the CT lines sequences is
right before clip the CT’s onto the power cable of the monitoring
equipment. (Detail will be found in next section)
ICP DAS Co., LTD PM-3133i Quick Start V1.00 Page 4
5. When measuring the current, the secondary circuit of a CT
should never be opened when a load is passing through its
primary. Make sure you always open the CT clip to detach the
CT before removing the terminal lines. Otherwise, it will cause
severe injury.
6. Please handle with extra care, especially when the operation space
of CT’s is limited.
7. The current direction must follow K-L marked on CT’s.
8. Please select the right size CT’s for different size of monitoring
equipment cables:
power cable diameter ＜Φ10 use 60A CT，Φ10～Φ16 use 100A
CT，Φ16～Φ24 use 200A CT
，Φ24～Φ36 use 300A or 400A CT。
9. The maximum current value cannot exceed the CT rating.
ICP DAS Co., LTD PM-3133i Quick Start V1.00 Page 5

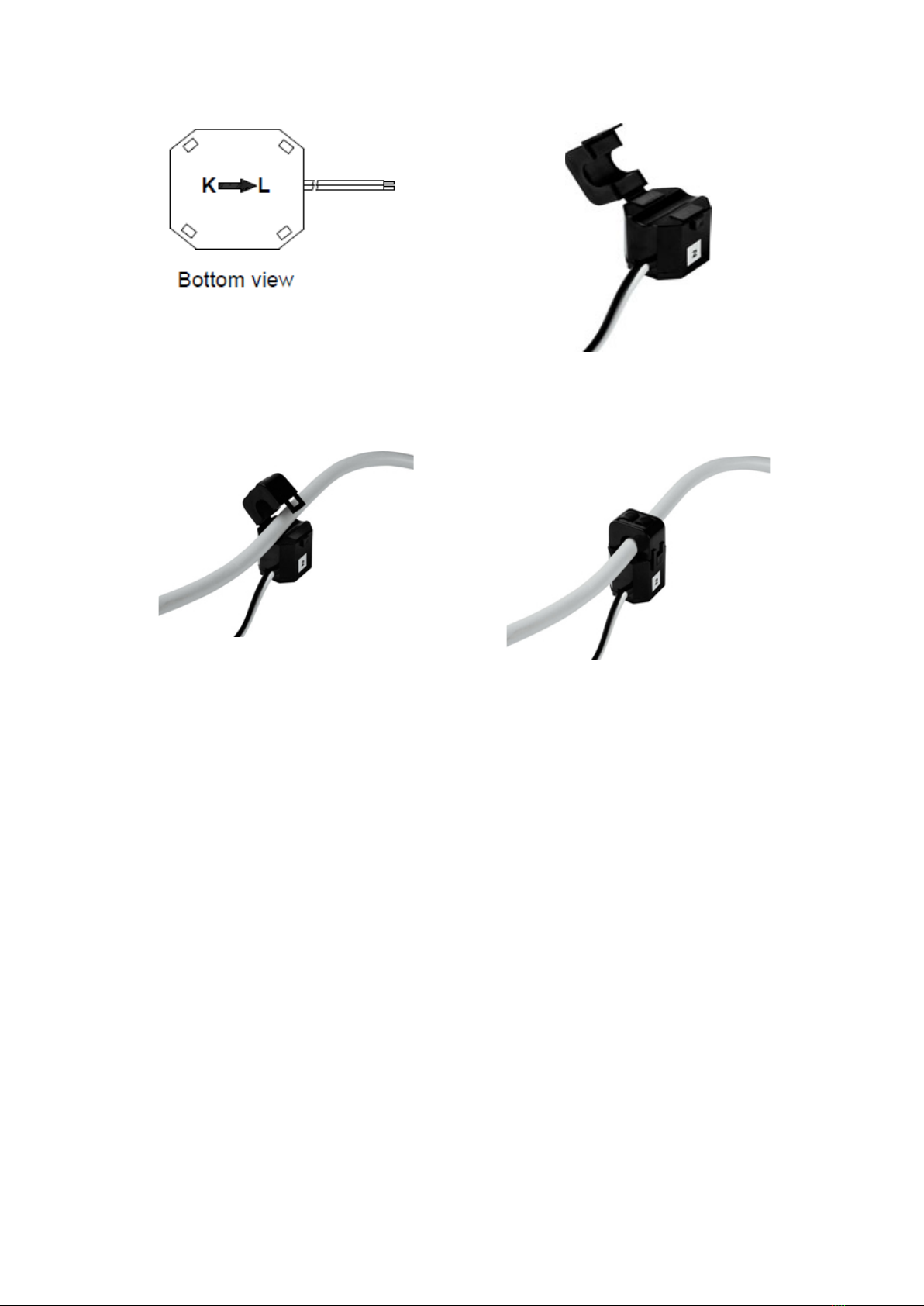

2.4. CT’s installation steps
At the bottom of the CT,
there is a “K→L” mark.
Open the CT clip.
Make sure the power current
direction follow the “K→L”
mark on the CT and then
close the CT clip.
Installation steps finished.
ICP DAS Co., LTD PM-3133i Quick Start V1.00 Page 6
2.5.Wiring

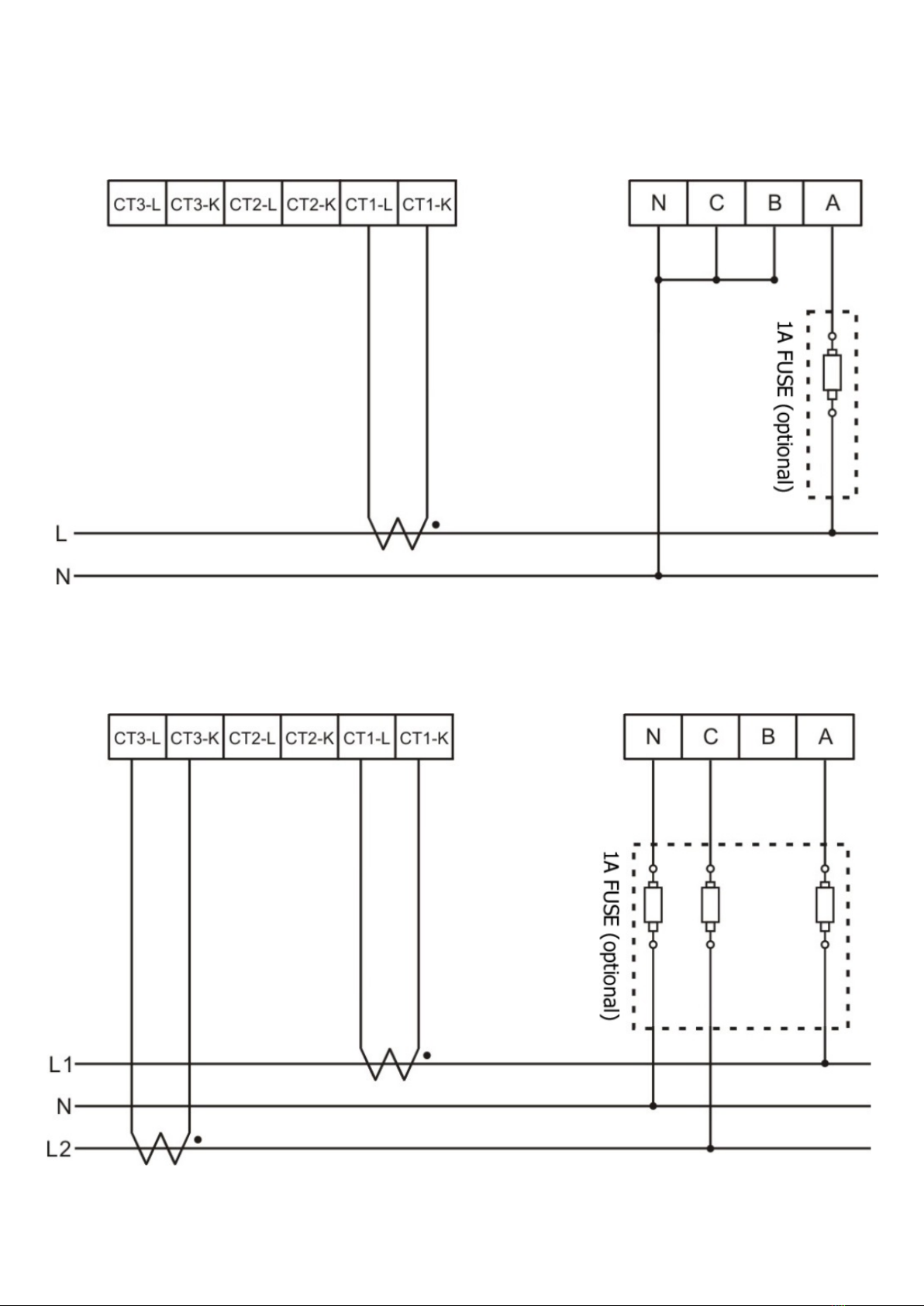

1P2W-1CT(PM-3133i)
1P3W-2CT(PM-3133i)
ICP DAS Co., LTD PM-3133i Quick Start V1.00 Page 7

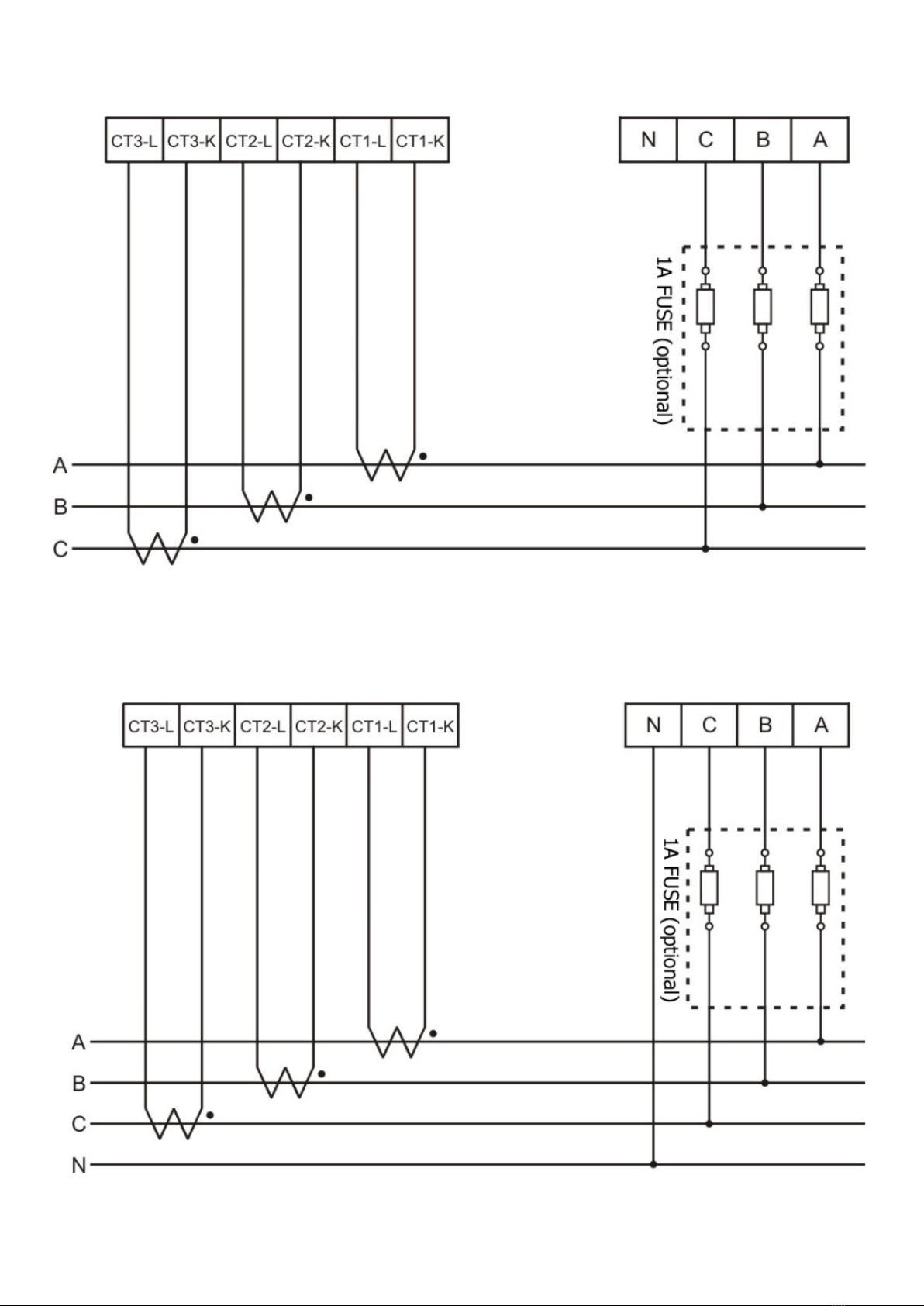

3P3W-3CT(PM-3133i)
3P4W-3CT(PM-3133i)
ICP DAS Co., LTD PM-3133i Quick Start V1.00 Page 8
3. Communication

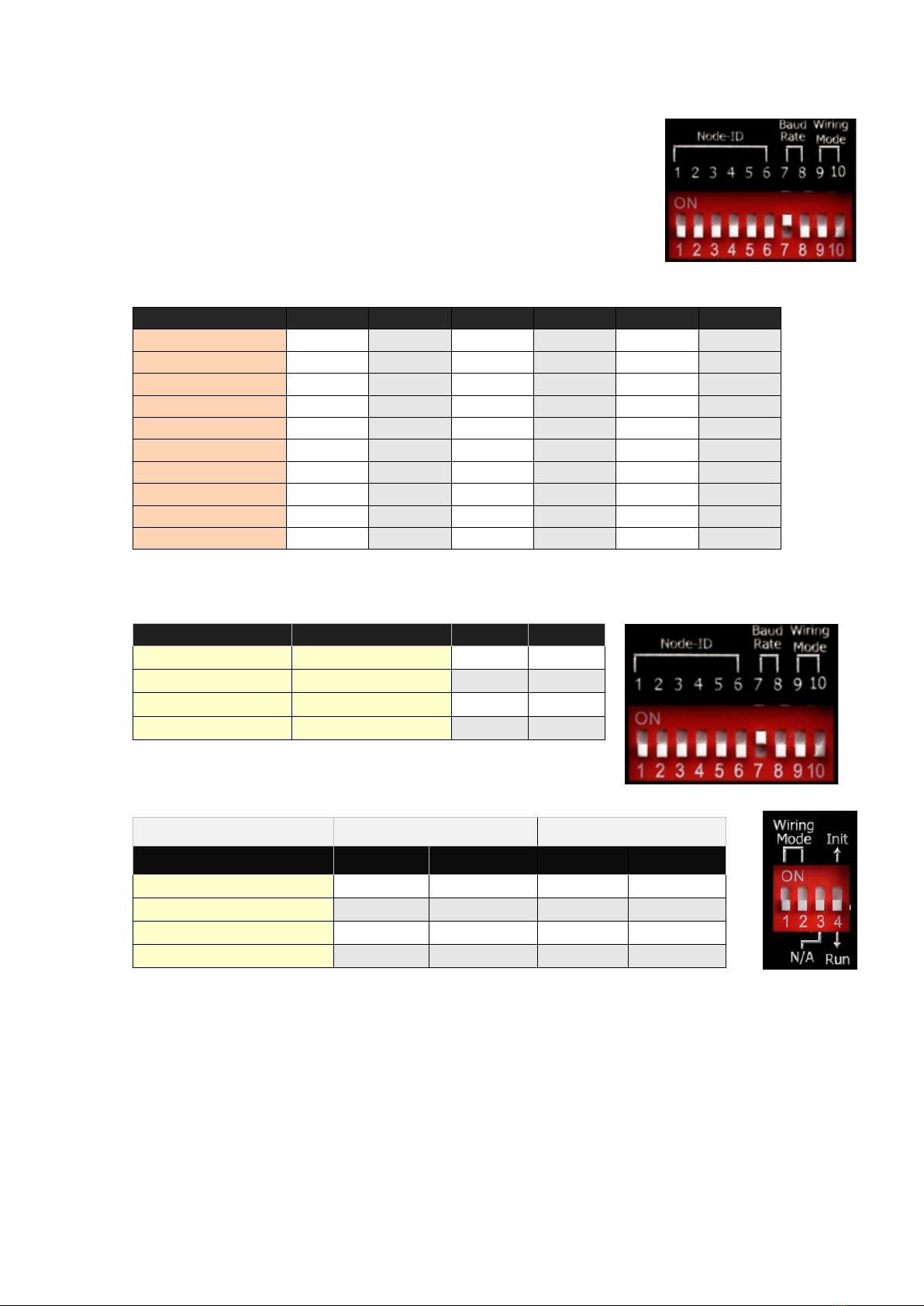

3.1.RS-485 & CAN setting
Default setting for RS-485: 19200, n, 8, 1 ,for CAN:125K bps
DIP switch (SW1-SW6) is used for Modbus address(or
CANopen Node ID) setting, default is 1, i.e. all OFF
For example: Modbus address(or CANopen Node ID) is 10，
find the table of DIP switch 1-6 is ON, OFF, OFF, ON, OFF, OFF
SW1－SW6 setting
Setting Modbus-RTU address for communication (1-64)
Modbus Address
SW 1
SW 2
SW 3
SW 4
SW 5
SW 6
1
OFF
OFF
OFF
OFF
OFF
OFF
2
ON
OFF
OFF
OFF
OFF
OFF
3
OFF
ON
OFF
OFF
OFF
OFF
4
ON
ON
OFF
OFF
OFF
OFF
5
OFF
OFF
ON
OFF
OFF
OFF
6
ON
OFF
ON
OFF
OFF
OFF
7
OFF
ON
ON
OFF
OFF
OFF
8
ON
ON
ON
OFF
OFF
OFF
9
OFF
OFF
OFF
ON
OFF
OFF
10
ON
OFF
OFF
ON
OFF
OFF
SW7－SW8 For Baud Rate Setting
RS-485
CAN
SW 7
SW8
9600 bps
125k(Default)
OFF
OFF
19200 (Default)
250k bps
ON
OFF
38400 bps
500k bps
OFF
ON
115200 bps
1M bps
ON
ON
PM-3133i：Select the different wiring mode
(Please select the Software setting, if 1P2W-1CT or 1P3W-2CT is used)
Models PM-3133iPM-3133i-MTCP
Wiring SW 9 SW 10 SW 1 SW 2
Software setting
OFF
OFF
OFF
OFF
3P3W-2CT
ON
OFF
ON
OFF
3P3W-3CT
OFF
ON
OFF
ON
3P4W-3CT
ON
ON
ON
ON
3.2.Add the Bias Resistor on RS-485 Network for stable signal
The RS-485 master is required to provide the bias for PM-31xx series.
Otherwise, the tM-SG4 or SG-785 should be added to provide the bias. All
ICP DAS controllers and converters provide the bias.
