DS-700 Series

Firmware Update via 7188XW.exe

ICP DAS CO., LTD.

Website: http://www.icpdas.com

Ch. 2. Firmware Update Procedure

Ch. 3. Additional Information

Ch. 1. Setting up the DS-700

Firmware Update via 7188XW.exe (Ver. 1.0/Aug. 2018) Page: 1

1.Setting up the DS-700

Before updating the firmware, please ensure that the DS-700 module is connected with your host

computer. Refer to the following steps for the details.

Step 1: Switch off the Power to the DS-700 module.

Step 2: Connect the DS-700 module to your host computer.

DS-712: Connect the COM1 connector on DS-712 to COM Port on host PC using the

CA-0910N cable, as illustrated in the Figure 1-1 below. Note: CA-0910N is a 3-wire

Null-Modem cable (optional).

DS-715: Remove the screw and top shell first, and then connect the JP2 connector to COM

Port on host PC using the CA-0904 (optional) and CA-0915 (optional) cables, as illustrated in

the Figure 1-2 below.

Step 3: Short the INIT* and GND pins of the DS-700 module in “Init”to initiate the update.

Step 4: Switch on the Power to the DS-700 module.

Vs+

GND

CA-0910N Cable

Short INIT* and

GND pins

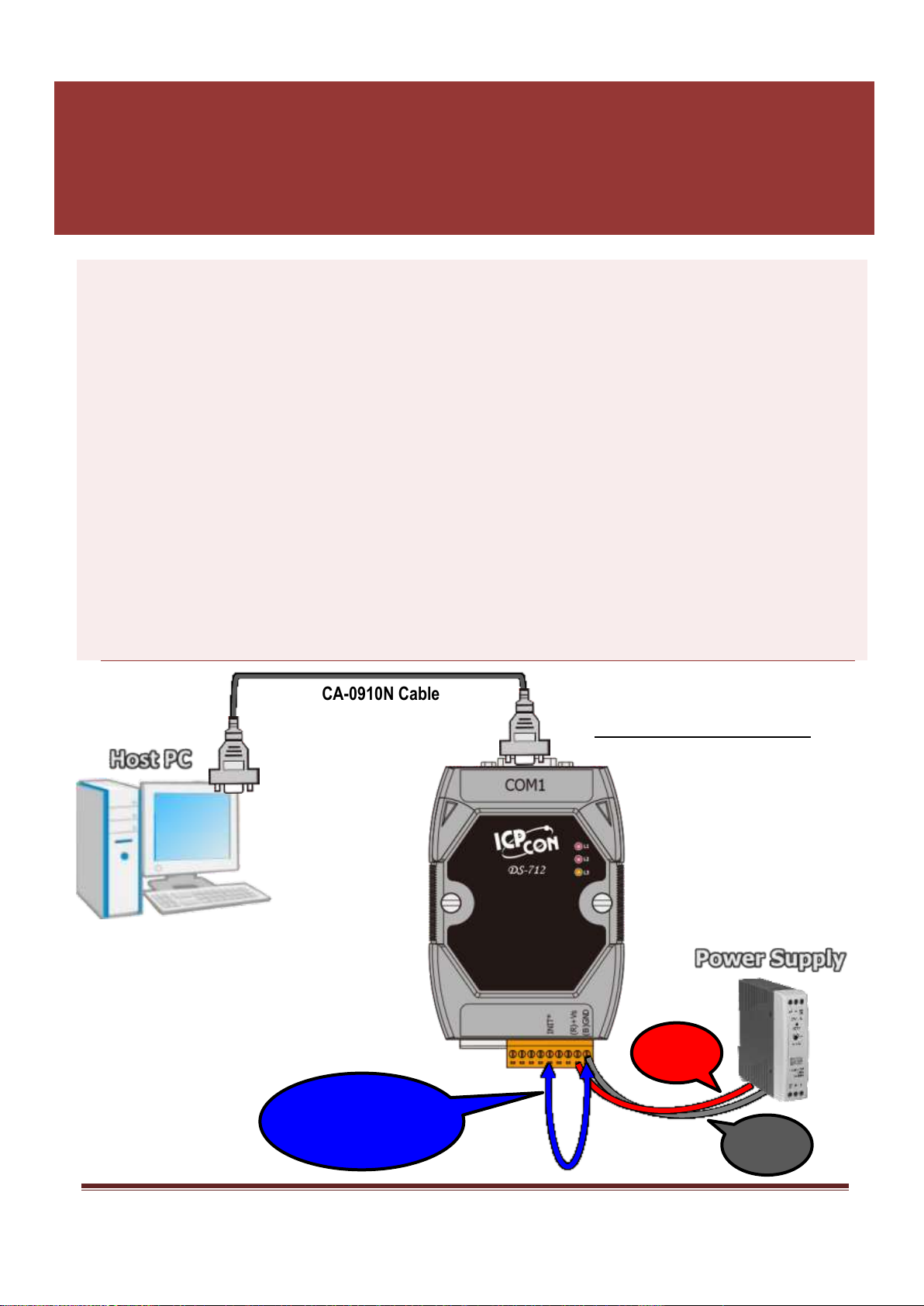

Figure 1-1: DS-712 Wiring

Firmware Update via 7188XW.exe (Ver. 1.0/Aug. 2018) Page: 2

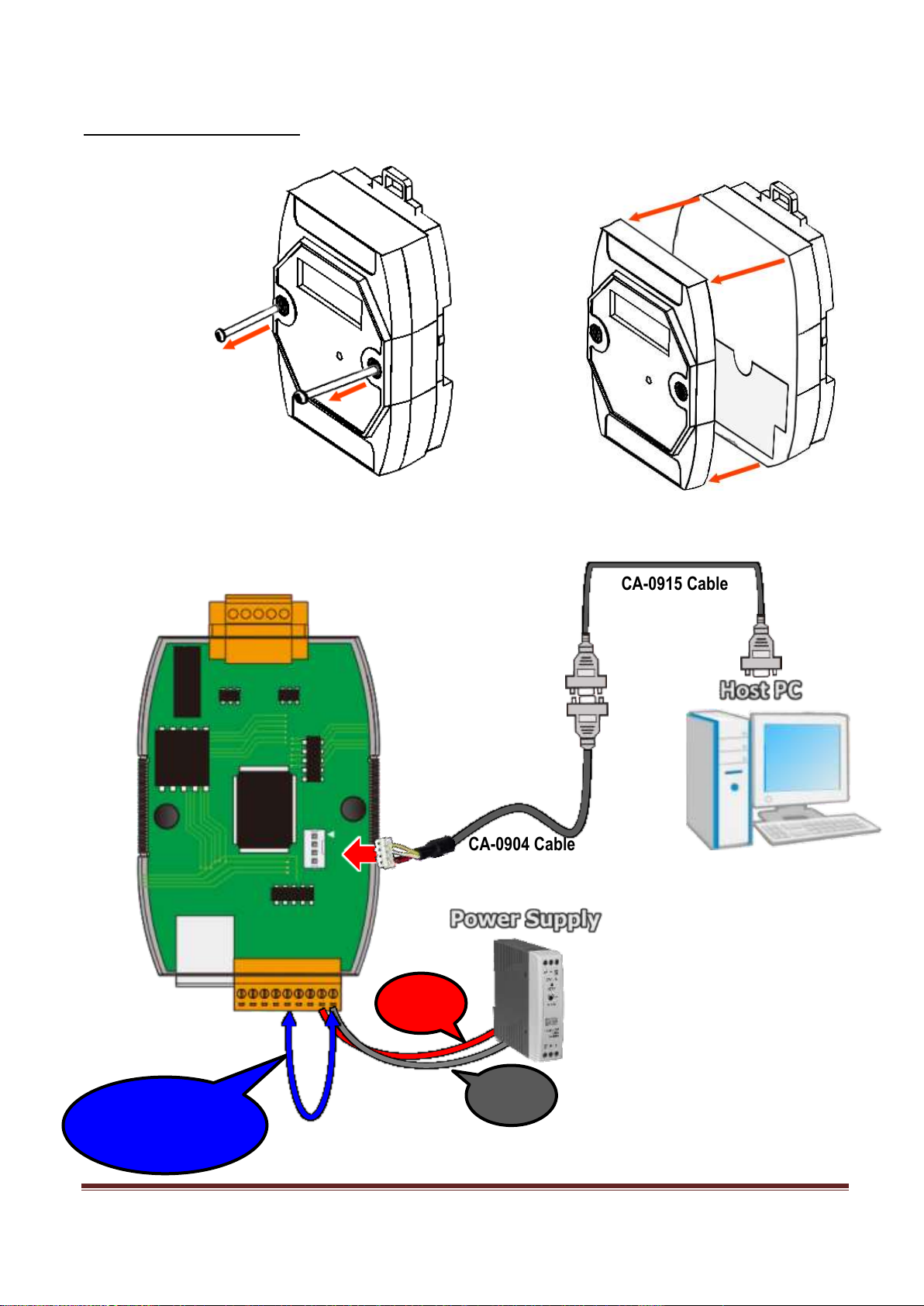

Figure 1-2: DS-715 Wiring

GND

CA-0915 Cable

Remove the screw

Remove the stop shell

Connect the JP2 connector (RS-232) to COM Port on Host PC

Short INIT* and

GND pins

Vs+

GND

CA-0904 Cable

JP2

Firmware Update via 7188XW.exe (Ver. 1.0/Aug. 2018) Page: 3

2.Firmware Update Procedure

NOTE: DS-700 using the same MiniOS7 and firmware with the PDS-700, and also provides virtual COM features.

The DS-700 is non-programmable serial-to-Ethernet devices server while the PDS-700 is programmable.

Step 1: Download the Firmware File of DS-700 module and then decompress it to a temp folder,

for example DS700fw.

Download the PDS-700 Firmware File.

The DS-700 firmware and autoexec.bat files are compressed in Zip format. You can decompress the zip file by

7-Zip, WinZip, WinRAR... utilities.

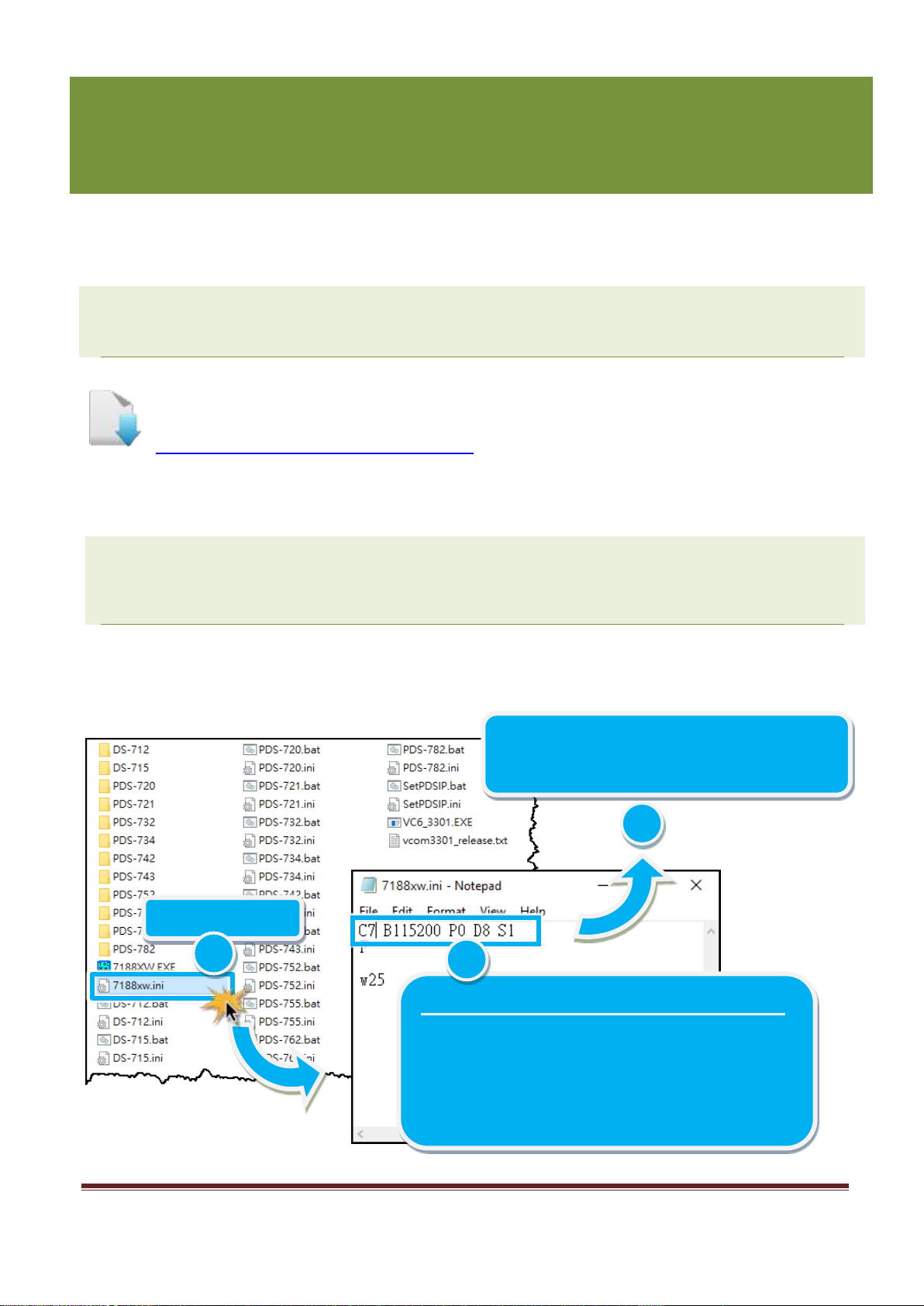

Step 2: Modify COM Port number in 7188xw.ini file, depend on your PC COM Port that connect

to DS-700.

For Example (first parameter of the line 1 in the 7188xw.ini)

COM1 ==> C1 B115200 P0 D8 S1

COM2 ==> C2 B115200 P0 D8 S1

C: COM Port (e.g. C7) Modify this item.

B: Baud Rate (e.g. B115200)

P: Parity (e.g. P0)

D: Data Bits (e.g. D8)

S: Stop Bits (e.ge. S1)

Select the “Save” item from the “File”

menu to save the new configuration.

Double Click

Firmware Update via 7188XW.exe (Ver. 1.0/Aug. 2018) Page: 4

Step 3: Double click the DS-7xx.bat for starting update. The DS-7xx.bat file is depending on

model name of your DS-700 module. Refer to note1 (Page 8) for more details. (e.g.

DS-712.bat.)

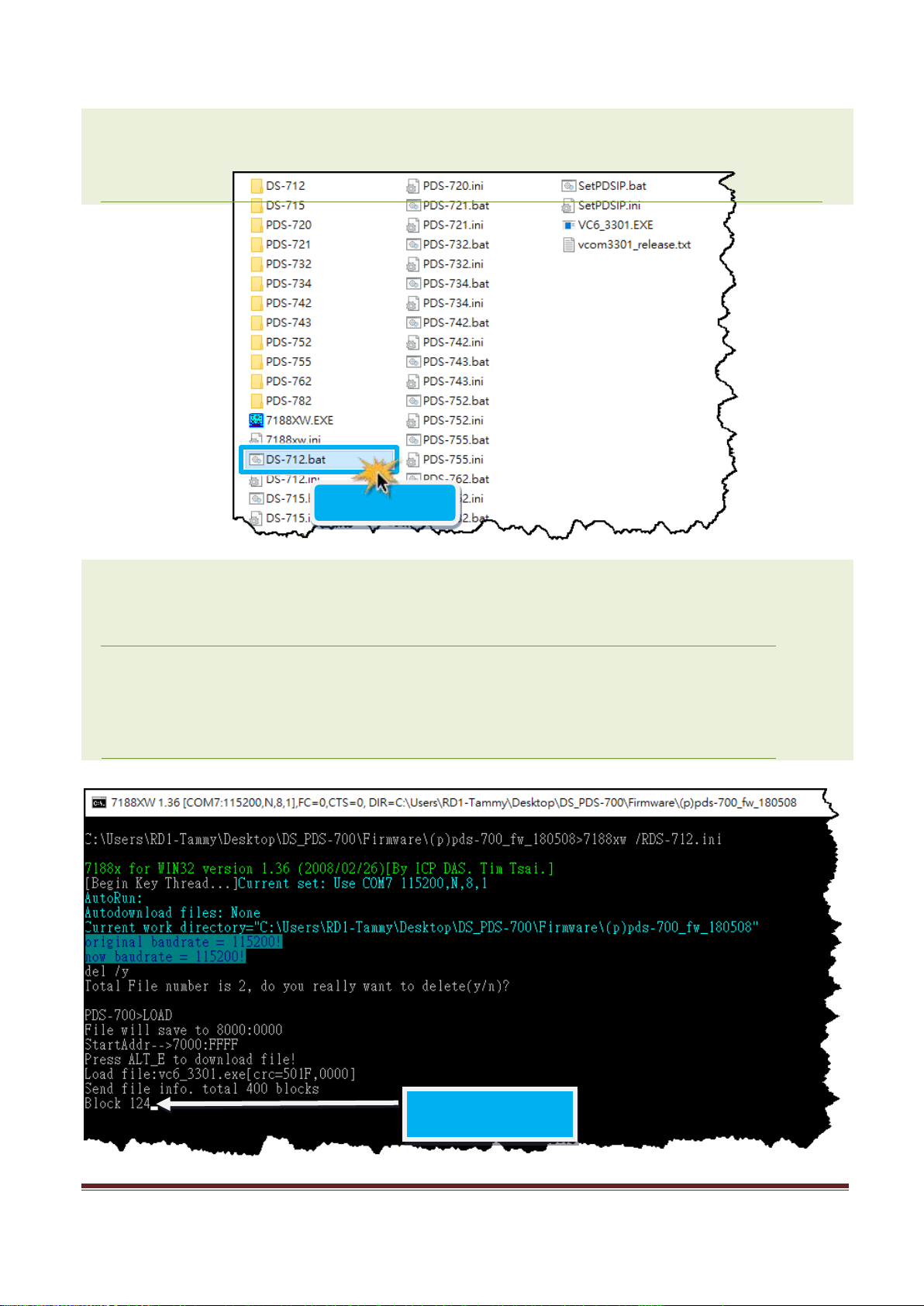

Step 4: You are now ready to update the firmware. The DS-7xx.bat file will auto run

the 7188XW.exe utility program and shows the progress of the update.

Step 5: The 7188XW.exe utility program will then upload the firmware and

autoexec.bat files into DS-700 module automatically. If the update cannot proceed,

please refer to note2 (Page 8).

Starting update

Double Click

Firmware Update via 7188XW.exe (Ver. 1.0/Aug. 2018) Page: 5

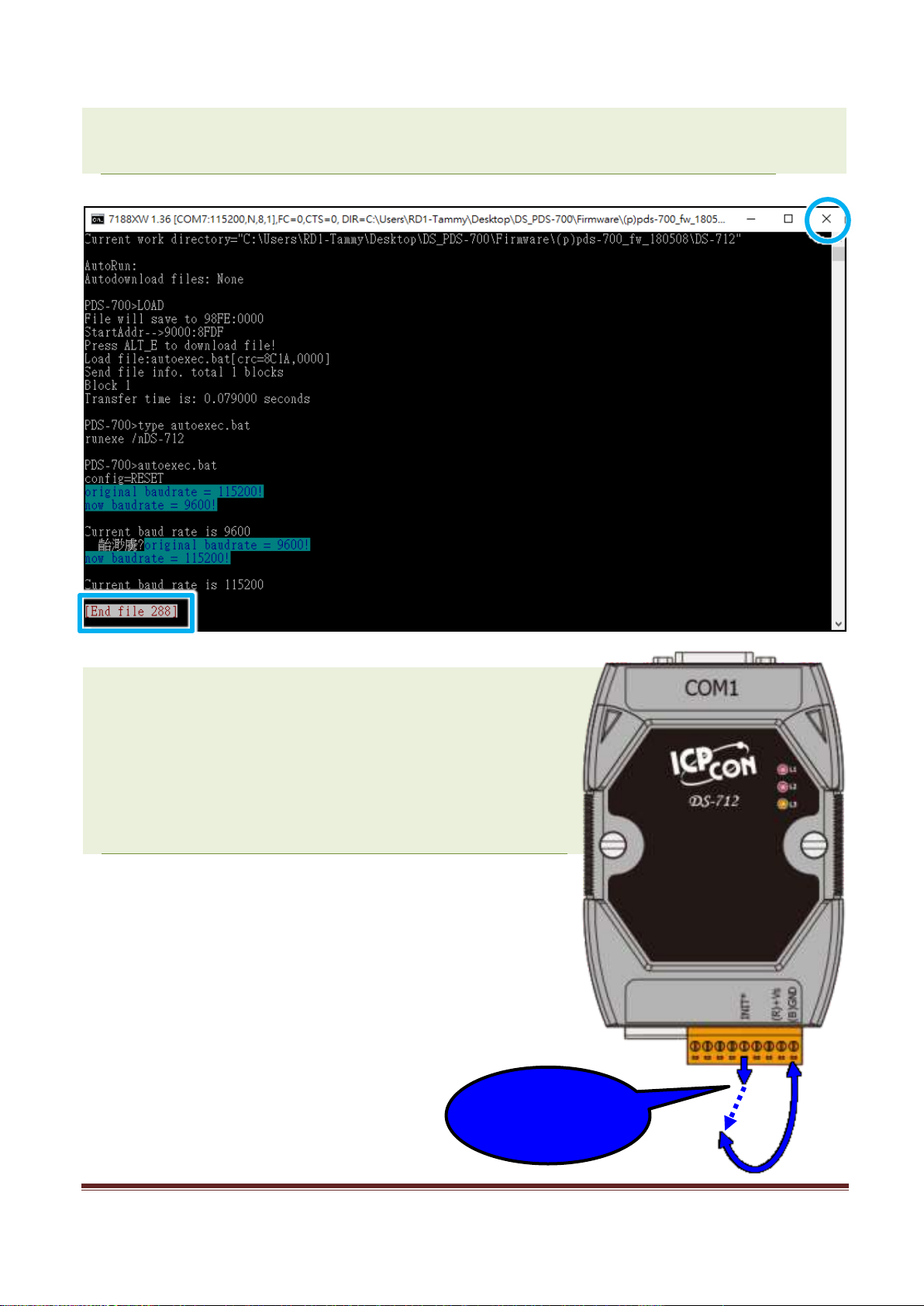

Step 6: The MiniOS7 update completed when disply [End file xxx] message. Then click

the “X”icon on the right-top corner of the windows to close it.

Step 7: Disconnect the INIT* and GND pins of DS-700

module.

Step 8: Switch off the Power to the DS-700 module and

then switch it back on again to rebbot the module to

“Normal”operation.

Open INIT* and

GND pins

Firmware Update via 7188XW.exe (Ver. 1.0/Aug. 2018) Page: 6

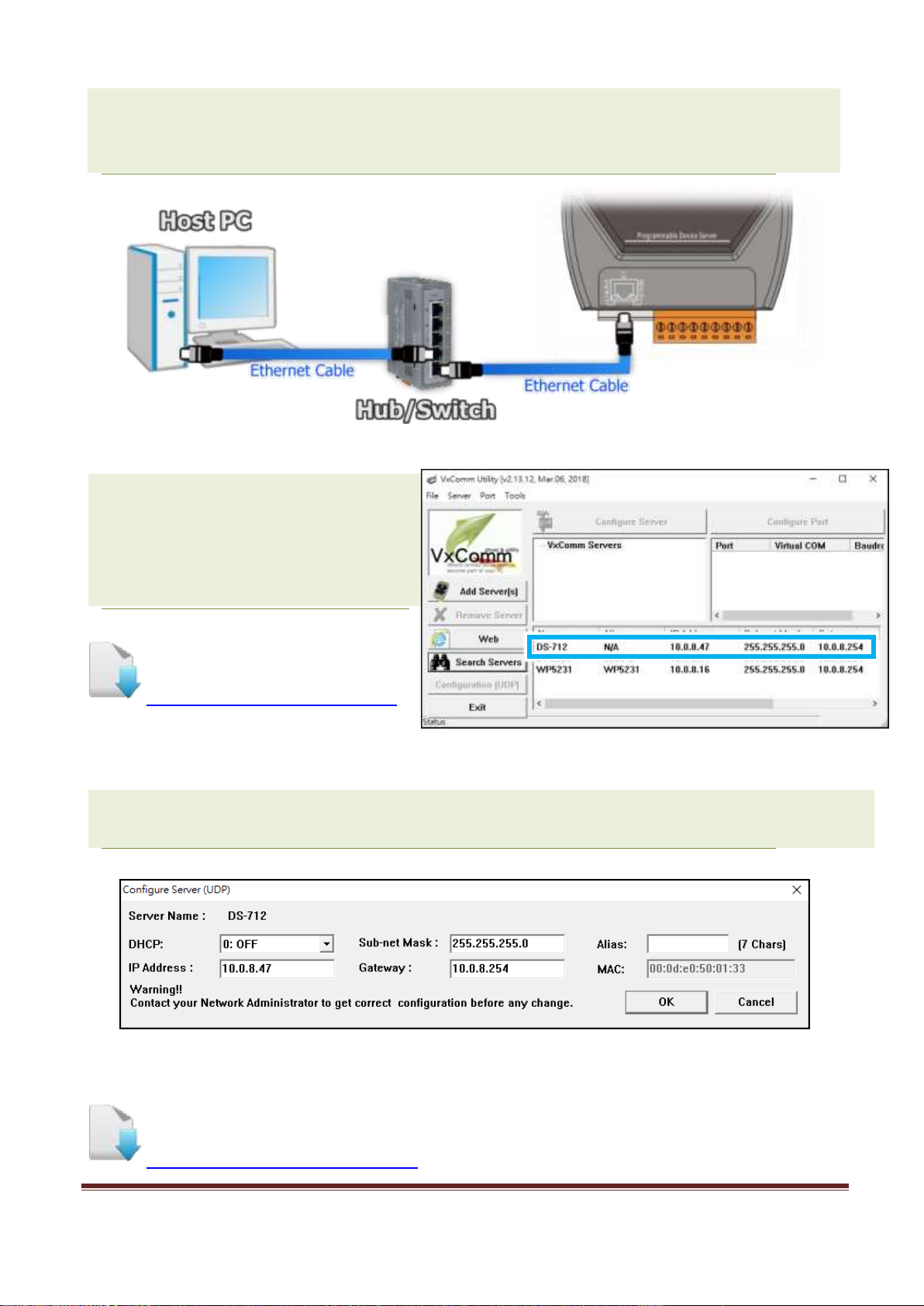

Step 9: Connect both the DS-700 module and your computer to the same sub network

or the same Ethernet Switch.

Step 10: Install the VxComm Utility on

your Host PC, and then run the Utility

to search for any DS-700 module

connected to the nework.

Download the VxComm Utility.

Step 11: Configure the correct network settings for the required DS-700 module.

Please refer to “Chapter 3-Configuring Network Settings”in the DS-700 Quick Start Guide. If the IP address

settings do not work correctly, please refer to note3 (Page 8).

Download the Quick Start Guide.

Firmware Update via 7188XW.exe (Ver. 1.0/Aug. 2018) Page: 7

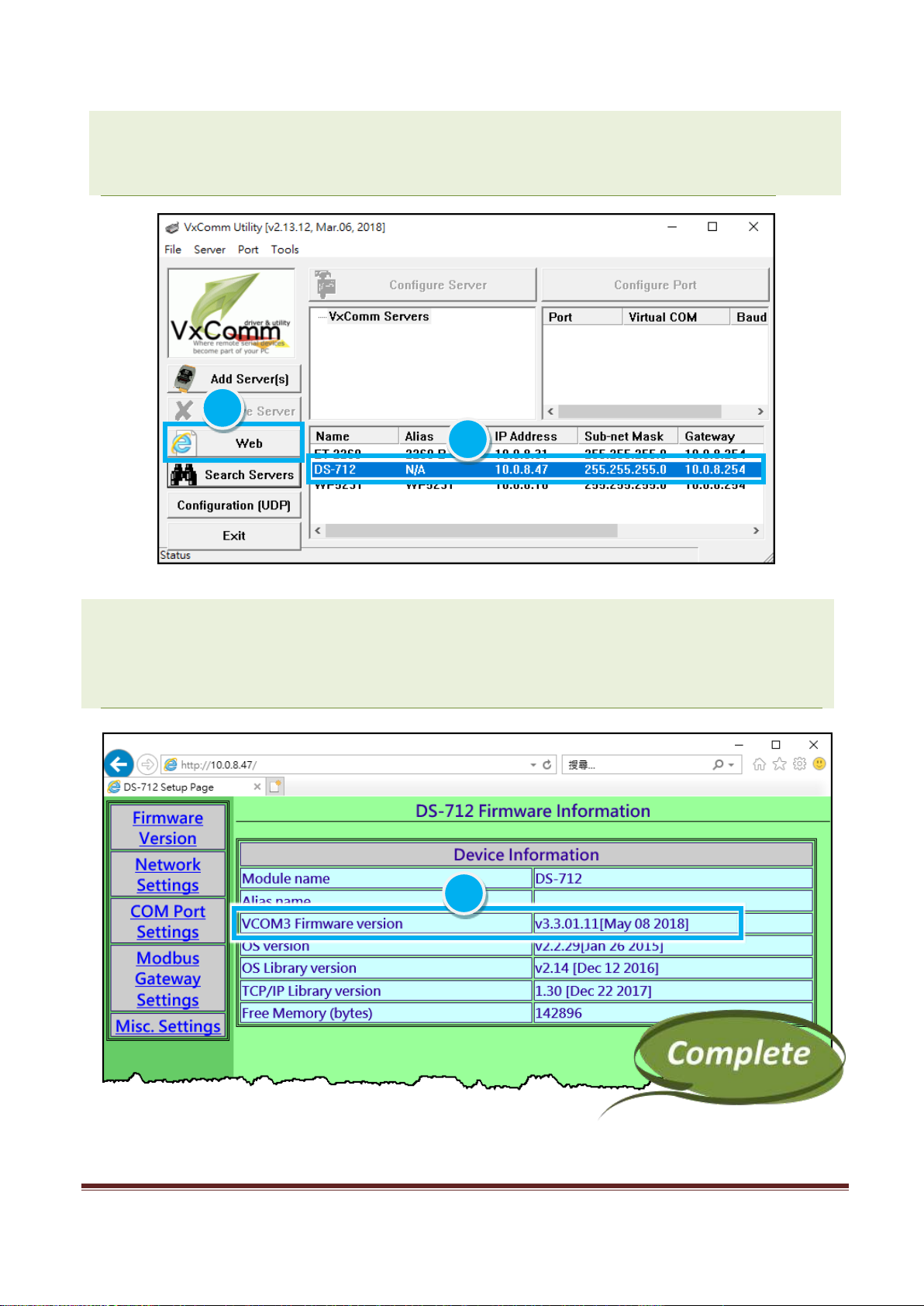

Step 12: Click the name of the DS-700 module.

Step 13: Click the “Web”button.

Step 14: Log in to the web configuration pages for the DS-700.

Step 15: Verify that the firmware version and date details are correct.

Firmware Update via 7188XW.exe (Ver. 1.0/Aug. 2018) Page: 8

3. Additional Information

Notes:

Note 1: The DS-7xx.bat file is depending on model name of your DS-700. If wrong DS-7xx.bat file

that may cause your DS-700 does not work correctly and you need to update it with a correct

firmware again. ………………………………………………………………………………………………..………………. back

Note 2: Make sure the 7188XW.exe and autoexec.bat program files exist on the same folder. If not,

update firmware can’t be successful. …….…………………………………………………………….……………. back

Note 3: If the IP address settings do not work correctly (e.g. there is no response to a ping

command), please contact your network administrator to obtain a valid IP address for the DS-700

module. ……………………………………………………………………………………………………………………………. back

Note 4: 7-Zip—Free Archiving (Compress and Decompress) Utility

7-Zip is a free archiving utility, you can get it from the following web:

http://www.7-zip.org/
