ICP DAS USA I-7055D Manuel utilisateur

I-7055D 8 Channel Isolated DI (Counter)and 8 Channel Isolated DO DAQ Module- QuickStart (Feb/2016)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

I-7055D

8 Channel Isolated Digital Input (Counter)and

8 Channel Isolated Digital Output Data

Acquisition Module

Quick Start Guide

Product Website:

http://www.icpdas-usa.com/i_7055d.html

http://www.icpdas-usa.com/dcon_utility_pro.html

1. Introduction

I-7055D is intelligently designed to provide signal conditioning system

monitoring and safe value settings. I-7055D is a cost-effective solution for a

wide range of valuable industrial control signals and systems. The DCON

utility can help users to configure and test I-7055D digital Input modules.

Plenty of library functions and demo programs are provided to let users

develop programs easily under Windows, Linux and DOS operating

systems. The communication interface is modbus protocol via RS-485.

Users may mount the modules on a DIN rail, panel or wall. Modules have a

screw-terminal block to connect to the signals.

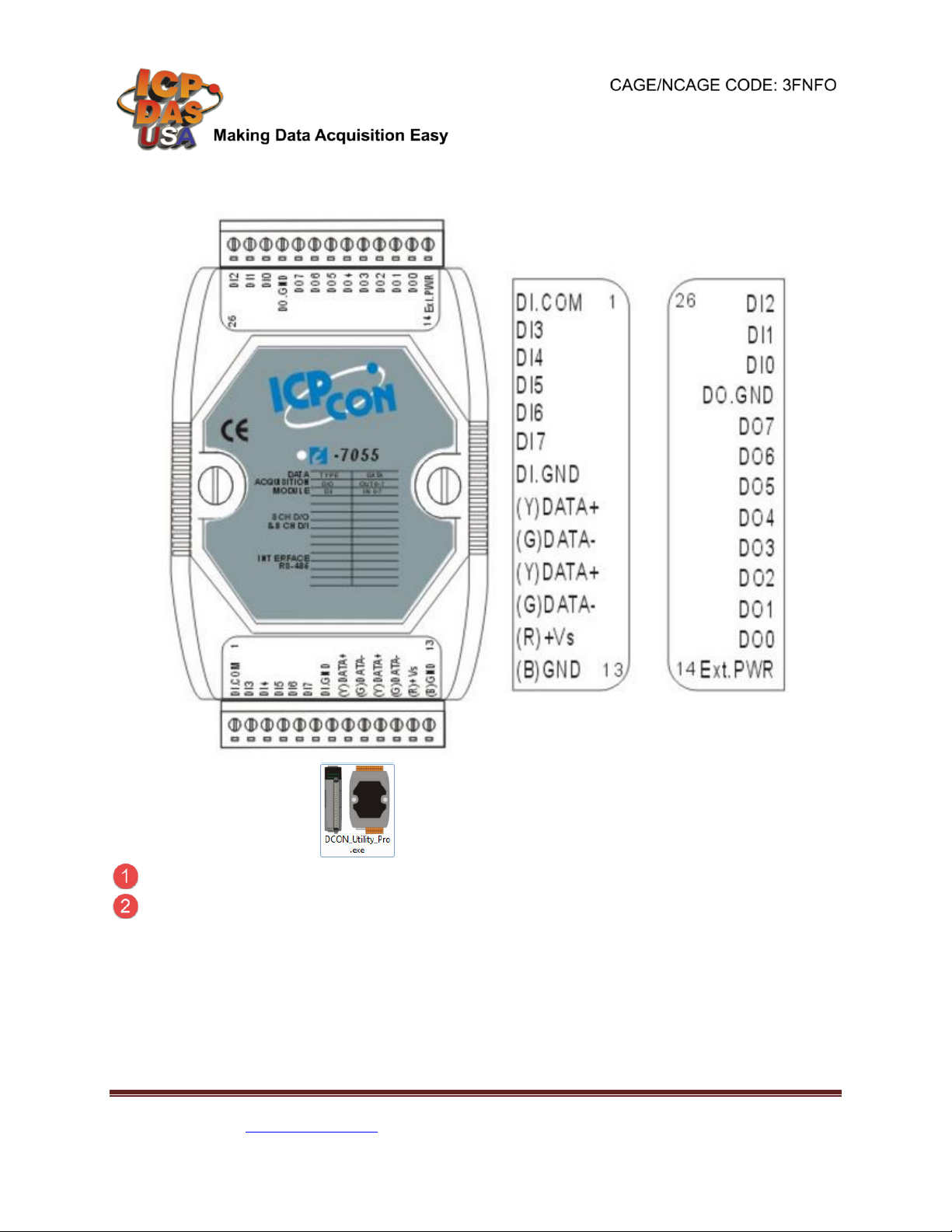

2. Terminal Assignment

I-7055D 8 Channel Isolated DI (Counter)and 8 Channel Isolated DO DAQ Module- QuickStart (Feb/2016)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

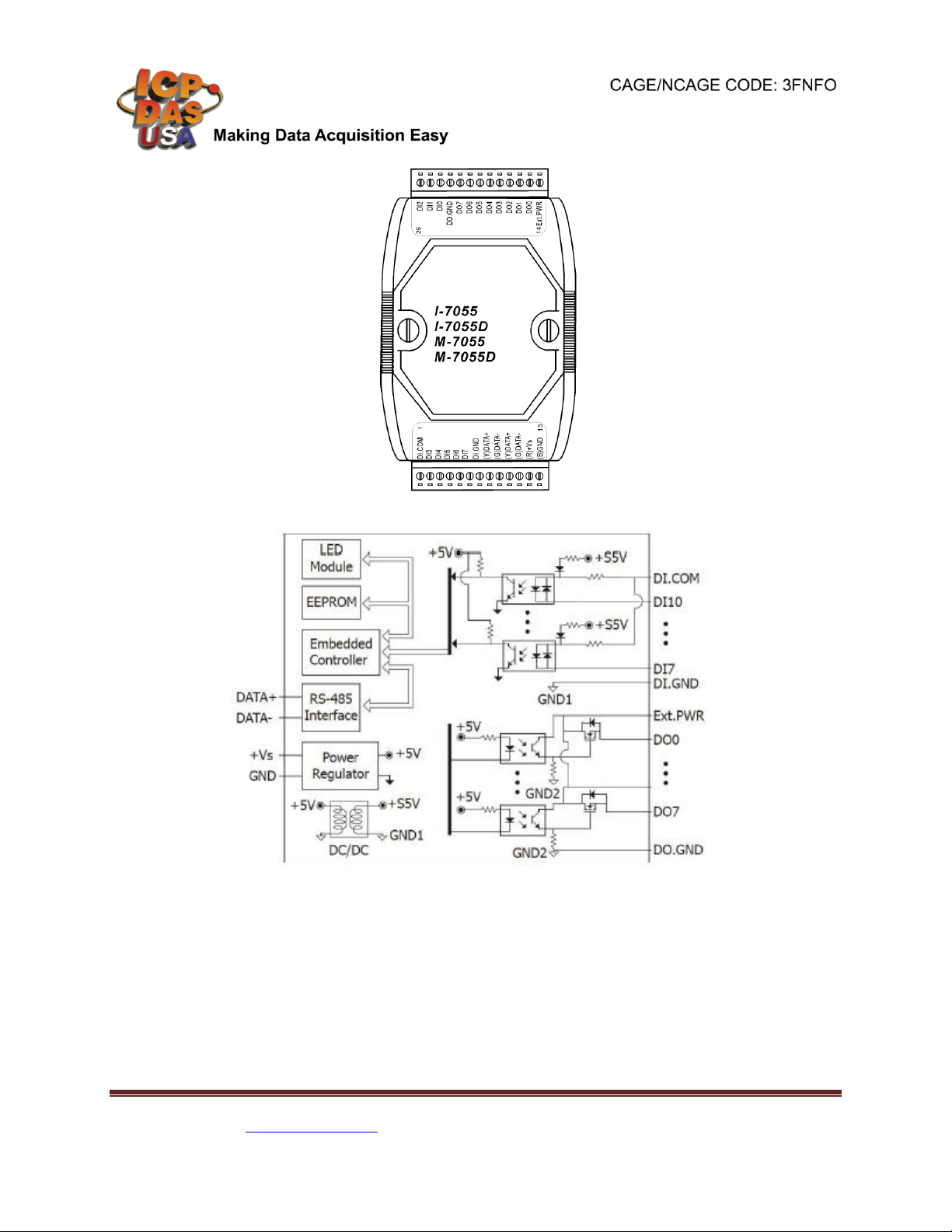

3. Block/ Wiring Diagram

I-7055D 8 Channel Isolated DI (Counter)and 8 Channel Isolated DO DAQ Module- QuickStart (Feb/2016)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

4. Default Settings

。Module Address: 01

。DIO Type: Type 40

。Baud Rate: 9600 bps

。Checksum disabled

。J3 set to INIT mode enabled

5. Configuration

To install the module, follow the steps below:

1. Connect the digital input and output.

2. Connect the module to the RS-485 network using the DATA+ and DATA- terminals. If

the host is only equipped with an RS-232 interface, then an RS-232 to RS-485

converter will be required.

I-7055D 8 Channel Isolated DI (Counter)and 8 Channel Isolated DO DAQ Module- QuickStart (Feb/2016)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

3. Connect the module to the power supply using the +Vs and GND terminals. Note that

the voltage supplied should be in the range of +10 to +30V DC.

4. Open DCON utility pro

click on COM port(first icon).

It can select multi-options such as Baud Rate, Protocol, Checksum, and Format to

search module. The default settings for the module can be found in Section 3. Click OK

after selecting the COM port setting.

I-7055D 8 Channel Isolated DI (Counter)and 8 Channel Isolated DO DAQ Module- QuickStart (Feb/2016)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

5. DCON utility pro will search for the selected COM port according the setting

previously set. DCON Utility Pro supports DCON and Modbus protocol for all ICPDAS

and the others modules.

I-7055D 8 Channel Isolated DI (Counter)and 8 Channel Isolated DO DAQ Module- QuickStart (Feb/2016)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

6. Configuration I/O module setting on PC

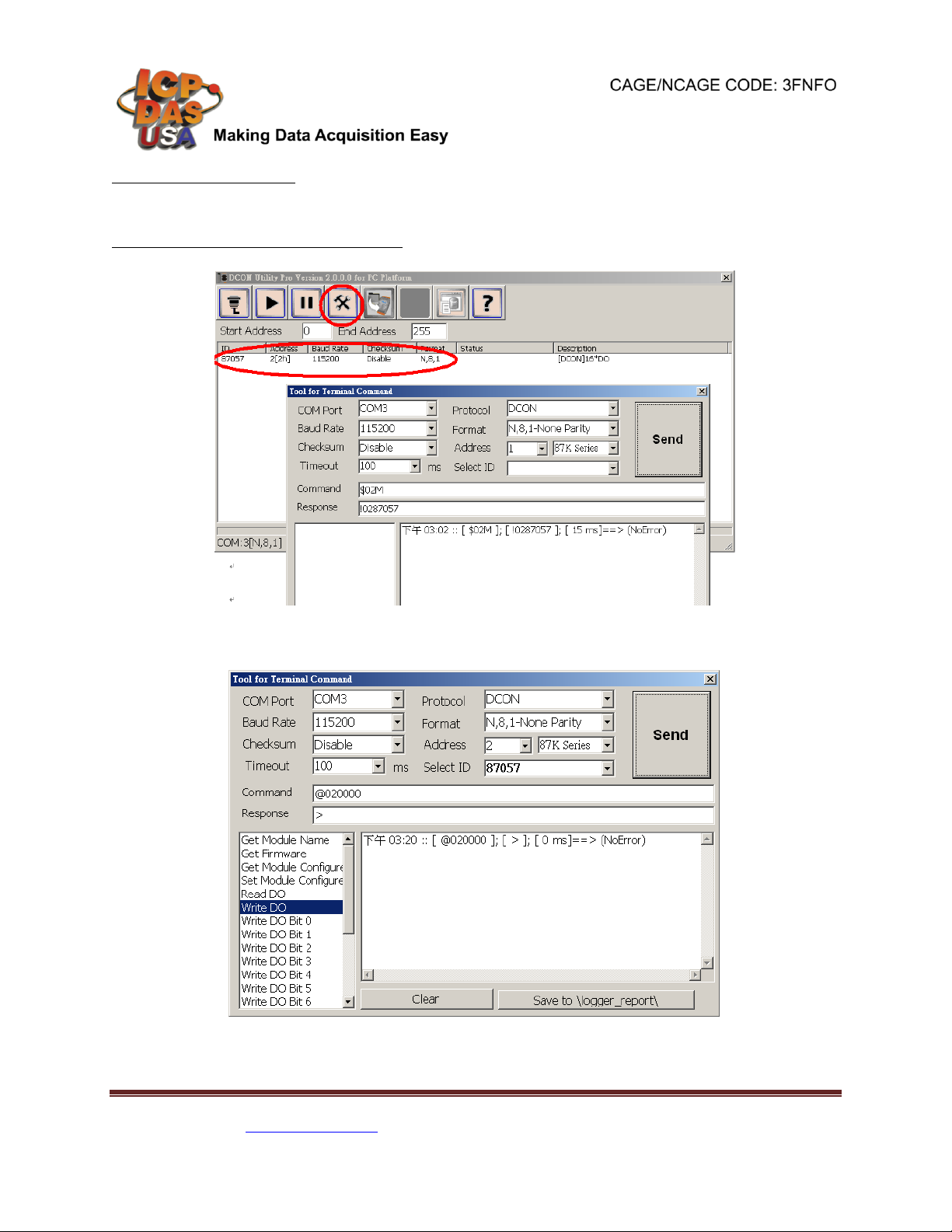

7. For I-7000 modules, DCON utility pro terminal can send command to the module.

See user manual Sections 2 for details command.

I-7055D 8 Channel Isolated DI (Counter)and 8 Channel Isolated DO DAQ Module- QuickStart (Feb/2016)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

Configure the module: sending the %AANNTTCCFF command. See user manual

Section 2 for details.

Read data from the input channels: send either the #AA or #AAN command to the

module.

8. If user doesn’t know command, user can select Address and ID, it will show some

refer commands as below. User can select necessary command to test or debug

modules.
