ICP DAS CO., LTD.

tM-AD4P2C2 Quick Start Guide

Quick Start

For tM-AD4P2C2

August 2013, Version 1.00

Congratulations on purchasing the tM-AD4P2C2 the most popular automation

solution for remote monitoring and control applications. This Quick Start Guide will

provide information needed to get started with the tM-AD4P2C2. Please

also consult the User Manual for detailed information on the setup and use of the

tM-AD4P2C2.

In addition to this guide, the shipping box includes the following items:

tM-AD4P2C2

tM Series DIO User Manual

http://www.icpdas.com/root/product/solutions/datasheet/tm-series/tM-AD_Series_

User_Manual.pdf

tM-SERIES Website

http://www.icpdas.com/root/product/solutions/remote_io/rs-485/tm-series/tm-ad4p

2c2.html

ICP DAS Website

http://www.icpdas.com

ICP DAS CO., LTD.

tM-AD4P2C2 Quick Start Guide

-------

---------------------------------------------------------------------------

Understanding the Hardware Specifications

and Wiring Diagrams

Before installing the hardware, you should have a basic understanding of hardware

specification and the wiring diagrams.

System Specifications：

ICP DAS CO., LTD.

tM-AD4P2C2 Quick Start Guide

I/O Specifications：

ICP DAS CO., LTD.

tM-AD4P2C2 Quick Start Guide

Wire Connection：

Pin Assignment：

ICP DAS CO., LTD.

tM-AD4P2C2 Quick Start Guide

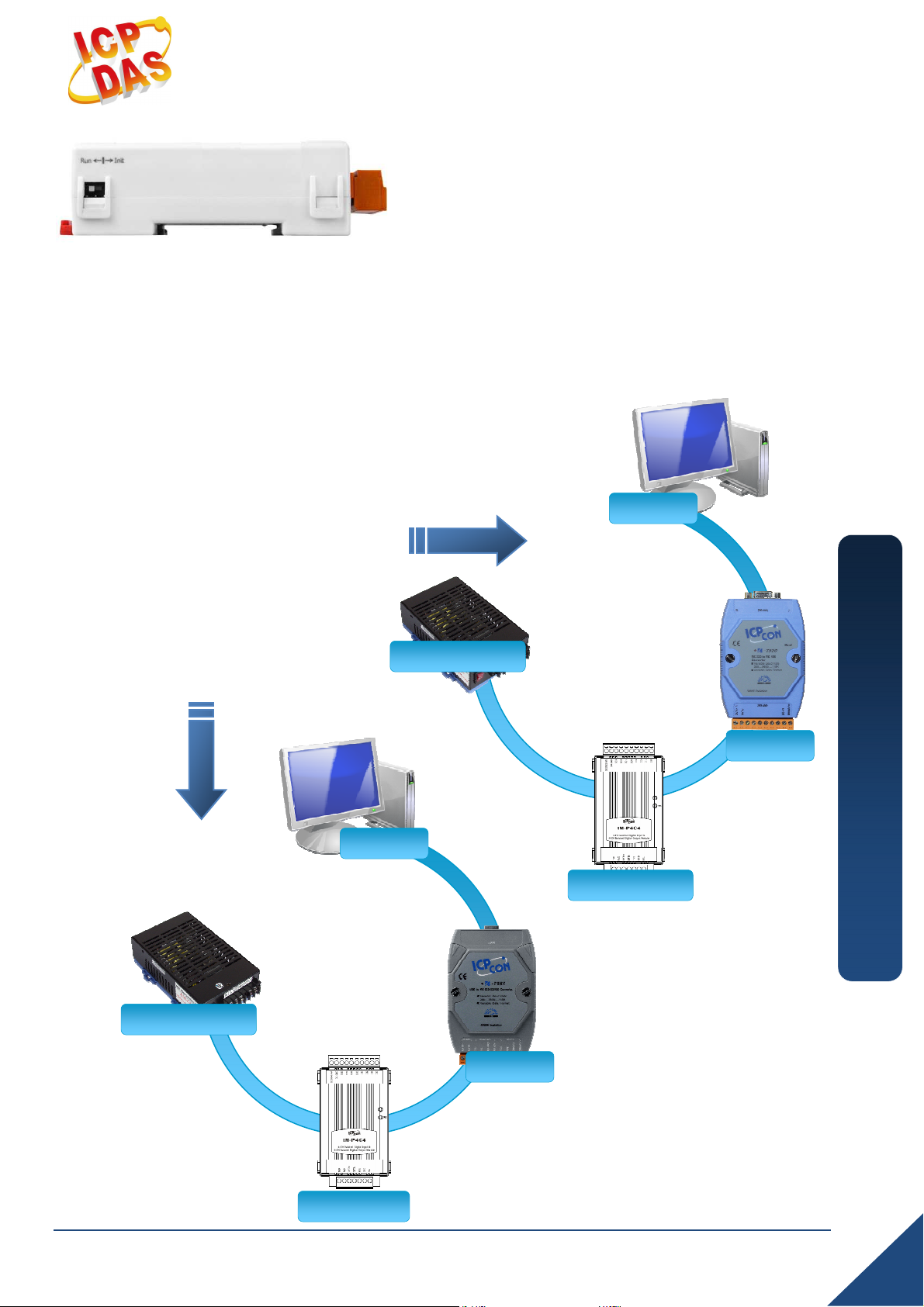

Make sure the switch placed in the

“Init” position.

----------------------------------------------------------------------------------

Connecting to the PC and the Power Supply

The tM-Series series is equipped with an RS-485

port for connection to a 232/USB converter to PC

--------------------------------------------

Booting the tM-AD4P2C2

in Init Mode

Connect to the PC

Using an RS-485 Converter

Connect to PC

Using a USB Converter

7520

Power Supply

232

485

Series

Power Supply

USB

485

7561

Series

ICP DAS CO., LTD.

tM-AD4P2C2 Quick Start Guide

---------------------------------------------------------------------------------

Installing the DCON Utility

The DCON Utility is an easy-to-use tool designed to enable simple configuration of

I/O modules that use the DCON protocol.

Step 1: Locate the DCON Utility

The DCON Utility can be obtained from the companion from the

ICPDAS FTP site:

http://www.icpdas.com/download/7000/7000.htm

Step 2: Follow the prompts to complete the installation

After the installation has

been completed, there will be a

new shortcut to the DCON Utility on

the desktop.

---------------------------

-------------------------------------------------------

Using the DCON Utility to Initialize the

tM-AD4P2C2 Module

The tM-AD4P2C2 is an I/O module based on the DCON protocol, meaning that

you can use the DCON Utility to easily initialize it.

ICP DAS CO., LTD.

tM-AD4P2C2 Quick Start Guide

Step 1: Run the DCON Utility

Double-click the DCON Utility

shortcut on your desktop.

Step 2: Use the COM1 port to communicate with the

tM-AD4P2C2

Click the “COM Port” option from the menu and a dialog box will be displayed that

will allow you to set the communication parameters as described in the table below.

Communication

parameter Factory

default Value

Address 00

Baud Rate 9600

Protocol DCON

Checksum Disabled

Parity N,8,1

ICP DAS CO., LTD.

tM-AD4P2C2 Quick Start Guide

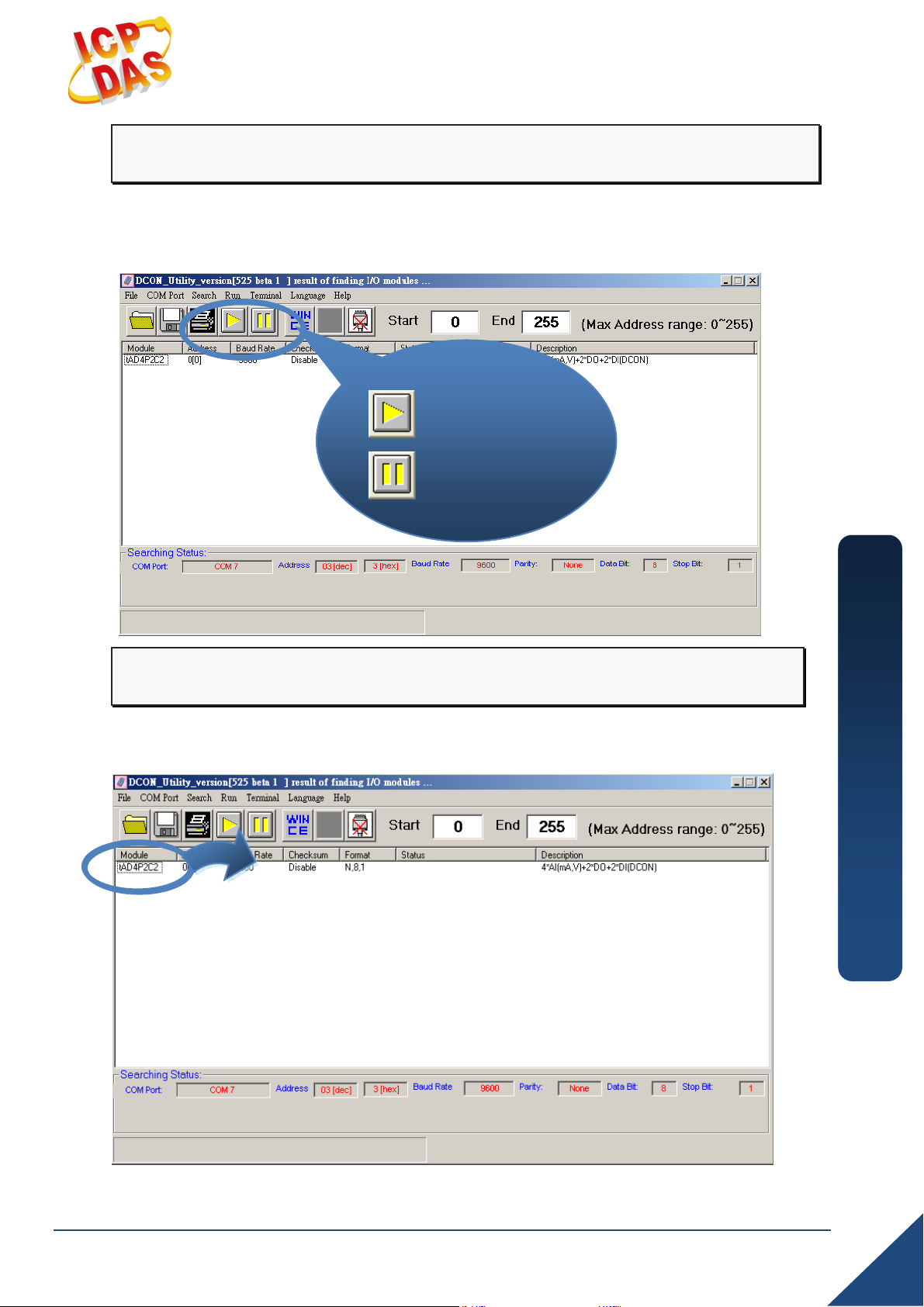

Step 3: Search for the

tM-AD4P2C2

module

Click “Start Search” button from the toolbox to search for the tM-AD4P2C2 module.

After the tM-AD4P2C2 module is displayed in the list, click “Stop Search” button.

Step 4: Connect to the tM-AD4P2C2

After clicking on the name of the module in the list, a dialog box will be displayed.

Start Search

Stop Search

ICP DAS CO., LTD.

tM-AD4P2C2 Quick Start Guide

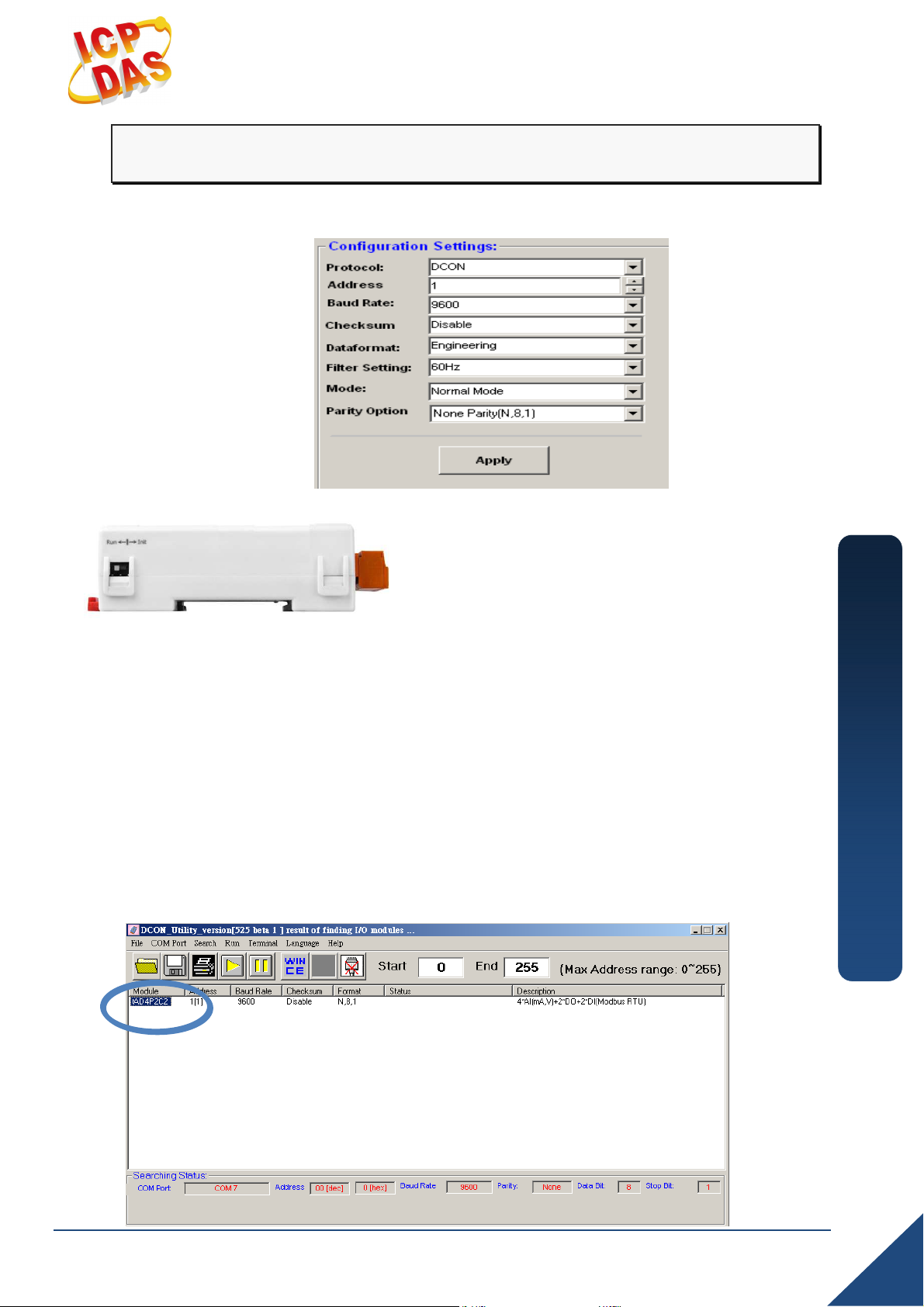

Step 5: Initialize the tM-AD4P2C2 module

Set the “Address” field in the dialog box to 1 and then click “Setting” button to save

the settings.

Make sure the INIT switch is placed in the

“Normal” position.

----------------------------------------------------------------------------------

Starting the Module Operation

After rebooting the tM-AD4P2C2 module, search for the module to make sure the

settings have been changed. You can double click on the name of the module in

the list to open the configuration dialog box.

---------------------------------------

-----

Rebooting the

tM-AD4P2C2 Module in

Normal Mode

ICP DAS CO., LTD.

tM-AD4P2C2 Quick Start Guide

------------------------------------------------------

---------------------------

Modbus Address Mapping

Address Description Attribute

30001 ~ 30004

40001 ~ 40004 Analog input value of channel 0 to 3 R

30129 ~ 30130

40129 ~ 40130 Counter value of digital input channel 0 to 1 R

40257 ~ 40260 Analog input type code of channel 0 to 3 R/W

40225 ~ 40226 High alarm limit of channel 0 to 1 R/W

40233 ~ 40234 Low alarm limit of channel 0 to 1 R/W

40481 Firmware version (low word) R

40482 Firmware version (high word) R

40483 Module name (low word), 0x4001 R

40484 Module name (high word), 0x0722 R

40485 Module address, valid range: 1 ~ 247 R/W

40486 Bits 5:0

Baud rate, 0x03 ~ 0x0A

Code 0x03 0x04 0x05 0x06

Baud 1200 2400 4800 9600

Code 0x07 0x08 0x09 0x0A

Baud 19200 38400 57600 115200

Bits 7:6

00: no parity, 1 stop bit

01: no parity, 2 stop bits

10: even parity, 1 stop bit

11: odd parity, 1 stop bit

R/W

40488 Modbus response delay time in ms, valid range: 0 ~ 30

R/W

40489 Host watchdog timeout value, 0 ~ 255, in 0.1s R/W

40490 Channel enable/disable, 00h ~ 0Fh R/W

40492 Host watchdog timeout count, write 0 to clear R/W

00033 ~ 00034

10033 ~ 10034 Digital input value of channel 0 to 1 R

00065 ~ 00066

10065 ~ 10066 High latched value of DI R
