IBASE Technology MI945PA Manuel utilisateur

MI945PA

Intel ®CoreTM 2 Duo/GM45

Mini-ITX Motherboard

USER’S MANUAL

Version 1.0

MI945PA User’s Manual

Acknowledgments

AMI is a registered trademark of American Megatrends, Inc.

PS/2 is a trademark of International Business Machines

Corporation.

Intel and Intel® Core 2 Duo and Intel® Celeron processors are

registered trademarks of Intel Corporation.

Microsoft Windows is a registered trademark of Microsoft

Corporation.

Winbond is a registered trademark of Winbond Electronics

Corporation.

All other product names or trademarks are properties of their

respective owners.

MI945PA User’s Manual iii

Table of Contents

Introduction.......................................................1

Product Description.............................................................1

Checklist..............................................................................2

MI945PA Specifications.....................................................3

Board Dimensions...............................................................4

Installations.......................................................5

Installing the CPU...............................................................6

Installing the Memory.........................................................7

Setting the Jumpers .............................................................8

Connectors on MI945PA...................................................12

BIOS Setup.......................................................23

Drivers Installation......................................45

Intel Chipset Software Installation Utility.........................46

VGA Drivers Installation ..................................................48

Realtek Audio Driver Installation .....................................50

LAN Drivers Installation...................................................51

Intel® Management Engine Interface...............................53

Intel® AMT SOL Driver Installation................................55

Appendix...........................................................57

A. I/O Port Address Map...................................................57

B. Interrupt Request Lines (IRQ)......................................58

C. Watchdog Timer Configuration....................................59

MI945PA User’s Manual

Remarks: The IDE connector on board does not support OS

installation in hard drive. A system hard drive connected to this IDE

cannot be booted up to OS.

INTRODUCTION

MI945PA User’s Manual 1

Introduction

Product Description

The MI945PA Mini ITX board incorporates the Mobile Intel® GM45 Express

Chipset for Embedded Computing, consisting of the Intel® GM45 Graphic

Memory Controller Hub (GMCH) and Intel® I/O Controller Hub (ICH9-M), an

optimized integrated graphics solution with a 1066MHz and 800MHz front-side

bus. Dimensions of the board are 170mm x 170mm.

The integrated powerful 3D graphics engine, based on Intel® Graphics Media

Accelerator X3500 (Intel® GMA X3500) architecture, operates at core speeds of

up to 533 MHz. It features a low-power design, is validated with the Intel® Core

2 Duo processors on 45nm process. With dual channel DDR2 800MHz two

SoDIMM sockets on board, the board supports up to 4GB of DDR2 system

memory.

Intel® Graphics supports a unique intelligent memory management scheme

called Dynamic Video Memory Technology (DVMT). DVMT handles diverse

applications by providing the maximum (384MB) availability of system

memory for general computer usage, while supplying additional graphics

memory when a 3D-intensive application requests it. The Intel GMA X3500

graphics architecture also takes advantage of the high-performance Intel

processor. Intel GMA X3500 graphics supports Dual Independent Display

technology.

The main features of the board are:

Supports Intel® CoreTM 2 Duo (Penryn 1066MHz)

Supports up to 2.53GHz, 1066MHz/800MHz FSB

Two DDR2 SoDIMM, Max. 4GB memory

Onboard Gigabit PHY and Intel PCI-Express Gigabit LAN

Intel® GM45 Express VGA for CRT / LVDS

4x SATA, 8x USB 2.0, 4x COM, Watchdog timer

1x PCI-E(x16) slot, 1x PCI slot

INTRODUCTION

MI945PA User’s Manual

Checklist

Your MI945PA package should include the items listed below.

•The MI945PA Mini-ITX motherboard

•This User’s Manual

•1 CD containing chipset drivers and flash memory utility

•Cable kit (IDE, Serial port, Serial ATA)

INTRODUCTION

MI945PA User’s Manual 3

MI945PA Specifications

Form Factor Mini ITX

CPU Type Intel® Mobile Core

2 Duo/Core

2 Quad Processor (Penryn)

Intel® Celeron 5x5 Series

CPU Speed Up to 2.93GHz

CPU FSB 667/800/1066MHz FSB

L2 Cache 3MB or 6MB (P8000-series or P9000-series, T9000-series)

Green /APM APM1.2

CPU Socket Socket 478 “Type P” (Socket P) or micro-FCBGA on board

Chipset Intel® GM45 (Cantiga) chipset

- GMCH: AC82GM45 1329-pin FCBGA

- ICH9M: AF82801IM 676-pin mBGA

BIOS AMI BIOS, support ACPI Function

Memory DDRII 667/800

- SoDIMM x2 Dual-Channel (w/o ECC), Max. 4GB

VGA & LVDS Intel® GM45 built-in Intel gen.5.0 Graphics Media Accelerator

(533MHz 1.05V), supports DirectX10 for CRT & LVDS

(single/dual channel 18-bit/ 24-bit)

SDVO (DUAL CH) None

Backlight control

(LVDS)

- GMCH built-in control by PWM

LAN 1. Intel® ICH9M 10/100/gigabit MAC + PHY:

•Intel 82567LM 10/100/1000

2. Intel 82574L PCI-e Gigabit LAN controller x1

USB ICH9M built-in USB 2.0 host controller, supports 8 ports

Serial ATA ICH9M built-in SATA controller, supports 4 ports

Parallel IDE JMicron JM368 (PCI-e to PATA) x1 for 1 PATA channel for IDE

Audio Intel® ICH9M built-in High Definition Audio controller ALC888

with 7.1 channels

LPC I/O Winbond® W83627DHG-P: COM1 (RS232), COM2

(RS232/422/485), LPT, Hardware monitor (3 thermal inputs, 4

voltage monitor inputs, VID0-4 & 2 fan headers)

- Fintek 81216AD for COM3/COM4 (RS232),

Digital IO 4 in & 4 out

KB/Mouse

Connector

Supports PS/2 Keyboard/Mouse

Expansion Slots PCIe(x16) x1 (Inner) and PCI x 1

Edge Connector - PS/2 KB/Mouse connector

- Gigabit LAN RJ45 + dual USB stack connector

- DB9 + DB15 stack connector x1 for COM 1 & VGA

-HD Audio (Phone jack 3 x 2)

Onboard

Header/Connector

- 40-pin box-header x1 for IDE1

- DF13 connector x2 for LVDS

- 10-pin headerx1 for Digital I/O

- 10-pin header x1 for COM2

- 20-pin header x1 for COM3/COM4

- 8-pin header x 2 for USB 5/6/7/8

- SATA connector x4 for 4 SATA ports

-26-pin header x1 for LPT

Watchdog Timer Yes (256 segments, 0, 1, 2…255 sec/min)

System Voltage +5V, +3.3V, +12V, -12V, 5VSB (2A)

Other LAN Wakeup

Board Size 170mm x 170mm

INTRODUCTION

[

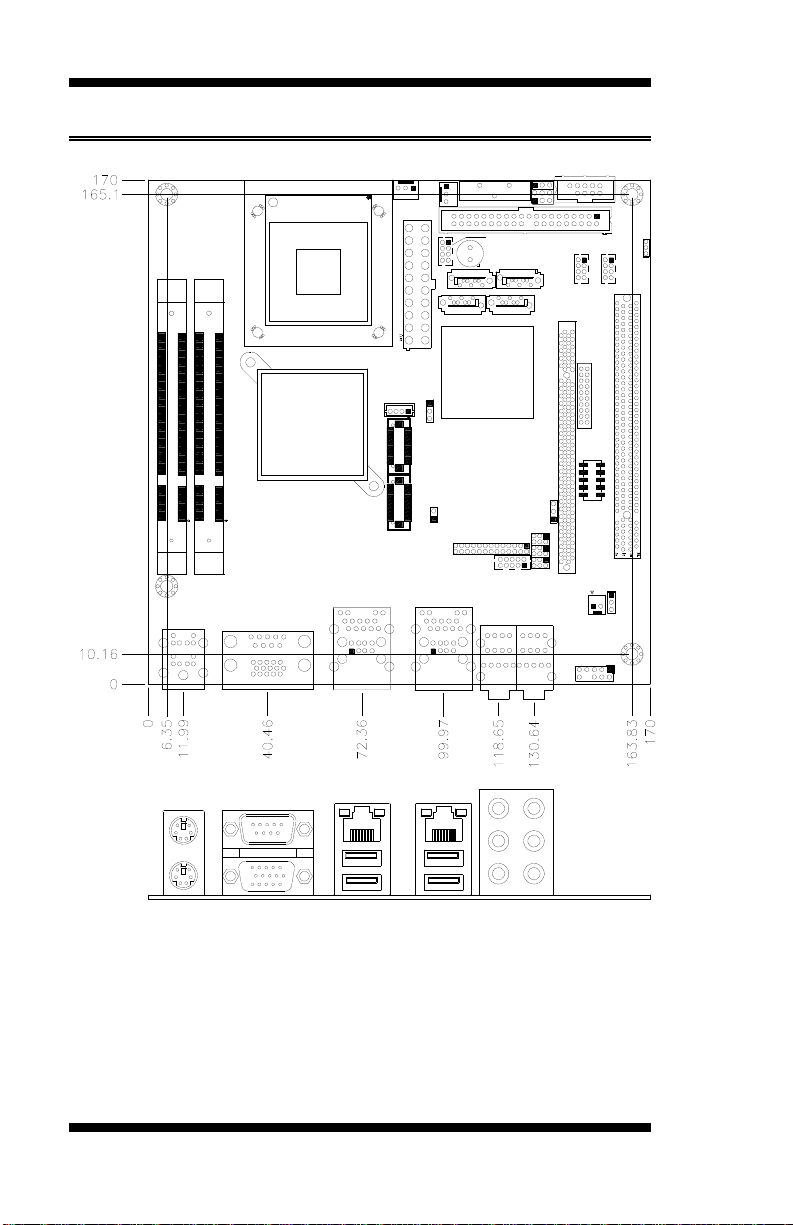

Board Dimensions

MI945PA User’s Manual

INSTALLATIONS

MI945PA User’s Manual 5

Installations

This section provides information on how to use the jumpers and

connectors on the MI945PA in order to set up a workable system. The

topics covered are:

Installing the CPU ................................................................................. 6

Installing the Memory ........................................................................... 7

Setting the Jumpers................................................................................ 8

Connectors on MI945PA..................................................................... 12

INSTALLATIONS

Installing the CPU

The MI945PA board supports a Socket P processor socket for Intel®

CoreTM 2 Duo, Intel® Celeron mobile processors.

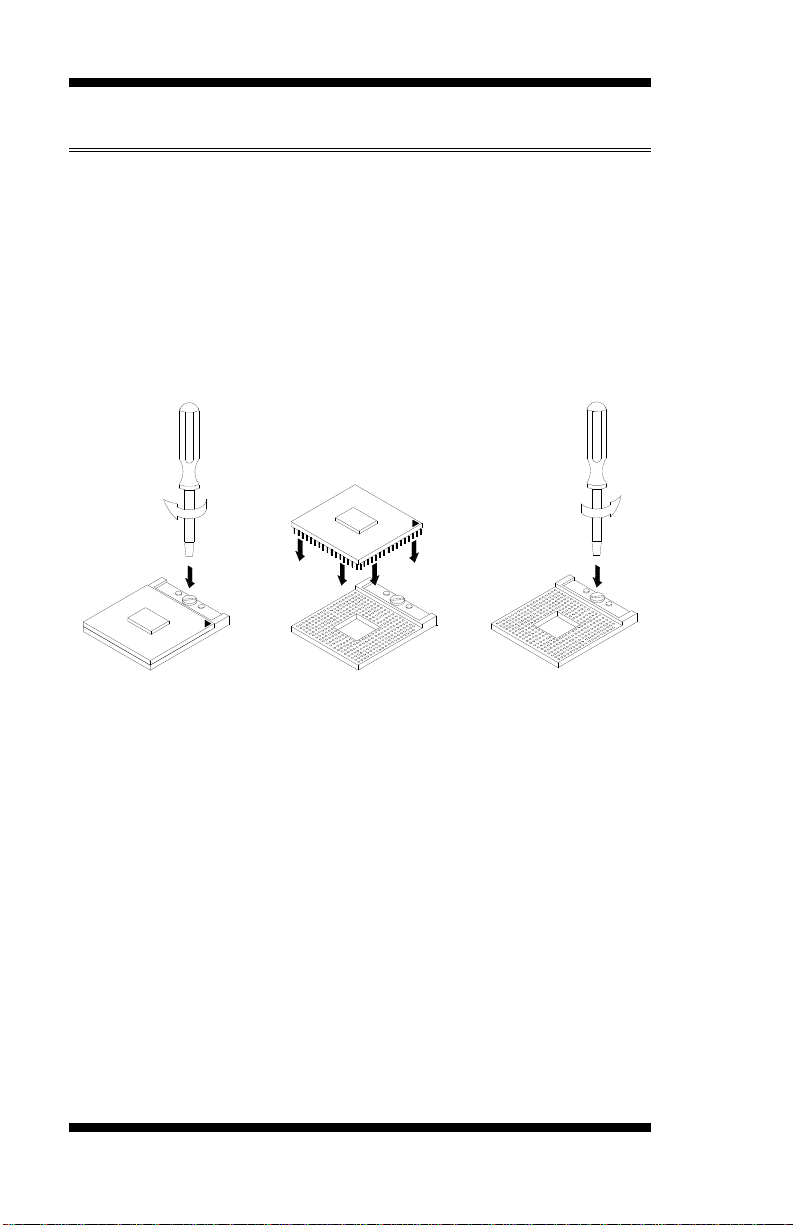

The processor socket comes with a screw to secure the processor. As

shown in the left picture below, loosen the screw first before inserting

the processor. Place the processor into the socket by making sure the

notch on the corner of the CPU corresponds with the notch on the inside

of the socket. Once the processor has slide into the socket, fasten the

screw. Refer to the figures below.

NOTE: Ensure that the CPU heat sink and the CPU top surface are in

total contact to avoid CPU overheating problem that would

cause your system to hang or be unstable.
