IBASE Technology MI985 Manuel utilisateur

MI985

Intel ®5th Generation Core / QM87 PCH

Mini ITX Motherboard

USER’S MANUAL

Version 1.0

MI985 User’s Manual

Acknowledgments

AMI is a registered trademark of American Megatrends Inc.

PS/2 is a trademark of International Business Machines

Corporation.

Intel and Intel® 5th Generation Core DC/QC Processor are

registered trademarks of Intel Corporation.

Microsoft Windows is a registered trademark of Microsoft

Corporation.

Fintek is a registered trademark of Fintek Electronics Corporation.

All other product names or trademarks are properties of their

respective owners.

MI985 User’s Manual iii

Table of Contents

Introduction.......................................................1

Product Description.............................................................1

Checklist..............................................................................1

MI985 Specifications..........................................................2

Board Dimensions...............................................................4

Installations.......................................................5

Installing the Memory.........................................................6

Setting the Jumpers.............................................................7

Connectors on MI985........................................................12

BIOS Setup.......................................................25

Drivers Installation......................................45

Intel Chipset Software Installation Utility ........................46

VGA Drivers Installation..................................................48

Realtek HD Audio Driver Installation ..............................51

LAN Drivers Installation...................................................53

Intel® Management Engine Interface...............................56

Intel® USB 3.0 Drivers.....................................................59

Appendix............................................................62

A. I/O Port Address Map ..................................................62

B. Interrupt Request Lines (IRQ)......................................63

C. Watchdog Timer Configuration ...................................64

MI985 User’s Manual

This page is intentionally left blank.

INTRODUCTION

MI985 User’s Manual 1

Introduction

Product Description

The MI985 Mini ITX motherboard is based on the latest Intel®QM87

chipset. The platform supports the 5th Generation Intel®Core processor

family that features an integrated dual-channel DDR3L memory

controller as well as a graphics core.

The latest Intel®processors provide advanced performance in both

computing and graphics quality. This meets the requirement of customers

in the gaming, POS, digital signage and server market segment.

The QM87 platform is made with 22-nanometer technology that supports

Intel’s first processor architecture to unite the CPU and the graphics core

on the transistor level. The MI985 Mini ITX board utilizes the dramatic

increase in performance provided this Intel’s latest cutting-edge

technology. Measuring 170mm x 170mm, the MI985 offers fast 6Gbps

SATA support, USB3.0 and interfaces for DVI-D, DVI-I, LVDS and DP

displays.

Checklist

Your MI985 package should include the items listed below.

The MI985 Mini ITX motherboard

This User’s Manual

1 CD containing chipset drivers and flash memory utility

Serial ATA cable

IO shield

INTRODUCTION

MI985 User’s Manual

MI985 Specifications

Product Name

MI985AF [Support iAMT]

**MI985AF is default model name on PCB**

Form Factor

Mini-ITX

CPU Type

Intel®5th Gen. CoreTM mobile processors (14nm monolithic)

FCBGA1364 , TDP = 47W (QC)

Package size = 37.5 mmx 32 mm x 1.84mm

CPU Speed

Intel®

CoreTM i7-5850EQ@ 2.7G ~ 3.4GHz [MI985AF-Q27e]

Intel®

CoreTM i7-5700EQ@ 2.6G ~ 3.4GHz [MI985AF-Q26]

Cache

6MB

Chipset

Intel®DH82QM87 PCH

Package size =20 mm x 20 mm x 1.573mm, TDP = 2.7W

BIOS

AMI BIOS

Memory

Intel®5th Gen. CoreTM mobile processors integrated memory

controller

Supports dual channel DDR3L-1333/160[email protected]

SO-DIMM socket x 2 (Non-ECC type, unbuffered)

Maximum capacity = 16GB

VGA

Intel®5th Gen. CoreTM mobile processor integrated GPU (GT3e or

GT2)

Supports 3 independent displays:

DVI-IX 1 (Thru port B, via VGA@ PCH+ Level shifter ASM1442K)

DVI-D x 1 (Thru port C, with level shifter ASM1442K)

DisplayPort x 1 (Thru port D)

LVDS (Thru eDP, via NXP PTN3460)

LAN

1. Intel®

I218LM GbE PHY ** Package = 6mm x 6mm, QFN48**

2. Intel®I211AT as 2nd GbE

USB

USB 2.0 host controller inside QM87 PCH, support 8ports

- 2 ports in the rear panel

- 4 ports via onboard pin header

- 2 ports via MiniPCIe sockets

USB 3.0 host controller inside QM87 PCH, supports 4 ports

-4 ports in the rear panel

Serial ATA

Intel®QM87 PCH built-in SATA controller, supports total 6 ports

4x SATA (3.0) 6Gbps & shared mSATA for 1 port (SATA port #5)

2x SATA (2.0) 3Gbps

Audio

Intel®QM87 PCH built-in High Definition Audio controller + Realtek

ALC892 w/ 7.1 channels

LPC I/O

Fintek F81866AD-I (128-pin LQFP [14mm x 14 mm])

-COM #1 (RS232/422/485) supports ring-in with power @500 mA

(selectable for 5V or 12V) [EXAR SP339EER1 232/422/485

transceiver x 1 for jumper-less]

-COM #2 (RS232 only), support ring-in with power @500 mA

(selectable for 5V or 12V)

-COM #3~COM #6 (RS232 only)

Hardware Monitor (2 thermal inputs,4 voltage monitor inputs & 2 Fan

headers)

-CPU fan x1 (PWN Fan type, 4-pin connector)

-SYS fan x1 (PWM Fan type, 4-pin connector)

Digital IO

4 in & 4 out

TPM 2.0

Infineon SLB9665 [C01Z9665TT2007000P]

iAMT

Intel®Active Management Technology ver.9.1

INTRODUCTION

MI985 User’s Manual 3

Expansion Slots

- PCI-Express (16x) x1 [Gen 3.0 PEG]

- Mini PCI-Express x 2 port [Full-sized], both support USB 2.0

- One slot supports mSATA (6Gbps)

Edge Connectors

Dual DB9 stack connector for COM #1 / #2

DVI-D + DVI-I stack connector x 1

DisplayPort + dual USB (2.0) stack connector x 1

RJ-45 + dual USB (3.0) stack connector x 2

Triplet type Jack 3 x 1 for HD Audio

Onboard

Header/Connector

4 ports x SATA III [Blue color] (One port shared with mSATA)

2 ports x SATA II

DF-11 8-pin connector x 2 for 4 ports USB 2.0

DF-20 20-pin connector x 2 for dual –channel LVDS

eDP LVDS panel connector x 1

2x5 pin-header x 1 for front panel audio [Support 7.1 Channel]

DF-11 10-pin pin-header x 4 for COM3 ~ COM6

2x5 pin-header x 1 for Digital IO

4-pin box header x 1 for LCD backlight control (thru iSMART)

Watchdog Timer

Yes (256 segments, 0, 1, 2…255 sec/min)

System Voltage

ATX standard 20-pin type

4 pin type (+12V only)[For full system loading usage]

Others

-iSMART 3.1

-Onboard CPU cooler

Board Size

170mm x 170mm

Operation System

Windows 7, Windows8, Linux

Certification

CE /FCC/LVD

INTRODUCTION

MI985 User’s Manual

[

Board Dimensions

INSTALLATIONS

MI985 User’s Manual 5

Installations

This section provides information on how to use the jumpers and

connectors on the MI985 in order to set up a workable system. The topics

covered are:

Installing the Memory............................................................................ 6

Setting the Jumpers................................................................................ 7

Connectors on MI985.......................................................................... 12

INSTALLATIONS

MI985 User’s Manual

Installing the Memory

The MI985 board supports two DDR3L memory socket for a maximum

total memory of 16GB in DDR3L SODIMM memory type.

Installing and Removing Memory Modules

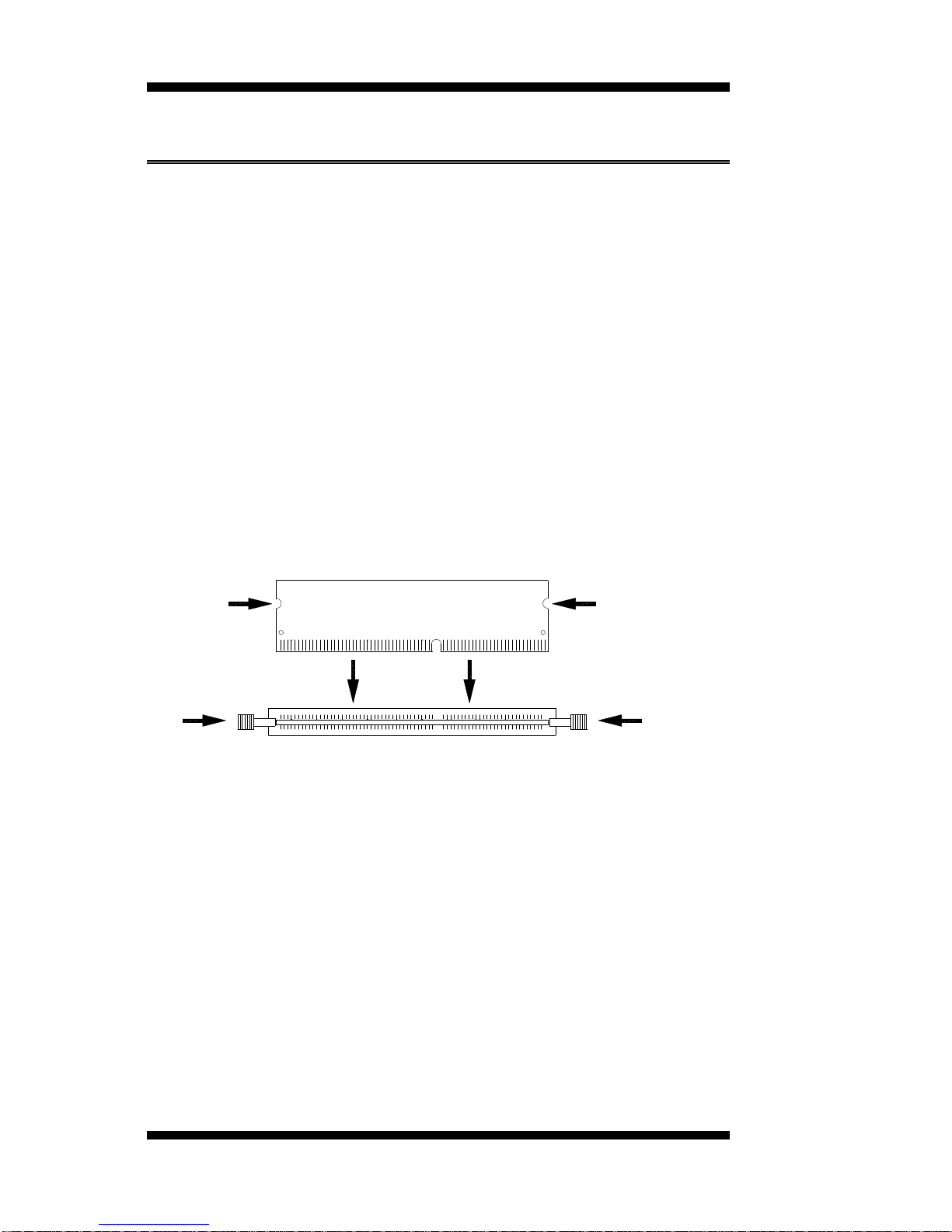

To install the DDR3L modules, locate the memory slot on the board and

perform the following steps:

1. Hold the DDR3L module so that the key of the DDR3L module

aligned with that on the memory slot.

2. Gentlypush the DDR3Lmodule inan uprightposition until the clips of

the slot close to hold the DDR3L module in place when the DDR3L

module touches the bottom of the slot.

3. To remove the DDR3L module, press the clips with both hands.

DDR3 Module

Lock
