IBASE Technology MB966 Manuel utilisateur

MB966

Intel®Xeon®/ Core™ i3/i5/i7

Motherboard

USER’S MANUAL

Version 0.1

MB966 User’s Manual

Acknowledgments

AMI is a registered trademark of American Megatrends, Inc.

PS/2 is a trademark of International Business Machines

Corporation.

Intel is a registered trademark of Intel Corporation.

Microsoft Windows is a registered trademark of Microsoft

Corporation.

Winbond is a registered trademark of Winbond Electronics

Corporation.

All other product names or trademarks are properties of their

respective owners.

MB966 User’s Manual iii

Table of Contents

Introduction.......................................................1

Specifications......................................................................1

Checklist..............................................................................3

Board Dimensions...............................................................4

Installations.......................................................6

Installing the CPU...............................................................7

Installing the Memory.........................................................8

Setting the Jumpers .............................................................9

Connectors on MB966 ......................................................13

BIOS Setup.......................................................21

Drivers Installation......................................45

MB966 User’s Manual

This page is intentionally left blank.

INTRODUCTION

MB966 User’s Manual 1

Introduction

Specifications

Product Name MB966

Processor

Support for Intel

Lynnfield and Clarkdale processors which

fall within mainstream TDP envelope, up to 95W TDP.

Support for the following Intel®technologies:

•Turbo Boost

•Intel®64 (64-bit extensions)

•XD (Execution Disable Bit)

•Hyper-Threading

•VT-d (Intel®Virtualization Technology for Directed I/O)

•TXT (Trusted Execution Technology)

Processor

Speed

•Intel® Xeon X3450, X3430

•Intel® Core i7-860

•Intel® Core i5-750, i5-660

•Intel® Core i3-540

•Intel® Pentium® Processor G6950

CPU VRD Appropriate VRD for Lynnfield and Clarkdale

Chipset Intel®3450 PCH chip (single chip w/o ICH)

BIOS AMI BIOS

Memory

•Dual channel DDR3 up to 1333MHz

•Unbuffered with ECC or Unbuffered & non-ECC

•Four DIMM sockets for max. 16GB memory

Video •Intel® chipset GMA graphics

Network

Controller

•MGN1: Intel®Nineveh Gigabit PHY (82578DM) w/ AMT

support

•LAN1~6: Intel®82574L Gigabit Ethernet NIC

Supports SNMP, PXE & Wake-on-LAN

Network Bypass

•Supports two bypass segments

•Control by GPIO / Watchdog / Electrical Disconnect

(Power Off)

SATA II Intel® 3450 built-in SATA II controller (3.0Gb/sec),

3 ports

Compact Flash ACARD ARC772 SATA II to PATA for CF Flash type II

INTRODUCTION

MB966 User’s Manual

USB

Intel® 3450 built-in High Speed USB host controller, use 4

ports:

•2-port at front panel

•2-port USB by box header 2x5

LPC I/O

Winbond W83627DHG:

•COM1 by pin header 1x8

•KB/Mouse by pin header 1x6

•Hardware monitor

(3 thermal inputs, 4 voltage monitor inputs & 2 Fan

headers)

RTC Intel® 3450 built-in RTC with on-board lithium battery &

holder

Expansion Two PCI-e x8 (Golden Finger)

One Type II CF (Internal socket)

Front Panel

LEDs and LCD

Display

Status LED function as follows:

#1 LED: System Power (Green = on, Unpowered = off)

#2 LED: Status (Yellow = define by S/W)

#3 LED: Alarm (Red = Alarm)

Front Panel LED

& LCD &

Connector

•One Dual layer USB type A connector

•One RJ-45 for Management port

•Six RJ-45 with Link/Act, Speed LED for 10/100/1000M

Ethernet

•Three status LED

Fan Connector

•4 pins pin-header x1 for CPU fan (near CPU w/

tachometer sense)

•4 pins pin-header x4 for System fan (near rear side)

Power

Connector Supports 24pins + 8pins

Power

Management

ACPI compliant – 5 levels: Full-on (S0) / Stop Grant (S1) /

Suspend to Disk (S4) / Soft-off (S5)

Watchdog Timer Yes (256 segments, 0, 1, 2…255 sec/min)

TPM Winbond WPCT200 TPM1.2 controller x1 for Trust Platform

1.2

RoHS Compliant Yes

MTBF 100,000

Board Size 8.11” x 14” (206 x 355.6 mm)

INTRODUCTION

MB966 User’s Manual 3

Checklist

Your MB966 package should include the items listed below.

•The MB966 motherboard

•This User’s Manual

INTRODUCTION

[

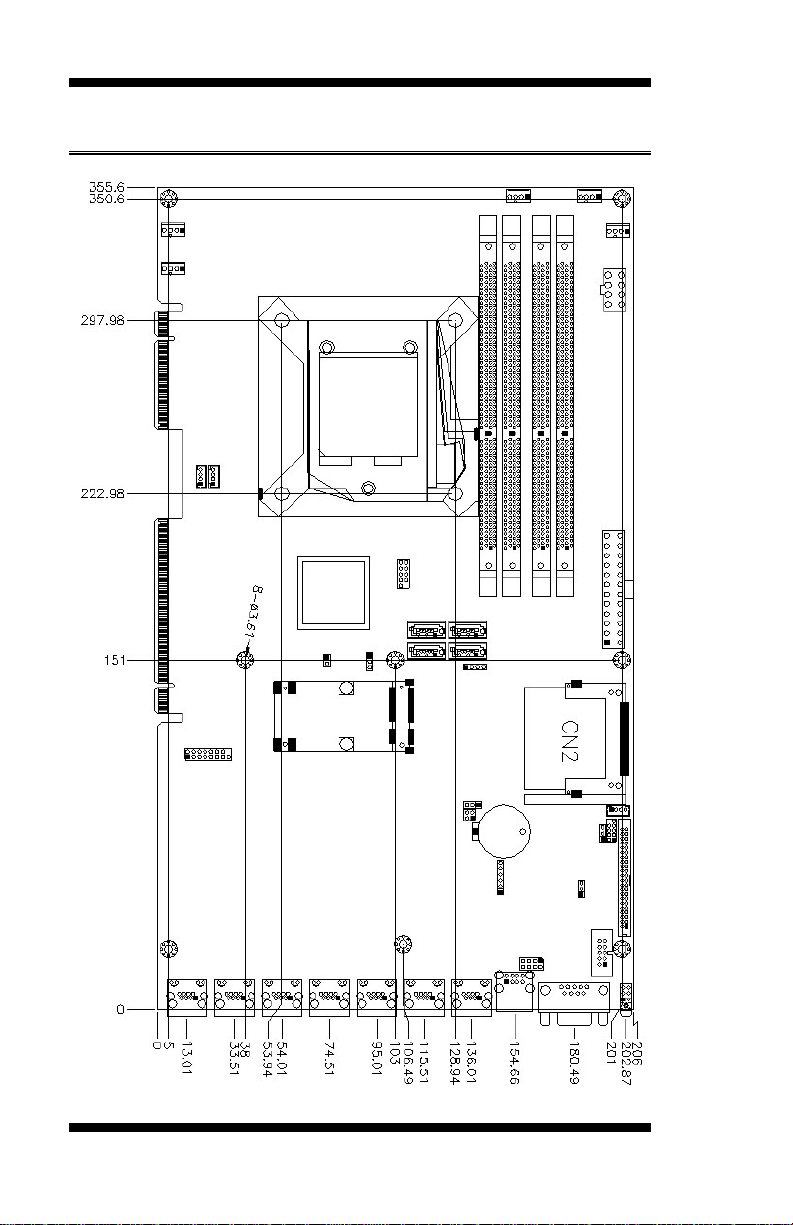

Board Dimensions

MB966 User’s Manual

INTRODUCTION

MB966 User’s Manual 5

This page is intentionally left blank.

INSTALLATIONS

MB966 User’s Manual

Installations

This section provides information on how to use the jumpers and

connectors on the MB966 in order to set up a workable system. The

topics covered are:

Installing the CPU..................................................................................7

Installing the Memory............................................................................8

Setting the Jumpers................................................................................9

Connectors on MB966.........................................................................13
