IBASE Technology MI900 Manuel utilisateur

MI900

LGA775 Core2 Duo

Intel®Q965 Chipset

Mini-ITX Motherboard

USER’S MANUAL

Version 1.0

Acknowledgments

Award is a registered trademark of Award Software International,

Inc.

PS/2 is a trademark of International Business Machines

Corporation.

Intel is a trademark or registered trademark of Intel Corporation.

Microsoft Windows is a registered trademark of Microsoft

Corporation.

Winbond is a registered trademark of Winbond Electronics

Corporation.

All other product names or trademarks are properties of their

respective owners.

Table of Contents

Introduction.......................................................1

Checklist..............................................................................1

Product Description.............................................................2

Specifications......................................................................3

Board Dimensions...............................................................4

Installations.......................................................5

Installing the CPU...............................................................6

ATX Power Installation ......................................................6

Installing the Memory.........................................................7

Setting the Jumpers .............................................................8

Connectors on MI900........................................................12

BIOS Setup.......................................................23

Drivers Installation......................................45

Intel Q965 Chipset Software Installation Utility...............46

Intel Q965 Chipset Graphics Driver..................................48

Realtek Codec Audio Driver Installation..........................50

Intel LAN Drivers Installation ..........................................51

Appendix...........................................................54

A. I/O Port Address Map...................................................54

B. Interrupt Request Lines (IRQ)......................................55

C. Watchdog Timer Configuration....................................56

MI900 User’s Manual iii

iv MI900 User’s Manual

This page is intentionally left blank.

INTRODUCTION

MI900 User’s Manual 1

Introduction

Checklist

Your MI900 Core 2 Duo motherboard package should include the items

listed below:

The MI900 motherboard

This User’s manual

1 x I/O shield

1 x IDE cable

1 x SATA cable

1 CD containing the following:

Chipset Drivers

Flash Memory Utility

INSTALLATIONS

2MI900 User’s Manual

Product Description

The MI900 Mini-ITX motherboard is designed for either the Intel

Core2 Duo or IntelPentiumD processors of up to 1066MHz

FSB. It is based on the Intel’s Q965 Express chipset and it comes

with two single-channel DDR2 memory slots and 4GB memory

capacity for faster system responsiveness and support of 64-bit

computing. The new IBASE motherboards are aimed for high

performance PCs in the digital, communications and industrial

sector.

On board is one PCI Express x16 slot that offers up to 3.5X the

bandwidth over traditional PCI architecture to support the latest

high-performance graphics cards. Dual independent display

comes to life with the onboard IntelQ965 integrated graphics for

CRT and an optional SDVO card supporting either an LVDS or

DVI display interface. LAN functionality is supported with a 10/100

Ethernet controller or with two Gigabit Ethernet controllers.

MI900 is expandable for 8x2 pins pin header for adaptor card

ID394 that support 2 or 4 serial ports, or ID395 that support TPM

1.2 for security function. Other useful features on the board

include four SATA II ports, six USB 2.0 interface, watchdog timer,

digital I/O and two serial ports. Board dimensions are 170mm by

170mm. (Note: CPU power consumption – under 95watt

recommended.)

MI900 FEATURES

yIntelQ965 Express Chipset Based

ySupport LGA775 IntelCore2 Duo Processors

ySupport FSB 1066/800/533MHz

ySupport up to 4GB DDRII 800/667/533 memory

y1 x PCI Express(x16)

ySupport one 10/100 or two Gigabit LAN on board

y4 x SATA II, 1 x IDE, 6 x USB 2.0, 2 x COM,

7.1Ch.HD Audio

INTRODUCTION

MI900 User’s Manual 3

Specifications

Processor Supports Intel Core 2 Duo processor (Conroe core) in LGA775 socket

FSB 533/800/1066 MHz

Chipset Intel Q965 Chipset consisting of:

Intel Q965 Graphic Memory Controller Hub (GMCH)

Intel ICH8 I/O Controller Hub

BIOS Award BIOS: SPI interface only, supports ACPI, SMBIOS

Memory Two 240-pin DDRII 533/667/800 DIMM sockets (2x single ch)

Supports max. 4 GB system memory

Video Intel Q965 integrated graphic subsystem (GMA3000), dual independent

display available through on-board VGA and PCI-e x16 expansion

adapter (DVI or LVDS) or VGA card

LAN LAN1: dual Footprint support option:

Intel 82566DC Nineveh 10/100/1000 LAN

Intel 82562V Ekron-N 10/100

LAN2: Marvell 88E8053 PCI-express Gigabit LAN controller x1

USB Intel ICH8 built-in USB 2.0 host controller, supports 6 ports:

4 ports in the rear I/O region

2 ports with on-board headers

SATA II Intel ICH8 built-in SATA II controller (3.0Gb/sec) w/ 4 ports

IDE JMicron JMB368 (PCI-e to PATA) x1 for 1 PATA channel

Audio Intel ICH8 built-in high definition audio w/ Realtek ALC888 Codec

LPC I/O Winbond W83627EHF: COM1 (RS232), COM2 (RS232/422/485) &

Hardware monitor

Edge

Connectors Mini-DIN for PS/2 KB & MS, DB9 connector for COM1, DB15

connector for VGA, RJ45 + dual USB stack connector x2 for

LAN1~2 and USB1~4, Triple (3x1) audio phone jack stack connector

On Board

Headers /

Connectors

SATA (7-pin shrouded vertical) connector x4, USB 5-6, COM2

(RS232/422/485), Digital I/O, 7.1 channel audio, IDE, CPU fan &

system fan headers

Expansion PCI-express (x16) slot x1

8x2 pins pin-header x1 for adaptor card:

-ID394 (2 or 4 serial ports - Fintek F81216)

-ID395 (TPM1.2 – Winbond WPCT200/ATMEL AT97SC3203

co-layout)

RTC ICH8 built-in RTC with on-board lithium battery

Watchdog

Timer Yes (256 segments, 0, 1, 2…255 sec/min)

Digital IO 4 in and 4 Out

Other LAN Wakeup

Power

Connector 24 pins ATX main power + 4 pins 12V

CPU Power: 95W max.

System

Voltage +5V, +3.3V, +12V, -12V & 5VSB

Board Size 170 x 170mm

INSTALLATIONS

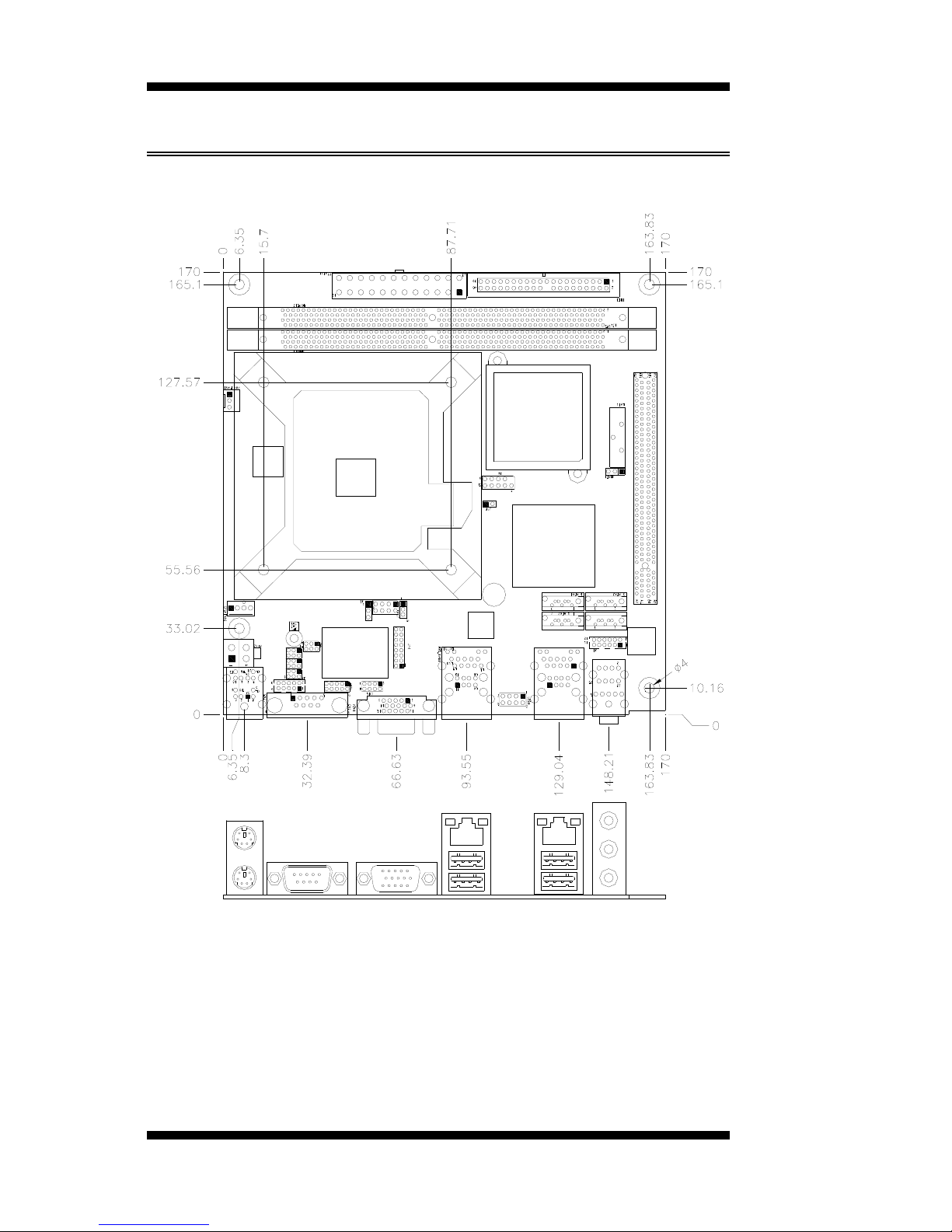

Board Dimensions

4MI900 User’s Manual

INSTALLATIONS

MI900 User’s Manual 5

Installations

This section provides information on how to use the jumpers and

connectors on the MI900 in order to set up a workable system. The

topics covered are:

Installing the CPU........................................................................ 6

ATX Power Installation............................................................... 6

Installing the Memory.................................................................. 7

Setting the Jumpers...................................................................... 8

Connectors on MI900 ................................................................ 12

INSTALLATIONS

Installing the CPU

The MI900 motherboard supports an LGA 775 processor socket for

Intel® Core 2 Duo processors.

The LGA 775 processor socket comes with a lever to secure the

processor. Refer to the pictures below, from left to right, on how to place

the processor into the CPU socket. Please note that the cover of the

LGA775 socket must always be installed during transport to avoid

damage to the socket.

ATX Power Installation

The system power is provided to the motherboard with the ATX1 and

ATX2 power connectors. ATX1 is a 24-pin power connector and ATX2

is a 4-pin 12V power connector.

The 24-pin power connector can to be connected to a standard 20-pin

ATX power connector in a standard ATX power supply (Min. 400watt).

Note: The power supply 5VSB voltage must be at least 2A.

6MI900 User’s Manual
