IBASE Technology MI805 Manuel utilisateur
MI805
Intel® Celeron® QC J1900
Mini-ITX Motherboard
USER’S MANUAL
Version 1.1
ii
MI805 User’s Manual
Acknowledgments
AMI BIOS is a trademark of American Megatrends Inc.
PS/2 is a trademark of International Business Machines
Corporation.
Intel and Luna-Pier are registered trademarks of Intel
Corporation.
Microsoft Windows is a registered trademark of Microsoft
Corporation.
Winbond is a registered trademark of Winbond Electronics
Corporation.
All other product names or trademarks are properties of their
respective owners.
MI805 User’s Manual iii
Table of Contents
Introduction.......................................................1
Checklist..............................................................................2
MI805 Specifications ..........................................................3
Board Dimensions...............................................................5
Installations.......................................................6
Installing the Memory.........................................................7
Setting the Jumpers .............................................................8
Connectors on MI805........................................................14
BIOS Setup.......................................................29
Drivers Installation......................................43
Intel Chipset Software Installation Utility.........................44
VGA Drivers Installation ..................................................45
Realtek High Definition Audio Driver Installation...........46
Intel Trusted Execution Engine Installation......................47
LAN Drivers Installation...................................................48
Appendix...........................................................51
A. I/O Port Address Map...................................................51
B. Interrupt Request Lines (IRQ)......................................52
C. Watchdog Timer Configuration....................................53
iv
MI805 User’s Manual
This page is intentionally left blank.
INTRODUCTION
MI805 User’s Manual 1
Introduction
MI805 is a Mini ITX board (170mm x 170mm) that comes with the Intel
Intel® Celeron® QC J1900 processor that runs at 2.0GHz and has two
DDR3 SO-DIMM sockets supporting up to 8GB of system memory.
It supports the Intel® Gen7 w/ 4EUs graphics engine with interface for
CRT, DVI-D and 24-bit dual channel LVDS displays.
Connectivity is provided by one USB 3.0 connector at the board edge
and a total of seven USB 2.0 ports with two ports also at the board edge.
Two SATA II ports are included.
MI805 FEATURES
-Mini ITX form factor, 170mm x 170mm
-Onboard Intel® Celeron® QC J1900 /2MB L2 cache/2.0 GHz
-Two DDR3 SO-DIMM sockets, DDR3L-1333, Max. 8GB
-Intel® Gen7 w/4EUs graphics for CRT, DVI-D interface
-24-bit dual channel LVDS interface
-Dual Intel I211-AT PCIe Gigabit LAN
-1x USB 3.0 on edge, total of 7 USB 2.0 support
-Two SATA II 2 ports, 6x COM ports
-Digital IO 4-in / 4-out, PCIe (1x) slot, 2x Mini-PCIe
-Watchdog Timer, iSMART, RoHS compliance
INTRODUCTION
2
MI805 User’s Manual
Checklist
Your MI805 package should include the items listed below.
The MI805 Mini-ITX motherboard
This User’s Manual
1 CD containing chipset drivers and flash memory utility
Serial ATA cable
I/O shield
INTRODUCTION
MI805 User’s Manual 3
MI805 Specifications
Product Name MI805F-D
Form Factor Mini-ITX
SoC
Type/Speed Intel® Celeron® QC J1900 /2MB L2 cache/2.0 GHz [TDP=10W]
Package = FCBGA1170,Type-3, 25mmx27mm, 22nm
BIOS AMI BIOS
Memory 2 xDDR3 SO-DIMM sockets [Horizontal type]
Maximum to DDR3L-1333@8GB (Non-ECC, Unbuffered, 1.35V)
Display Intel® Gen7 w/ 4EUs graphics engine
Supports DX 11, OGL 3.0, OCL 1.1, OGLES 2.0,
CRT x1; DVI-D x1
LVDS 24-bit dual channel via NXP PTN3460 thru eDP
LAN Intel I211-AT PCIe Gigabit LAN x 2
USB Intel® AtomTM SoC built-in USB 3.0, supports 1port, Edge I/O
Intel® Celeron® SoC built-in USB 2.0 host controller, support 7ports
- 2 ports in the rear panel
- 2 ports thru Mini PCIe slot (Full-sized#1 / Half-sized)
- 2 ports thru onboard pin-header thru USB 2.0 hub (SMSC
USB2514)
- 1 port compatible with USB3.0 port
Serial ATA Intel® AtomTM SoC built-in SATA II controller, supports 2 ports
Audio Realtek ALC269QHD Codec w/class-D speaker amplifier (2W per
channel @ 5V power supply) ; support 2-channel audio out + amp
LPC I/O Nuvoton NCT6106D / [128-pin LQFP, 14x14x1.4mm]
-COM #1 (RS232/422/485) support ring-in with power @500 mA
(selectable for 5V or 12V) [SP339EER1 232/422/485 transceiver for
jumper-less]
-Com #2 (RS232 only), supports ring-in with power @500 mA
(selectable for 5V or 12V), with SP3243EBER
-COM #3~COM #6 (RS232 only) with SP3243EBER
[Hardware Monitor]
2x thermal inputs; 2 x Voltage monitoring
2x fan header, 1x CPU fan (PWM), 1x system fan (DC mode)
Digital IO 4-in / 4-out (User configurable)
Expansion
Slots PCIe (1x) slot x 1
Full-sized Mini-PCIe x 2 [Mounting holes for full-sized (x2)+half-sized
(x1)]
MiniPCIe #1 support PCIe(1x)/USB signal
Mini-PCIe #2 support mSATA only (Share with SATA #1)
Edge
Connector
DC Jack x 1(refer to IB902, C1213512DCSC03000P)
Dual DB9 Stack connector x1 for COM#1 / COM#2
DB15 + DVI-D stack connector x 1 for CRT + DVI-D
Dual USB + RJ45 stack connector x 1 for USB2.0 + LAN
USB 3.0 vertical connector x1
Single RJ-45 connector x1 (C1213811RJ4514401P)
Audio 3-port connector x1 (Line-out, Line-in, MIC)
Onboard
Header/
Connector
2x4 pins header x2 for USB 4 ports (2.54 pitch type)
2x6 pins header x1 for front audio (2.54 pitch type)
DF11-10 pins box header x4 for COM # 3~# 6
DF20 socket connector x 2 for 24-bit dual channel LVDS
4 pins box header x1 for LCD backlight control (PWM mode only)
SATA connector x2 for SATA II device
4-pin power connector x 2 for SATA device
2x5 pins header x 1 for Digital I/O (2.54 pitch type)
4-pin header for speaker out (from ALC269 internal amplifier)
2x4 pins header x1 for front I/O panel (2.54 pitch type)
2 x 2 pins connector x1 for 12V power-in
INTRODUCTION
4
MI805 User’s Manual
Watchdog
Timer Yes (256 segments, 0, 1, 2…255 sec/min)
Power
Connector +12V ~ +24V DC-in (+10%)
** When power input @ +12V, there is no tolerance**
iSMART
ver. 3.0
1. EuP / ErP (thru Super I/O)
2. Auto-scheduler
3. Power fail detector
4. Low temperature Guardian
5. IFUB (Intelligent Firmware Update from BIOS & NVRAM data)
Others PCB = 8 Layers
OS support - Windows 8.1 (32-bit; 64-bit)
- Window Embedded 8
- Windows 7 (32-bit; 64-bit)
- Linux (Fedora)
RoHS Yes
Certification CE /FCC/LVD
Environment Operation Temperature: 0~60 degree C
Storage Temperature: -40 ~ 80 degree C
Relative humidity: 0~90%, non-condensing
Board Size 170mm x 170mm
INTRODUCTION
MI805 User’s Manual 5

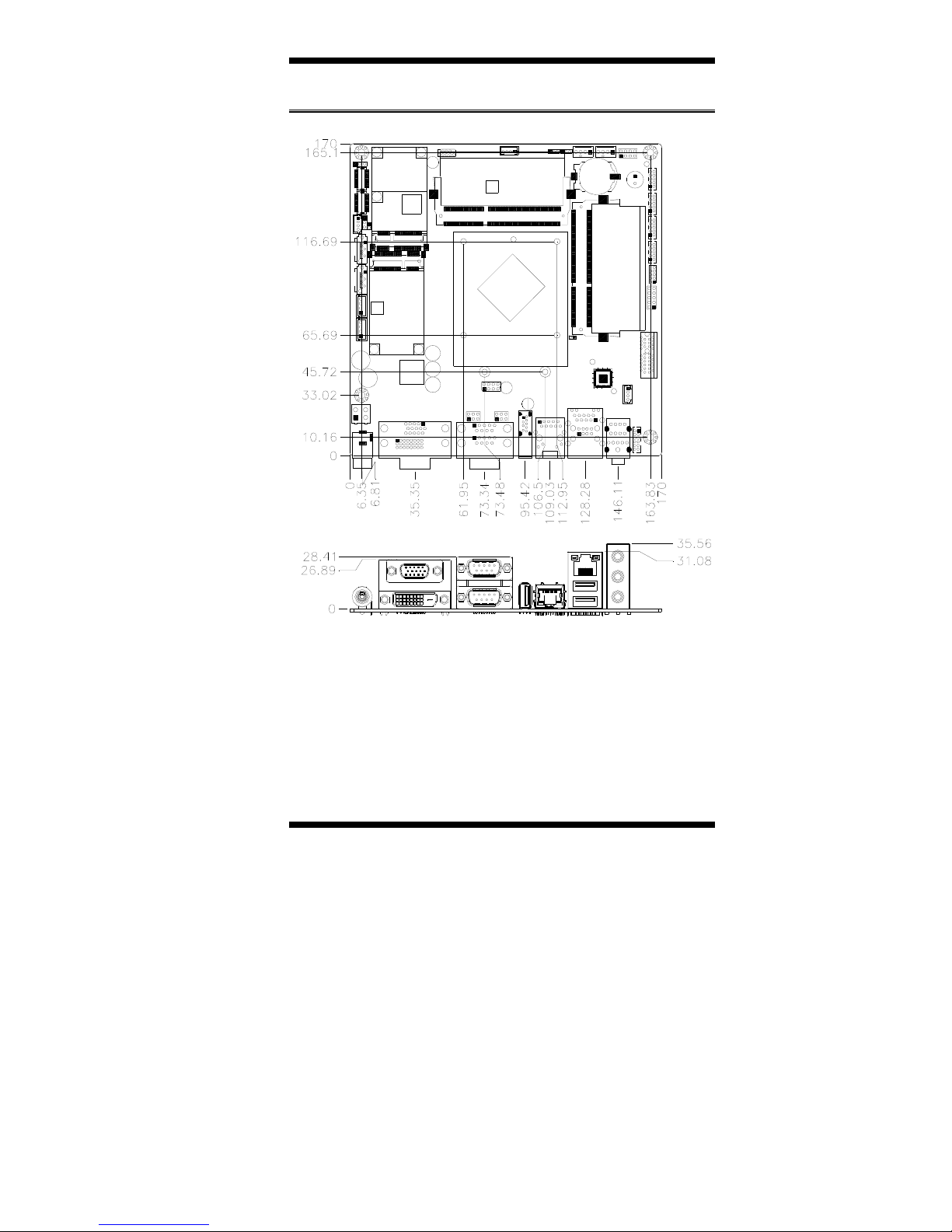

Board Dimensions
INSTALLATIONS
6
MI805 User’s Manual
Installations
This section provides information on how to use the jumpers and
connectors on the MI805 in order to set up a workable system. The
topics covered are:
Installing the Memory.....................................................................7
Setting the Jumpers.........................................................................8
Connectors on MI805...................................................................14
