IBASE Technology IB915F Manuel utilisateur

IB915F

Intel®Skylake U

3.5” Disk Size SBC

USER’S MANUAL

Version 1.2

IB915 User’s Manual

Acknowledgments

AMI is a registered trademark of American Megatrends Inc.

PS/2 is a trademark of International Business Machines

Corporation.

Intel and Intel® 6th Generation Mobile CoreTM i MCP Processor

are registered trademarks of Intel Corporation.

Microsoft Windows is a registered trademark of Microsoft

Corporation.

Fintek is a registered trademark of Fintek Technology

Corporation.

All other product names or trademarks are properties of their

respective owners.

IB915 User’s Manual iii

Table of Contents

Introduction ..............................................................1

Product Description.............................................................1

Checklist..............................................................................2

IB915F Specifications.........................................................3

Board Dimensions...............................................................5

Installations ..............................................................6

Installing the Memory.........................................................7

Setting the Jumpers .............................................................8

Connectors on IB915F ......................................................13

BIOS Setup .............................................................24

Drivers Installation.................................................44

Intel Chipset Software Installation Utility.........................45

VGA Drivers Installation ..................................................47

Realtek HD Audio Driver Installation...............................50

LAN Drivers Installation...................................................52

Intel® Management Engine Interface...............................55

Intel® USB 3.0 Drivers.....................................................57

ASMedia USB 3.1 Drivers................................................60

Appendix.................................................................62

A. I/O Port Address Map...................................................62

B. Interrupt Request Lines (IRQ)......................................63

C. Watchdog Timer Configuration....................................64

IB915 User’s Manual

This page is intentionally left blank.

INTRODUCTION

IB915 User’s Manual 1

Introduction

Product Description

The IB915F is a 3.5-inch single board computer based on the Intel®

Skylake U MCP processors.

The IB915F platform is well suited for low-power and

high-performance designs in a broad range of markets including

Industrial Control & Automation, Digital Signage, Thin Client,

Electronic Gaming Machines, and SMB storage appliances.

IB915F Features:

•Supports Intel®6th generation mobile CoreTM i MCP processors

•Two DDR3L SO-DIMM, 1600 MHz, Max. 16GB memory

•Integrated graphics for DisplayPort, LVDS, eDP displays

•2 x SATA III connector

•4x COM port connector

•1 x Mini-PCIe(x1) slot (w/ USB/mSATA support)

•2x GbE (RJ-45) connector

•1x 9V to 24V DC-IN power connector

INTRODUCTION

IB915 User’s Manual

Checklist

Your IB915F package should include the items listed below.

•

The IB915F SBC

•

This User’s Manual

•

1 DVD containing chipset drivers and flash memory utility

•

Optional cable kit IB75 (containing DC in power cable/PW87,

COM port cable / PK1H, SATA & HDD power cable/SATA-26

and USB 2.0 cable/USB-29)

•

Other options: Audio-18 audio cable, HSIB915-BGA-B heatsink ,

HSIB915-BGA-1 heat spreader

INTRODUCTION

IB915 User’s Manual 3

IB915F Specifications

Product Name

IB915AF-6600 (Supports iAMT)

IB915AF-6300 (Supports iAMT)

IB915F-6100

IB915F-3955 (MOQ)

**IB915 will be model name printed on PCB surface**

Form Factor

3.5”

CPU Type

- Intel®6th generation mobile CoreTM i MCP processors (14nm

monolithic)

- TDP = 15W (DC) , 42mm x 24mm x 1.16mm, FCBGA1356 @ solder

side

CPU Speed

Intel®CoreTM i7-6600U processor (2.6GHz/3.4GHz) [IB915AF-6600]

Intel®CoreTM i5-6300U processor (2.4GHz/3GHz) [IB915AF-6300]

Intel®CoreTM i3-6100U processor (2.3GHz) [IB915F-6100](Non-AMT)

Intel

Celeron

3955U processor (2GHz) [IB915F-3955](Non-AMT)

Cache

Up to 4MB

Chipset

Integratd in Intel®6th Generation CoreTM U-series processor

BIOS

AMI BIOS

Memory

Intel®6th Gen. CoreTM U-series processor integrated memory controller

- DDR3L(1.35V) @1600 MHz, SO-DIMM x 2 , Max.=16GB , Non-ECC

Display

Intel®6th Gen. CoreTM U-series processor integrated Gfx, supports 3

independent displays,

- eDP x 1 (Thru eDP)

- DP++ x 1 (Thru DDI#1)

- LVDS(Thru DDI#2, via NXP PTN3460BS/F6)

LAN

1. Intel® I219LM GbE PHY (IB915AF-6600 & IB915AF-6300)

Intel® I219V GbE PHY (IB915F-6100 & IB915F-3955) ** Thru

PCIe port # 9**

2. Intel

I211AT as 2

GbE ** Thru PCIe port # 10**

USB

- Intel®6th Gen. CoreTM U-series processor integrated USB 2.0 host

controller ,2 ports onboard pin header + 1 port thru MiniPCIe

- Intel®6th Gen. CoreTM U-series processor integrated USB 3.0 host

controller

4x USB 3.0 in the rear panel ** Thru USB3 port# 1~port# 4 **

-USB 3.1 type C connector thru ASM1142 PCIe to USB 3.1 host

controller

** Thru PCIe port# 1 **

Serial ATA

Ports

Intel®6th Gen. CoreTM U-series processor built-in SATA III controller

-2 x SATA 3.0 (6Gbps) onboard **Thru SATA port# 0 & port# 2

-1 x mSATA via MiniPCIe full-sized slot **Thru SATA port#

1/PCIe port # 11**

Audio

Intel®6th Gen. CoreTM U-series processor built-in HD audio controller

Realtek ALC662-GR Codec

INTRODUCTION

IB915 User’s Manual

LPC I/O

Fintek F81846AD-I (128-pin LQFP [14mm x 14 mm])

COM #1 (RS232/422/485) @ edge I/O

With Fintek F81439N transceiver x 1 for jumper-less selection

COM #2~COM #4 (RS232 only)

[Hardware Monitor]

2 x Thermal inputs

2 x Voltage monitoring

Digital IO

4 in & 4 out

iAMT(11.0)

For IB915AF-6600 & IB915AF-6300

Expansion

Slots

1 x mPCIe(x1) w/ USB 2.0 signal, support mSATA [Full-sized]

** Thru PCIe port # 4**

Edge

Connector

DP connector x 1 [C12ZZDPP23VD11000P]

RJ45 x2 for LAN#1 & #2 (Horizontal Combo type)

USB 3.0 stack connector x 2 for USB1/2 & USB3/4 [Blue color]

RJ50 x 1 for COM #1

USB 3.1 type C connector x 1

On Board

Header/

Connector

DF20-20 socket connector x 2 for 24-bit dual channel LVDS

4 pins box header x 1 for backlight/brightness control

eDP 30-pin connector x 1

2 ports x SATA III [Blue color]

2x4 pins header x 1 for 2 x USB 2.0 ports[DF11 x 1]

DF-11 2x6 pins box header x1 for front audio

DF-11 2x5 pins box header x 3 for COM2 ~ COM4

2x5 pins headers x 1 for LPC (Debug purpose only)

4 pins power connector x 1for SATA HDD

2 pins power connector x 1 for DC-in

Watchdog

Timer

Yes (256 segments, 0, 1, 2…255 sec/min)

Power Input

+9V ~ +24V DC-in

RoHS

Yes

Board Size

102mm x 147mm

OS support

- Windows 8.1 / Industrial; Windows 10

- Linux

- Fedora

- Ubuntu

Others

1. Support RAID function

2. iSMART 3.2

3. RTC battery via cable

Optional Cable

Kit (IB75)

PW87 x 1

PK1H x 1

SATA-26 x 1

USB29 x 1

Optional items

1. Heatsink

2. Heat Spreader

3. Audio-18 cable ( C501AUD1812302000P)

INTRODUCTION

IB915 User’s Manual 5

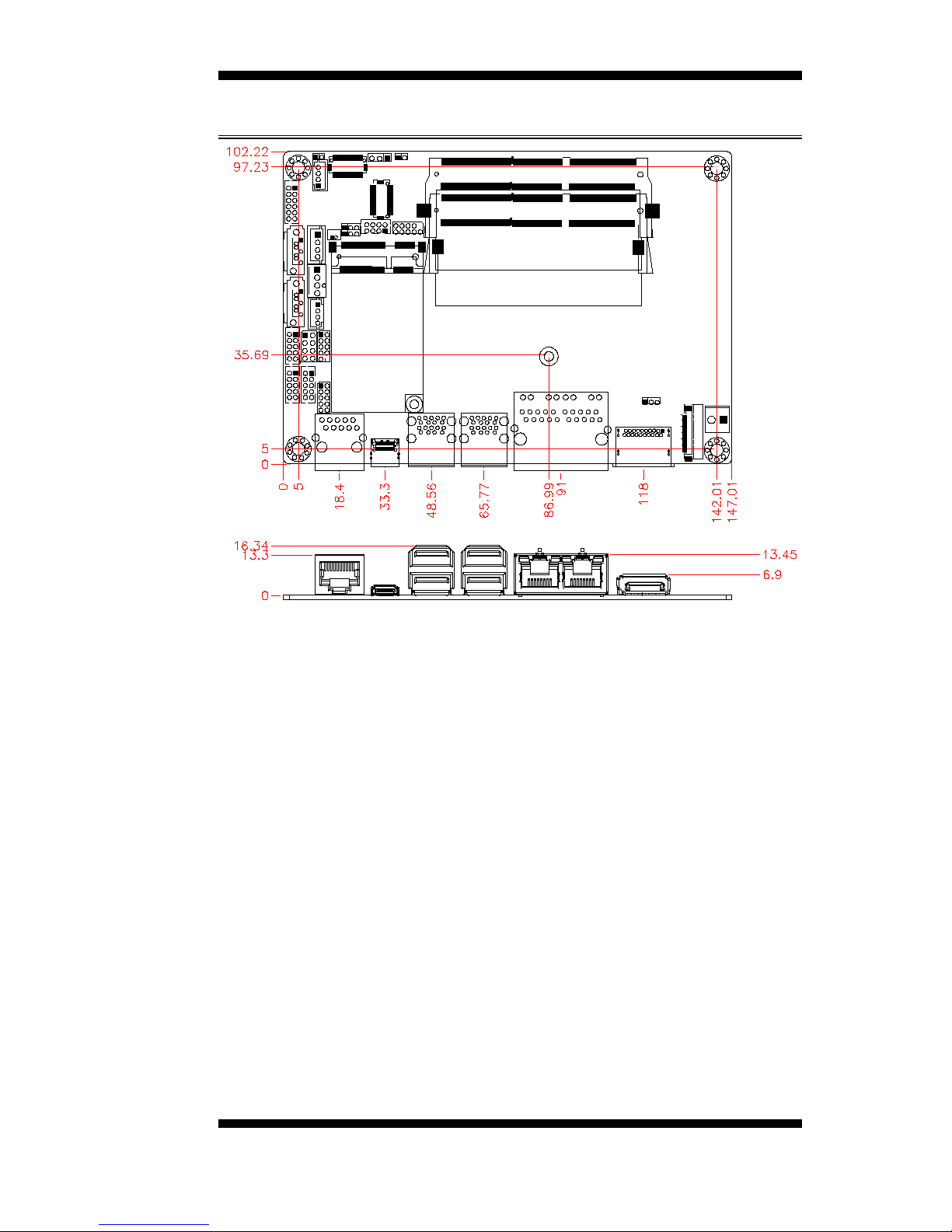

Board Dimensions

INSTALLATIONS

IB915 User’s Manual

Installations

This section provides information on how to use the jumpers and

connectors on the IB915F in order to set up a workable system. The

topics covered are:

Installing the Memory............................................................................7

Setting the Jumpers................................................................................8

Connectors on IB915F.........................................................................13
