IBASE Technology MI945 Manuel utilisateur

MI945

Intel ®CoreTM 2 Duo/GM45

Mini-ITX Motherboard

USER’S MANUAL

Version 1.0A

MI945 User’s Manual

Acknowledgments

Award is a registered trademark of Award Software International,

Inc.

PS/2 is a trademark of International Business Machines

Corporation.

Intel and Intel® Core 2 Duo and Intel® Celeron processors are

registered trademarks of Intel Corporation.

Microsoft Windows is a registered trademark of Microsoft

Corporation.

Winbond is a registered trademark of Winbond Electronics

Corporation.

All other product names or trademarks are properties of their

respective owners.

MI945 User’s Manual iii

Table of Contents

Introduction.......................................................1

Product Description.............................................................1

Checklist..............................................................................2

MI945 Specifications ..........................................................3

Board Dimensions...............................................................4

Installations.......................................................5

Installing the CPU...............................................................6

Installing the Memory.........................................................7

Setting the Jumpers .............................................................8

Connectors on MI945........................................................12

BIOS Setup.......................................................25

Drivers Installation......................................47

Intel Chipset Software Installation Utility.........................48

VGA Drivers Installation ..................................................50

AC97 Codec Audio Driver Installation.............................52

LAN Drivers Installation...................................................53

Appendix...........................................................56

A. I/O Port Address Map...................................................56

B. Interrupt Request Lines (IRQ)......................................57

C. Watchdog Timer Configuration....................................58

MI945 User’s Manual

IMPORTANT NOTE: When the system boots without the CRT being

connected, there will be no image on screen when you insert the

CRT/VGA cable. To show the image on screen, the hotkey must be

pressed (CTRL-ALT-F1).

Remarks: The IDE connector on board does not support OS

installation in hard drive. A system hard drive connected to this IDE

cannot be booted up to OS.

INTRODUCTION

MI945 User’s Manual 1

Introduction

Product Description

The MI945 Mini ITX board incorporates the Mobile Intel® GM45 Express

Chipset for Embedded Computing, consisting of the Intel® GM45 Graphic

Memory Controller Hub (GMCH) and Intel® I/O Controller Hub (ICH9-M), an

optimized integrated graphics solution with a 1066MHz and 800MHz front-side

bus. Dimensions of the board are 170mm x 170mm.

The integrated powerful 3D graphics engine, based on Intel® Graphics Media

Accelerator X3500 (Intel® GMA X3500) architecture, operates at core speeds of

up to 533 MHz. It features a low-power design, is validated with the Intel® Core

2 Duo processors on 45nm process. With dual channel DDR2 800MHz two

SoDIMM sockets on board, the board supports up to 4GB of DDR2 system

memory.

Intel® Graphics supports a unique intelligent memory management scheme

called Dynamic Video Memory Technology (DVMT). DVMT handles diverse

applications by providing the maximum (384MB) availability of system

memory for general computer usage, while supplying additional graphics

memory when a 3D-intensive application requests it. The Intel GMA X3500

graphics architecture also takes advantage of the high-performance Intel

processor. Intel GMA X3500 graphics supports Dual Independent Display

technology.

The main features of the board are:

Supports Intel® CoreTM 2 Duo (Penryn 1066MHz)

Supports up to 2.53GHz, 1066MHz/800MHz FSB

Two DDR2 SoDIMM, Max. 4GB memory

Onboard Gigabit PHY and Intel PCI-Express Gigabit LAN

Intel® GM45 Express VGA for CRT / LVDS

4x SATA, 8x USB 2.0, 4x COM, Watchdog timer

1x Mini PCI-E (Mini Card), 1x PCI, 1xPCI-E(x1) slots

Optional daughter cards:

ID390: Chrontel 7308, supports 24 bit single or dual LVDS channel

ID390C: Chrontel 7021, supports CRT

ID391: Chrontel 7307C, single DVI (connector on cable)

ID391D: Chrontel 7307C, dual DVI (connector on cable)

ID392D: Chrontel 7307C, dual DVI (one connector on card and one on cable)

INTRODUCTION

MI945 User’s Manual

Checklist

Your MI945 package should include the items listed below.

•The MI945 Mini-ITX motherboard

•This User’s Manual

•1 CD containing chipset drivers and flash memory utility

•Cable kit (IDE, Serial port, Serial ATA)

INTRODUCTION

MI945 User’s Manual 3

MI945 Specifications

CPU Supported Intel® Core

2 Duo (Penryn), mobile processors

CPU Voltage 0.700V ~ 1.5V (IMVP-6)

System Speed Up to 2.53GHz or above

CPU FSB 667MHz/800MHz/1066MHz FSB

Cache 1MB/2MB/4MB

Green /APM APM1.2

CPU Socket mPGA Socket 478

Chipset Intel GM45 Chipset

GMCH: GM45 1329-pin Micro-FCBGA

ICH9M: 82801IBM 678-pin mBGA

BIOS Award BIOS, supports ACPI function

Memory DDR2 667/800 SoDIMM x2 (w/o ECC function), Max. 4GB

VGA GM45 built-in, supports CRT

SDVO (Dual CH) Through ID390 card (Chrontel 7308, 24+24 bits single/dual channel

LVDS, Chrontel 7021, CRT)

Through ID391 card (Chrontel 7307C, DVI single or Dual)

LVDS LCD Panel GM45 built-in, supports 24-bit, single or dual channel LVDS

LAN 1. ICH9M 10/100/gigabit MAC + PHY

•Intel 82567L 10/100/1000

2. Intell 82574L PCI-e Gigabit LAN controller x1 (MI945F)

USB ICH9M built-in USB 2.0 host controller, support 8 ports

Serial ATA Ports ICH9M built-in SATA controller, supports 4 ports

TPM1.2 ICH9M built-in iTPM version1.2 controller by firmware implement

Parallel IDE JMicron JM368 (PCI-e to PATA) x1 for 1 PATA channel for IDE & CF

Audio ICH9M built-in audio controller + AC97 Codec ALC888 w/ 7.1

channels, SPDIF-OUT

LPC I/O W83627DHG: COM1, COM2 (RS232/RS422/RS485), hardware

monitor (3 thermal, 4 voltage monitor inputs, 2 fan headers)

- Fintek 81216G for COM3 and COM4

Digital IO 4 in & 4 out

Keyboard/Mouse Supports PS/2 keyboard/mouse connector

Expansion Slots PCI slot x1, PIC-E (x1) slot x1 and Mini PCIE socket x1

Edge Connector PS/2 connector x1 for keyboard/mouse

Gigabit LAN RJ-45 + dual USB stack connector

Gigabit LAN RJ45

Dual USB stack connector

DB9 x1 for COM 1; DB15 x1 for VGA

RCA Jack 3x2 for Audio (Front-Out, Line-In, Mic, Center/LFE,

Surround & Surround Back)

Onboard Header/

Connector 40 pins box-header x1 for IDE1

CF connector x1 @ solder side

10-pin headerx1 for Digital I/O; 10-pin header x1 for COM2

10-pin header x 2 for USB 5,6;7,8

DF13 connector x2 for LVDS;

10-pin header x1 for audio Line-Out & Mic

4-pin header x1 for CD in, SPDIF-out connector x1

SATA connector x4 for SATA ports

Watchdog Timer Yes (256 segments, 0, 1, 2…255 sec/min)

System Voltage +5V, +3.3V, +12V, -12V, 5VSB (2A)

Others Modem Wakeup, LAN Wakeup

Board Size 170mm x 170mm (Mini ITX)

INTRODUCTION

[

Board Dimensions

MI945 User’s Manual

INSTALLATIONS

MI945 User’s Manual 5

Installations

This section provides information on how to use the jumpers and

connectors on the MI945 in order to set up a workable system. The

topics covered are:

Installing the CPU ................................................................................. 6

Installing the Memory ........................................................................... 7

Setting the Jumpers................................................................................ 8

Connectors on MI945.......................................................................... 12

INSTALLATIONS

Installing the CPU

The MI910 board supports a Socket 478MN (Merom) processor socket

for Intel® CoreTM 2 Duo, Intel® Celeron mobile processors.

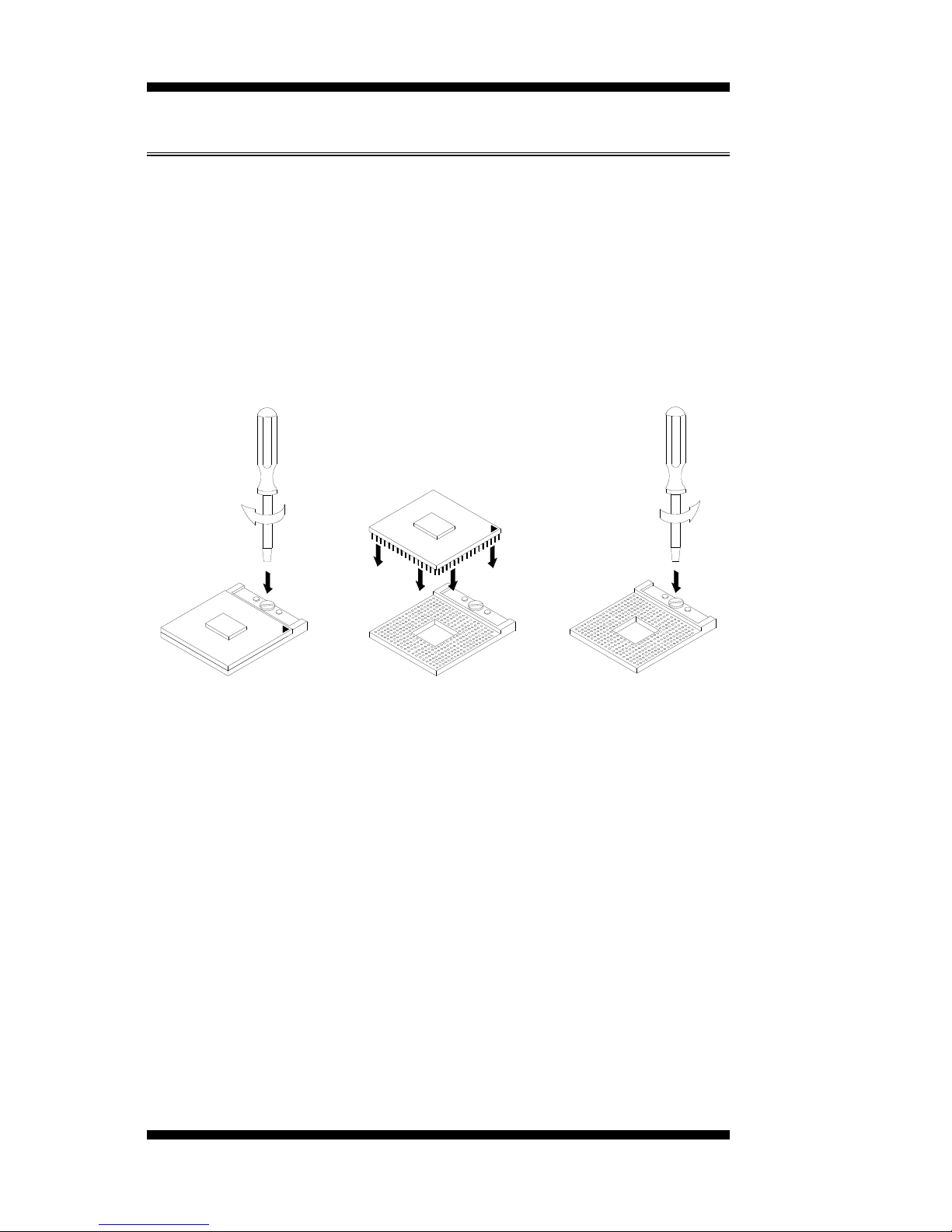

The processor socket comes with a screw to secure the processor. As

shown in the left picture below, loosen the screw first before inserting

the processor. Place the processor into the socket by making sure the

notch on the corner of the CPU corresponds with the notch on the inside

of the socket. Once the processor has slide into the socket, fasten the

screw. Refer to the figures below.

NOTE: Ensure that the CPU heat sink and the CPU top surface are in

total contact to avoid CPU overheating problem that would

cause your system to hang or be unstable.
