IBASE Technology MI945X Manuel utilisateur

MI945X

Intel ®CoreTM 2 Duo/GM45

Mini-ITX Motherboard

USER’S MANUAL

Version 1.0A

MI945X User’s Manual

Acknowledgments

Award is a registered trademark of Award Software International,

Inc.

PS/2 is a trademark of International Business Machines

Corporation.

Intel and Intel® Core 2 Duo and Intel® Celeron processors are

registered trademarks of Intel Corporation.

Microsoft Windows is a registered trademark of Microsoft

Corporation.

Winbond is a registered trademark of Winbond Electronics

Corporation.

All other product names or trademarks are properties of their

respective owners.

MI945X User’s Manual iii

Table of Contents

Introduction.......................................................1

Product Description.............................................................1

Checklist..............................................................................2

MI945X Specifications .......................................................3

Board Dimensions...............................................................4

Installations.......................................................7

Installing the CPU...............................................................8

Installing the Memory.........................................................9

Setting the Jumpers ...........................................................10

Connectors on MI945X.....................................................14

BIOS Setup.......................................................24

Drivers Installation......................................46

Intel Chipset Software Installation Utility.........................47

VGA Drivers Installation ..................................................49

High Definition Codec Audio Driver Installation.............51

LAN Drivers Installation...................................................52

Appendix...........................................................54

A. I/O Port Address Map...................................................54

B. Interrupt Request Lines (IRQ)......................................55

C. Watchdog Timer Configuration....................................56

IMPORTANT NOTE: When the system boots without the CRT being

connected, there will be no image on screen when you insert the

CRT/VGA cable. To show the image on screen, the hotkey must be

pressed (CTRL-ALT-F1).

MI945X Mini ITX Motherboard

MI945X User’s Manual

INTRODUCTION

MI945X User’s Manual 1

Introduction

Product Description

The MI945X Mini ITX board incorporates the Mobile Intel® GM45 Express

Chipset for Embedded Computing, consisting of the Intel® GM45 Graphic

Memory Controller Hub (GMCH) and Intel® I/O Controller Hub (ICH9-M), an

optimized integrated graphics solution with a 1066MHz and 800MHz front-side

bus. Dimensions of the board are 170mm x 170mm.

The integrated powerful 3D graphics engine, based on Intel® Graphics Media

Accelerator X3500 (Intel® GMA X3500) architecture, operates at core speeds of

up to 533 MHz. It features a low-power design, is validated with the Intel® Core

2 Duo processors on 45nm process. With dual channel DDR3 800/1066MHz

two SODIMM sockets on board, the board supports up to 4GB of system

memory.

Intel® Graphics supports a unique intelligent memory management scheme

called Dynamic Video Memory Technology (DVMT). DVMT handles diverse

applications by providing the maximum (384MB) availability of system

memory for general computer usage, while supplying additional graphics

memory when a 3D-intensive application requests it. The Intel GMA X3500

graphics architecture also takes advantage of the high-performance Intel

processor. Intel GMA X3500 graphics supports Dual Independent Display

technology.

The main features of the board are:

Supports Intel® Mobile Core 2 Duo/Core 2 Quad Processor (Penryn)

Supports up to 2.93GHz, 1066MHz/800MHz FSB

Two DDR3 SoDIMM, Max. 4GB memory

Onboard Gigabit PHY and Intel PCI-Express Gigabit LAN

Intel® GM45 Express VGA for CRT / LVDS

4x SATA, 8x USB 2.0, 4x COM, Watchdog timer

1x Mini PCI-E (Mini Card), 1x PCI-E (x16) slots

INTRODUCTION

MI945X User’s Manual

Checklist

Your MI945X package should include the items listed below.

•The MI945X Mini-ITX motherboard

•This User’s Manual

•1 CD containing chipset drivers and flash memory utility

•Cable kit (IDE, Serial port, Serial ATA)

INTRODUCTION

MI945X User’s Manual 3

MI945X Specifications

CPU Type Intel® Mobile Core

2 Duo/Core

2 Quad Processor (Penryn)

Intel® Celeron 5x5 Series

CPU Speed Up to 2.93GHz

FSB 667/800/1066MHz FSB

L2 Cache 3MB or 6MB (P8000-series or P9000-series, T9000-series)

Green /APM APM1.2

CPU Socket Socket 478 “Type P” (Socket P) or micro-FCBGA on board

Chipset Intel® GM45 (Cantiga) chipset

- GMCH: AC82GM45 1329-pin FCBGA

- ICH9M: AF82801IM 676-pin mBGA

BIOS Award BIOS, support ACPI Function

Memory DDR3 800/1066

(DDR3 1333/1600 not supported on GM45)

- SoDIMM x2 Dual-Channel (w/o ECC), Max. 4GB

VGA & LVDS Intel® GM45 built-in Intel gen.5.0 Graphics Media Accelerator

(533MHz 1.05V), supports DirectX10 for CRT & LVDS (single/dual

channel 18-bits/ 24-bit)

SDVO (DUAL CH) None

Backlight control

(LVDS) - GMCH built-in control by PWM

LAN 1. Intel® ICH9M 10/100/gigabit MAC + PHY:

•Intel 82567LM 10/100/1000

2. Intel 82574L PCI-e gigabit LAN controller x1

USB ICH9M built-in USB 2.0 host controller, supports 8 ports

Serial ATA ICH9M built-in SATA controller, supports 4 ports

Parallel IDE JMicron JM368 (PCI-e to PATA) x1 for 1 PATA channel for IDE & CF

Audio Intel® ICH9M built-in High Definition Audio controller ALC888

with 7.1 channels

LPC I/O Winbond® W83627DHG: - IrDA x1, COM1 (RS232), COM2

(RS232/422/485), Hardware monitor

- Fintek 81216G for COM 3 & COM4

Digital IO 4 in & 4 out

TPM1.2 ICH9M built-in iTPM version1.2 controller by firmware implement

Keyboard/Mouse

Connector Supports PS/2 Keyboard/Mouse

Expansion Slots PCIe(x16) x1 and PCIe Minicard (30 x 56mm) x 1

Edge Connector - PS/2 KB/Mouse connector

- Gigabit LAN RJ45 + dual USB stack connector

- DB9 + DB15 stack connector x1 for COM 1 & VGA

- RCA Jack 3x2 for HD Audio (Low Profile)

On Board

Header/Connector - 40-pin box-header x1 for IDE1

- PCIe Minicard x1 @ solder side

- DF13 connector x2 for LVDS

- 10-pin headerx1 for Digital I/O

- 10-pin header x1 for COM2

- 20-pin header x1 for COM3/COM4

- 10-pin header x 2 for USB 5/6/7/8

- 10-pin header x1 for audio Line-Out & Mic

- SATA connector x4 for 4 SATA ports

- 26-pin box-header x1 for parallel port

Watchdog Timer Yes (256 segments, 0, 1, 2…255 sec/min)

Board Size 170mm x 170mm

INTRODUCTION

[

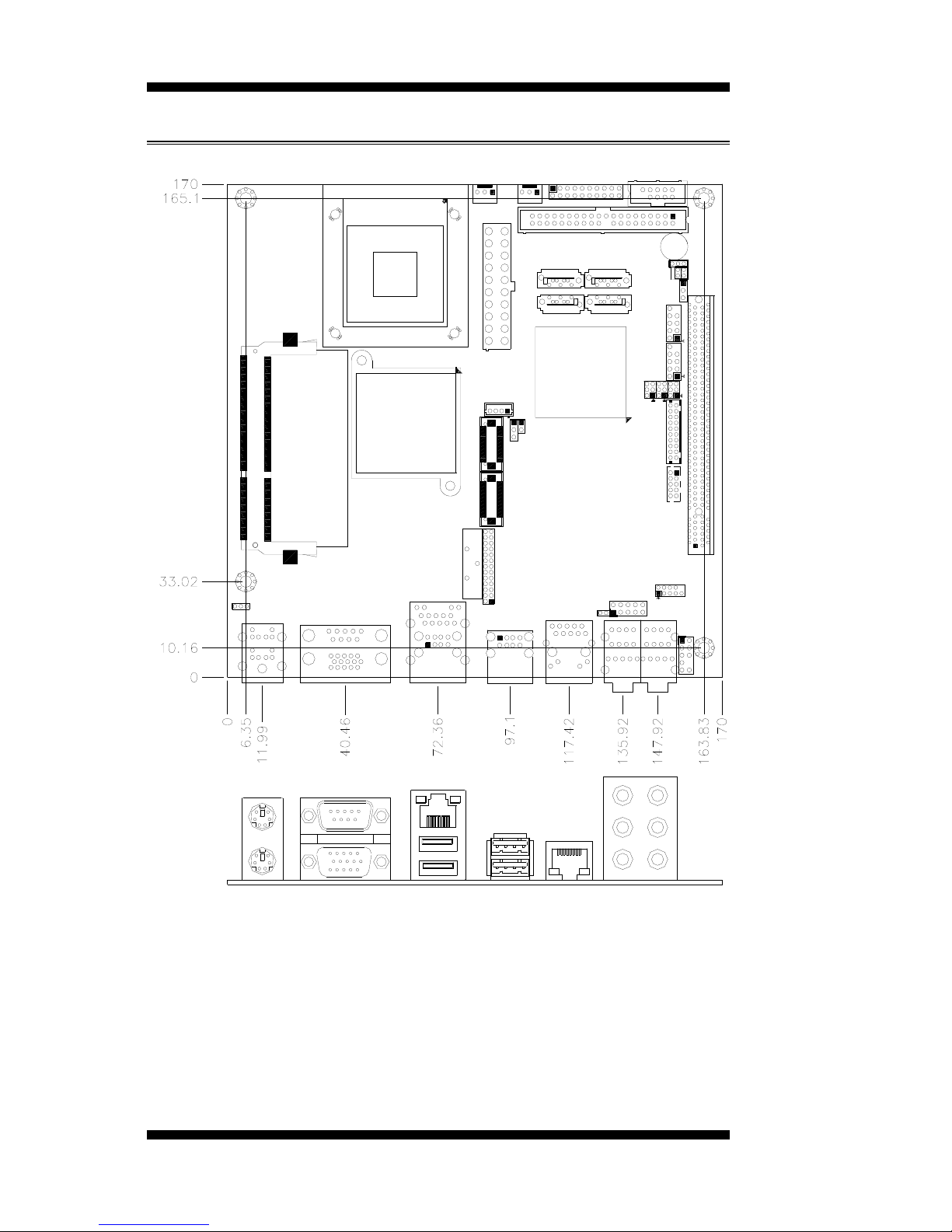

Board Dimensions

MI945X User’s Manual

INTRODUCTION

MI945X User’s Manual 5

INTRODUCTION

MI945X User’s Manual

This page is intentionally left blank.
