IBASE Technology IB891 Manuel utilisateur
IB891
Intel®Pineview-M/ Pineview-D +ICH8M
Luna-Pier / Luna-Pier Refresh Platform
3.5” Disk Size SBC
USER’S MANUAL
Version 1.0B
ii
IB891User’s Manual
Acknowledgments
AMI BIOS is a trademark of American Megatrends Inc.
PS/2 is a trademark of International Business Machines
Corporation.
Intel and Luna-Pier are registered trademarks of Intel
Corporation.
Microsoft Windows is a registered trademark of Microsoft
Corporation.
Winbond is a registered trademark of Winbond Electronics
Corporation.
All other product names or trademarks are properties of their
respective owners.
IB891 User’s Manual iii
Table of Contents
Introduction .......................................................1
Product Description.............................................................1
Checklist..............................................................................2
IB891 Specifications...........................................................3
Board Dimensions...............................................................4
Installations .......................................................5
Installing the Memory.........................................................6
Setting the Jumpers .............................................................7
Connectors on IB891.........................................................11
BIOS SETUP ....................................................19
Drivers Installation ......................................39
Appendix ...........................................................47
A. I/O Port Address Map...................................................47
B. Interrupt Request Lines (IRQ)......................................48
C. Watchdog Timer Configuration....................................49
D. Digital I/O Sample Code..............................................54
iv
IB891 User’s Manual
This page is intentionally left blank.
INTRODUCTION
IB891 User’s Manual 1
Introduction
Product Description
The IB891 is a 3.5-inch single board computer based on a two-chip the
Intel® Atom™ single-core N450 or dual-core D510 processor. The
processors come integrated with both a memory controller and an IGP
graphics core with 200MHz (N450) and 400MHz (D510) of GPU
frequency. The IB891 performs with low power consumption and better
hardware decode on graphics intensive and multimedia applications for
the digital signage, POS/kiosk, automation and other fanless and
low-noise embedded applications.
Measuring 102mm x 147mm, the IB891 has a 3D-capable built-in
Intel® graphics engine that support DirectX 9 and OpenGL 1.4, with an
18-bit single channel LVDS interface and a VGA CRT port edge
connector. The board offers essential features and high-speed
connectivity including two gigabit LAN, watchdog timer, digital I/O,
eight USB 2.0 ports, four serial ports and CF socket. Expansion is
provided by a Mini PCI-e connector that can be used for wireless LAN
or TV-tuner modules.
INTRODUCTION
2
IB891 User’s Manual
Checklist
Your IB891 package should include the items listed below.
•The IB891 3.5” disk-size SBC
•This User’s Manual
•1 CD containing chipset drivers and flash memory utility
Remarks: The IB60 cable kit (USB, COM, SATA, power) is
optional.
INTRODUCTION
IB891 User’s Manual 3
IB891 Specifications
Product Name IB891 (SC) /IB891-D5 (DC)
Form Factor 3.5” SBC
CPU Type Intel® Pineview-M SC / Pineview-D DC Processor
CPU Speed Intel® Atom
TM
SC N450 / 512K cache/1.66 GHz (5.5W)
Intel® AtomTM DC D510 / 1MB cache/1.66GHz (14.5W)
22mm x 22mm, Micro-FCBGA8
Green /APM APM1.2
BIOS AMI BIOS, support ACPI Function
Chipset ICH8M: 31mm x 31mm, 676-pin T-PBGA (2.4W)
Memory DDR2 667MHz
SO-DIMM x 1 (w/o ECC), Max. 2GB
/
4GB , Single channel
VGA Intel® Integrated Graphics Controller
Supports DirectX 9 Graphic (200MHz/ 400MHz), OpenGL 1.4
LVDS 18-bit one channels LVDS interface w/DF13 socket x1
LAN Realtek 8111DL x 2
USB ICH8M built-in USB 2.0 host controller, support 8 ports
Serial ATA Ports ICH8M built-in SATA controller, supports 2 ports
Parallel IDE ICH8M built-in one channel Ultra DMA 33/66/100, for CF Type II
Audio Intel ICH8M built-in audio controller w/ Realtek ALC662 Codec
(supports 5.1 CH audio & SSM2304 2W/4ohm Amplifier
LPC I/O Winbond W83627UHG :
COM1 (RS232/422/485), COM2(RS232)
COM3(RS232) & COM4(RS232) with pin-9 with power for 2 ports
(500 mA for each port)
Hardware monitor (2 thermal inputs, 4 voltage monitor inputs,
VID0-4 & 1 x Fan Header)
Digital IO 4 in & 4 out
Keyboard/Mouse
Connector
Pin header
Expansion Slots Mini PCI-e socket x 1 for Wireless LAN or TV-tuner module
Edge Connector DB15 x1 for VGA
RJ45 x2 for LAN 1&2
USB stack connector x 1 for USB1 ~2
DB9 x 1 for COM1
On Board
Header/Connector
2x5 pin header for KB/MS
2x4 pins header x 3 for 6 USB ports
DF13 socket connector x 1 for 18-bit single channel LVDS
2x6 pins box header x1 for Audio
4 pins header x1 for speaker
2x5 pins box header x 1 for COM2
2x10 pins box header x 1 for COM3 ~4
2x5 pins headers x 1 for LPC( 80-port card debugging purpose)
Mini PCI-e(1x) connector x 1
Compact Flash socket x 1
5 pins box header x 1 for smart battery
4 pins box header x 1 for backlight/brightness control
4-pins power connector for SATA HDD
Watchdog Timer Yes (256 segments, 0, 1, 2…255 sec/min)
Power Connector +12V DC-in
RoHS Yes
Board Size 102mm x 147mm
INTRODUCTION

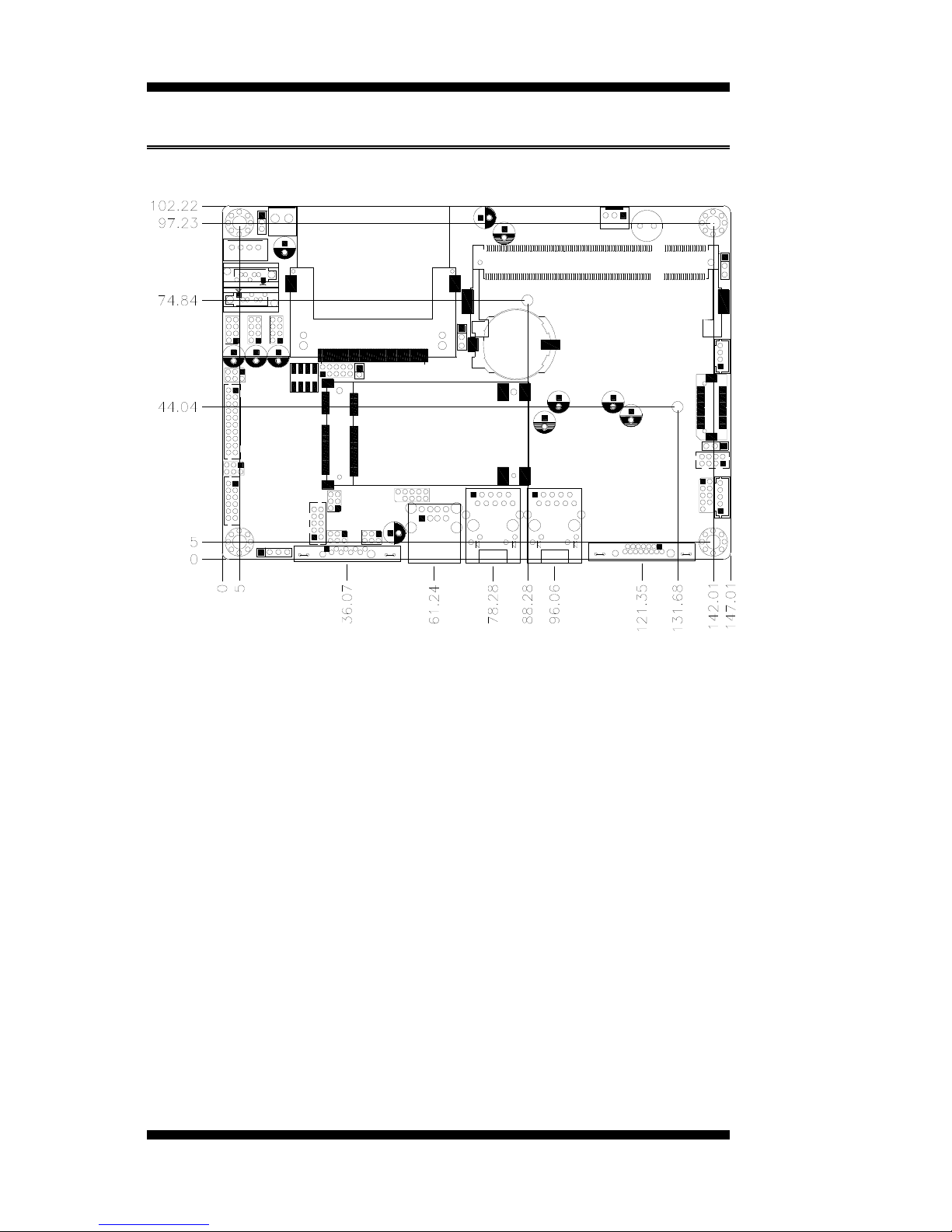

Board Dimensions
4
IB891 User’s Manual
INSTALLATIONS
IB891 User’s Manual 5
Installations
This section provides information on how to use the jumpers and
connectors on the IB891 in order to set up a workable system. The topics
covered are:
Installing the Memory ........................................................................... 6
Setting the Jumpers................................................................................ 7
Connectors on IB891........................................................................... 11
INSTALLATIONS
Installing the Memory
The IB891 board supports one DDR667 DDR2 memory.
Remarks:
N450 supports SO-DIMM x 1 (w/o ECC), Max. 2GB , Single channel
D510 supports SO-DIMM x 1 (w/o ECC), Max. 2GB , Single channel

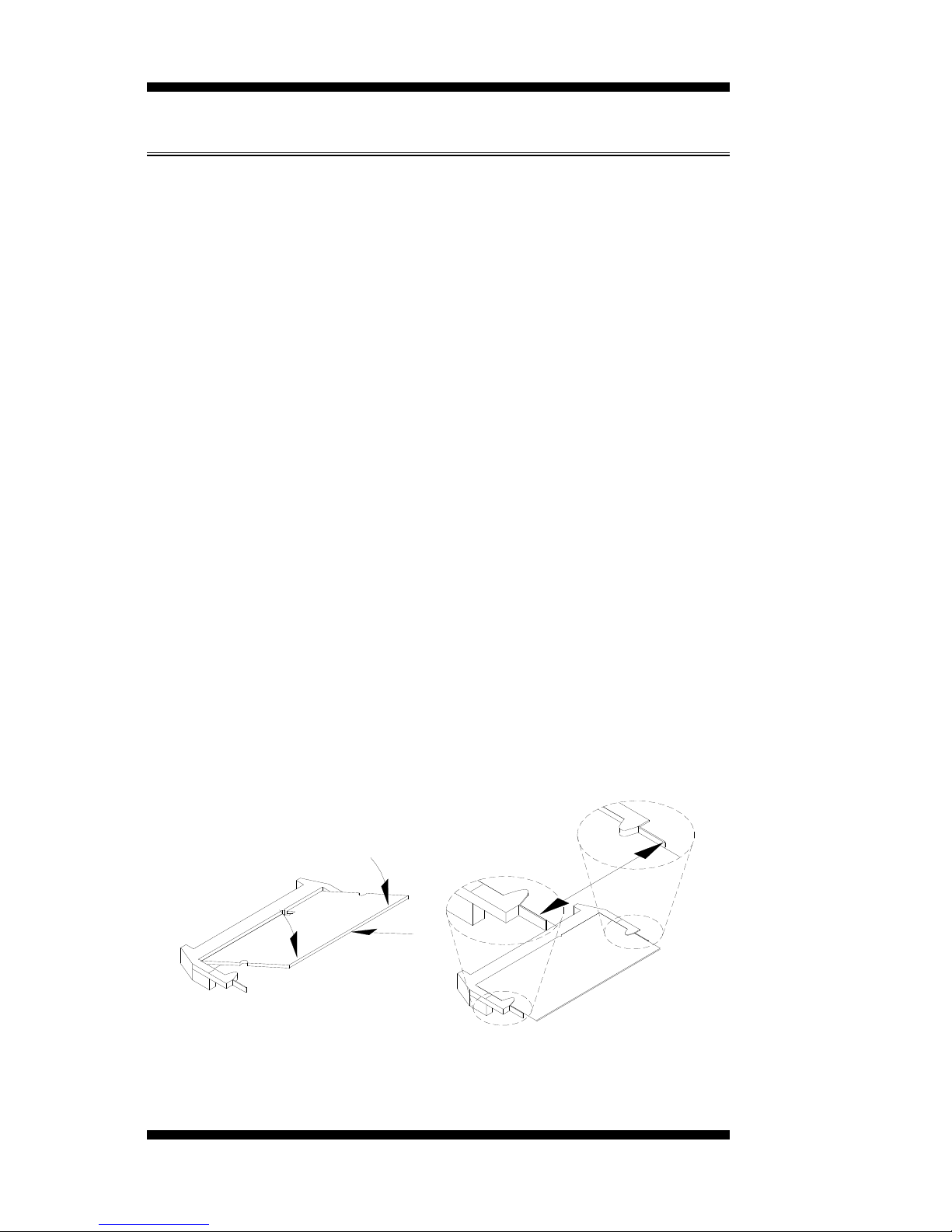

Installing and Removing Memory Modules
To install the DDR2 modules, locate the memory slot on the board and
perform the following steps:
1. Hold the DDR2 module so that the key of the DDR2 module aligns
with that on the memory slot. Insert the module into the socket at a
slight angle (approximately 30 degrees). Note that the socket and
module are both keyed, which means that the module can be installed
only in one direction.
2. To seat the memory module into the socket, apply firm and even
pressure to each end of the module until you feel it slip down into the
socket.
3. With the module properly seated in the socket, rotate the module
downward. Continue pressing downward until the clips at each end
lock into position.
4. To remove the DDR2 module, press the clips with both hands.
6
IB891 User’s Manual
