Hussmann D5X-LEP Mode d’emploi

P/N 0463869_D

D5X-LEP

Technical Data Sheet

P/N 0463869_D

NSF®Certified

March 2008

We reserve the right to change or revise specifications

and product design in connection with any feature of

our products. Such changes do not entitle the buyer to

corresponding changes, improvements, additions or

replacements for equipment previously sold or shipped.

Item Part # Description Wiring Item #

FAN ASSEMBLIES

4 Ft, 8 Ft, 10 Ft†& 12 Ft

A. 12W Standard Fan Assembly (1)

0047000 Fan Motor, Evaporator

(MO.4410103)

0461805 Fan Blade (FB.4780446)

12W Energy Efficient Fan Assembly (1)

0477655 Fan Motor, Evaporator

(MO.4410546)

0461805 Fan Blade (FB.4780446)

6 Ft and 10 Ft†Only

A. 7W Standard Fan Assembly (1)

0058698 Fan Motor, Evaporator

(MO.4410102)

0142780 Fan Blade (FB.0142780)

7W Energy Efficient Fan Assembly (1)

0477654 Fan Motor, Evaporator

(MO.4410545)

0142780 Fan Blade (FB.0142780)

†10 Ft uses both.

Item Part # Description Wiring Item #

THERMOSTATS

B. Optional Adjustable Refrigeration Thermostat (2)

LAMPS. BALLASTS, LED FIXTURES AND POWER SUPPLY

C. Ballast, Electronic (3)

0480130 2 lamps (BA.4481676)

0480131 3 lamps (BA.4481654)

0480132 4 lamps (BA.4481677)

D. Fluorescent Lamp (4)

Replace with like fixtures

E. 0501213 Power Supply (EP.4481861) (5)

F. LED Fixture (6)

Replace with like fixtures

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

Note: Revision D changes ballast (Page 1); adds optional LED lighting (Pages 1, 3, 4, 8); adds capacity and weight (Page 5).

2 of 8 D5X-LEP Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

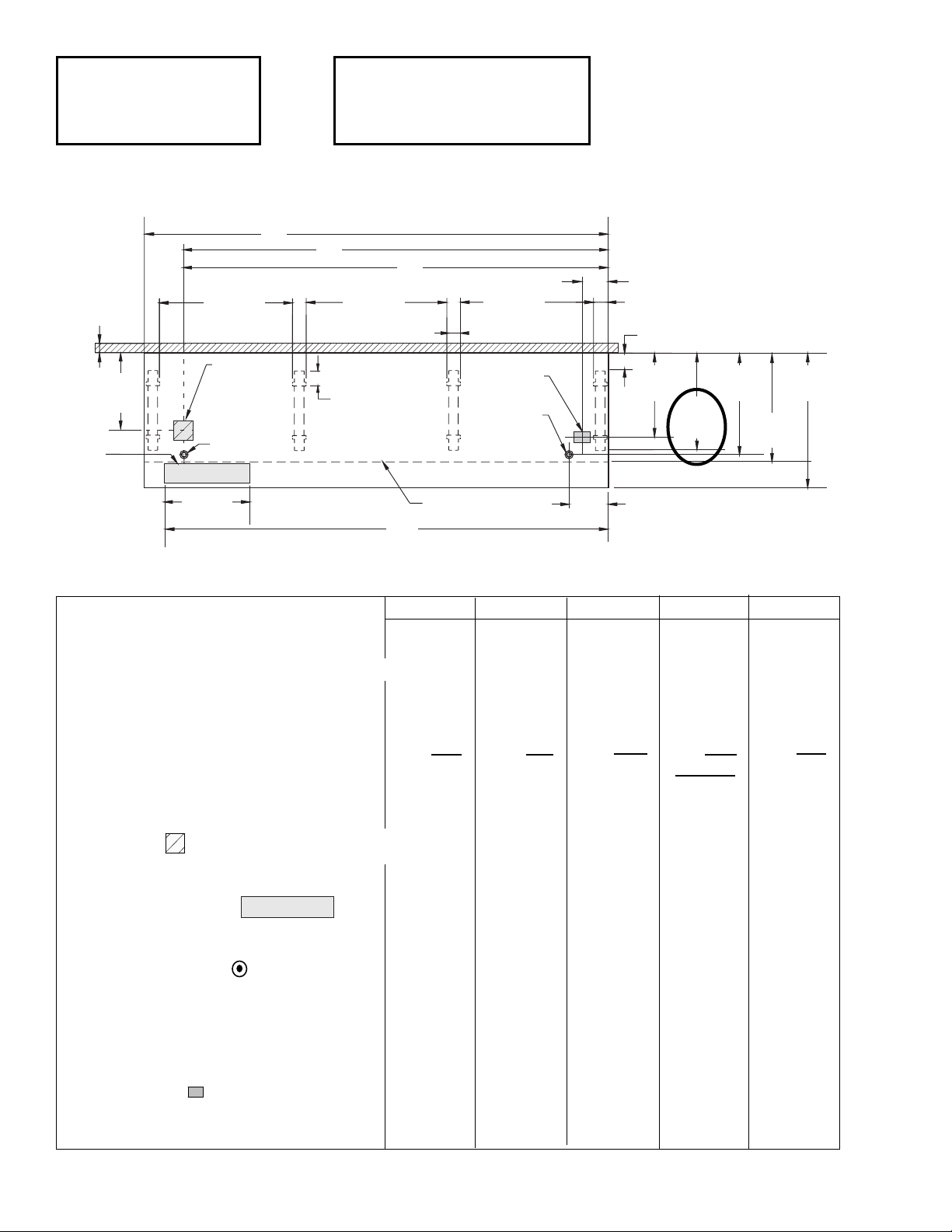

Engineering

Plan Views

Dimensions shown as in. and (mm).

Dairy & Delicatessen

10-2004

NOTE: Case-to-Case Electrical Connections

are made IN FRONT OF SPLASHGUARD.

4 3/4 (120)

Splashguard

31 5/8

(804)

(1064)

41 1/2

(1054)

3 In.

(77 mm)

Required

Air Gap

Refrigeration

Outlet

Electrical

Stub Up Area

6 x 6

(152x152) Waste Outlet

Waste Outlet

FRONT

26 1/4

(665)

8(203)

4 1/2 (115)

12 1/8 (307)

41 1/2

(1054)

43 7/8

(1114)

Wireway

4 3/4 (120)

26 1/2

(673)

4 1/4 (108)

(612)

33 1/2

(851)

Electrical

Field

Connection

30 1/4

(768)

D5X

4 ft 6 ft 8 ft 10 ft 12 ft

General

(A) Case Length (without ends or partitions) 48 3/8(1229) 72 3/8(1838) 96 3/8(2448) 120 1/2(3061) 144 1/2(3670)

(Each end and insulated partition adds 1 1/2 in. (38 mm) to case line up.)

Maximum O/S dimension of case back to front

(includes bumper) 42 (1064) 42 (1064) 42 (1064) 42 (1064) 42 (1064)

Back of case to front of splashguard 33 1/2 (851) 33 1/2 (851) 33 1/2 (851) 33 1/2 (851) 33 1/2 (851))

Back of case to O/S edge of front leg 30 1/4 (768) 30 1/4 (768) 30 1/4 (768) 30 1/4 (768) 30 1/4 (768)

Distance between edges of external legs and center legs NA 29 1/2 (750) 41 1/2 (1054) 29 1/2 (749) 41 1/2 (1054)

Distance between edges of center legs NA NA NA 43 7/8 (1114) 43 7/8 (1114)

Distance between front legs and splashguard 2 3/4(70) 2 3/4(70) 2 3/4(70) 2 3/4(70) 2 3/4(70)

Electrical Service (Electrical Field Wiring connection point)

(B) RH End of case to center of stub up area 36 1/4 (921) 60 1/4 (1530) 84 1/4 (2140) 108 1/4 (2750) 132 3/8 (3363)

Back of case to center of stub up area 24 (612) 24 (612) 24 (612) 24 (612) 24 (612)

Length of electrical wireway 26 1/2 (673) 26 1/2 (673) 26 1/2 (673) 26 1/2 (673) 26 1/2 (673)

Waste Outlets (One each end)

(D) RH End of case to the center of LH waste outlet 36 1/4 (921) 60 1/4 (1530) 84 1/4 (2140) 108 1/4 (2750) 132 3/8 (3363)

RH End of case to the center of RH waste outlet 12 1/8 (307) 12 1/8 (307) 12 1/8 (307) 12 1/8 (307) 12 1/8 (307)

Back O/S of case to center of waste outlets 31 5/8 (804) 31 5/8 (804) 31 5/8 (804) 31 5/8 (804) 31 5/8 (804)

Schedule 40 PVC drip pipe 1 1/4 (32) 1 1/4 (32) 1 1/4 (32) 1 1/4 (32) 1 1/4 (32)

Refrigeration Outlet

Back of case to center of refrigeration outlet 26 1/4 (665) 26 1/4 (665) 26 1/4 (665) 26 1/4 (665) 26 1/4 (665)

RH end of case to center of refrigeration outlet 8 (203) 8 (203) 8 (203) 8 (203) 8 (203)

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/4

Merchandiser Liquid Line (in.) 3/8

Merchandiser Suction Line (in.) 7/8

Wireway

REFRIGERATION DATA

Note: This data is based on store temperature

and humidity that does not exceed 75°F and

55% R.H.

D5X-LEP UNLIT LIT PEG*

Discharge Air °F 32 30 30

Evaporator °F 28 26 26

Unit Sizing °F 26 24 24

Btu/hr/ft — Unlit Shelves

D5X-LEP‡‡ Parallel Conventional

UNLIT 1290 1365

PEG*1445 1530

* Hussmann Peg Shelves (Deli only).

‡‡ Add 10 Btu/hr/ft per shelf row for LED fixtures.

Add 20 Btu/hr/ft per shelf row for fluorescent lamps.

DEFROST DATA

Frequency Hrs 8

Defrost Water (lb/ft/day) 10.5

(± 15% based on case configuration and

product loading).

OFFTIME D5X-LEP

Time (minutes) 30

ELECTRIC OR GAS Not

Recommended

CONVENTIONAL CONTROLS

Low Pressure Backup Control

CI/CO** D5X-LEP

19°F/9°F

Indoor Unit Only, Pressure Defrost

Termination** 48°F

**Use a Temperature Pressure Chart to

determine PSIG conversions.

Estimated Charge (lb)*** D5X-LEP

4 ft 1.9

6 ft 2.8

8 ft 3.7

10 ft 4.7

12 ft 5.1

***This is an average for all refrigerant

types. Actual refrigerant charge may vary by

approximately half a pound.

3 of 8

P/N 0463869_D HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

Impact

Excel

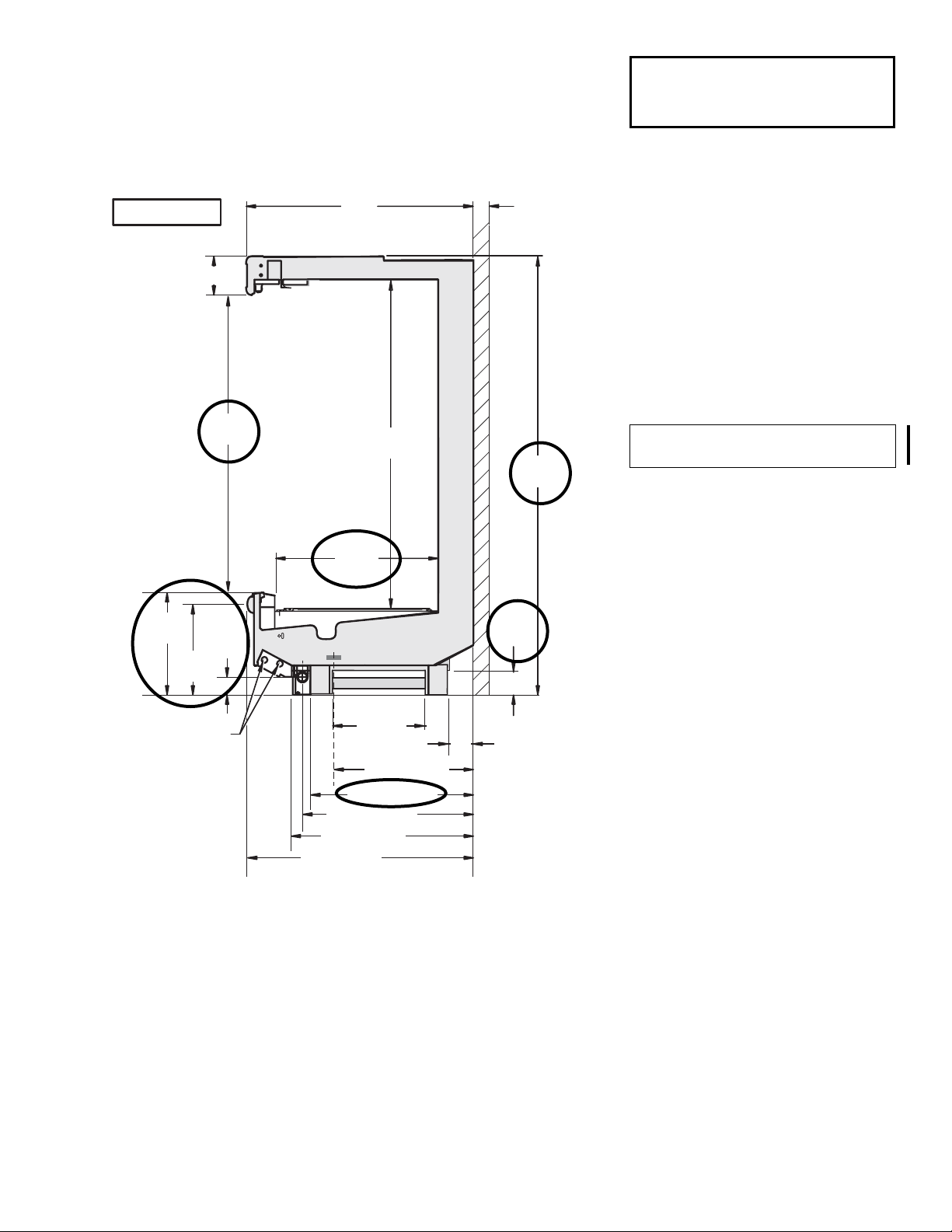

D5X-LEP

Dairy & Delicatessen

Dimensions shown as in. and (mm).

Multi-deck, 5 Display Levels, Low Front

31 5/8 (804)

4 3/4 (120)

30 1/4 (768)

42 (1064)

33 1/2 (851)

30 1/4

(768)

(1549)

(1064)

FAN

D5X-LEP

17 1/4

(438)

3 In. (77 mm)

Required

Air Gap

81 7/8

(2080)

7 1/4 (183)

19 5/8

(499) 3 5/8

(92)

26 1/4 (665)

Refrigeration

Outlet

4 7/8

(123)

Electrical

Case to Case

Connections

17 1/8

(436)

54 7/8

(1393)

NSF Certification

This merchandiser model is manufactured to meet ANSI/NSF

(National Sanitation Foundation) Standard #7 requirements for

construction, materials & cleanability.

4 of 8 D5X-LEP Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Impact

Excel

D5X-LEP

Dairy & Delicatessen

Electrical Data

4 ft 6 ft 8 ft 10 ft 12 ft

Number of Fans – 12W 1 — 2 1 3

Number of Fans – 7W —2—2—

Amperes Watts

4 ft 6 ft 8 ft 10 ft 12 ft 4 ft 6 ft 8 ft 10 ft 12 ft

Evaporator Fans

120V 60Hz Standard 0.65 1.00 1.30 1.65 1.95 50 78 100 128 150

120V 50Hz Standard 0.75 1.10 1.50 1.85 2.25 57 84 114 141 171

230V 60Hz Export 0.33 0.50 0.66 0.80 0.99 50 78 100 128 150

230V 50Hz Export 0.38 0.56 0.76 0.94 1.14 57 84 114 141 171

120V 60Hz Energy Efficient 0.30 0.38 0.60 0.68 0.90 18 28 36 46 54

230V 60Hz Energy Efficient 0.15 0.20 0.30 0.35 0.45 18 28 36 46 54

Minimum Circuit Ampacity

120V 60Hz Standard 0.85 1.20 1.50 1.85 2.15

120V 50Hz Standard 0.95 1.30 1.70 2.05 2.45

230V 60Hz Export 0.53 0.70 0.86 1.00 1.19

230V 50Hz Export 0.58 0.76 0.96 1.14 1.34

120V 60Hz Energy Efficient 0.50 0.58 0.80 0.88 1.10

230V 60Hz Energy Efficient 0.35 0.40 0.50 0.55 0.65

Maximum Over Current Protection 120V 20 20 20 20 20

Maximum Over Current Protection 230V 15 15 15 15 15

Standard Lighting (T-8 fluorescent)

1 Row Canopy 0.26 0.51 0.51 0.77 0.77 30 59 59 85 85

Optional Lighting (T-8 fluorescent)

Additional 1 Row Canopy 0.26 0.51 0.51 0.77 0.77 30 59 59 85 85

Additional 2 Row Canopy 0.51 1.02 1.02 1.54 1.54 59 118 118 170 170

Additional 3 Row Canopy 0.77 1.53 1.53 2.31 2.31 89 177 177 255 255

1 Row Rail Light 0.26 0.51 0.51 0.77 0.77 30 59 59 85 85

Optional Shelf Lighting (T-8 fluorescent)

1 Row of Shelves 0.26 0.51 0.51 0.77 0.77 30 59 59 85 85

4 Rows of Shelves 1.02 2.04 2.04 3.08 3.08 118 236 236 340 340

5 Rows of Shelves 1.28 2.55 2.55 3.85 3.85 148 295 295 425 425

6 Rows of Shelves 1.53 3.06 3.06 4.62 4.62 177 354 354 510 510

Optional Always*Bright LED Lighting

1 Row of Shelves 0.15 0.19 0.26 0.30 0.38 18 23 31 36 45

4 Rows of Shelves 0.47 0.68 0.93 1.15 1.40 56 82 112 138 168

5 Rows of Shelves 0.57 0.83 1.13 1.38 1.69 68 99 136 166 203

6 Rows of Shelves 0.67 0.96 1.33 1.62 2.00 80 115 160 194 240

120V Lighting Circuit Total = Standard Lighting + Total Optional Lighting + Optional Shelf Lighting

230V Lighting Circuit Total = Multiply 120V Lighting Circuit Total by 0.52

5 of 8

P/N 0463869_D HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

Impact

Excel

D5X-LEP

Dairy & Delicatessen

ESTIMATED SHIPPING WEIGHT 5

Case Solid End

4 ft 6 ft 8 ft 10 ft 12 ft (each)

lb (kg) 800 (363) 1000 (454) 1200 (544) 1300 (590) 1400 (635) 100 (45)

5Actual weights will vary according to optional kits included.

Product Data

ARI Refrigerated Volume 1 (Cu Ft/Ft) 10.54 ft3/ft (0.98 m3/m)

Recommended Usable Cube 2 (Cu Ft/Ft) 9.39 ft3 /ft (0.87 m3 /m)

ARI Total Display Area 3 (Sq Ft/Ft) 4.86 ft2/ft (1.48 m2 /m)

Shelf Area 4(Sq Ft/Ft) 9.89 ft2/ft (3.02 m2 /m)

1Computed using ARI 1200 standard methodology: Refrigerated Volume, ft3[m3]/Unit of Length, ft [m]

2ARI Refrigerated Volume less shelving and other unusable space: Refrigerated Volume/Unit of Length, ft3/ft [m3/m]

3Computed using ARI 1200 standard methodology: Total Display Area, ft2[m2]/Unit of Length, ft [m]

4Shelf surface area is composed of bottom deck plus standard shelf complement, as shown in the Hussmann Product

Reference Guide. The standard shelf complement for this model is (4) rows of 22-inch shelves.eparately from fans.

D5X-LEP Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

6 of 8

Refrigeration

Thermostat

Condensing

Unit

}

Light Blue

1, 2 & 3 Fans

120V NEUTRAL

BROWN BAND

120V POWER

Fans 1

BROWN BAND

1 Fan

2 Fans

3 Fans

4 ft

6 ft

8 ft

12 ft

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

Optional

Two Row

Canopy

Optional

Three Row

Canopy

Connector

BL BL

Orange or Tan Band

Standard Lighting 1 Row Canopy

Optional Lighting 2 Row Canopy

3 Row Canopy

344

Connector

Optional Lighting 1 Row Rail

4 ft 6 ft or 8 ft 12 ft

Fan Wiring

Offtime Defrost

Light Circuits

7 of 8

P/N 0463869_D HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

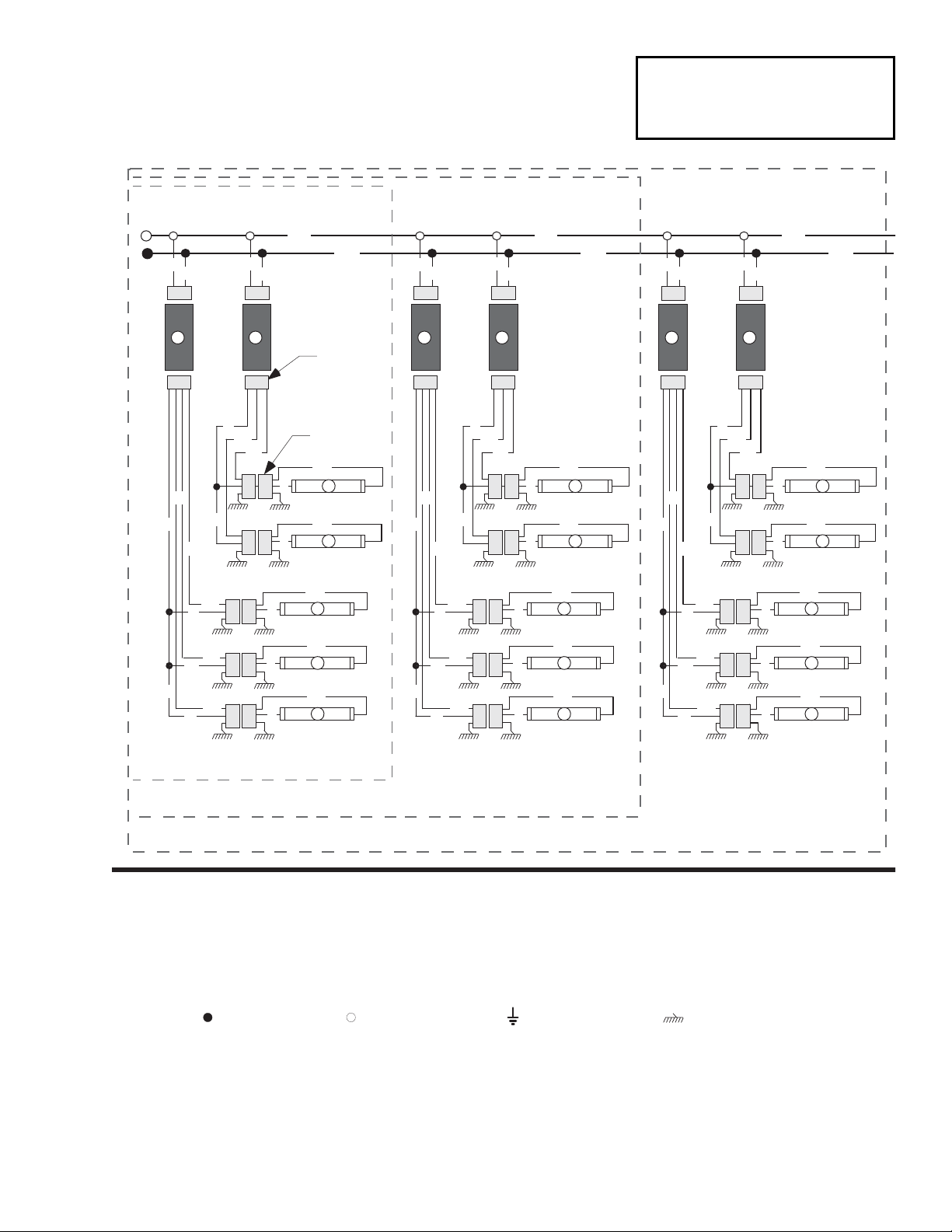

Optional Shelf Harness and Light Circuits for

Five Rows of Shelves

4 ft case

Connector

6 ft or 8 ft case

12 ft case

Optional Shelf Lighting

Fluorescent Fixtures

D5X-LEP Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

8 of 8

BL 6

RBL

4 ft case

6 ft or 8 ft case

12 ft case

(TYP)

Shelf Light

Plug & Receptacle

Connector

BL 6

RBL

BL 6

RBL

R = Red G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

Connector

Optional Shelf Harness and LED Light Circuits for

3, 4, 5, 6 & 7 Rows of Shelves

Optional Shelf Lighting

LED Fixtures

Table des matières

Autres manuels Hussmann marchandiseur

Hussmann

Hussmann VRM Manuel utilisateur

Hussmann

Hussmann impact Excel C5X-LEP Mode d’emploi

Hussmann

Hussmann HGL-1BS Guide rapide

Hussmann

Hussmann Impact PWWSP49 Mode d’emploi

Hussmann

Hussmann Elite Series Manuel utilisateur

Hussmann

Hussmann P4NX-E Mode d’emploi

Hussmann

Hussmann Impact PW 12 Manuel utilisateur

Hussmann

Hussmann impact Excel C2X-XLE Mode d’emploi

Hussmann

Hussmann Impact C2-XLE Mode d’emploi

Hussmann

Hussmann DMA Manuel utilisateur

Hussmann

Hussmann Impact F6 Manuel utilisateur

Hussmann

Hussmann Q2-SS Instructions d'utilisation d'origine

Hussmann

Hussmann Impact Excel M4X-GEP Mode d’emploi

Hussmann

Hussmann M1X-GEP Mode d’emploi

Hussmann

Hussmann FHMA Manuel utilisateur

Hussmann

Hussmann DSF Mode d’emploi

Hussmann

Hussmann IMPACT Excel C2-X Manuel utilisateur

Hussmann

Hussmann RI1 Mode d’emploi

Hussmann

Hussmann IMPACT Excel D6X-ULEP Mode d’emploi

Hussmann

Hussmann IMPACT D5RRI Manuel d'utilisation

Hussmann

Hussmann Impact C2-LGE Mode d’emploi

Hussmann

Hussmann ARL Manuel utilisateur

Hussmann

Hussmann GWIC Manuel utilisateur

Hussmann

Hussmann IMPACT LW Manuel utilisateur

Manuels marchandiseur populaires d'autres marques

FRIGOGLASS

FRIGOGLASS Flex 20 HC Manuel utilisateur

EPTA

EPTA COSTAN RHINO MULTI Manuel utilisateur

CASCO

CASCO Nano Cube Manuel utilisateur

True

True GDIM-26 Manuel utilisateur

Structural Concepts

Structural Concepts Oasis Mobile Series Instructions d'installation

Haussmann

Haussmann RL Manuel utilisateur

Howard McCray

Howard McCray R-CDS32E-4 Manuel utilisateur

EPTA

EPTA iarp Cool Emotions Delight Lite Manuel utilisateur

VALERA

VALERA BC 85 Manuel utilisateur

HL Display

HL Display 3eBin Manuel utilisateur

Dixie Narco

Dixie Narco DNCB 501E Manuel utilisateur

APW Wyott

APW Wyott Racer DMXD-30H Manuel utilisateur

Hoshizaki

Hoshizaki KD-90C Manuel utilisateur

Summit

Summit SCR1006 Manuel utilisateur

Delfield

Delfield Shelleyspeed SPM-28E Manuel utilisateur

EPTA

EPTA iarp Cool Emotions GLEE 40 Manuel utilisateur

Kysor/Warren

Kysor/Warren GranBering KW Mode d’emploi

Crane

Crane BevMAX Refresh 6 Media Manuel utilisateur
