Hussmann Impact PWWSP49 Mode d’emploi

P/N 0461658_B

PWWSP49

Technical Data Sheet

P/N 0461658_B

NSF®Certified

March 2007

NOTE: Revision B added 4 ft information.

Merchandisers

Item Part # Description Wiring Item #

FAN ASSEMBLIES, AND THERMOSTATS

(A) 0047000 Fan Motor, Evaporator (1)

(MO.4410103)

0141070 Fan Blade (FB.0141070)

Embossing toward motor

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

We reserve the right to change or revise specifications

and product design in connection with any feature of

our products. Such changes do not entitle the buyer to

corresponding changes, improvements, additions or

replacements for equipment previously sold or shipped.

General 4 Ft 6 Ft 8 Ft 12 Ft

(A) Case length 48 1/4(1226) 72 1/4(1835) 96 3/8(2448) 144 1/2(3670)

Maximum outside dimension of case back to front 86 1/2(2197) 86 1/2(2197) 86 1/2(2197) 86 1/2(2197)

(includes bumper)

Front of splashguard to outside edge of base rail 5 7/8(149) 5 7/8(149) 5 7/8(149) 5 7/8(149)

Back of case to outside edge of front base rail 69 1/2(1765) 69 1/2(1765) 69 1/2(1765) 69 1/2(1765)

Front of case to outside ede of front base rail 17 (432) 17 (432) 17 (432) 17 (432)

Width of base rail 2 1/8(54) 2 1/8(54) 2 1/8(54) 2 1/8(54)

Stub up area between front base rail and splashguard 4 7/8(124) 4 7/8(124) 4 7/8(124) 4 7/8(124)

Electrical Service

(B) Righthand end of case to center of farthest knockout 47 1/4(1202) 71 1/4(1810) 95 3/8(2423) 143 5/8(3650)

Length of electrical raceway 11 7/8(303) 34 5/8(878) 34 5/8(878) 34 5/8(878)

*Note: Electrical field wiring connection point.

Waste Outlet

Water Seal

Edge of water seal to center of waste outlet 4 (102) 4 (102) 4 (102) 4 (102)

Center of waste outlet to outside edge of front base rail 3 1/2(89) 3 1/2(89) 3 1/2(89) 3 1/2(89)

** Note: Field installed water seal outlets, tees, and connectors are shipped with case.

Drip Pipe Outlet

(D) Left end of case to center of drip pipe outlet 20 3/8(517) 19 1/2(495) 19 1/2(495) 68 1/2(1740)

(E) Center of waste outlet to center of drip pipe outlet 3 3/4(95) 24 3/4(629) 51 7/8(1318) 3 3/4(95)

(F) Front of case to center of drip pipe outlet 24 7/8(632) 25 7/8(657) 25 7/8(657) 24 7/8(632)

Outside diameter of drip pipe lines 1 1/2(38) 1 1/2(38) 1 1/2(38) 1 1/2(38)

***Note: Field drip pipe connection point.

Refrigeration Outlet

(D) Right end of case to center of refrigeration outlet 9 (230) 9 (230) 9 (230) 9 (230)

Center of refrigeration outlet to outside edge of front

base rail 3 1/2(89) 3 1/2(89) 3 1/2(89) 3 1/2(89)

PWWSP49 Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

2 of 4

Front

Waste Outlet

& Water Seal

Base Rail

Refrigeration

Outlet

Access Area

PWWSP49-8

(See Note*)

5 7/8

(149)

3 1/2

(89)

(432)

69 1/2

(1765)

86 1/2

(2197)

(See Note***) (See Note**)

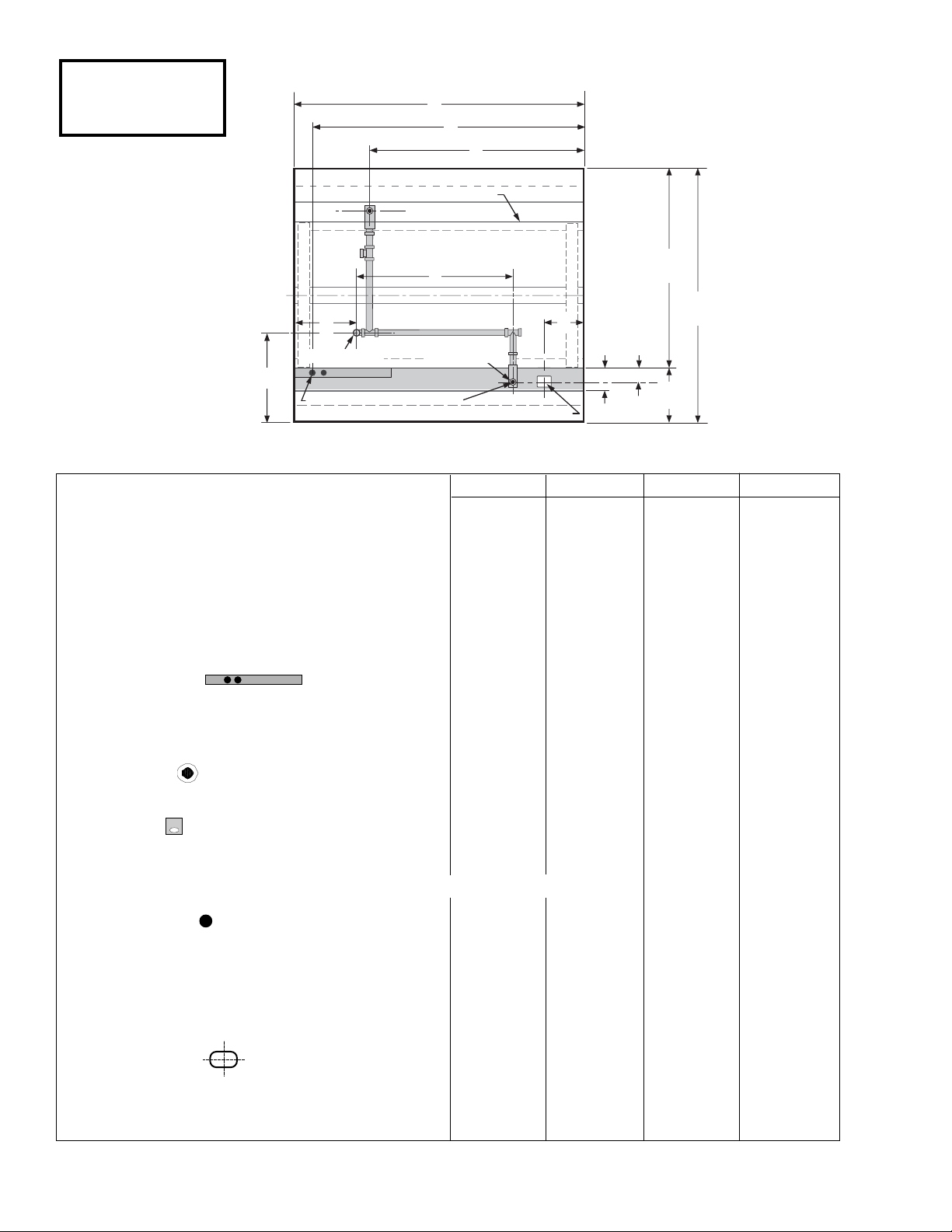

Engineering

Plan Views

86 Inch

Wide Island

with

49 Inch

Center Flue

All Produce

07-2003

Dimensions are shown as inches & (mm).

P/N 0461658_B 3 of 4

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

Impact PWWSP49

All Produce

Wide Island with 49 Inch Center Flue, 1 Display Level

REFRIGERATION DATA

Note: This data is based on store temperature

and humidity that does not exceed 75°F and

55% R.H.

PWWSP49

Discharge Air (°F) 34

Evaporator(°F) 21

Unit Sizing (°F) 19

Btu/hr/ft PWWSP49

Parallel 1645

Conventional 1880

DEFROST DATA

PWWSP49

Frequency (hr) 6

Defrost Water (lb/ft/day) 9

(± 15% based on case configuration and

product loading).

OFFTIME PWWSP49

Temp Term (°F) N/A

Failsafe (minutes) 35

CONVENTIONAL CONTROLS

Low Pressure Backup Control

PWWSP49

CI/CO* 17°/ 7° F

Indoor Unit Only, Pressure Defrost

Termination* 48° F

*Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 11/2

Liquid Line (in.) 3/8

Suction Line (in.) 7/8

Estimated Charge (lb)** PWWSP49

4ft 2.7

6 ft 4.4

8 ft 5.4

12 ft 7.8

**This is an average for all refrigerant types.

Actual refrigerant charge may vary by

approximately half a pound.

Length Added to Lineup by

Each End/Partition (in.) 1 1/2

NSF Certification

These merchandisers are manufactured to meet ANSI /National

Sanitation Foundation (NSF®) Standard #7 requirements.

Front

Case

PWWSP49

COIL

Electrical

Optional

Rack

Positions

5 1/2

(114)

COIL

(1225)

30 3/8

(772)

33 3/4

(857)

(508)

33 3/4

(857)

69 1/2

(1765)

6 (152)

5 7/8 (149)

(432)

12 3/8

(314)

3 1/2 (89)

86 1/2

(2197)

25 1/2

(648) 17 3/8

(441)

FAN FAN

Dimensions are shown as inches & (mm).

PWWSP49 Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

4 of 4

Impact PWWSP49

All Produce

Electrical Data

Number of Fans 4 ft 6 ft 8 ft 12 ft

Refrigeration — 9W 2 446

Refrigeration — 9W (Export) NA

Amperes Watts

Merchandiser 4 ft 6 ft 8 ft 12 ft 4 ft 6 ft 8 ft 12 ft

Fans (Refrigeration)

Standard (120V 60Hz) 1.4 2.8 2.8 4.2 110 220 220 330

Energy Efficient (120V 60Hz) NA

Export (230V 50 Hz) NA

Minimum Circuit Ampacity

With Standard Fans (120V 60Hz) 1.6 3.0 3.0 4.4

With Energy Efficient Fans (120V 60Hz) NA

With Export Fans (230V 50 Hz) NA

Maximum Over Current Protection 120V 20 20 20 20

Maximum Over Current Protection 230V NA

Standard Lighting Optional Lighting Optional Shelf Lighting

None None None

= 120V POWER = 120V NEUTRAL

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

Circled Numbers = Parts List Item Numbers

Grayed components in 12 foot models only.

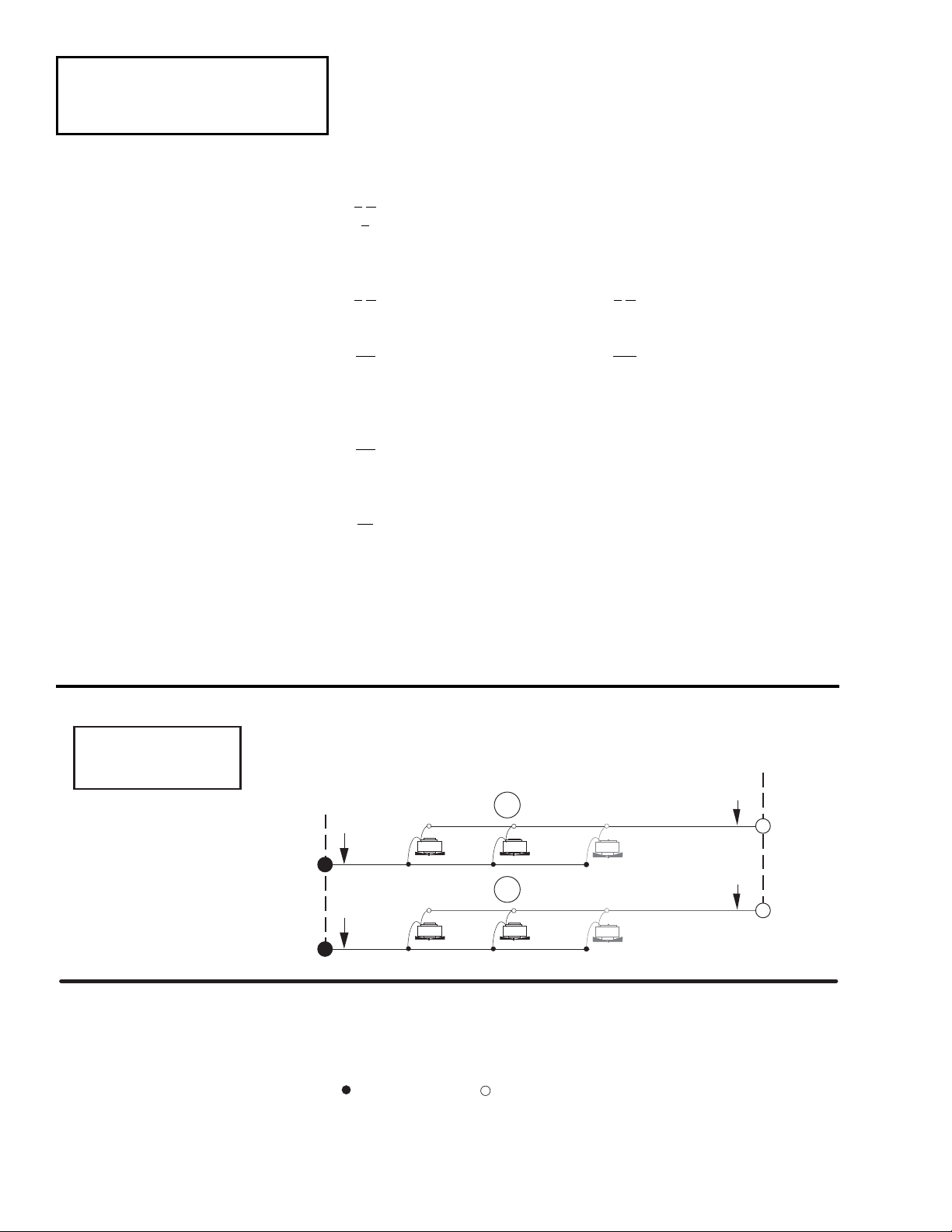

Fan Wiring

Offtime Defrost

BROWN BAND

Fans

BROWN BAND

120V POWER

120V NEUTRAL

2, 4 or 6

Fans

4 ft case has 2 Fans

6 ft case has 4 Fans

8 ft case has 4 Fans

12 ft case has 6 Fans

BROWN BAND

Fans

BROWN BAND
