Hussmann IMPACT C6LRE Manuel utilisateur

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

P/N 0443113

Merchandisers

Item Part # Description Wiring Item #

FAN ASSEMBLIES AND THERMOSTATS

A. 9W Fan Assembly (1)

0047000 Fan Motor, Evaporator

0435961 Fan Blade

embossing toward motor

B. 0411744 Standard Non-adjustable (2)

Defrost Thermostat

C. 0137880 Optional Adjustable (3)

Refrigeration Thermostat

Item Part # Description Wiring Item #

LAMPS AND BALLASTS

D. 0376409 Ballast, 2 lamps (4)

D. 0376410 Ballast, 3 lamps (4)

D. 0376411 Ballast, 4 lamps (4)

E. Fluorescent Lamp (5)

Replace with like fixtures

C6LRE

Data Sheet Set

P/N 0443113

NSF®Certified

April, 2003

72 1/4(1835) 51/2(140)

13/8(35)

4 1/8(105)

27 1/2

(699) 30 5/8

(778)

46 1/4

(1174)

38 5/8

(981)

29 1/2

(749)

41/2(114)

7 (178) 4 (102)

Waste Outlet

40 5/8

(1032) 40 5/8

(1032)

Water Seal

(See note) Refrigeration

Outlet

Electrical

Front

ABD

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. C6LRE Data Sheet Set

2 of 8

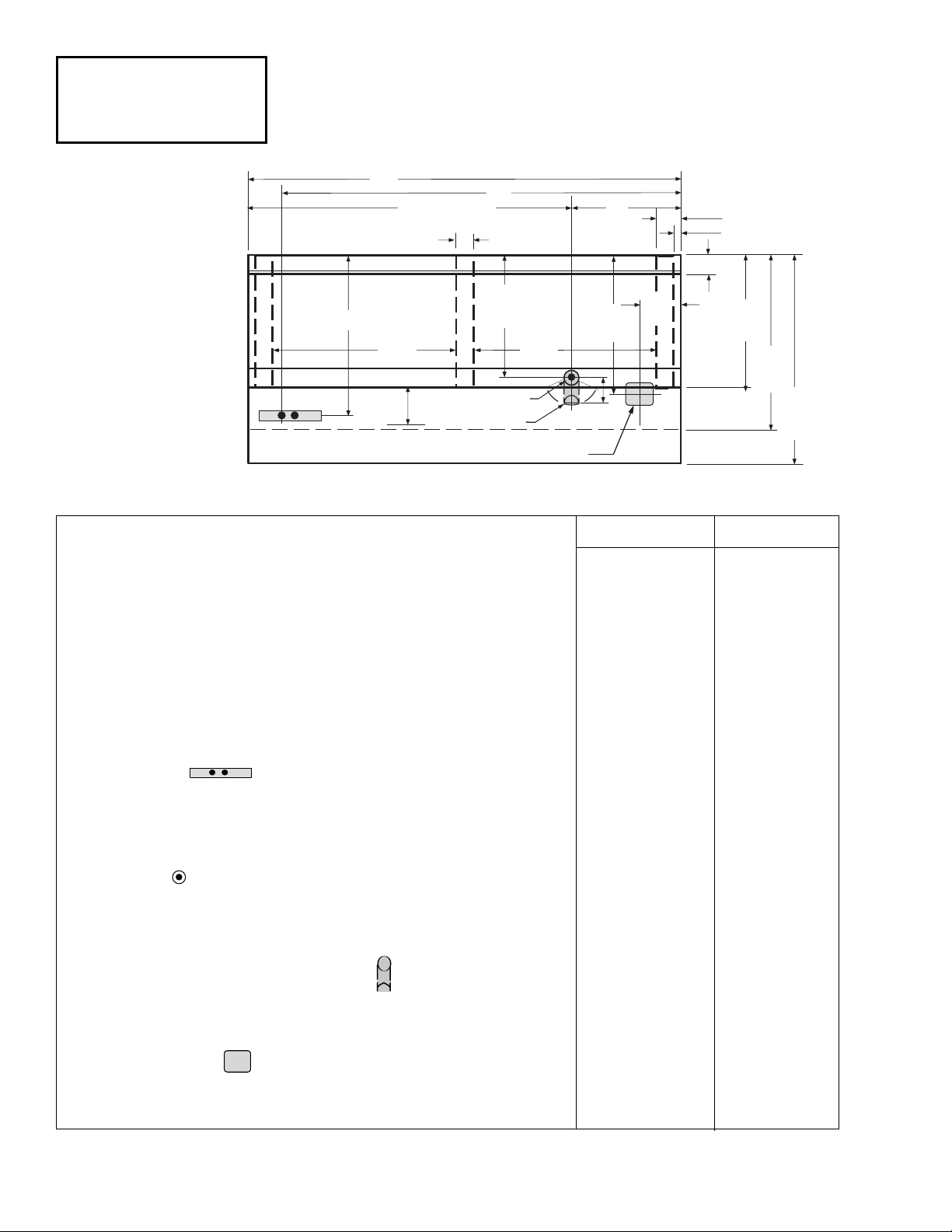

Engineering

Plan Views

Rear Stockable

Dairy and

Delicatessen

3-2003

Dimensions shown as in. & (mm).

8 ft 12 ft

General

(A) Case Length (without ends or partitions) 96 3/8(2448) 144 1/2(3670)

Maximum O/S dimension of case back to front (includes bumper) 46 1/4(1174) 46 1/4(1174)

Back of case to front of splashguard 35 5/8 (981) 35 5/8 (981)

Back of case to O/S edge of front skid rail 29 1/2 (749) 29 1/2 (749)

Width of skid rail 4 1/2 (114) 4 1/2 (114)

RH end of case to outside edge of external support 5 1/2(140) 5 1/2(140)

Distance between edges of external support and center support 40 5/8 (1032) 40 5/8 (1032)

Distance between edges of center supports NA 44 (1118)

Stub-up area between front skid rail and splashguard 7 (178) 7 (178)

Electrical Service (Electrical Field Wiring connection point)

(B) RH End of case to center of farthest knockout 88 3/8 (2245) 136 1/2 (3467)

Length of electrical raceway

Waste Outlet

(D) RH End of case to the center of waste outlet 24 1/8 (613) 74 1/4 (1835)

LH End of case to the center of waste outlet 74 1/4 (1835) 74 1/4 (1835)

Water Seal

Edge of water seal to center of waste outlet 4 (102) 4 (102)

Outside diameter of the drip pipe 1 1/2 (38) 1 1/2 (38)

(NOTE: Water seal outlet must clear front skid rail

Refrigeration Outlet

Back of case to center of refrigeration outlet 30 5/8 (778) 30 5/8 (778)

(E) RH end of case to center of refrigeration outlet 9 (230) 9 (230)

3 of 8P/N 0443113 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

C6LRE

Refrigeration

Outlet

7 1/2

(191)

45 1/2

(1156)

62 7/8

(1597)

66 5/8

(1693)

(559)

(2209)

5 3/4

(146)

4 3/8(111)

(178)

(483)

27 1/2(699)

38 3/4(984)

46 5/8(1184)

29 1/2(749)

30 5/8(778)

35 3/8(899)

30 1/2(775)

2 3/4(70)

FAN COIL

Impact C6LRE

Dairy / Delicatessen

Dimensions shown as in. & (mm).

REFRIGERATION DATA

Note: This data is based on store temperature

and humidity that does not exceed 75°F and

55% R.H.

C6LRE

Discharge Air (°F) 32

Evaporator (°F) 21

Unit Sizing (°F) 19

Btu/hr/ft* C6LRE

Parallel 1870

Conventional 2040

*For all refrigeration equipment other than

Hussmann, use conventional Btu values.

DEFROST DATA

C6LRE

Frequency (hr) 6

Defrost Water (lb/ft/day) 10.5

(± 15% based on case configuration and

product loading).

OFFTIME C6LRE

Temp Term (°F) 48°

Failsafe (minutes) 35

ELECTRIC OR GAS

Not Recommended

Standard Defrost Thermostat

Close on rise: close 48°F — open 33°F

CONVENTIONAL CONTROLS

Low Pressure Backup Control

CI/CO (Temp °F)** 14 / 4

Indoor Unit Only, Pressure Defrost

Termination (Temp °F)** 48°

**Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/2

Merchandiser Liquid Line (in.) 3/8

Merchandiser Suction Line (in.) 7/8

Estimated Charge (lb)***

8 ft 3.2

12 ft 4.5

***This is an average for all refrigerant types.

Actual refrigerant charge may vary by

approximately half a pound.

Length (in.) added to Lineup by Each

End or Insulated Partition 1 1/2

Multideck, 6 Display Levels, and Sliding Rear Doors

NSF Certification

These merchandisers are manufactured to meet ANSI /National

Sanitation Foundation (NSF®) Standard #7 requirements.

NOTE: The bumpers are 4 in. (102 mm) wide. The center of the top bumper is

14 1/8in. (359 mm) from the floor and the center of the lower bumper

is 6 in. (152 mm) from the floor.

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. C6LRE Data Sheet Set

4 of 8

Impact C6LRE

Dairy / Delicatessen

Electrical Data 8 ft 12 ft

Number of Fans — 9W 4 6

Number of Fans — 9W (Export) 4 6

(Export: 230V 50 hz shown) Amperes Watts

Merchandiser 8 ft 12 ft 8 ft 12 ft

Fans

Standard: 120V 60 hz 2.80 4.20 220 330

Energy Efficient: 120V 60 hz 1.40 2.80 112 168

Export: 230V 50 hz 1.52 2.28 228 342

Anti-sweat Heaters

Constant on NA NA

Cycling NA NA

Minimum Circuit Ampacity

With Standard Fans 3.0 4.4

With Energy Efficient Fans 1.6 3.0

With Export Fans 2.0 2.5

Maximum Over Current Protection 20 20

Supplemental Gas Heaters NA NA

208V 1ΦΦElectric Defrost NA NA

Standard Lighting

1 Row Canopy 0.51 0.77 59 85

Optional Lighting

1 Row Canopy and 1 Row Rail 1.02 1.54 118 170

2 Rows Canopy 1.02 1.54 118 170

2 Rows Canopy and 1 Row Rail 1.53 2.31 177 255

1 Row Ledge Lights 0.51 0.77 59 85

Optional Shelf Lighting

Not Recommended

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. 5 of 8P/N 0443113

Defrost

Termination

Thermostat

Refrigeration

Thermostat

Dark Blue

Condensing

Unit

}

Light Blue

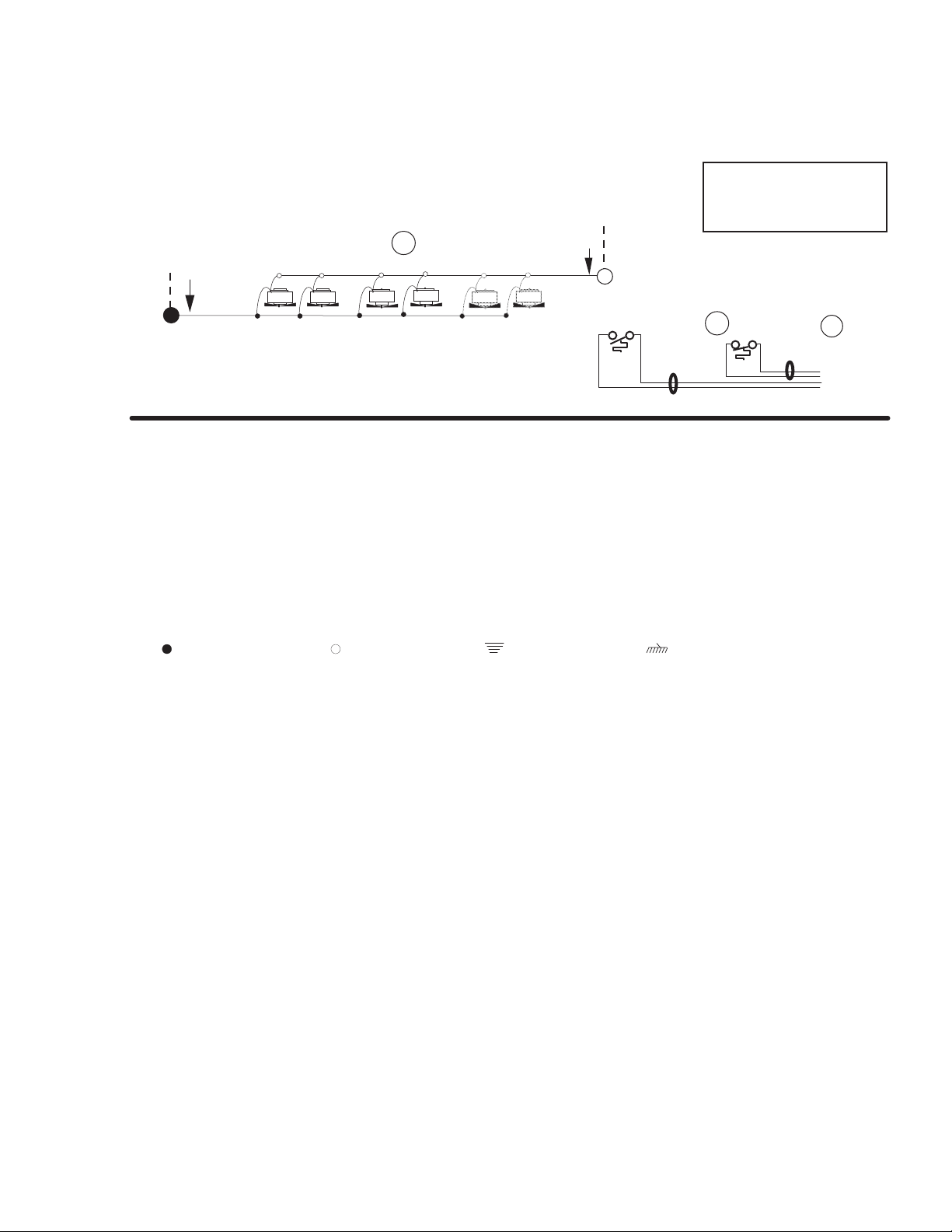

Fan Wiring

Off-time Defrost

4 & 6 Fans 120V NEUTRAL

BROWN BAND

120V POWER

Fans 1

BROWN BAND

Grayed components in 12 foot models only.

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = Field GROUND = Case GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

C6LRE Data Sheet Set6 of 8 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

BL R

Optional Lighting — 2 Rows Canopy

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

Standard Lighting — 1 Row Canopy

Optional Lighting — 1 Row Rail or 1 Row Ledge

Light Circuits

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

= 120V POWER = 120V NEUTRAL

Grayed components in 12 foot models only.

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

Doors

Fully Opened Doors

Fully Closed

Double-walled telescoping doors slide both left and right.

NOTE: Consult Cooler Close-off Kit for instructions on connecting the merchandiser to the cooler.

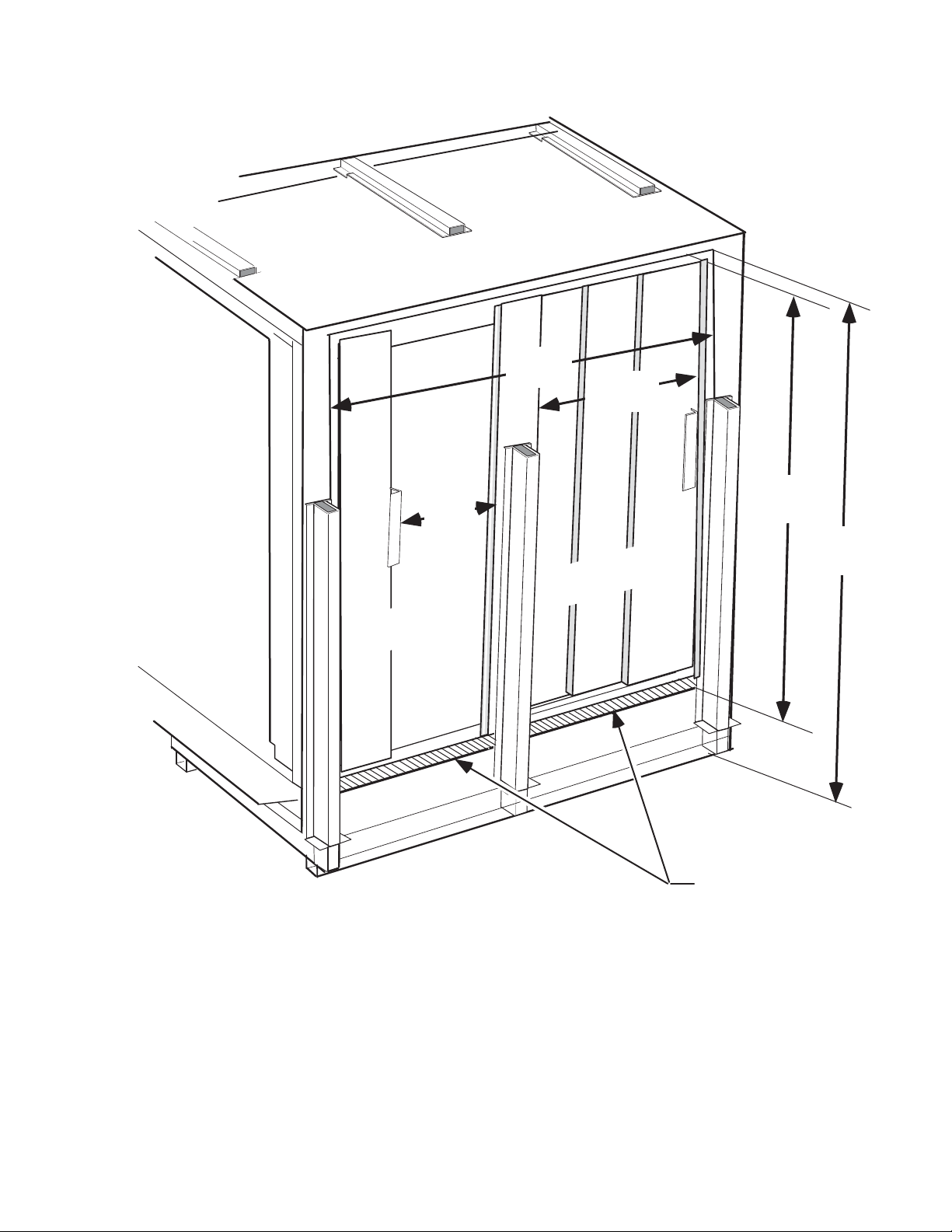

Rear View of 8 Foot Merchandiser

23 3/4

(603)

Rear Coil Grilles

84 1/4

(2140) 37 3/4

(958)

73 1/8

(1858)

85 1/8

(2162)

7 of 8P/N 0443113 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

NOTE: Consult Cooler Close-off Kit for Instructions on

connecting the merchandiser to the cooler.

Rear View of 12 Foot Merchandiser

23 3/4

(603)

23 3/4

(603)

Doors

Fully Opened Doors

Fully Closed

Double-walled telescoping doors slide both left and right.

Doors

Fully Opened

Rear Coil Grille

Rear Coil Grille Rear Coil Grille

73 1/8

(1858)

85 1/8

(2162)

37 3/4

(958)

130 1/4

(3308)

C6LRE Data Sheet Set8 of 8 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.
