Hussmann FMSS Mode d’emploi

1 of 7

FMSS

Technical Data Sheet

Rev A

ecialt

Products

FMSS

REFRIGERATION DATA

Note: This data is based on store temperature and

humidity that does not exceed 75F and 55% R.H.

Discharge Air (F) 28

Evaporator (F) 18

ote: Not recommended to control temp by regulating

coil temp allow t-stat to cycle and control temp.

tu/hr/

Parallel 450

Conventional 518

*For all refrigeration equipment other than Hussmann,

use conventional Btu values.

DEFROST DATA

Frequency Hrs 8

OFFTIME

Temp Term °F 54

Failsafe Minutes 45

ELECTRIC or GAS Not Recommended

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 ½*

Merchandiser Liquid Line (in.) 3/8*

Merchandiser Suction Line (in.) 5/8*

Estimated Charge (lb)***

4ft 1.2

5ft 1.5

6ft 1.8

*Dependent on case length and refrigerant type.

*** This is an average for all refrigerants types. Actual

refrigerant charge may vary by approximately half a

ound. GLYCOL REQUIREMENTS

GPM PSI

NA NA

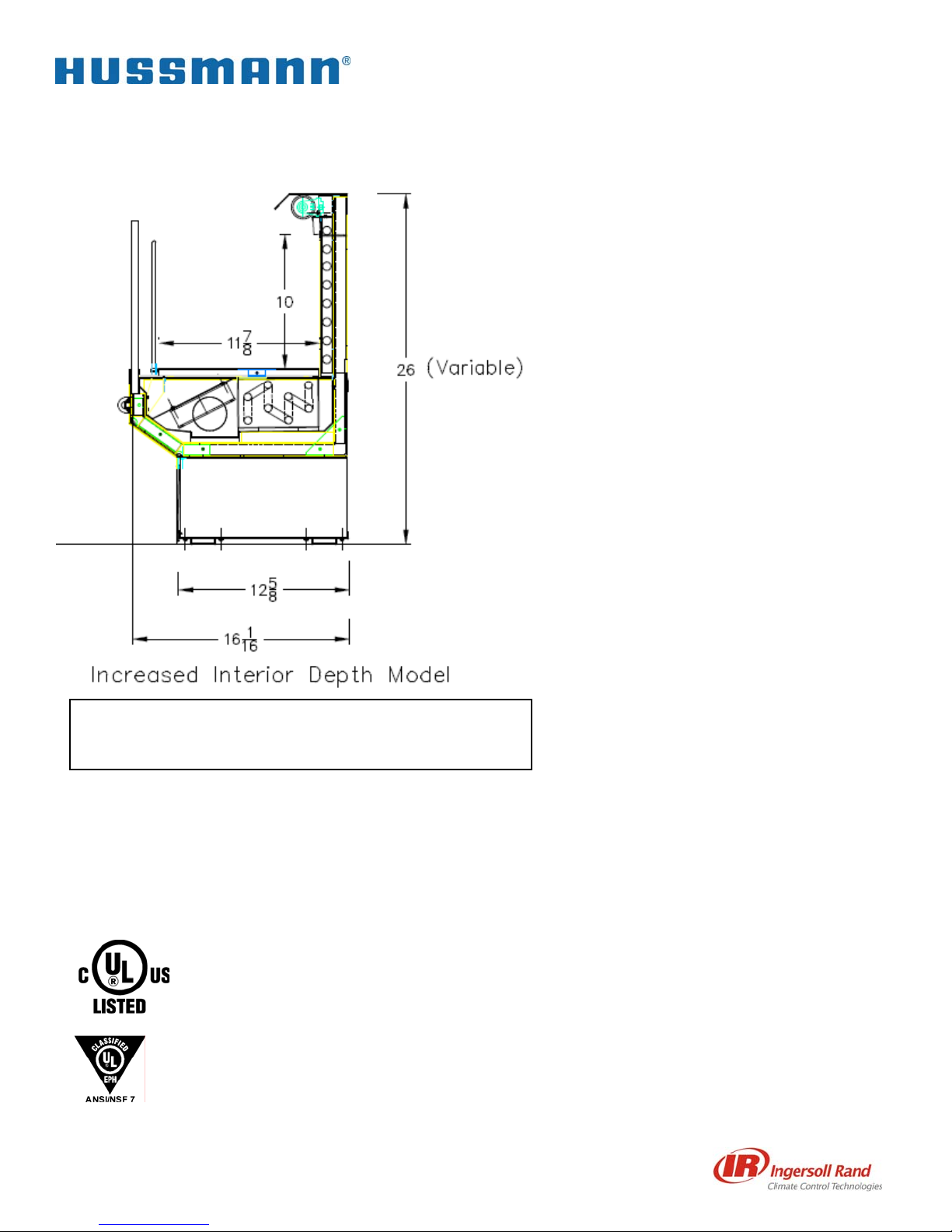

Engineering

CROSS SECTION

These merchandisers are manufactured to meet ANSI/National Sanitation

Foundation Standard #7 requirements.

CUL Listed

UL Sanitation

We reserve the right to change or revise specifications and

roduct design in connection with any featu

e of our

roducts. Such changes do not entitle the buyer to

corresponding changes, improvements, additions or

replacements for equipment previously sold or shipped.

2 of 7

FMSS

Technical Data Sheet

Rev A

ecialt

Products

FMSS

Engineering

CROSS SECTION

These merchandisers are manufactured to meet ANSI/National Sanitation

Foundation Standard #7 requirements.

We reserve the right to change or revise specifications and

roduct design in connection with any feature of our

roducts. Such changes do not entitle the buyer to

corresponding changes, improvements, additions or

replacements for equipment previously sold or shipped.

CUL Listed

UL Sanitation

3 of 7

FMSS

Technical Data Sheet

Rev A

ecialt

Products

FMSS

07/29/02

H:\WIRESCHEMATICS\NEW-WIRING

FMSS CASES W1400000

4' CASE WIRING DIAGRAM

~ 115 VAC - 50/60 Hz.

L1 N

BUNDLE COLOR

BLACK / WHITE

T-STAT

SUCTION

SOLENOID

VALVE

BALLAST 125-01-0681

MAGNETEK B260I120HP

SWITCH TOGGLE

125-01-0307

L1 N ~ 115 VAC - 50/50 Hz. L1 N ~ 115 VAC - 50/60 Hz.

BUNDLE COLOR

ORANGE BUNDLE COLOR

BROWN

EVAPORATOR AXIAL FAN MOTOR

COMAIR ROTRON™ MX2B1-E1

(1) 0.18A @ 115 VAC / 125-01-2012

(OPTIONAL TEMPERATURE CONTROL)

CASE CANOPY LIGHT

(1) F48T12-SPX30

M M

CAP UNSUED BLUE LEAD

4 of 7

FMSS

Technical Data Sheet

Rev A

ecialt

Products

FMSS

07/29/02

H:\WIRESCHEMATICS\NEW-WIRING

FMSS CASES W1400001

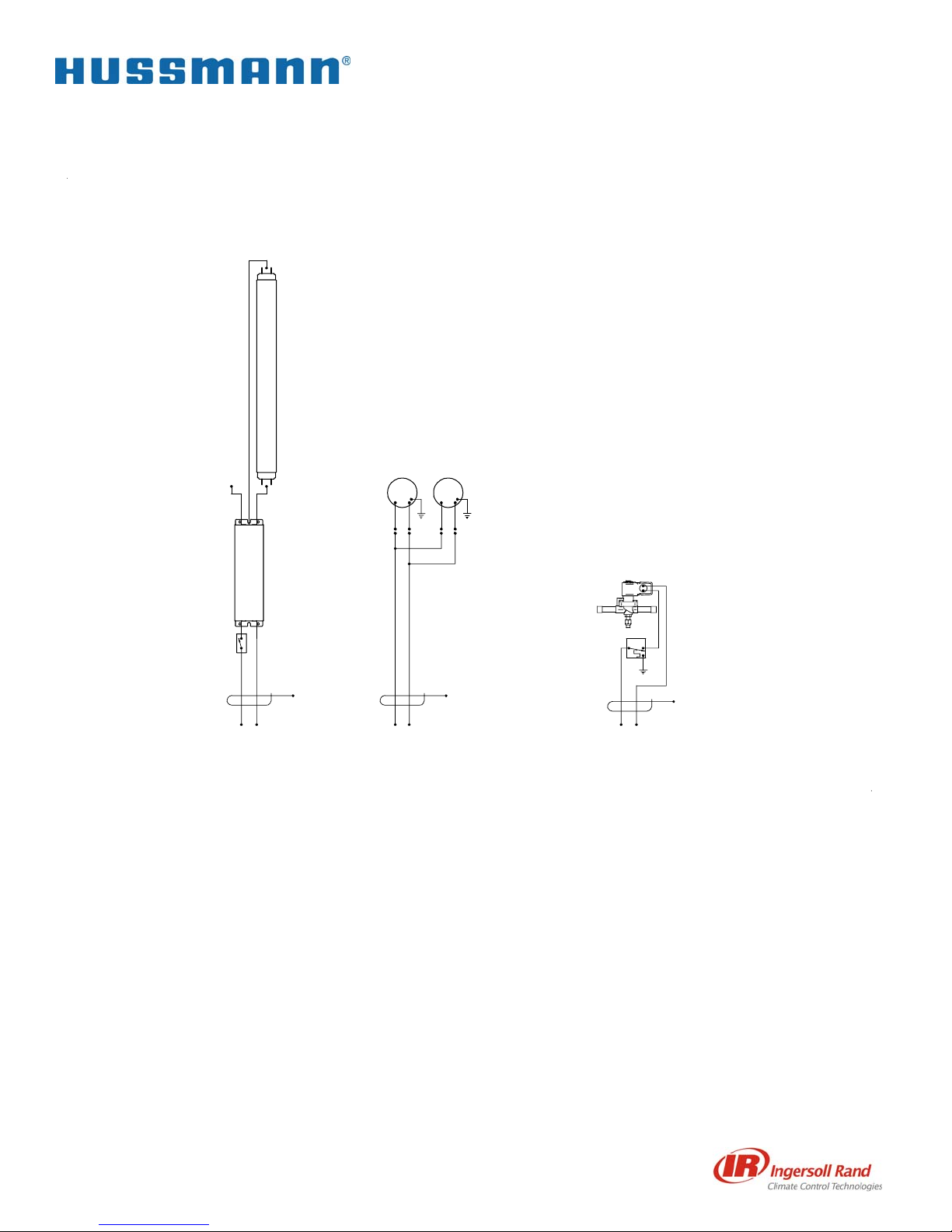

6' CASE WIRING DIAGRAM

~ 115 VAC - 50/60 Hz.

L1 N

BUNDLE COLOR

BLACK / WHITE

T-STAT

SUCTION

SOLENOID

VALVE

BALLAST 125-01-0681

MAGNETEK B260I120HP

SWITCH TOGGLE

125-01-0307

L1 N ~ 115 VAC - 50/50 Hz. L1 N ~ 115 VAC - 50/60 Hz.

BUNDLE COLOR

ORANGE BUNDLE COLOR

BROWN

EVAPORATOR AXIAL FAN MOTORS

COMAIR ROTRON™ MX2B1-E1

(2) 0.18A @ 115 VAC / 125-01-2012

(OPTIONAL TEMPERATURE CONTROL)

CASE CANOPY LIGHT

(1) F72T12-SPX30

M M

CAP UNSUED BLUE LEAD

5 of 7

FMSS

Technical Data Sheet

Rev A

ecialt

Products

FMSS

07/29/02

H:\WIRESCHEMATICS\NEW-WIRING

FMSS CASES W1400002

8' CASE WIRING DIAGRAM

~ 115 VAC - 50/60 Hz.

L1 N

BUNDLE COLOR

BLACK / WHITE

T-STAT

SUCTION

SOLENOID

VALVE

BALLAST 125-01-0681

MAGNETEK B260I120HP

SWITCH TOGGLE

125-01-0307

L1 N ~ 115 VAC - 50/50 Hz. L1 N ~ 115 VAC - 50/60 Hz.

BUNDLE COLOR

ORANGE BUNDLE COLOR

BROWN

EVAPORATOR AXIAL FAN MOTORS

COMAIR ROTRON™ MX2B1-E1

(3) 0.18A @ 115 VAC / 125-01-2012

(OPTIONAL TEMPERATURE CONTROL)

CASE CANOPY LIGHT

(1) F96T12-SPX30

MMM

CAP UNSUED BLUE LEAD

6 of 7

FMSS

Technical Data Sheet

Rev A

ecialt

Products

FMSS

07/29/02

H:\WIRESCHEMATICS\NEW-WIRING

FMSS CASES W1400003

10' CASE WIRING DIAGRAM

~ 115 VAC - 50/60 Hz.

L1 N

BUNDLE COLOR

BLACK / WHITE

T-STAT

SUCTION

SOLENOID

VALVE

BALLAST 125-01-0681

MAGNETEK B260I120HP

SWITCH TOGGLE

125-01-0307

L1 N ~ 115 VAC - 50/50 Hz. L1 N ~ 115 VAC - 50/60 Hz.

BUNDLE COLOR

ORANGE BUNDLE COLOR

BROWN

EVAPORATOR AXIAL FAN MOTORS

COMAIR ROTRON™ MX2B1-E1

(3) 0.18A @ 115 VAC / 125-01-2012

(OPTIONAL TEMPERATURE CONTROL)

CASE CANOPY LIGHT

(1) F72T12-SPX30 +

(1) F48T12-SPX30

MMM

7 of 7

FMSS

Technical Data Sheet

Rev A

ecialt

Products

FMSS

07/29/02

H:\WIRESCHEMATICS\NEW-WIRING

FMSS CASES W1400004

12' CASE WIRING DIAGRAM

~ 115 VAC - 50/60 Hz.

L1 N

BUNDLE COLOR

BLACK / WHITE

T-STAT

SUCTION

SOLENOID

VALVE

BALLAST 125-01-0681

MAGNETEK B260I120HP

SWITCH TOGGLE

125-01-0307

M M M M

L1 N ~ 115 VAC - 50/50 Hz. L1 N ~ 115 VAC - 50/60 Hz.

BUNDLE COLOR

ORANGE BUNDLE COLOR

BROWN

EVAPORATOR AXIAL FAN MOTORS

COMAIR ROTRON™ MX2B1-E1

(4) 0.18A @ 115 VAC / 125-01-2012

(OPTIONAL TEMPERATURE CONTROL)

CASE CANOPY LIGHT

(2) F72T12-SPX30
