I. General Information
1. Overview
Welcome to the world of Graphic Tablet with rechargeable pen. Now you will discover how easy it is to use
your personal computer by using a Graphic Tablet with rechargeable pen instead of a mouse.Unique feature
of this rechargeable pen is that it makes it easy for you to draw thin, thick, light or dark (called pressure
sensitivity) lines. You can also write, sign, annotate documents or draw, sketch and paint as easily as you
would do on normal paper. You can further simulate functions like pencil, mark pen, brush, or water color
pen by using the commercial software packages such as Adobe Photoshop, Corel Painter.
2. Graphic Tablet Functions
After installing the device driver, your Graphic Tablet will have following functions:
(1) Direct pointing — You can move the cursor to any area of the screen by hovering the rechargeable pen tip
over the tablet’s surface.
(2) Three-buttons mouse commands — Your Graphic Tablet will provide all functions of a three-buttons’ mouse
by using its pen tip and two buttons.
(3) Pressure sensitivity — This feature allows you to emulate various brushes and pencils. Harder you press down
the pen, the thicker lines you get; lighter you press the thinner ones you get.
2
3. System Requirements
Windows Vista / Windows 7 / Windows 8 / Windows 8.1 / Windows 10
4. Installing the Driver Software on Windows
Please close all painting software and antivirus software before driver installation.
For Windows Vista / Windows 7 / Windows 8 / Windows 8.1 / Windows 10 operating systems:
(1) Insert the Driver CD intoa CD-ROM drive and wait for the main installation screen to appear.
(2) The main installation screen will appear automatically; if not, you can manually start the installation-
Open [My Computer] [CD/DVD Rom] -click on the [Setup] program.
(3) When installing the driver, follow the installation instructions on screen.
5. Hardware Installation
Once the driver installation is finished, connect the tablet with USB
interface into a PC.You will then see a small tablet icon
appearing in the system tray (normally at thelower right corner of
the screen.)
If the USB cable is disconnected, there will apprear a icon
to represent the tablet is disable
3
6. Wireless Graphic Tablet
(1) Dual working modes - wired & wireless (wireless distance can reach 20 meters in open space)
Wireless Graphic Tablet:
Button2
Button1
Pen tip
*This illustration is of a model picture of Huion DWH69
Touch Express Keys
Touch Express Keys
USB Receiver Battery
LCD
Active Area
4
(3) Working Mode for Wireless Graphic Tablet
1) Pull out the USB cable - switch “On/Off” button to “On” plug in the wireless receiver.
2) If you want to charge in wireless mode, please plug the USB cable directly.
3) Constant working time: > 30 hours.
4) For battery power saving, please switch “On/Off” button to “OFF” when you are not using it.
5) Automatic shutdown: 200 uA (the tablet will automatically turn off when not used for over 20 minutes.
(Push ON OFF ON to restart).
(4) Working Mode for Wired Graphic Tablet
1) Swith "ON/OFF" button to "OFF".
2) Then plug in the USB cable and the Graphic Tablet is in a wired mode.
3) Swith "ON/OFF" button to "ON", then the tablet is still in wired mode plus charge at the same time.
(2) Functions of the LCD display
1).The LCD display will lit up when the Graphic Tablet is in normal working conditions;
2).The LCD display will show an icon to represent that the Graphic Tablet detected the pen;
3).The LCD display will show an icon to represent that you are touching the Express Key;
4).The LCD display will show an icon to represent the Graphic Tablet is in a wireless mode;
5).The LCD display will show an icon to represent the Graphic Tablet is charging;
6).The LCD sreen will show the icon when running out of battery and please charging in time , or it will lead
to bad Linear, no drawing line and the screen dim out etc
7).The display will show an icon to show the power
8).The LCD display will show an icon to represent the Graphic Tablet is in wired mode and without charging.
7. Usage Tips
(1) Double tapping
When you double tap with a rechargeable pen (equivalent to a double click with a mouse), try to keep pen’ tip away
from the tablet’s surface, or at least try to lift the pen tip as fast as possible before the second tap.
(2) Storing the rechargeable pen
While storing the rechargeable pen, make sure the pen tip does not touch anything, especially the pen stand in a
cup or pen holder with the tip down. Though the possibility is low, constant stress on a pen tip might damage
precise configuration of the pen. Place the pen in a pen holder, or turn the pen tip pointing upward or horizontally
with the pen tip free from any pressure by other objects.
(3) Using a pen without an ordinary mouse
You may install the rechargeable pen, digital mouse, and normal mouse in your computer at the same time.
However, only one device will be able to work at a time.
* Do not use more than two devices at the same time in case the screen cursor is jittering or not moving.
5
6
ǁ. Driver Interface Introduction
1. Control Interface
7
When you double click the driver tablet icon ( ) that normally appears in the system tray at the corner of a
screen, you will see control panel (pictured above). It will display driven-related information.Controlling the panel
by digital graphic tablet can set up functions of a rechargeable pen, regulating pen’s pressure sensitivity.
2. Pen Buttons Settings
2.1 Key Functions

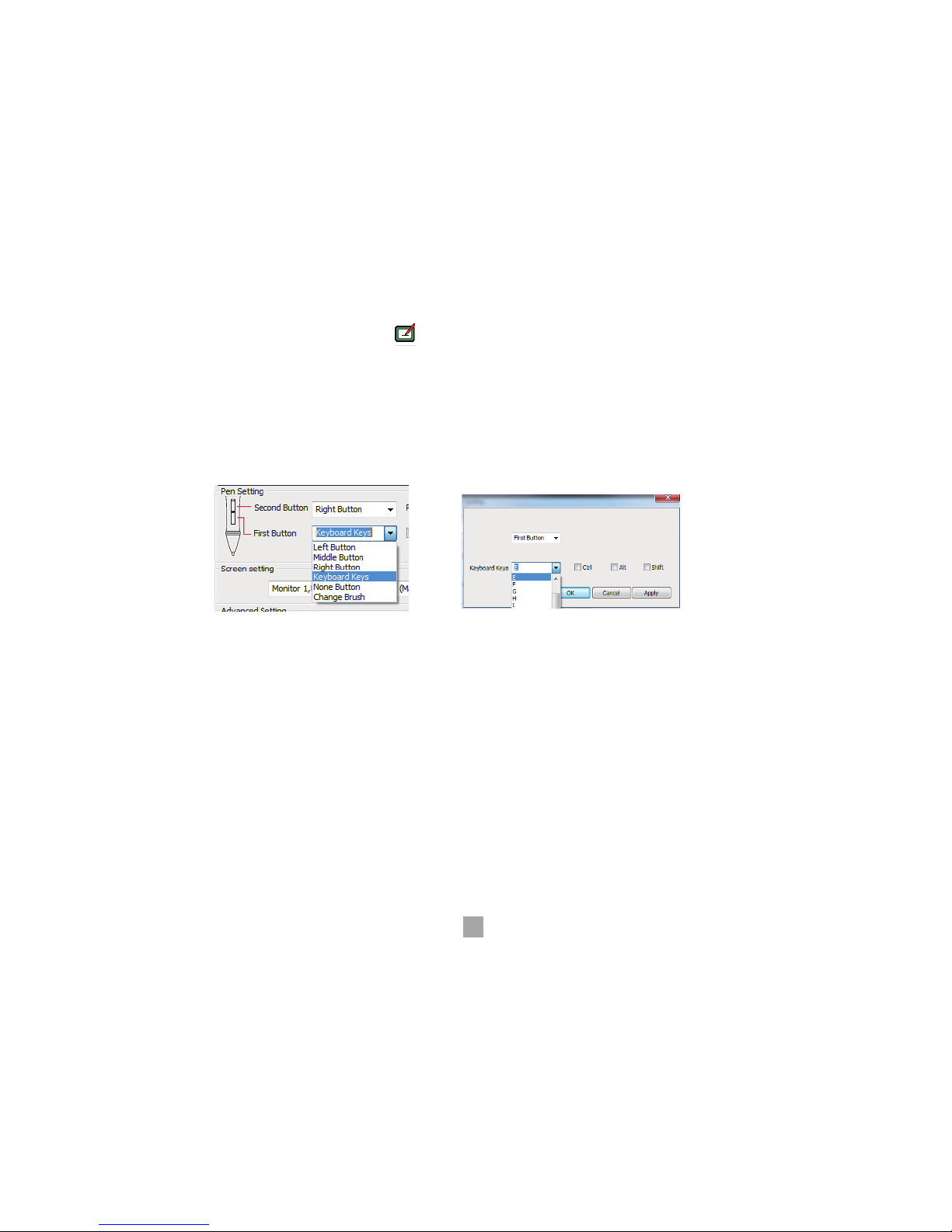

You can set up any Mouse functions for the rechargeable pen (as the above Picture I). Selecting its "Left Button,
Middle Button, Right Button, Keyboard Keys, None Button" on the corresponding right drop-down menu of the
"Second Button, First Button", you can achieve the rechargeable pen button function settings.
Note:
(1)"Left Button, Middle Button, Right Button" functions represent a normal mouse left, middle, right button functions.
(2) When choosing "Middle Button", the corresponding pen button will have the same "Press" function as a normal
mouse, but doesn't have the "Scroll" function.
(3) When choosing the "Keyboard Keys", there will appear an "Express Key Settings (as Picture II). You can set
pen button functions as the same as any "Express Key" or "Keyboard Keys" functions.
III
