Huion Kamvas 24 Manuel utilisateur
GS2401
Contents
Product Overview ...................................................... 2
Display Introduction ................................................... 2
Product and Accessories ................................................ 2
Product Connection .................................................... 4
Driver and Setting ..................................................... 6
Install Driver ........................................................ 6
Driver Interface Preview ................................................ 17
Pen Display Setting ................................................... 19
Digital Pen Setting .................................................... 22
Driver Setting ....................................................... 31
Digital Pen Basic Operation .............................................. 36
Specifications ........................................................ 40
Troubleshooting Solutions .............................................. 41
1 / 44
GS2401
Product Overview
Display Introduction
Thanks for choosing HUION Kamvas 24 creative pen display. This is a new generation of
professional drawing display, which can greatly improve your work efficiency of painting and
creation, and full of fun. You can freely painting and writing, depicting different lines and
colors, just as the pen writes on the paper, which brings you a real shock experience.
To give you a better understanding and using of your tablet, please read this user manual
carefully. The user manual only shows the information under Windows, unless otherwise
specified, this information applies to both Windows and Mac systems.
Note: The pictures in the User Manual are for reference only.
Product and Accessories

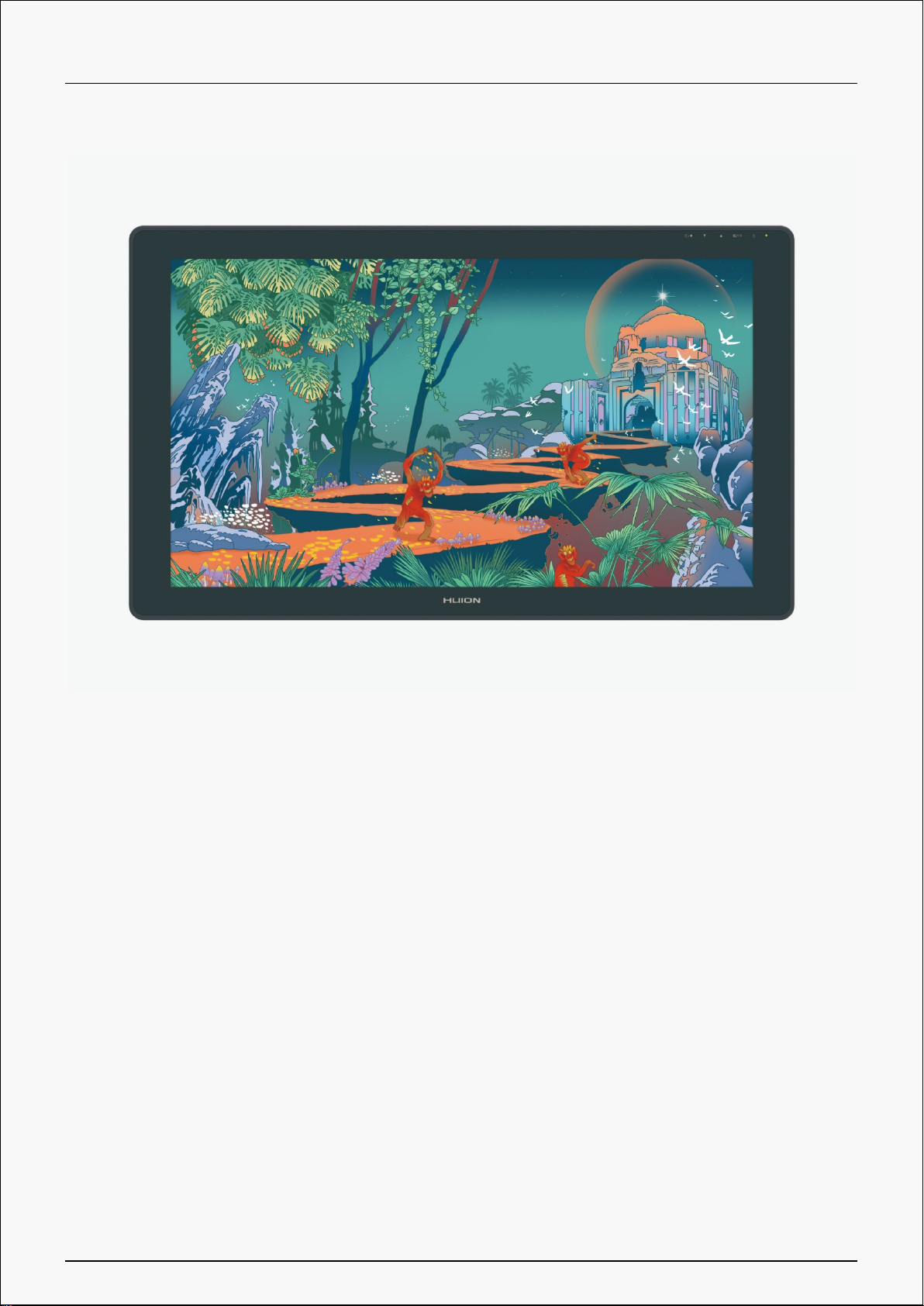

Product Overview
Please see the detailed product introduction.
2 / 44
GS2401
Accessories
After unboxing your package, make sure that you have the following items:
Pen Display*1
Battery-free Pen*1
Pen Holder*1
Replacement Nibs(Inside the Pen Holder)*10
3-in-1 Cable*1
Power Cable*1
Power Adapter*1
Quick Start Guide*1
Cleaning Cloth*1
3 / 44
GS2401
Product Connection
The display supports the connection of a computer and Android device, please refer to the
following connection method.
Power Indicator Light
When the pen display is connected, you can look at the color of the indicator light to identify
the status of the pen display.
Status Indication Color of the IndicatorLight
The power is on, but there is no video signal input. Red
The power is on, and there is video signal input. Green
Sleeping Red
*Press the key to call out the OSD Menu and change the settings of the menu via 4
keys (listed on the table below) on your pen display.
press the key to open the OSD menu before we access the menu, and it can function as a confirm button after we
access the menu.
▲Press the key to move upwards or rightwards to switch between options after we access the OSD menu.
▼Press the key to move downwards or leftwards to switch between options after we access the OSD menu.
4 / 44
GS2401
A/◀ press the key to return to a previous menu after we access the OSD menu.
3-in-1 Type-C Cable
Connect the pen display to your computer with 3-in-1 Cable.
① Connect the display to your computer with 3-in-1 cable;
② Connect the power adapter to the power cable.
USB-C to USB-C Cable
Connect the display to your computer or Android device with USB-C to USB-C cable.
① Connect the display to your computer or Android device with USB-C to USB-C cable.
② Connect the power adapter to the power cable.
5 / 44
GS2401
Driver and Setting
Install Driver
How to Install and Uninstall the Drivers on Windows/Mac Device
Notice:
1. Before installing driver, please close all graphic software and antivirus program.
2. If you have installed other pen tablet driver, please uninstall it before you install this driver.
3. Please make sure your computer OS are as following: Windows 7 or later, macOS 10.12 or
later.
4. Run the tablet driver program and complete the installation according to the instruction.
After the download is successful, double-click to open the driver, Connect the device to your
computer.
If the connection fails, please reconnect the computer to the device, or restart the driver or
computer.
Here are the step-by-step instructions for installing the driver:
1. Please choose the correct driver for your device from our website: Driver-Kamvas 24
2. Click Driver-Inspiroy Giano to download it.
3. Follow the instructions to complete the installation.
6 / 44
GS2401
7 / 44
GS2401
How to Install and Uninstall the Drivers on Linux Devices
Notice:
1.Please remember to close the command window and reboot your Linux device after
installing the driver, or the driver will not be useful. After rebooting the device, you can access
the system main menu to find the Huion Tablet driver and then open it to finish some
settings.
2.If you are running Linux operating system on VMware, you must use the VMware
Workstation Pro version. And the Play version of VMware Workstation doesn’t support the
Huion Tablet driver.
3.Some versions of the Ubutun operating system don’t support using more than one monitor
simultaneously. And we recommend you upgrade your system to 20.04LTS or later if you want
to use a Huion painting device on multiple display screens simultaneously smoothly.
Huion Tablet Driver installation packages in 2 different formats are available for
Linux devices:
· tar.xz (file format)
8 / 44
GS2401
· deb (file format)
Here are the step-by-step instructions for installing the driver packages in
different file formats respectively:
1.Instructions for installing the driver package file in tar.xz format.
Linux operating systems supported:
Ubuntu
Steps to Install:
1.Extract the contents of the driver file, huiontablet_XXXX.tar.xz, into a folder.
2.Open the command window in the folder.

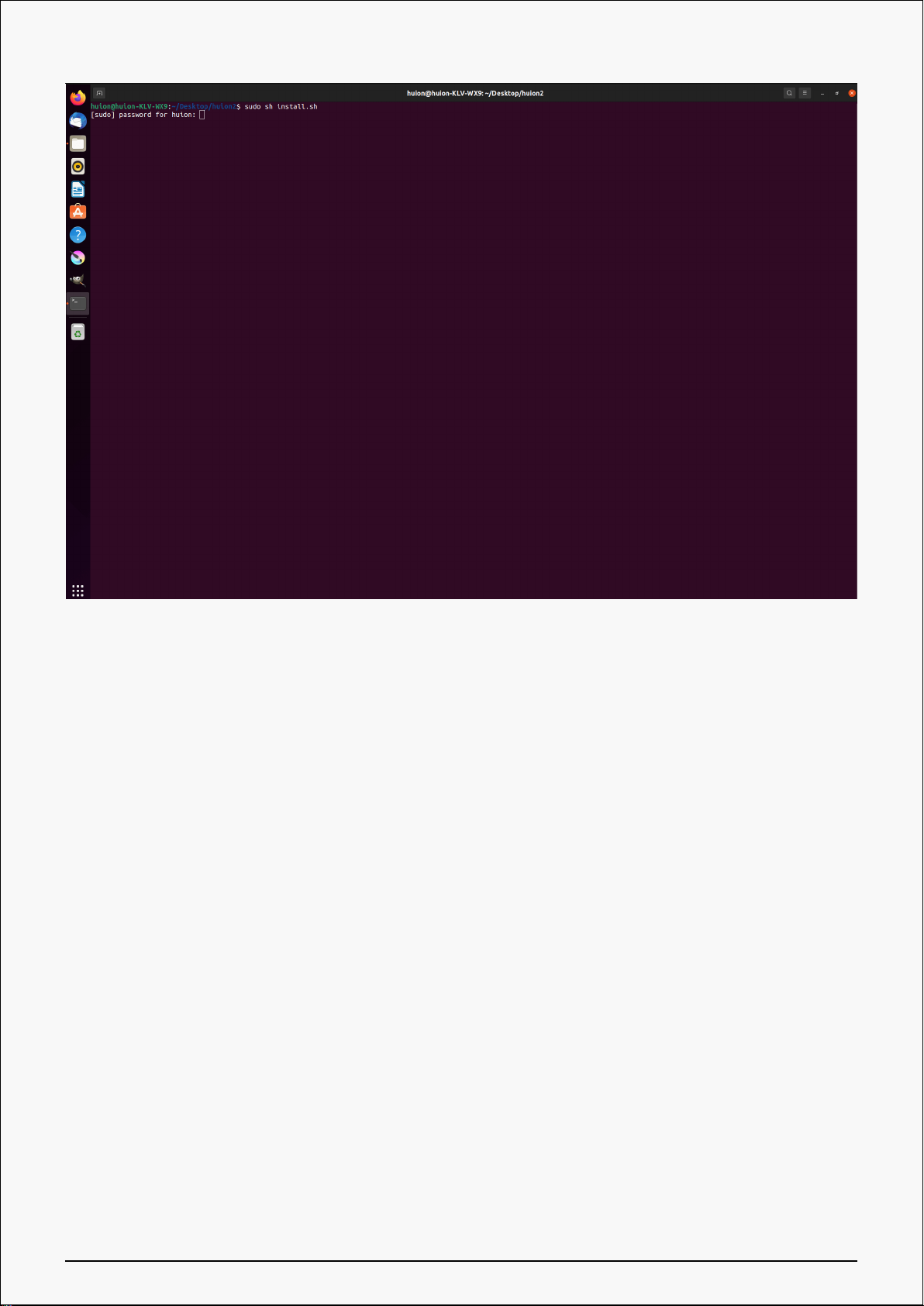

3.Input the following command: “sudo sh install.sh”, and press the enter key on the keyboard
to make your Linux device execute it.
9 / 44
GS2401
4.Enter the user password to complete the installation.
10 / 44
