Huion Kamvas 24 Plus Manuel utilisateur

Kamvas 24 Plus

Contents

Product Overview ...................................................... 2

Display Introduction ................................................... 2

Product and Accessories ................................................ 2

Product Connection .................................................... 4

Driver and Setting ..................................................... 6

Install Driver ........................................................ 6

Driver Interface Preview ................................................. 8

Pen Display Setting .................................................... 9

Digital Pen Setting .................................................... 12

Driver Setting ....................................................... 21

Pen-enabled OSD Menu ................................................ 26

Digital Pen Basic Operation .............................................. 28

Specifications ........................................................ 32

Troubleshooting Solutions .............................................. 34

1 / 37

Kamvas 24 Plus

Product Overview

Display Introduction

Thanks for choosing HUION KAMVAS 24 Plus creative pen display. This is a new generation of

professional drawing display, which can greatly improve your work efficiency of painting and

creation, and full of fun. You can freely painting and writing, depicting different lines and

colors, just as the pen writes on the paper, which brings you a real shock experience.

To give you a better understanding and using of your tablet, please read this user manual

carefully. The user manual only shows the information under Windows, unless otherwise

specified, this information applies to both Windows and Mac systems.

Note: The pictures in the User Manual are for reference only.

Product and Accessories

Product Overview

Please see the detailed product introduction.

2 / 37

Kamvas 24 Plus

Accessories

After unboxing your package, make sure that you have the following items:

Pen Display*1

Battery-free Pen*1

Pen Holder*1

Replacement Nibs(Inside the Pen Holder)*10

3-in-1 Cable*1

Power Cable*1

Power Adapter*1

Quick Start Guide*1

Cleaning Cloth*1

3 / 37

Kamvas 24 Plus

Product Connection

The display supports the connection of a computer and Android device, please refer to the

following connection method.

3-in-1 Type-C Cable

Connect the pen display to your computer with 3-in-1 Cable.

① Connect the display to your computer with 3-in-1 cable;

② Connect the power adapter to the power cable.

4 / 37

Kamvas 24 Plus

USB-C to USB-C Cable

Connect the display to your computer or Android device with USB-C to USB-C cable.

① Connect the display to your computer or Android device with USB-C to USB-C cable.

② Connect the power adapter to the power cable.

5 / 37

Kamvas 24 Plus

Driver and Setting

Install Driver

Please download the driver from our website: Driver-Kamvas 24

Note:

1. Before installing driver, please close all graphic software and antivirus program.

2. If you have installed other pen tablet driver, please uninstall it before you install this driver.

3. Please make sure your computer OS are as following: Windows 7 or later, macOS 10.12 or

later.

4. Run the tablet driver program and complete the installation according to the instruction.

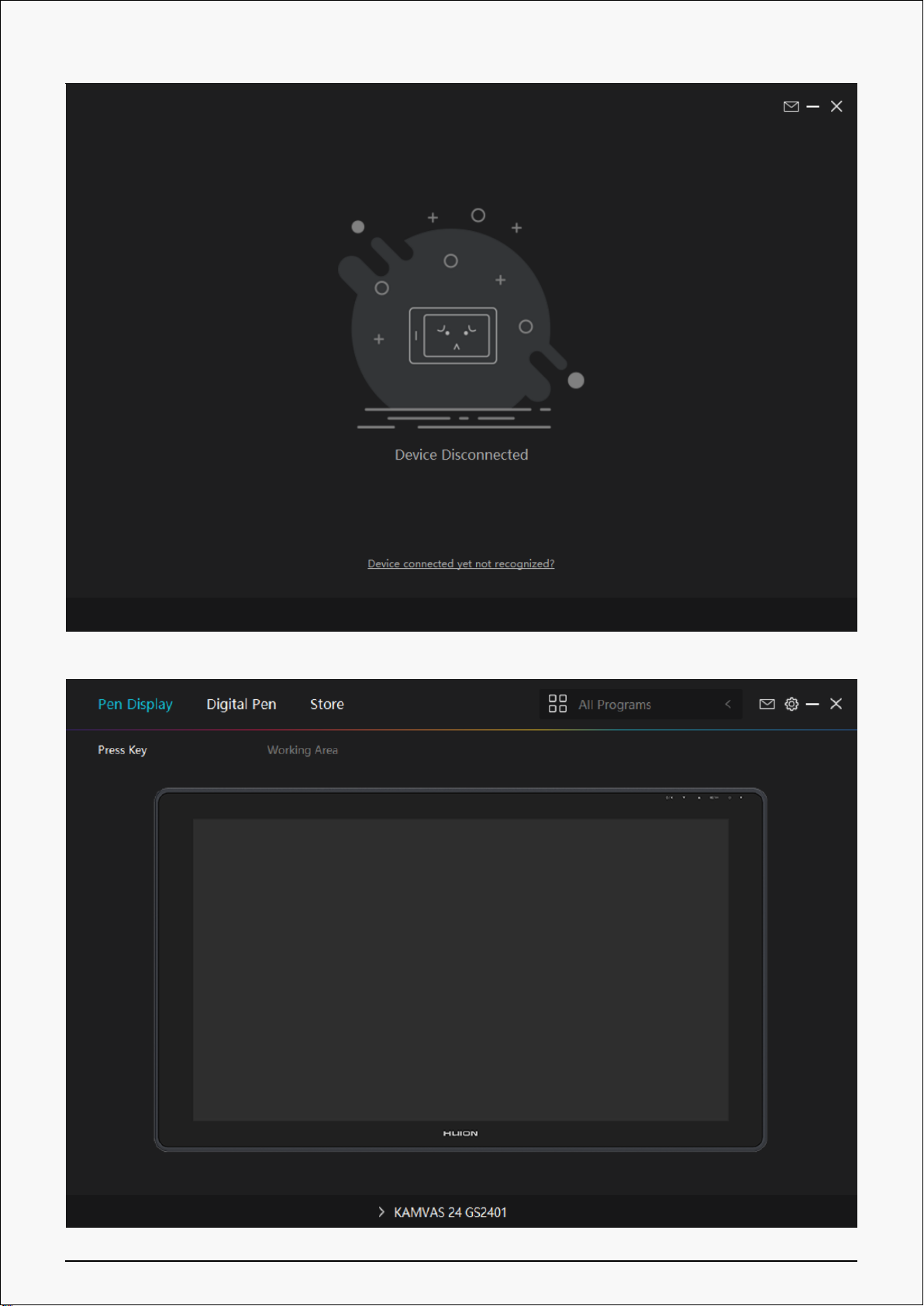

After the download is successful, double-click to open the driver.

If the connection fails, please reconnect the computer to the device, or restart the driver or

computer.

6 / 37

Kamvas 24 Plus

7 / 37

Kamvas 24 Plus

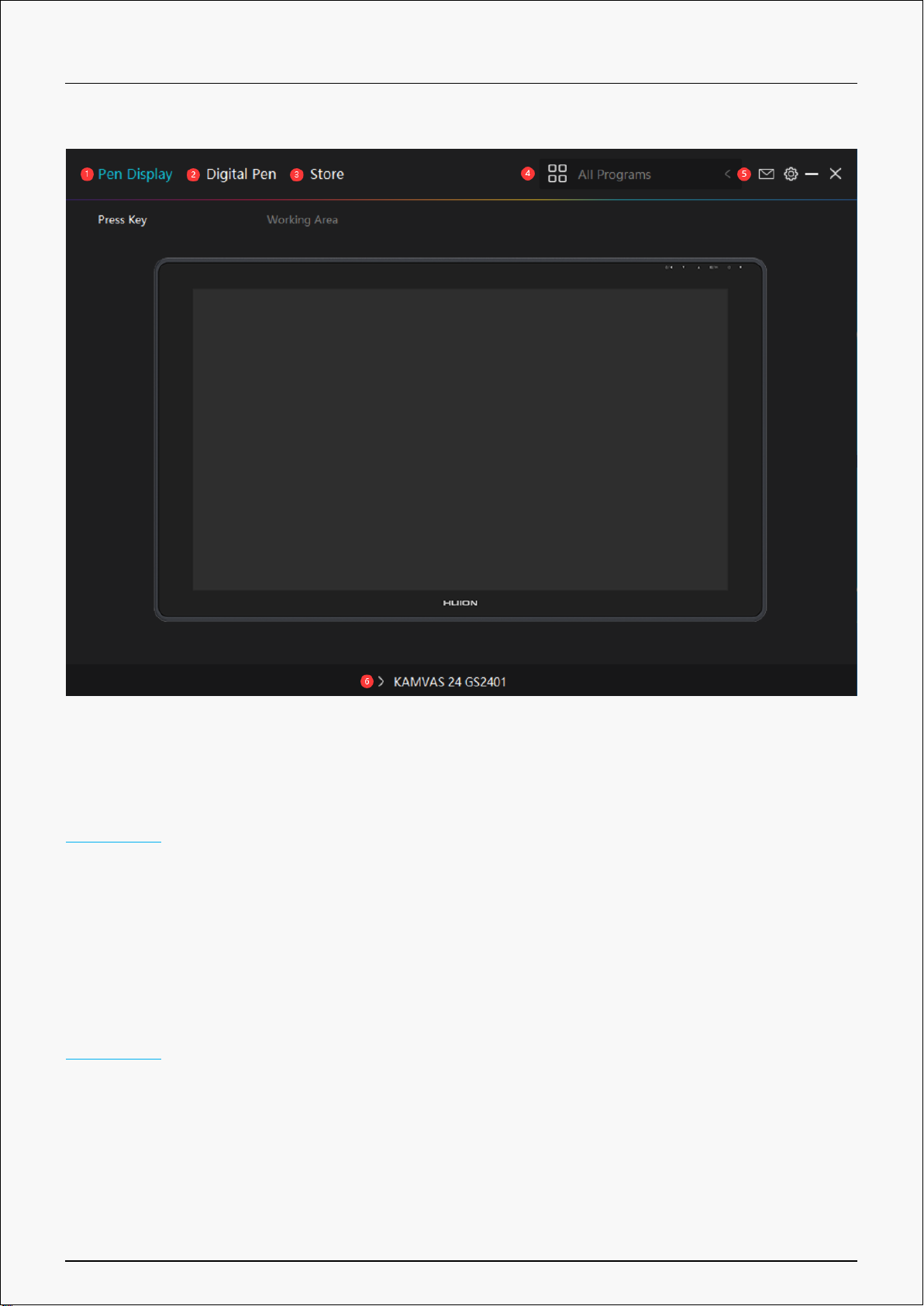

Driver Interface Preview

1. Pen Display

Pen Tablet function setting interface, the users can set the device function on this interface.

See Section

2. Digital Pen

The users can set the Pen function on this interface. About Press Key, Mode selection,

Pressure Sensitivity Adjustment and Pressure Test.

See Section

3. Store

Huion Store, where you can get the latest information about the product such as its FAQ or

sales promotion. Additionally, you can also purchase other products or accessories on Huion

8 / 37

Kamvas 24 Plus

Store.

4. Add Programs

You can customize different functions on the current device for different programs.

When select All programs, the setting of the device is valid for every program.

By clicking Add a Program from the drop-down list, you can set the functions for a specific

program and hence have unique settings for different programs. After that, when launching a

specific program, the Driver will automatically recognize it and the setting features will change

to its corresponding one.

5. Setting

The users can set the Driver function on this interface. About Device Information, Backup

Setting, General Setting and Driver Update.

See Section

6. Switch between Devices

Driver can support the connection to two digital drawing devices at the same time. When

these devices are sharing the same Driver with the current device, users can customize the

settings of the devices by switching the Driver interface to the corresponding one.

Pen Display Setting

Working Area

Select the Working Area tab to define the relationship between pen movement on the device

and cursor movement on the monitor screen.

By default the entire active area of device maps to the entire monitor. If more than one

monitor is in use and you are in extended mode, you need to choose the related monitor on

the driver interface which you are going to map to.

If your monitors are in mirror mode (All monitors display the same content), the device maps

to the entire space on each monitor and the screen cursor is displayed on each monitor

simultaneously.

9 / 37

Kamvas 24 Plus

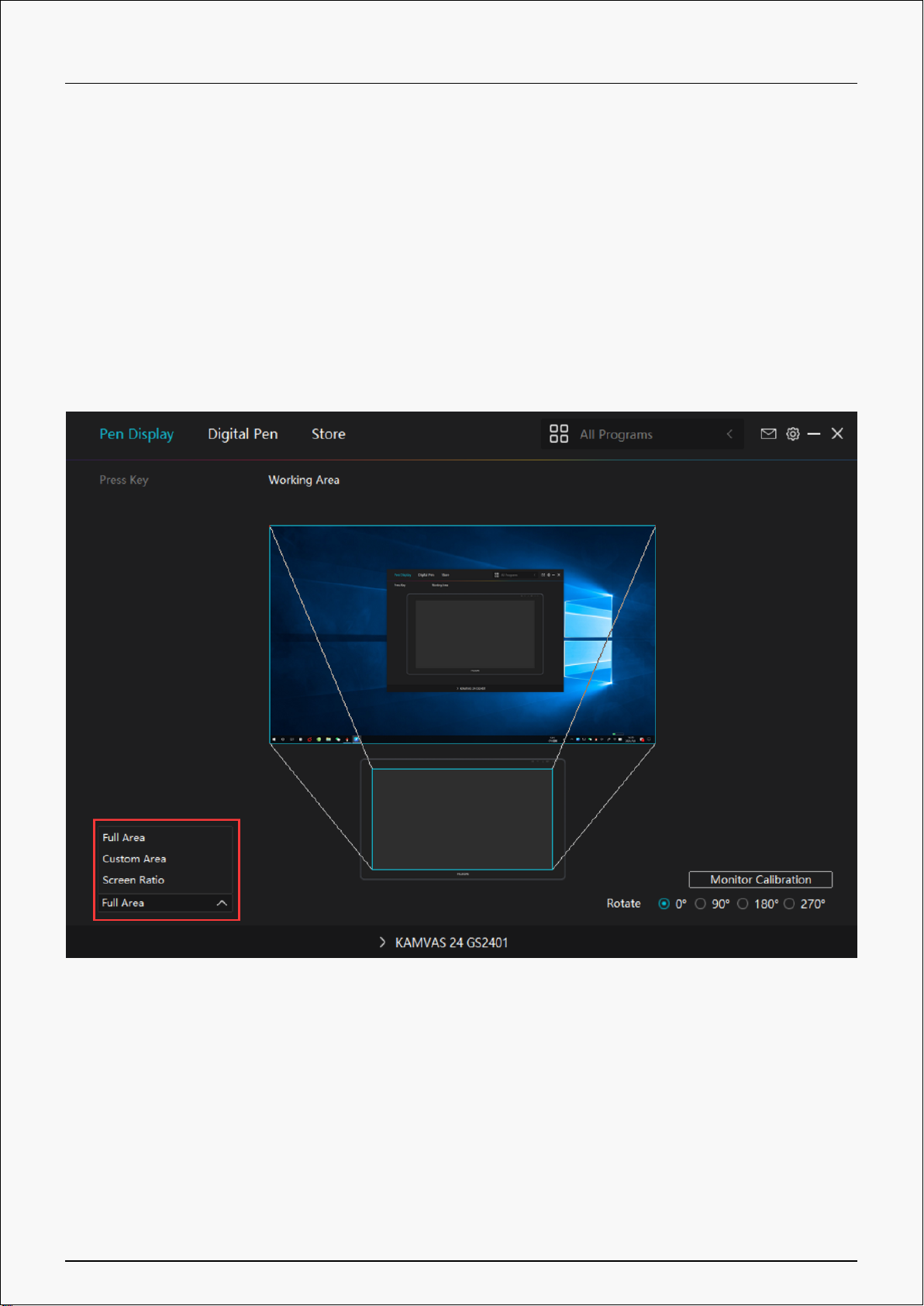

1. Working Area Setting

Define the device area that will be mapped to the screen area.

[1] Full Area: the entire active area of the device. This is the default setting.

[2] Screen Ratio: As a general rule, be 16:9.

[3] Customized Area:

1> Enter coordinate values.

2> Drag the corners of the foreground graphic to select the screen area.

2. Rotate Working Area

By changing the direction of the device to adapt to the left and right hand operation. You can

rotate the tablet by 0°, 90°, 180° or 270°.

10 / 37
