Huion KAMVAS 13 Manuel utilisateur
Kamvas 13
Contents
Product Overview .................................................. 2
Display Introduction ................................................. 2
Product and Accessories .............................................. 2
Product Connection ................................................ 5
Driver and Setting ................................................. 7
Install Driver ....................................................... 7
Driver Interface Preview .............................................. 9
Pen Display Setting ................................................. 11
Driver Setting ..................................................... 19
Digital Pen Setting .................................................. 24
Digital Pen Basic Operation ........................................ 29
Specifications ..................................................... 33
Troubleshooting Solutions ......................................... 35
1 / 38
Kamvas 13
Product Overview
Display Introduction

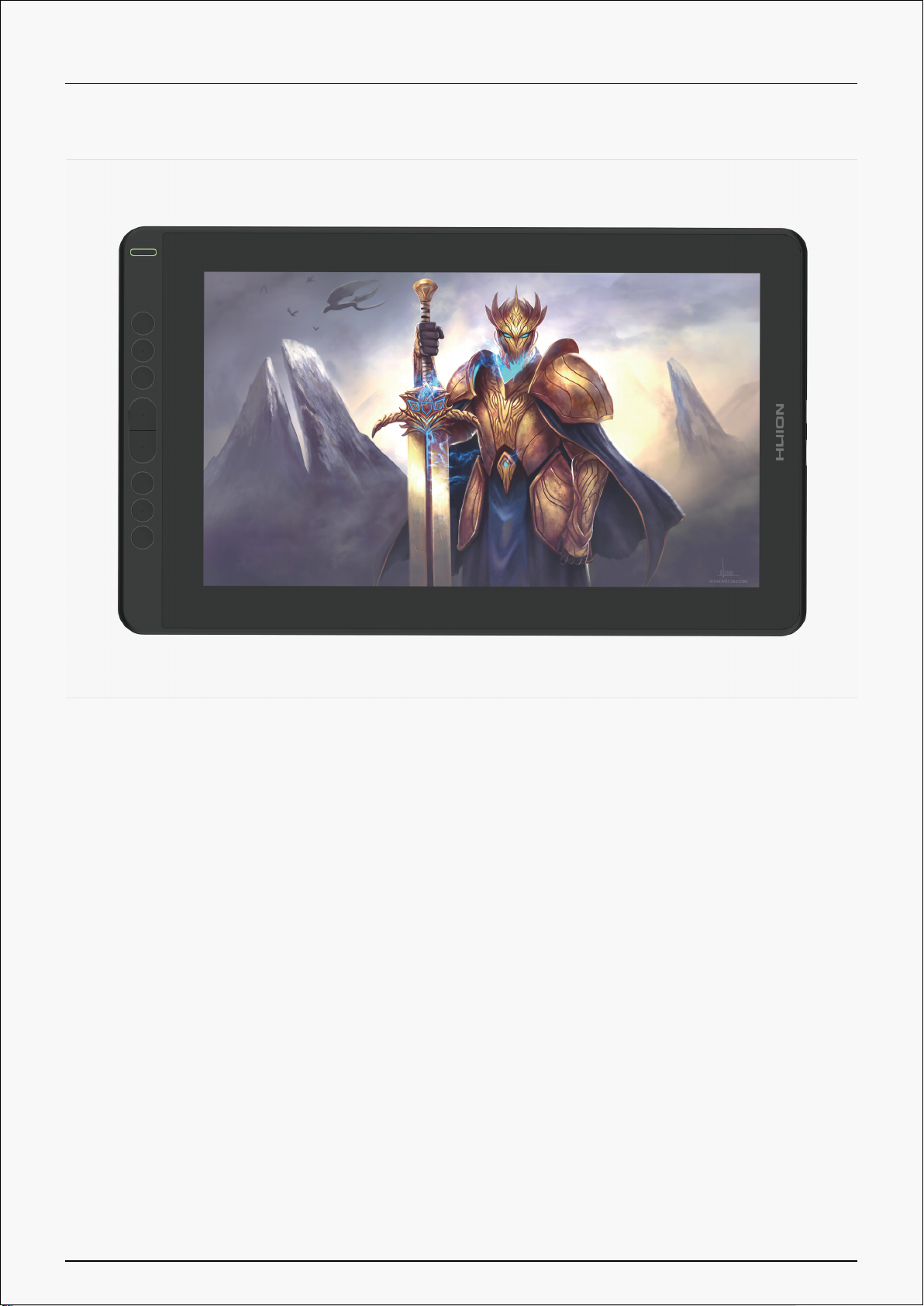

Thanks for choosing HUION KAMVAS 13 creative pen display. This is a new generation of
professional drawing display, which can greatly improve your work efficiency of painting and
creation, and full of fun. You can freely painting and writing, depicting different lines and colors,
just as the pen writes on the paper, which brings you a real shock experience.
To give you a better understanding and using of your tablet, please read this user manual
carefully. The user manual only shows the information under Windows, unless otherwise
specified, this information applies to both Windows and Mac systems.
Note: The pictures in the User Manual are for reference only.
Product and Accessories

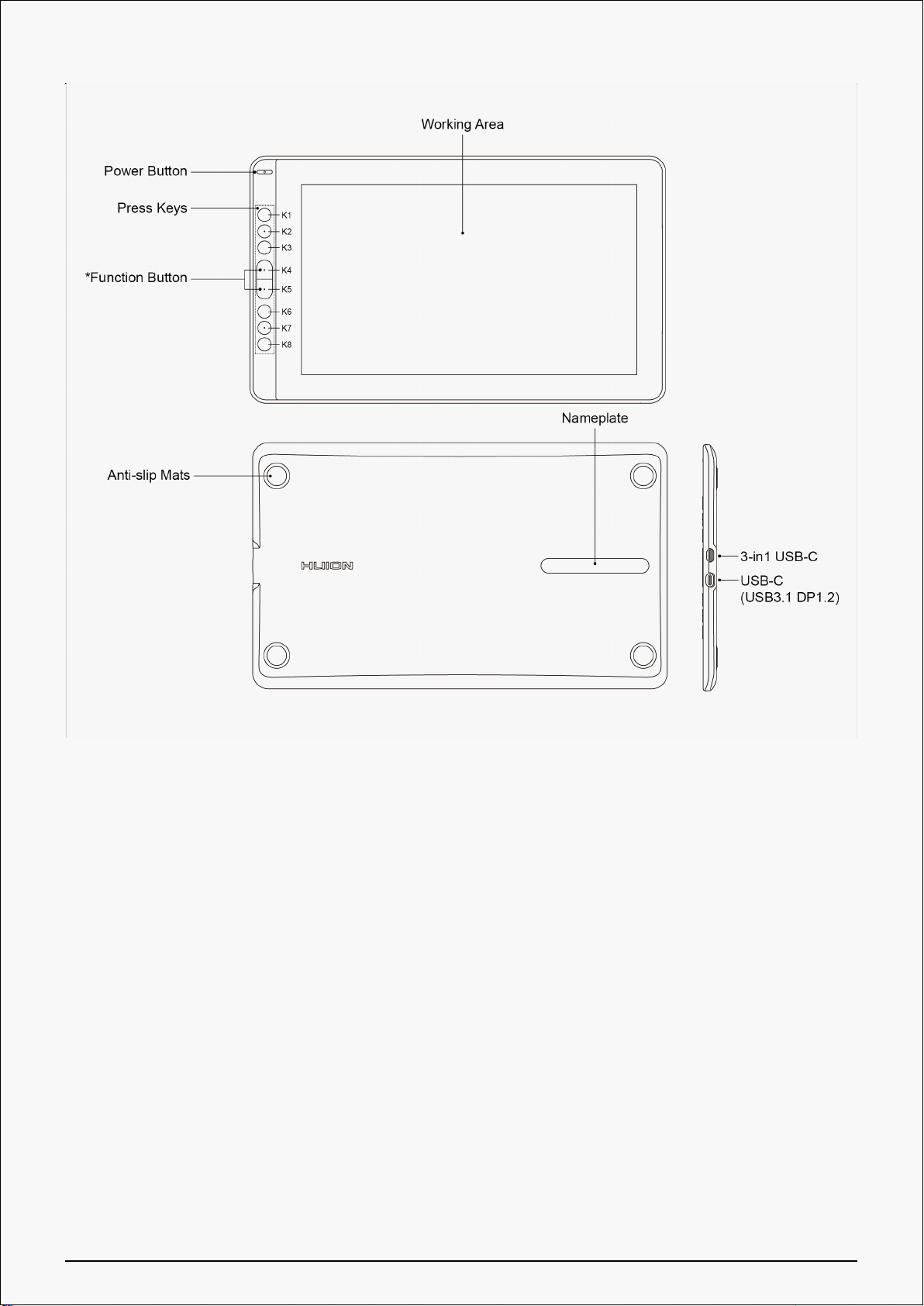

Product Overview
Please see the detailed product introduction.
2 / 38
Kamvas 13
*Function Button: Press K4 & K5 around three seconds to open the OSD menu, meanwhile the
indicator will flash green. The function of K2 K3 K6 K7 will become OSD function.
K2 [AUTO]: Before entering menu, its function is "auto adjustment".
After entering menu, its function is "back to previous menu".
K3 [MENU]: Press to call up the menu, after entering menu, its function is "confirm".
K7 [ - ]: After entering menu, its function is "down/left/decrease".
K6 [ + ]: After entering menu, its function is "up/right/increase".
*Press K4 & K5 again for around three seconds until the OSD menu disappears, the function of
K2 K3 K6 K7 will become shortcuts function again.
3 / 38
Kamvas 13
Accessories
After unboxing your package, make sure that you have the following items:
Pen Display*1
Battery-free Pen*1
Pen Holder*1
Replacement Nibs(Inside the Pen Holder)*8
3-in-1 Cable*1
USB Extension Cable*1
Quick Start Guide*1
Cleaning Cloth*1
Warranty Card*1
*3-in-1 Cable
1. USB(Data) 2. HDMI 3. USB(Power) 4. Type-C
4 / 38
Kamvas 13
*Adjustable Stand(Optional)
We designed this ergonomic adjustable stand specially for your KAMVAS display, you can
adjust the angle of the display according to your usage habit, and make you feel more
comfortable when painting and creating.
Product Connection
5 / 38
Kamvas 13
The display supports the connection of a computer and Android device, please refer to the
following connection method.
Watch the Video
3-in-1 Type-C Cable
Connect the pen display to your computer with 3-in-1 Cable.
Generally the device can be powered on when the black USB-A cable is connected to your
computer. A flashing screen of the device may indicate a low battery, in which case you are
suggested to connect the red colored USB-A cable to another USB interface on your computer or
the power adaptor. The power adaptor is not included in the package and requires extra cost.
Power adaptor of your mobile phone is also compatible.
USB-C to USB-C Cable(Optional)
Connect the display to your computer or Android device with USB-C to USB-C cable:
USB-C to USB-C cable is not included in the package and requires extra cost. You can buy it in
the Store.
6 / 38
Kamvas 13
Kamvas 13 is the first pen display that supports connectivity with Android device via a USB-C to
USB-C cable.
*USB-C on device should at least support USB3.1 GEN1 data transfer protocol and DP 1.2.
*Extra power supply is needed under connection with Android device.
Learn More
Driver and Setting
Install Driver
7 / 38
Kamvas 13
Please download the driver from our website: Driver-Kamvas 13
Note:
1. Before installing driver, please close all graphic software and antivirus program.
2. If you have installed other pen tablet driver, please uninstall it before you install this driver.
3. Please make sure your computer OS are as following: Windows 7 or later, macOS 10.12 or
later.
4. Run the tablet driver program and complete the installation according to the instruction.
After the download is successful, double-click to open the driver.
If the connection fails, please reconnect the computer to the device, or restart the driver or
computer.
8 / 38
Kamvas 13
Driver Interface Preview
9 / 38
Kamvas 13
1. Pen Tablet
Pen Tablet function setting interface, the users can set the device function on this interface, such
as Press Key, Working Area.
See Section
2. Digital Pen
The users can set the Pen function on this interface. About Press Key, Mode selection, Pressure
Sensitivity Adjustment and Pressure Test.
See Section
3. Store
Huion Store, where you can get the latest information about the product such as its FAQ or sales
promotion. Additionally, you can also purchase other products or accessories on Huion Store.
10 / 38
