Wacom DTU-2235B Manuel utilisateur

USER’S MANUAL

Interactive pen display

Model:

Index

Contents

Index

Contents

Interactive pen display

Installation

Using the pen

Customizing the pen

Using the pen display

Customizing the pen display

Using the Radial Menu

Application-specific settings

Troubleshooting

DTU-2235B

Index

Contents

Index

Contents

Interactive pen display

User’s Manual

Version 1.0, Rev F2910

Wacom reserves the right to revise this publication without obligation to provide notification of such changes.

Wacom does its best to provide current and accurate information in this manual. However, Wacom reserves the right

to change any specifications and product configurations at its discretion, without prior notice and without obligation

to include such changes in this manual.

The above year indicates when this manual was prepared. However, the date of release to the users of the “manual”

is simultaneous with the introduction into the market of the applicable Wacom product.

DuoSwitch is a trademark, and Wacom is a registered trademark of Wacom Co., Ltd.

Adobe and Reader are either registered trademarks or trademarks of Adobe systems Incorporated in the United

States and/or other countries. Microsoft, Windows, and Vista are either registered trademarks or trademarks of

Microsoft Corporation in the United States and/or other countries. Apple, the Apple logo, and Macintosh are

trademarks of Apple Computer, Inc., registered in the U.S. and other countries.

Any additional company and product names mentioned in this documentation may be trademarked and/or registered

as trademarks. Mention of third-party products is for informational purposes only and constitutes neither an

endorsement nor a recommendation. Wacom assumes no responsibility with regard to the performance or use of

these products.

Index

Contents

Index

Contents

Interactive pen display

TABLE OF CONTENTS

About the manual 5

Navigating the manual 6

YOUR INTERACTIVE PEN DISPLAY 7

Pen display features 8

Front view 8

Rear view 9

Adjusting display incline 10

Pen features 11

INSTALLATION 12

System requirements 12

Step 1: Display installation 13

Step 2: Pen tablet installation 17

USB cable installation 17

Software installation 18

WORKING WITH THE INTERACTIVE PEN DISPLAY 19

Ergonomics 19

Using the pen 20

Holding the pen 20

Positioning 20

Clicking 21

Dragging 21

Using the side switch 22

Working with pressure sensitivity 22

Erasing 22

Working with multiple monitors 22

Adjusting the display 23

Factory presets, auto-sync, and user settings 23

On Screen Display (OSD) settings 23

Power saving 26

CUSTOMIZING 27

Opening the control panel 27

Control panel overview 28

Calibrating the pen display 30

Adjusting pitch and phase (VGA only) 31

Customizing the pen 32

Adjusting tip feel and double-click 32

Adjusting eraser feel 33

Advanced tip and eraser pressure settings 34

Customizing pen buttons 35

Button functions 36

Using and customizing the Radial Menu 40

Working with Display Toggle 41

Application-specific settings 42

Creating an application-specific setting 43

Changing application-specific settings 44

Removing application-specific settings 44

TROUBLESHOOTING 45

Testing the interactive pen display 46

Testing your pen 47

Display troubleshooting 48

General display problems 48

VGA problems 50

Pen tablet troubleshooting 51

General problems 51

Windows-specific problems 54

Macintosh-specific problems 55

Technical support options 57

Obtaining driver downloads 58

APPENDIX 59

Caring for the interactive pen display 59

Replacing the pen tip 60

Using an alternate mount or stand 61

Uninstalling the interactive pen display 62

Managing preferences 63

Installing multiple tablets 64

Pen and digital ink capabilities in Windows 65

About the Windows Tablet PC Input Panel 66

Index

Contents

Index

Contents

Interactive pen display

Product specifications 67

Model DTU-2235B interactive pen display 67

General specifications 67

Display 68

Tablet 69

Power adapter 69

Pen (model UP-817E) 69

Pen (model UP-818E) 69

Product information 70

Ordering parts and accessories 70

Available parts and accessories 70

Radio and television interference 71

FCC notice 71

Industry Canada (Canada only) 72

CE declaration 72

Precautions 73

Physical location 73

Environment 73

Usage 74

Handling 74

Warranty

(Worldwide, Except for Europe,

Africa and Middle East) 76

Limited Warranty 76

Warranty Service in the U.S.A. and Canada 77

Warranty Service Outside of

the U.S.A. and Canada 77

Licence warranty conditions

(Europe, Africa and Middle East) 78

Software Licence Agreement 78

Limited Warranty 79

GLOSSARY 81

INDEX 83

Index

Contents

Index

Contents

Interactive pen display

ABOUT THE MANUAL

This document provides quick access to information about your interactive pen display. Click on a

navigation button or highlighted word to move through the document. The information is common to

Windows and Macintosh computers and Windows screen captures are shown, unless otherwise noted.

If you are new to electronic documentation, read navigating the manual.

• Go directly to contents or index topics by clicking on them.

•S

MALL CAPITAL LETTERS identify the names of keyboard keys, dialog boxes, and control panel options.

• You can use your viewer zoom-in tool to increase the size of the page on your display screen.

• The following information is not included with this product: information about your specific computer

hardware or operating system, or information about your application software. Your best source for this

information is the set of manuals and discs that came with your hardware, operating system, or

application.

• Many applications have built-in support for pen display features (such as pressure sensitivity).

Visit Wacom’s web site to find a listing of applications that support these features (see product

information).

• For information on how best to use pen display features within a specific application, see the

instructions in that application’s manuals.

Wacom’s philosophy is to continually improve all of its products. As a result, engineering changes and

improvements are made from time to time. Therefore, some changes, modifications, and improvements

may not be covered in this document.

Index

Contents

Index

Contents

Interactive pen display

NAVIGATING THE MANUAL

Use the navigation controls to move through the manual:

Go to front page.

Go to table of contents.

Go to index.

Go back to previous view.

Page back, or page forward.

Go to topic.

Topic continued.

Adobe®Reader®provides additional tools for using and printing the manual. See the Adobe Reader help

for more information.

Contents

Index

topic

Index

Contents

Index

Contents

Interactive pen display

YOUR INTERACTIVE PEN DISPLAY

This manual describes the installation and use of your interactive pen display.

The Wacom Tablet control panel enables you to customize your pen and pen display settings. To learn

more, see customizing.

Pen display features

Adjusting display incline

Pen features

The following information is not included with this product: information about your specific computer

hardware or operating system, or information about your application software. Your best source for this

information is the set of manuals and discs that came with your hardware, operating system, or application.

Note: Not all product models are available in all regions.

Index

Contents

Index

Contents

Interactive pen display

PEN DISPLAY FEATURES

Familiarize yourself with the features and components of your product.

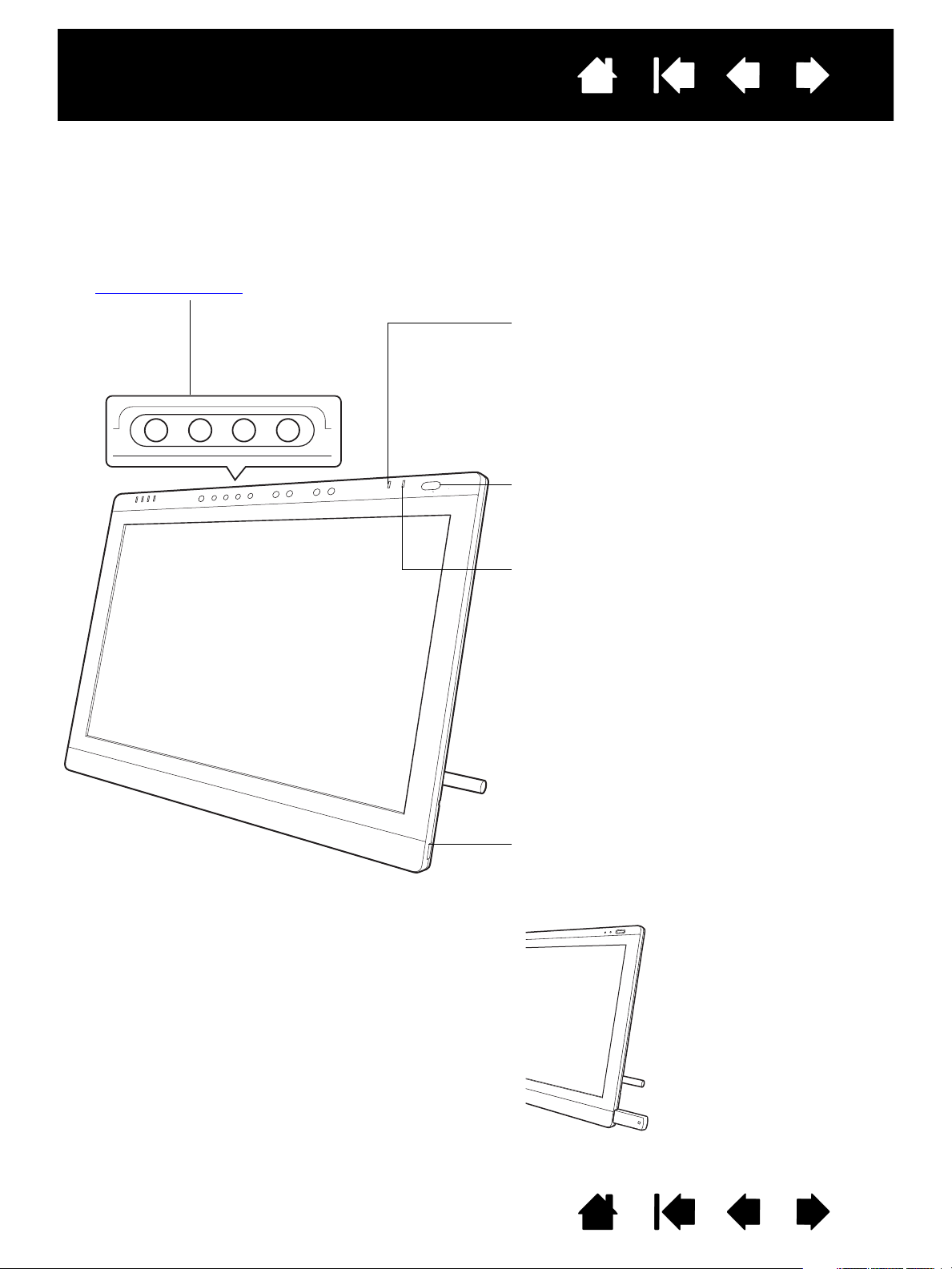

FRONT VIEW

On Screen Display (OSD) controls

Use to adjust the display settings.

See adjusting the display.

Status LED

Lights blue when pen is in active area of the pen

display and the pen tip is pressed. LED will not

light unless the USB cable is plugged into an active

USB port.

Power switch

Turns unit on or off.

Power LED

Lights blue when power has been supplied to pen

display and a video signal is present.

Glows orange when no video signal is detected.

(e.g., Your computer is turned off, starting up, or

has entered a power management mode in which

video signals are not sent.)

USB ports (one on each side of unit)

For external USB devices, such as a flash drive.

Fully install the pen display hardware and software

before connecting any devices.

Index

Contents

Index

Contents

Interactive pen display

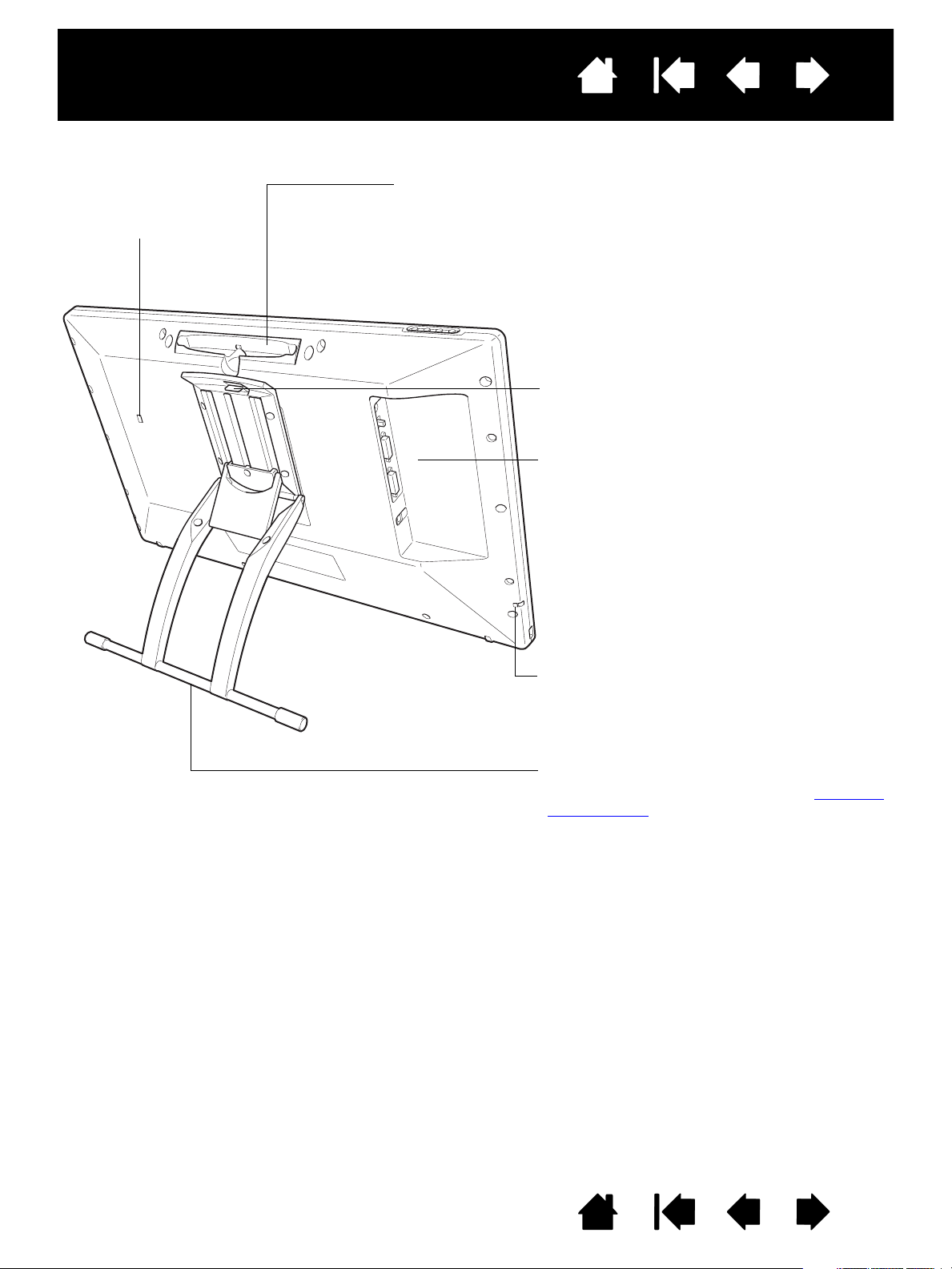

REAR VIEW

Important: Do not lift the unit by the stand; this may damage the stand mechanism. When lifting or moving

the pen display, always do so by grasping the main body casing.

Always store the interactive pen display on a stable surface or in its original packing carton when not

in use. Be sure to adjust the stand to the low tilt position before packaging. If you do not close the

stand, the notched mechanism may be damaged during transportation and storage.

Security slot

Allows easy attachment

of a security cable.

Pen storage compartment

Store by inserting one end of the pen into either side of the

compartment. Then gently press other end of pen into the

compartment.

Remove by pressing in on either end of the pen to eject opposite

end from the compartment. Grasp pen and remove.

Stand adjustment lever

Connection panel

• Power connector

• DVI/VGA (digital/analog) switch. Be sure to

set for the video connection you will be

using. Applies to the input and output

video connections.

• DVI-I out connector

• DVI-I in connector

• USB connector

Display stand

Adjusts the tilt angle of the unit. See adjusting

display incline.

Pen tether attachment point

If using a pen tether, connect it to an

attachment point located on either side of unit.

Index

Contents

Index

Contents

Interactive pen display

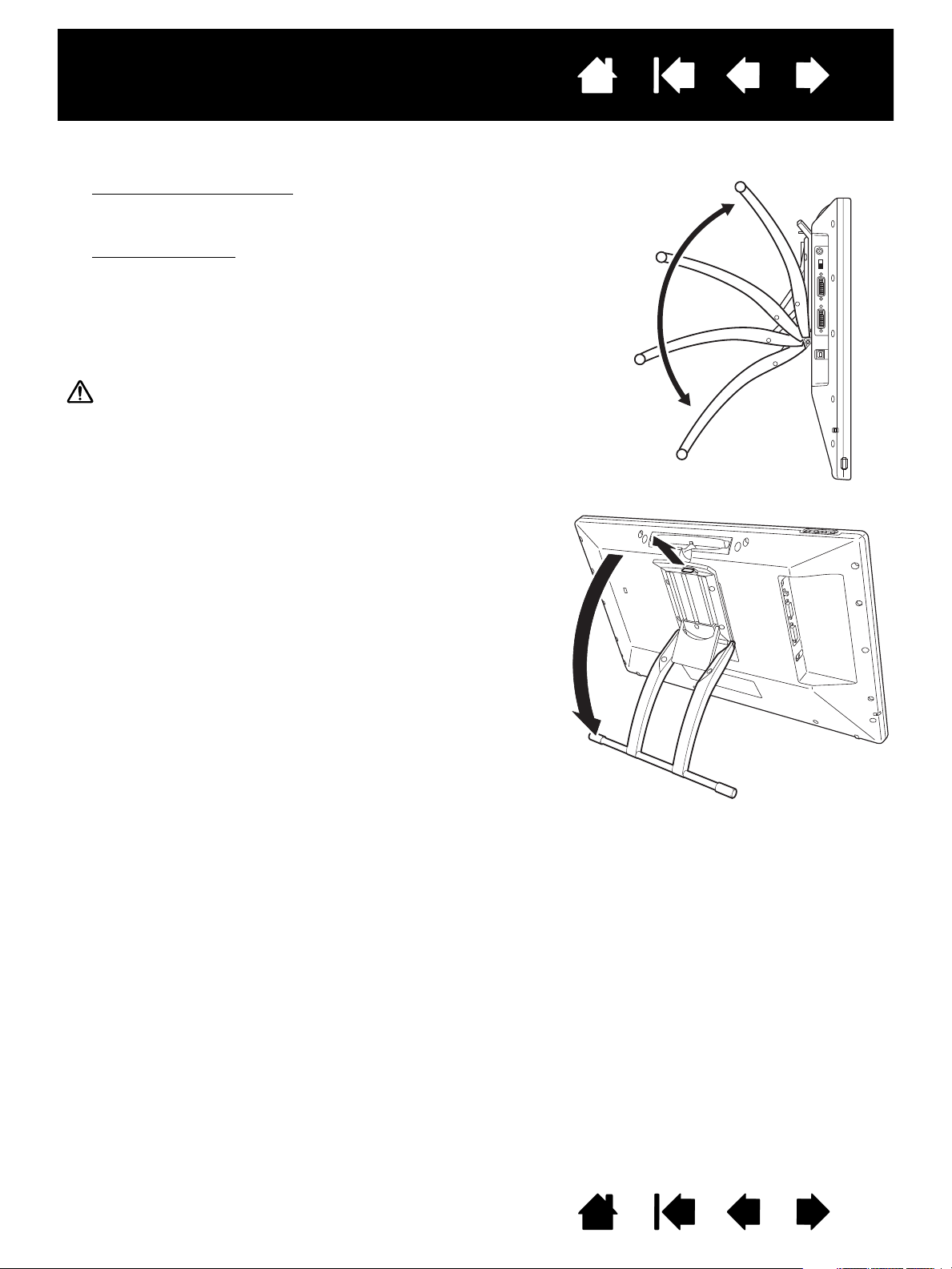

ADJUSTING DISPLAY INCLINE

• To open the display stand, pull up on the adjustment

lever and swing stand out to desired incline.

Release lever to lock the stand in place.

• To close the stand, pull up on the adjustment lever

and gently move stand back into closed position

until the latch catches. Release lever to lock the

stand in place.

Caution

Avoid catching your finger in the gap of the movable

portion of the stand.
