Huawei U.S.Cellular UML397 Manuel utilisateur

User Guide

HUAWEI UML397

Welcome to HUAWEI

Huawei UML397 4G LTE Wireless Modem

User Manual

CHAPTER 1 BEFORE USING YOUR UML397 WIRELESS MODEM

ABOUT THIS USER MANUAL.............................................................................................................................................4

WHAT’S INSIDE THE PRODUCT PACKAGE...................................................................................................................4

PRODUCT OVERVIEW ........................................................................................................................................................4

PRODUCT FEATURES...........................................................................................................................................................6

PRODUCT HANDLING...........................................................................................................................................................7

CONFIGURATION...................................................................................................................................................................7

CHAPTER 2 INSTALLING UML397 4G LTE USB WIRELESS MODEM

PRECAUTIONS ......................................................................................................................................................................10

RECOMMENDED SYSTEM REQUIREMENTS................................................................................................................10

INSTALLING U.S. CELLULAR® BROADBAND CONNECTS........................................................................................11

CHAPTER 3 SETUP

THE U.S. CELLULAR® BROADBAND CONNECT SETUP PROGRAM (WIN)..............................................................15

THE U.S. CELLULAR® BROADBAND CONNECT SETUP PROGRAM (MAC).............................................................18

CHAPTER 4 USING U.S. CELLULAR® BROADBAND CONNECT

FEATURES.................................................................................................................................................................................24

GETTING STARTED................................................................................................................................................................25

CONNECTING...........................................................................................................................................................................26

ADDITIONAL FEATURES.......................................................................................................................................................28

THE FILE MENU........................................................................................................................................................................30

THE VIEW MENU......................................................................................................................................................................30

THE TOOLS MENU....................................................................................................................................................................32

THE OPTIONS MENU...............................................................................................................................................................34

THE HELP MENU......................................................................................................................................................................36

CHAPTER 1

BEFORE USING YOUR UML397 Wireless Modem

ABOUT THIS USER MANUAL

PRODUCT OVERVIEW

WHAT’S INSIDE THE PRODUCT PACKAGE

INTRODUCTION TO WIRELESS UML395 USB MODEM

PRODUCT FEATURES

PRODUCT HANDLING

CONFIGURATION

ABOUT THIS USER MANUAL

■ABOUT THIS USER MANUAL

You will find all the information you need to install and use the UML397 4G LTE Wireless Modem in this user manual. Before using the

Wireless Modem, you must properly install the U.S. Cellular® Broadband Connect by closely following the installation instructions.

INSTRUCTIONS

•The U.S. Cellular Broadband Connect dialer software is preloaded on the device.

•It is highly recommended that you read the safety precautions described in this manual before using the Wireless Modem.

This User Guide is described for Windows-based users. User interfaces may be slightly different for Macintosh.

■WHAT’S INSIDE THE PRODUCT PACKAGE

The following items are included in the product package. If any of the items listed below are missing, please contact the retail location where you

purchased the product.

•UML397 4G LTE Wireless Modem

• 4G LTE SIM Card

•Quick Start Guide

■PRODUCT OVERVIEW

Thank you for your purchase. The UML397 4G LTE Wireless Modem is a 4G LTE wireless device that enables high-speed wireless

communication from your laptop or desktop computer. The UML397 4G LTE Wireless Modem is simple to install and use.

The Wireless Modem is designed for your laptop or desktop computer’s USB port, which is available in most models. The Wireless Modem can

be used to access the Internet, your company’s intranet, or you can use it to send and receive email. It is extremely useful when you are away

from the office, on the road, or wherever a wired Internet access is not readily available.

The following figure shows the appearance of the Wireless Modem. It is provided only for your reference. The figure on the right

shows a product with its cover removed. The actual product may be different.

Rotatable USB Connector

It connects the Wireless Modem to a PC.

3456

RF Output Power Port

It connects an RF cable to the Wireless Modem for RF tests.

Indicator

It indicates the status of the Wireless Modem.

Green, blinking twice every 2s: The Wireless Modem is powered on.

Green, blinking once every 0.2s: The U.S. Cellular® Broadband Connect of the Wireless Modem is being upgraded.

Green, blinking once every 2s: The Wireless Modem is registering with a 1X network.

Blue, blinking once every 2s: The Wireless Modem is registering with a 3G network.

Cyan, blinking once every 2s: The Wireless Modem is registering with a 4G LTE network.

Green, solid: The Wireless Modem is connected to a 1X network.

Blue, solid: The Wireless Modem is connected to a 3G network.

Cyan, solid: The Wireless Modem is connected to a 4G LTE network.

Off: The Wireless Modem is removed.

SIM Card Slot

It holds a Subscriber Identity Module (SIM) card.

Button

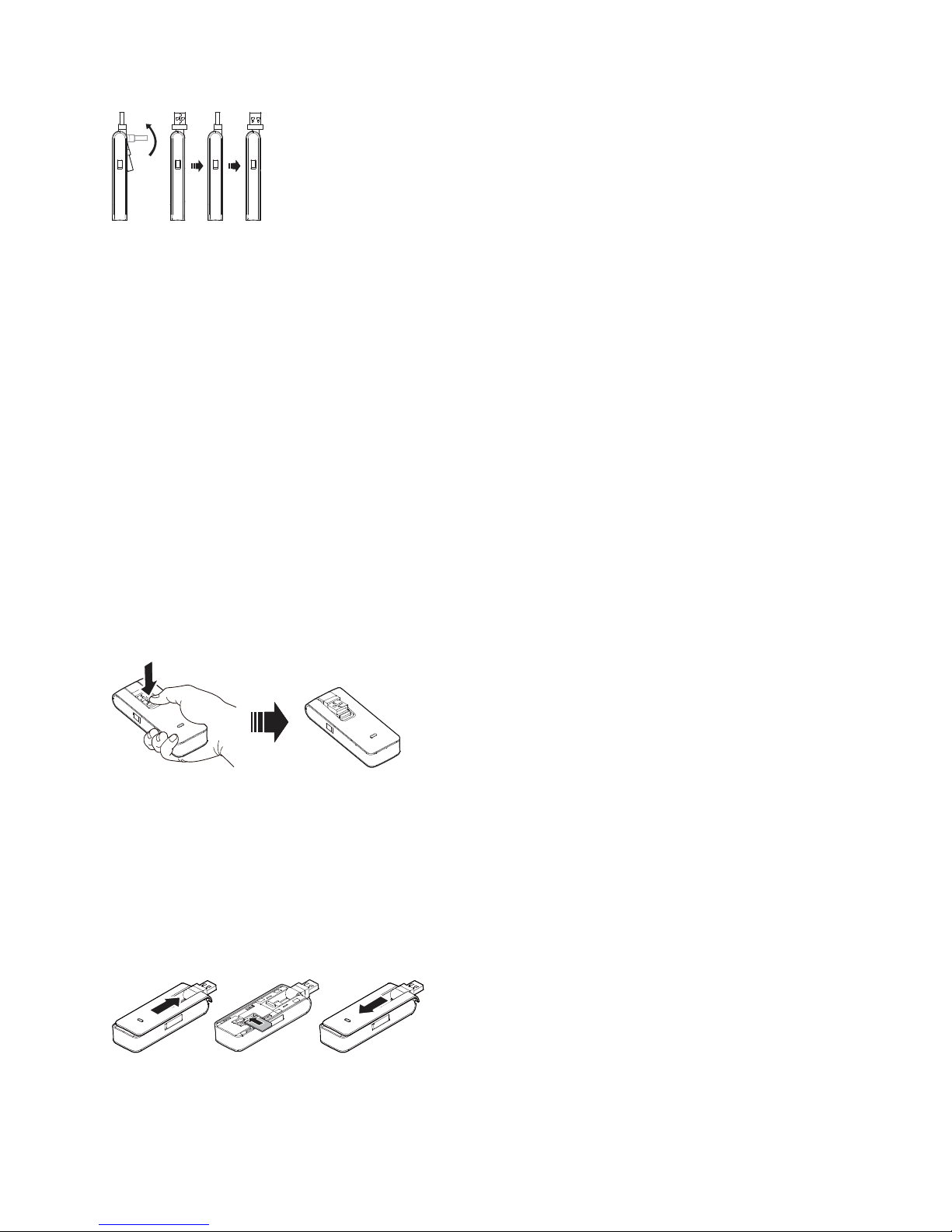

Press the button to turn over the USB connector, as shown in the following figure.

microSD Card Slot

It holds a microSD card.

Getting Started

Installing the SIM Card

1. Slide the front cover off.

2. Insert the SIM card into the card slot.

3. Slide the front cover back onto the Wireless Modem until it snaps into place.

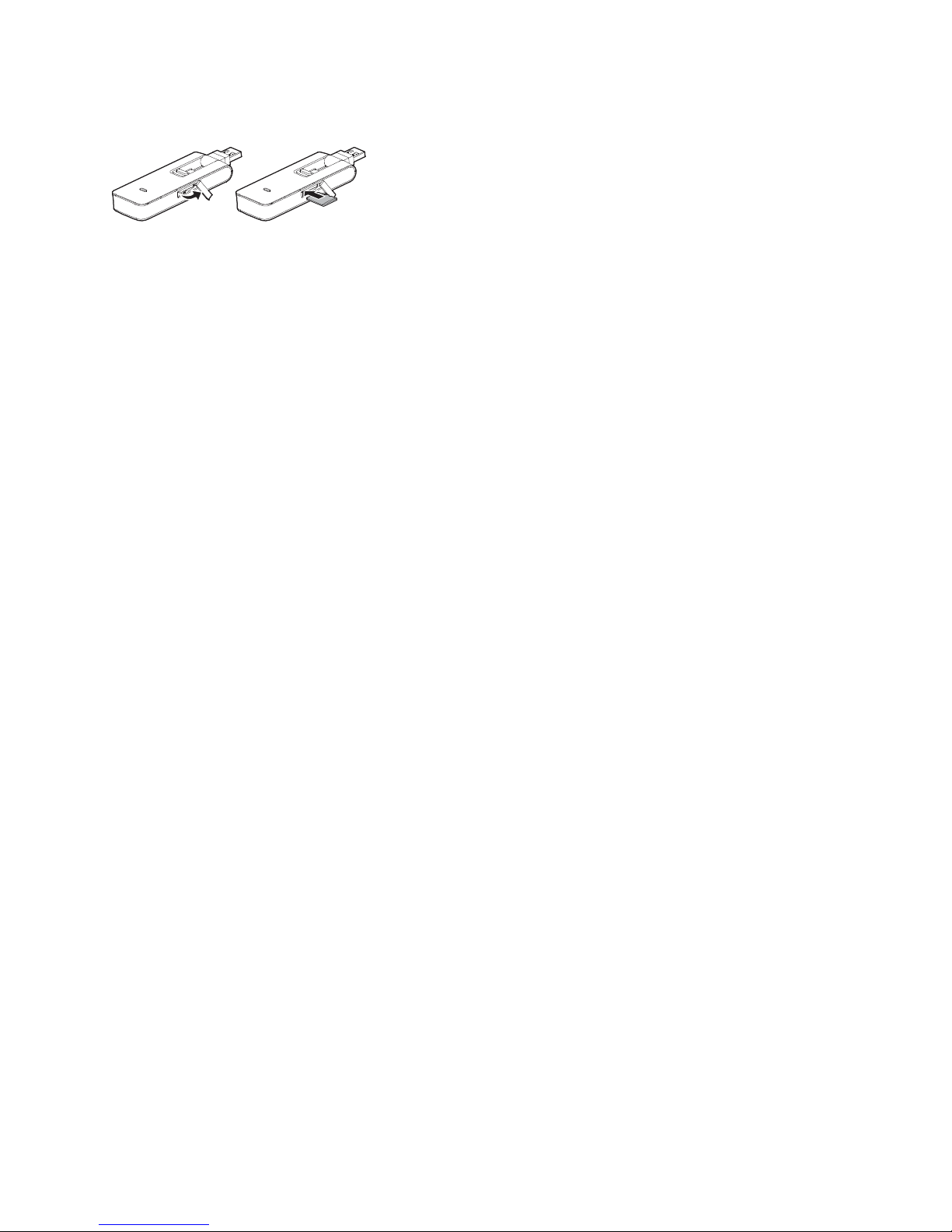

Inserting the microSD Card

Insert the microSD card into the Wireless Modem, as shown in the following figure.

Note:

The microSD card is an optional accessory. If it is not provided in the package, you can buy one yourself.

Ensure that the beveled edge of the SIM card is properly aligned with that of the SIM card slot and the microSD card is inserted according to

the direction as labeled on the microSD card slot.

Do not remove the microSD or SIM card when the card is in use. Otherwise, the card as well as your Wireless Modem may get damaged and

the data stored on the card may be corrupted.

CHAPTER 2

INSTALLING UML397 4G LTE Wireless Modem

PRECAUTIONS

RECOMMENDED SYSTEM REQUIREMENTS

INSTALLING U.S. Cellular® Broadband Connect

PRECAUTIONS

■PRECAUTIONS

•Once the modem has been inserted into the laptop or desktop computer, do not remove it without first completing the unplugging/ejection

process.

■RECOMMENDED SYSTEM REQUIREMENTS

U.S. Cellular Broadband Connect operates in Windows®XP, Vista, 7 or Mac environments.

Check the following points in order to ensure the application works correctly:

•Minimum screen resolution recommended: 800x600 256 colors.

•130MB or more of available hard disk space for PC and 15MB available hard disk space for Mac.

WINDOWS XP SERVICE PACK 2 OR HIGHER

•Minimum 300 MHz Processor.

•512 MB of RAM recommended.

•Service Pack 2.

WINDOWS VISTA SERVICE PACK 1 OR HIGHER

•PC featuring a Pentium®IV 2 GHz or better processor.

•512 MB of RAM recommended.

WINDOWS 7

•PC featuring aPentium IV 2GHz or better processor.

•512 MB of RAM recommended.

MAC OS X 10.5, 10.6, 10.7

■INSTALLING U.S. Cellular® Broadband Connect

INSTALLATION

•If you install U.S. Cellular Broadband Connect, it will install the USB Driver for the UML397 4G LTE Modem. Follow the instructions from

the U.S. Cellular Broadband Connect for installation.

WARNINGS!

•Make sure to complete the unplugging/ejection process BEFORE removing the UML397 Wireless Modem. If you remove the device

improperly, the product may be damaged.

• If you have inserted the device properly, Windows will inform you of the new hardware. Wait until Windows completes the “Found New Hardware” task. In

Windows XP, several tool tips similar to the “Found New Hardware” function will appear and disappear in the system tray automatically. In Windows Vista, several

tool tips similar to the “Installing device driver software” function will appear and disappear in the system tray automatically. Once hardware detection is complete,

you will be prompted to start activation.

•For Mac OS, a device icon will appear on the desktop. Before unplugging the USB modem, be sure to move the icon to the trash for proper ejection.

• It is normal to hear a short beep sound each time you insert or remove the UML397 Wireless Modem. It is an audible notification that your laptop or desktop

computer recognizes the new hardware.

• When removing the UML397 Wireless Modem always grip the top and bottom of the modem and push/pull carefully.

CHAPTER 3

SETUP

THE U.S. CELLULAR® BROADBAND CONNECT SETUP PROGRAM (WIN)

THE U.S. CELLULAR BROADBAND CONNECT SETUP PROGRAM (MAC)

GETTING STARTED

This chapter will guide you through the setup process for U.S. Cellular Broadband Connect. Before getting started, you should become familiar

with the documentation that came with your wireless device.

GETTING STARTED (WINDOWS)

Follow these steps to install U.S. Cellular Broadband Connect:

1Turn on your computer and close all applications.

2Insert the UML397 Wireless Modem into the USB port.

3If set up does not automatically start:

a. Click the Start Button.

b. Choose My Computer.

c. Find and double click on the drive icon (U.S. Cellular Broadband Connect) that represents the Wireless Modem.

4Follow the steps in the next section.

STEP 1: To install on your hard drive, connect your device to your PC. The installation process will start automatically.

Select the language for the installation from the choices below –“English” or “Spanish” and click the “Next” button.

STEP 2: In the “U.S. Cellular Broadband Connect –License Agreement” screen, you will see the Program User License Agreement. In order to

install and use this product, you must agree with the terms of this agreement. Select “I agree” then click the “Next” button to continue. If you do

not agree with this agreement, click the “Cancel” button to exit.

STEP 3: After agreeing to the License Agreement, you will see the “U.S. Cellular® Broadband Connect –Setup Type” screen. You can select

from the two setup types –Express Install or Custom Install. It is recommended that you choose Express Install. Click the “Next” button to

continue.

STEP 4: During this step, the components of U.S. Cellular Broadband Connect are being installed onto your computer.

STEP 5: “The Install Shield Wizard has successfully installed U.S. Cellular Broadband Connect” appears on the screen. Click “Finish” button.

STEP 6: The setup program will create an Access shortcut and the U.S. Cellular Broadband Connect will launch automatically. Now the

installation is complete.

GETTING STARTED (MAC)

Follow these steps to install U.S. Cellular Broadband Connect:

1Turn on your computer and close all applications.

2Insert the UML397 Wireless Modem into the USB port.

3Find and double click on the drive icon that represents the Wireless Modem.

4Find and run the U.S. Cellular Broadband Connect icon in the MAC U.S. Cellular Broadband Connect folder.

5Double click the U.S. Cellular Broadband Connect icon to begin the installation.

6Follow the steps in the next section.

■THE U.S. CELLULAR® BROADBAND CONNECT SETUP PROGRAM (MAC)

STEP 1: Double click the U.S. Cellular® Broadband Connect setup program.

When the pop-up screen appears to confirm installing the U.S. Cellular Broadband Connect, click the “Continue” button to continue with the

installation process.

STEP 2: The “Welcome” screen appears. Click the “Continue” button.

STEP 3: The “Info & Manual” screen appears. Click the “Continue” button

STEP 4: You are now ready to select the location on your computer where U.S. Cellular Broadband Connect should be installed.
