Huawei E372 Manuel utilisateur

Quick Start

Démarrage Rapide

1

Thank you for choosing the Huawei E372 Mobile

Internet Key. With your USB modem, you can access a

wireless network at high speed.

Note:

This manual describes the appearance of the USB modem, as well as the procedures for

preparation, installation, and removal. For operation details about the management

program, see the online help included in the management program.

2

Getting to Know Your USB Modem

The following figure shows the appearance of the USB Stick. It is provided only for your

reference. The actual product may be different.

1

2

2

3

4

5

3

USB Connector

It connects the USB Stick to a PC.

Strap Hole

You can tie the cap and the USB Stick together by threading a strap through the strap holes,

so that the cap will not be easily lost.

Indicator

It indicates the status of the USB Modem.

4

Green, blinking twice every 3s: The USB Stick is powered on.

Green, blinking once every 3s: The USB Stick is registering with a 2G network.

Blue, blinking once every 3s: The USB Stick is registering with a 3G/3G+ network.

Green, solid: The USB Stick is connected to a 2G network.

Blue, solid: The USB Stick is connected to a 3G network.

Cyan, solid: The USB Stick is connected to a 3G+ network.

Off: The USB Stick is removed.

MicroSD Card Slot

It holds a microSD card.

SIM/USIM Card Slot

It holds a Subscriber Identity Module (SIM)/Universal Subscriber Identity Module (USIM)

card.

5

Getting Your USB Modem Ready

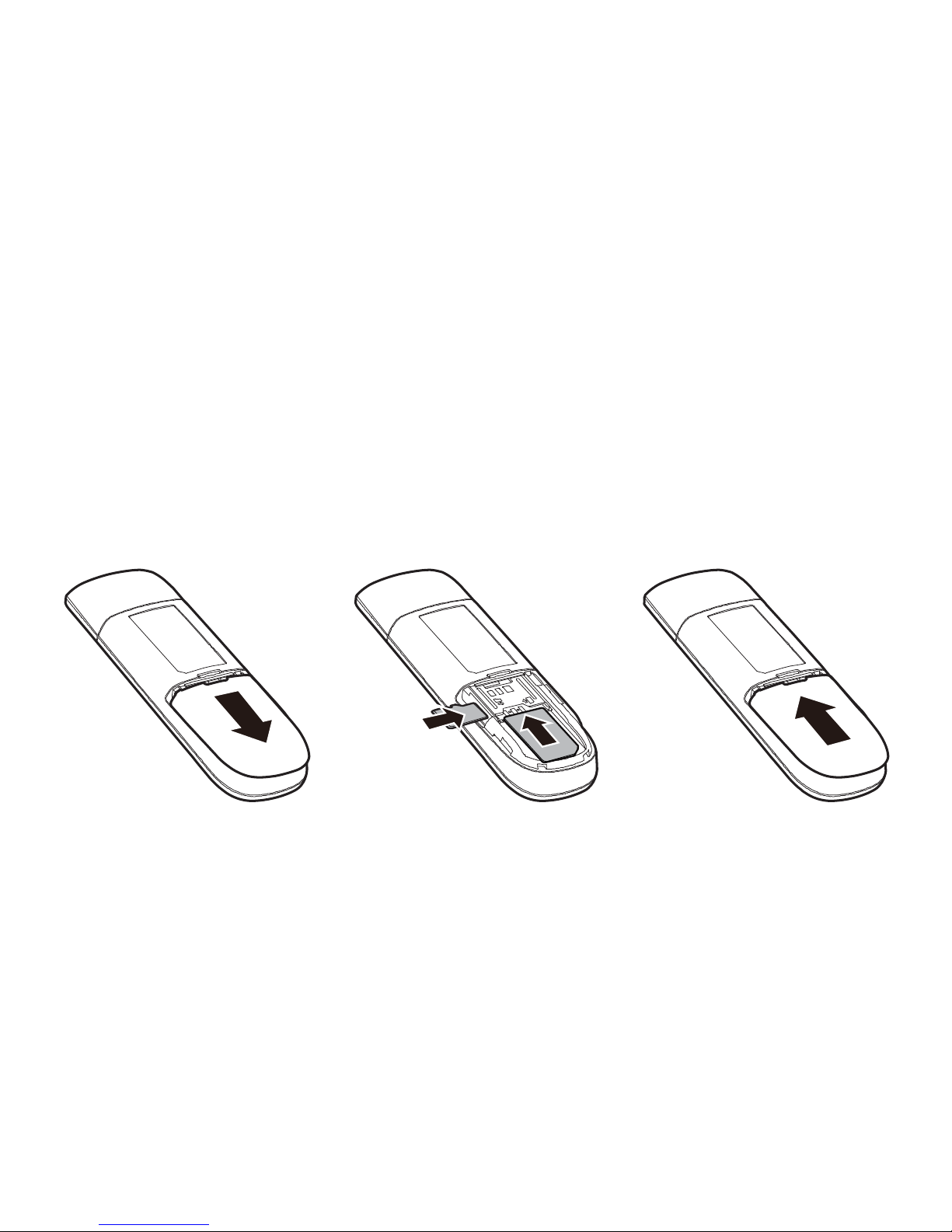

1. Slide the back cover to remove it from the USB Modem.

2. Insert the SIM/USIM card and the microSD card into the corresponding card slots, as

shown in the following figure.

3. Replace the back cover and slide it into place.

6

Note:

The microSD card is an optional accessory. If it is not provided in the package, you can

buy one yourself.

Ensure that the beveled edge of the SIM/USIM card is properly aligned with that of the

SIM/USIM card slot and the microSD card is inserted according to the direction as

labeled on the microSD card slot.

Do not remove the microSD or SIM/USIM card when the card is in use. Otherwise, the

card as well as your USB Modem may get damaged and the data stored on the card

may be corrupted.

Installation/Removal Guide

The procedure for installing the management program depends on the operating system

(OS) installed on your PC. The following sections take Windows XP as an example.

7

Connecting the USB Modem to a PC

Plug the USB Modem into the USB port of your PC.

8

Installing the USB Modem Management Program

1. Connect the USB Modem with the PC.

2. The OS automatically detects and recognizes the new hardware and starts the

installation wizard.

Note:

If the auto-run program does not respond, find the AutoRun.exe file in the driver path.

Then double-click AutoRun.exe to run the program.

3. Follow the on-screen instructions of the installation wizard.

4. After the program is installed, a shortcut icon for the management program appears on

the desktop.

Starting the Management P rogram

After being installed, the management program starts automatically. Then every time the

USB Stick is connected to the PC, the management program starts automatically.

You can also double-click the shortcut icon on the desktop to start the management

program.

9

Removing the USB Modem

1. Double-click in the notification area. Then the Unplug or Eject Hardware dialog

box appears.

2. Select the corresponding hardware and then click Stop.

3. When the message "It is safe to remove the device" appears, remove the USB Modem.

Uninstalling the Management P rogram

1. Choose Start > Control Panel > Add or Remove Programs.

2. Find the management program and click Remove to uninstall the management

program.

Note:

Exit the management program before uninstalling it.

Version: V100R001_01 Part Number: 31010FAN
