HP Vectra 525 Manuel utilisateur

The HP 525 is a Wi-Fi Alliance authorized Wi-Fi CERTIFIED

802.11a/b/g/n/ac product. The Wi-Fi CERTIFIED Logo is a certification

mark of the Wi-Fi Alliance.

HP 525 Wireless Dual-Radio

802.11ac Access Point Quick Start

Guide

This quick start guide shows you how to install and get started using the HP

525 Wireless Dual Radio 802.11ac Access Point (RMN BJNGA-FB0004)

JG993A(AM), JG994A(WW), JG995A(JP), JG996A(IL), JG997A(8pack

AM), JG998A(8pack WW), hereafter referred to as the HP 525.

Views

Figure 1 Views

Rear view

1: Mounting hole

2: Antenna port

Front view Bottom view

3: 2.4 GHz antenna port

4: Console port

5: Reset button

6: Ethernet port 2

7: Ethernet port 1 (support for PoE)

8: 48 VDC power port

9: Security slot

10:5 GHz antenna port

1 2

34678

5 9

Package contents

The AP, mounting hardware, MAC address label, and documentation.

Ports

The AP provides the following ports:

•

Two auto-sensing 10/100/1000 BASE-T Ethernet port with an RJ-45

connector—Ethernet port 1 that supports PoE and Ethernet port 2.

•

Standard console (serial) port with an RJ-45 connector.

•

Two 2.4 GHz antenna ports and two 5 GHz antenna ports.

•

48 VDC power port.

Caution: Never connect the console port to an Ethernet switch or PoE power

source. This can damage the AP. You can connect the console port only to a

serial port by using an RJ-45 connector or to a serial port adapter.

Radio and antennas

The AP supports two radios: 802.11a/n/ac on Radio 1 and 802.11b/g/n on

Radio 2 with 2x2 MIMO two spatial stream.

The AP contains four internal dual-band, MIMO antennas. It also provides two

antenna ports for each radio.

Reset button

The reset button is on the front panel of the AP. To reset the AP, press the button

for 0 to five seconds. To restore the AP to the factory setting, press the button

for more than five seconds and less than fifteen seconds.

Status LEDs

Table 1 LED description

Status

Description

Flashing green at 1

The AP is booting.

NOTE:

When the AP operates as a fit AP, it is always in this state

before it is registered to an AC.

Slowly pulsing green Connections are present on the 2.4 GHz radios.

Flashing blue at

0.25 Hz

The AP has been booted and has registered to the AC. It is

in standby state (no client is associated with the AP).

Flashing blue at 4

The AP is upgrading its system software image.

Slowly pulsing blue Connections are present on the 5 GHz radios.

Steady orange An initialization exception has occurred to the AP.

Flashing orange at 1

Hz The AP cannot detect any radio interface.

Flashing orange at

8 Hz

An Ethernet port or radio interface is operating incorrectly.

Cycle

through two

green pulse

s then

two blue pulses

Connections are present on both the 2.4 GHz and 5 GHz

radios.

Powering the HP 525

The AP can be powered by:

•

A 10/100 or 10/100/1000 PoE-enabled switch. Various PoE-enabled

switches are available from HP.

•

A PoE power injector, such as J9407B.

•

An HP 48 volt power adapter, JD055B.

The AP requires 802.3af-compliant PoE. For best performance, HP

recommends that you use a gigabit connection.

Caution: If the AP will be powered by a user-supplied PoE power injector,

use only a gigabit-compatible power injector. Although 10/100 PoE-enabled

switches are compatible, PoE injectors designed for 10/100 networks only

are not compatible with the AP.

Important information to read before

installing

Professional installation is required. For indoor installation only. Before

installing or using the AP, consult with a professional installer trained in RF

installation and knowledgeable in local regulations including building and

wiring codes, safety, channel, power, and license requirements for the

intended country. The end user is responsible for ensuring that installation and

use comply with local safety and radio regulations.

To avoid possible bodily injury or equipment damage, read the following

safety recommendations before you install t h e A P. The recommendations do

not cover every possible hazardous condition.

•

Keep the chassis clean and dust-free.

•

Make sure the ground is dry and flat and anti-slip measures are in place.

•

Do not place the AP in a moist area and avoid liquid surrounding the AP.

•

Keep the chassis and installation tools away from walkways.

Selecting the installation site

Consider the following when you select the installation site for the AP:

•

To meet regulatory RF exposure requirements, install the AP and any

external antennas at least 40 cm (15.75 inches) from any person.

•

Install APs away from RF-emitting electronic devices, such as microwave

ovens.

•

Do not install APs in a location where water seepage or condensation

occurs.

•

Do not place the AP on a metal surface.

•

Install the AP where there are no obstacles and wireless clients can

receive a strong signal from the AP.

Installation

The AP can be mounted on a wall, a suspended ceiling or a ceiling. When

you mount the AP on a wall, suspended ceiling, or ceiling, mount the AP

bracket first, and then attach the AP to the bracket.

For more information, see HP 525 Wireless Dual Radio 802.11ac Access Point

Installation Guide.

Preparing for installation

HP recommends that you connect power and verify the Ethernet cable and

LEDs before you install the AP in a hard-to-reach location.

Record the MAC address and AP serial number for future reference. If part of

the power line is routed outdoors, connect the AP power cord to a

user-supplied power strip with lightning protection.

Mounting the AP on a wall

1. Hold the mounting bracket with the narrow end facing up. Place the AP

against the wall where you want to install the AP. Mark the location of

the three screw holes.

Figure 2 Screw hole locations and sizes (in mm)

1: Hook

2: Mounting hole

3: Clip

4: Mounting clip

2. Drill three holes for the wall anchors, typically 5 mm (3/16 inch) in

diameter.

3. Insert the anchors and tap them flush with the wall surface.

4. Use the mounting screws to attach the mounting bracket to the wall.

Ø5.0

40.0

103.0

86.0

136.0

Figure 3 Installing the wall-mounting bracket

1: Wall-mounting bracket

2: Hook

3: Clip 4: Screw, Length ( 17.4mm / 0.69in ),

Wrench size ( 6.5mm / 0.26in ), Thread size

( 3.5mm /0.14in )

5. Connect the Ethernet cable to the AP.

6. Align the AP mounting hook holes with the hooks on the AP bracket.

7. Push the AP onto the mounting bracket, and then slide it down until it is

fully engaged.

123

Figure 4 Mounting the AP to the wall mounting bracket

Mounting the AP on a suspended

ceiling

The AP can be mounted on a suspended ceiling by using a T-rail holder.

Note: The width of the T-rail must be in the range of 16 mm to 28 mm (0.63

in to 1.10 in).

1. Loosen the four M3 screws (7) on the clip holders (3).

Figure 5 T-rail holder

1: T-rail clip

2: M3 screw nut

3: M4 screw nut

4: Clip holder

5: T-rail holder

6: Mounting hook

7: M4 × 5 screw, Length ( 7.6mm /

0.3in ), Wrench size ( 7mm / 0.28in ),

Thread size ( 4mm / 0.16in )

8: M3 × 8 screw, Length ( 10mm /

0.39in ), Wrench size ( 5.5mm /

0.22in ), Thread size ( 3 mm /

0.12in )

2. Slide the T-rail clips away from the T-rail holder until the opening is wider

than the T-rail (arrow 1).

Figure 6 Attaching the T-rail holder to the T-rail

1 2

3. Attach the T-rail holder to the T-rail, slide the T-rail clips toward the T-rail

holder until it closes around the T-rail (arrow 2), and then tighten the M3

screws.

4. Verify that the T-rail holder is firmly attached to the T-rail.

5. Hook the mounting bracket clip (3) to the T-rail holder mounting hook

(2).

6. Use the two M4 screws (1) to attach the mounting bracket to the T-rail

holder, and verify that the bracket is firmly anchored to the T-rail.

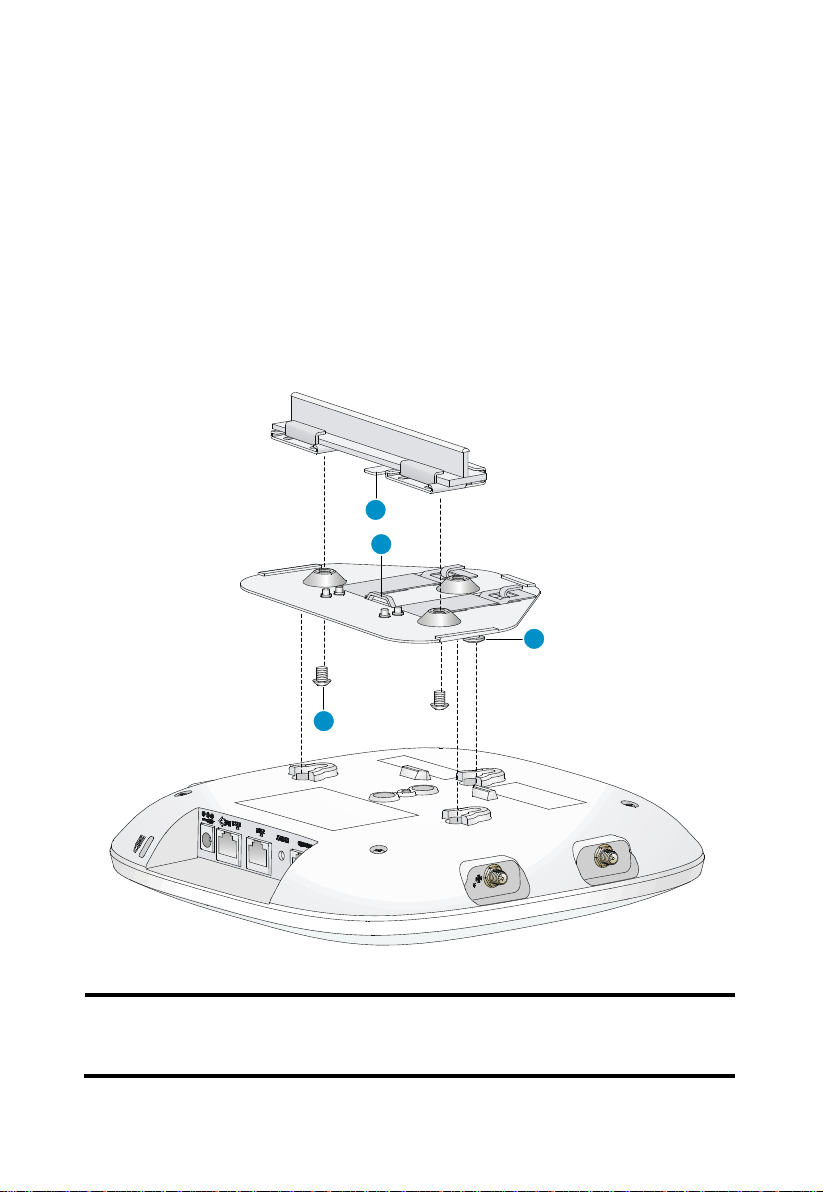

Figure 7 Mounting the AP to the T-rail

1: M4 × 5 screw, Length ( 7.6mm /

0.3in ), Wrench size ( 7mm / 0.28in ),

Thread size ( 4mm / 0.16in )

2: Mounting hook
