Installing the C100/C110 to C160L
CPU Upgrade
HP Part No. A4200-90019
E0796
Printed in USA
RavenUpgrade.FB 0 Mon Jul 15 11:43:09 1996
Hewlett-Packard Co. 1996
Printing History
First Printing: July 1996
UNIX is a registered trademark in the United States and other countries,
licensed exclusively through X/Open Company Limited.
NOTICE
The information contained in this document is subject to change without
notice.
HEWLETT-PACKARD MAKES NO WARRANTY OF ANY KIND WITH
REGARD TO THIS MATERIAL INCLUDING BUT NOT LIMITED TO
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FIT-
NESS FOR A PARTICULAR PURPOSE. Hewlett-Packard shall not be lia-
ble for errors contained herein or for incidental or consequential damages in
connection with the furnishing, performance or use of this material.
Hewlett-Packard assumes no responsibility for the use or reliability of its
software on equipment that is not furnished by Hewlett-Packard.
This document contains proprietary information that is protected by copy-
right. All rights reserved. No part of this document may be photocopied,
reproduced or translated to another language without the prior written con-
sent of Hewlett-Packard Company.
RESTRICTED RIGHTS LEGEND. Use, duplication, or disclosure by gov-
ernment is subject to restrictions as set forth in subdivision (c) (1) (ii) of the
Rights in Technical Data and Computer Software Clause at DFARS
252.227.7013. Hewlett-Packard Co., 3000 Hanover St., Palo Alto, CA
94304.
10 9 8 7 6 5 4 3 2 1
RavenUpgrade.FB 1 Mon Jul 15 11:43:09 1996
1
Upgrading your Model C100/110 to a Model C160L
Upgrading your Model C100/110 to a Model C160L
Your upgrade kit contains a Main Tray Assembly and an EVC graphics
adapter cable which, when installed, upgrades your Model C100 or Model
C110 workstation to a Model C160L workstation.
NOTICE: Installation of this upgrade does not alter the regulatory compliance of your
system as indicated on the system label on the pullout card.
The following sections provide step-by-step instructions for removing the
C100/110 Main Tray and Power Supply and installing the C160L Main Tray.
The general steps are outlined as follows. See the individual sections for
more detailed instructions.
NOTE: The following steps are guidelines which must be followed in the order they appear.
Refer to the individual sections of this guide for the actual step-by-step procedures
for upgrading the C100/110 to a C160L.
• Update HP-UX to version 10.20 or later.
• Determine the LAN ID of your system
• Power off the workstation and any peripheral devices, unplug the power cords,
and disconnect any peripheral cables.
• Remove the Main Tray Assembly.
• Remove the memory boards from the CPU board and the option boards from the
Main Tray and reinstall them in the new main tray.
• Place the Main Tray assembly into the workstation chassis.
• Connect power cords and cables, restart the workstation and enter the LAN ID
when prompted.
RavenUpgrade.FB 2 Mon Jul 15 11:43:09 1996
2
Graphics Configuration Considerations
Graphics Configuration Considerations
When upgrading your system from a C100/110 to a C160L there are certain
graphics configuration considerations that you must be aware of. Make sure
that you read and fully understand the information in this section before con-
tinuing with the upgrade.
• Graphics adapters may only be installed in slots 1 and 2 of the upgraded system.
• The A4244A HP Visualize-48 graphics adapter must be reconfigured to a
A4211A by a Hewlett-Packard service representative.
• The EVC adapter cable is required to connect your monitor to the Visualize-EG
built-in graphics.
The following graphics adapters are not supported in the upgraded C160L:
• A4077A Color Graphics Card
• A4078A Dual Color Graphics Card
• A4079B HCRX-8Z 8-plane Z-Buffered Graphics Adapter
• A4071B HCRX-24Z 24-Plane Z-Buffered Graphics Adapter with an A4072A
Accelerator Card.
RavenUpgrade.FB 3 Mon Jul 15 11:43:09 1996
3
Preparing Your Workstation
Preparing Your Workstation
Before starting the upgrade, use the following procedure to prepare the
workstation:
1The workstation must be running HP-UX 10.2 or later to accommodate the
C160L upgrade. If the workstation is running a version of HP-UX lower than
10.2, update the operating system software before continuing with this upgrade.
Hewlett-Packard recommends that you backup your system before upgrading
system software.
2Determine the workstations LAN ID by entering the following at the prompt:
/usr/sbin/lanscan
The output is similar to the following:
Hardware Station Dev Hardware Net-Interface NM Encapsulation Mjr
Path Address lu State NameUnit State ID Methods Num
2.0.2 0x08000970ECC0 0 UP lan0 UP 4 ETHER 52
After you install the new CPU board or I/O board and power on the system for
the first time, you are prompted for the LAN ID. Record the information here so
you have a record of it:
EtherLAN ID ___________________-_________________________
You must supply the dash (-) between the first six digits and the last six digits.
3Power off your workstation by pressing the power button on the front panel.
When you press the power button, the workstation automatically shuts down the
operating system before it powers off the system.
4When the workstation has completed shutting down and powering off, power off
the monitor, and any peripheral devices connected to the workstation.
RavenUpgrade.FB 4 Mon Jul 15 11:43:09 1996
4
Preparing Your Workstation
5Unplug the power cord of the system unit, the monitor, and any peripheral devic-
es from ac wall outlets.
6Unplug the power cord from the back of the system unit.
WARNING: To avoid electrical shock, make sure you unplug the power cable from
the wall outlet and the system unit before proceeding any further.
CAUTION: The internal components of your workstation are susceptible to mechanical and
electrostatic shock. To prevent such damage from occurring, observe the following
precautions during the installation procedure.
•Stand on a static-free mat
•Wearastatic-groundingwriststrap to ensure that any accumulated electrostatic charge
discharges from your body to ground. Attach the static-grounding wrist strap by fol-
lowing the instructions on the package that contains the strap. Be sure to attach one
end of the strap to the system chassis.

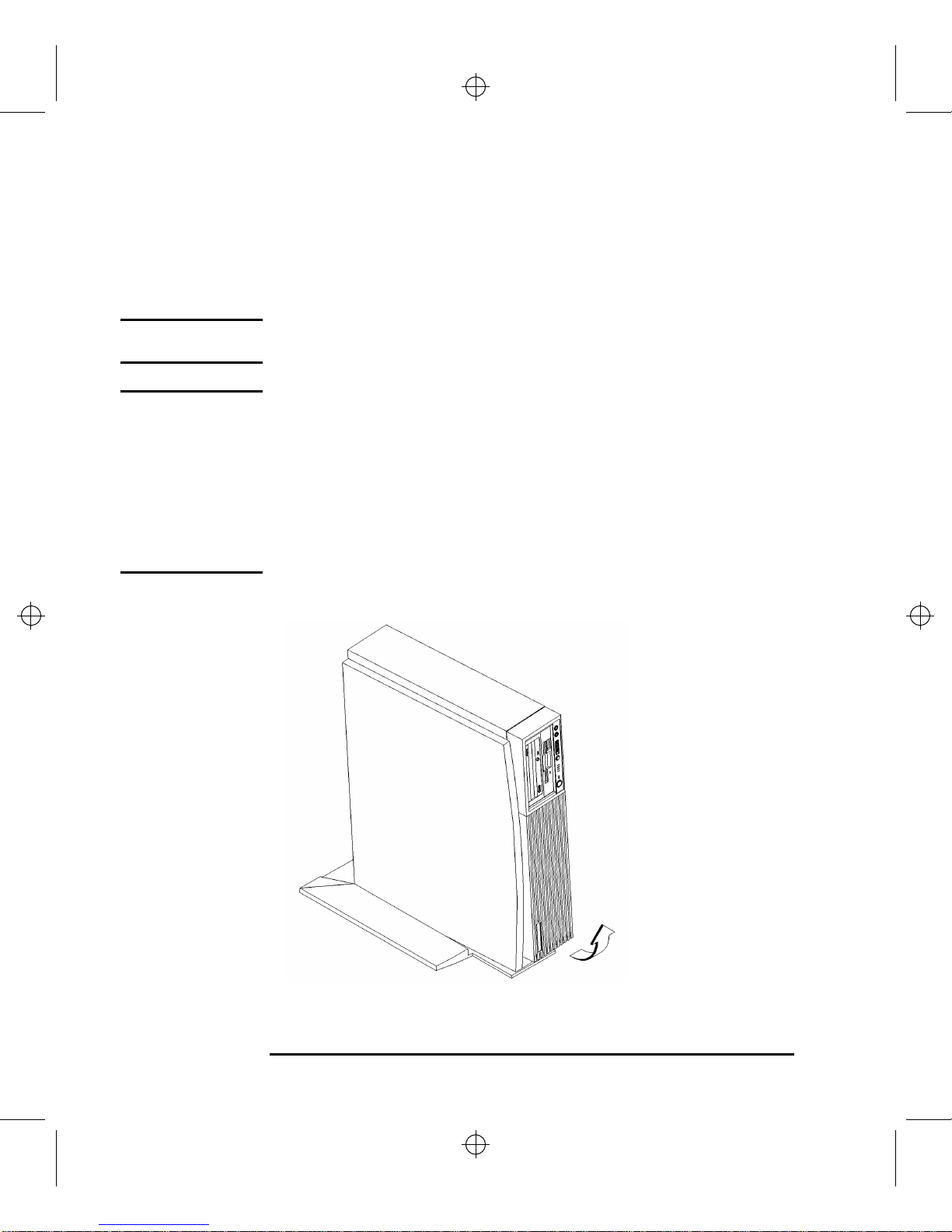

7Remove the system unit from the floor stand, as shown in Figure 1.
Figure 1 Removing the Floor Stand
RavenUpgrade.FB 5 Mon Jul 15 11:43:09 1996
5
Preparing Your Workstation
8Lay the system unit on a flat surface, such as a table top.
9Attach a static-grounding wrist strap to bare metal on the back of the system unit.
RavenUpgrade.FB 6 Mon Jul 15 11:43:09 1996
6
Removing the Main Tray Assembly
Removing the Main Tray Assembly
Once you have prepared the workstation, you need to remove the main tray
from the system unit, as described in the following procedure:
1Completely loosen the four thumb screws on the rear of the system unit, as shown
in Figure 2.
Figure 2 Removing Main Tray Assembly
2Place one hand on the top of the system unit and push, while pulling the handle
on the rear panel with your other hand. See Figure 2.
3Slide the main tray assembly out of the chassis.
Thumb Screws
Thumb
Screws
RavenUpgrade.FB 7 Mon Jul 15 11:43:09 1996
7
Removing Memory Modules
Removing Memory Modules
After removing the main tray from the system, you must remove the mem-
ory modules from the original C100/110 CPU board, as described in the fol-
lowing procedure:
1Locate the memory modules on the C100/C110 CPU board, as shown in Figure 3.
Figure 3 C100/110 Memory Module Location
Rear of Main Tray
Memory Connectors
RavenUpgrade.FB 8 Mon Jul 15 11:43:09 1996
8
Removing Memory Modules
2To remove a memory module, push the ejector tabs on each side of the module.
Lift the memory module up and out of the connector and place it on a static-free
surface. Figure 4 shows how to remove a memory module.
Figure 4 Removing a Memory Module
