HP P Class 450/500/550/600/650/700/750 Manuel

ELSA GLoria Synergy+

HP VISUALIZE Computers

Printed in USA April 1999

Manufacturing Part Number: HP Part No. A1273-90000

Edition E0499

Notice

The information contained in this document is subject to change without notice.

Hewlett-Packard makes no warranty of any kind with regard to this material, including,

but not limited to, the implied warranties of merchantability and ﬁtness for a particular

purpose.

Hewlett-Packard shall not be liable for errors contained herein or for incidental or

consequential damages in connection with the furnishing, performance, or use of this

material.

Hewlett-Packard assumes no responsibility for the use or reliability of its software on

equipment that is not furnished by Hewlett-Packard.

This document contains proprietary information that is protected by copyright. All rights

reserved. No part of this document may be photocopied, reproduced or translated to

another language without the prior written consent of Hewlett-Packard Company.

ELSA® and GLoria Synergy® are registered trademarks of ELSA AG, Aachen and/or

ELSA Inc., Santa Clara.

Pentium®, Xeon™ and AGPset™ are trademarks of Intel Corporation.

Hewlett-Packard Company

3404 E. Harmony Road

Fort Collins, CO 80528-9599

USA

Preface

This document provides an explanation of the features and speciﬁcations of the ELSA

GLoria Synergy+ AGP graphics board. There is also a discussion of the graphics board’s

video memory and video resolutions.

Bibliography

The following document is available for the HP VISUALIZE Personal X-Class Workstation:

HP VISUALIZE Personal X-Class Workstation User’s Guide. For more information, you can

go to the following web sites.

• ELSA GLoria Synergy (graphics controller)

http://www.elsa.com/

• Intel Pentium III Xeon Processor

http://developer.intel.com/design/pentiumiii/xeon/datashts

Important Safety Information

WARNING

If you have any doubt that you can lift the HP VISUALIZE Personal

Workstation or display safely, do not try to move it without help.

For your safety, always connect the equipment to a grounded wall

outlet. Always use a power cord with a properly grounded plug, such

as the one provided with this equipment, or one in compliance with

you national regulations. This HP VISUALIZE Personal Workstation is

disconnected from the power by removing the power cord from the

power outlet. This means the Personal Workstation must be located

close to a power outlet that is easily accessible.

For your safety, never remove the HP VISUALIZE Personal

Workstation’s cover without ﬁrst removing the power cord from the

power outlet, and any connection to the telecommunications

network. Always replace the cover on the Personal Workstation

before switching it on.

To avoid electric shocks, do not open the power supply. There are no

user-serviceable parts inside.

This HP VISUALIZE Personal Workstation is a class 1 laser product. Do

not attempt to make any adjustment to the laser units.

Important Ergonomic Information

It is strongly recommended that you read the ergonomic information before using you HP

VISUALIZE Personal Workstation. Open the Start menu in the task bar and select HP Info.

Then double-click the help topic “Working in Comfort.”

Installation Notice

Products designated in the applicable Hewlett-Packard price list as customer-installable

can be installed by computer-knowledgeable customers who carefully read and follow the

instructions provided. Customers who elect to have the product installed by our ﬁeld

personnel are charged the applicable ﬁeld installation charge, as covered under the

standard terms and conditions. For more information, please contact your local sales

representative.

Revision History

The revision history for each edition of the manual is listed below:

Edition Revision History

E0499 First Printing

Problems, Questions, and Suggestions

If you have any problems or questions with our hardware, software, or documentation,

please contact either your HP Response Center or your local HP representative. If you

have access to a web browser, you can get the latest software and hardware patches at the

following URL:

http://us-support.external.hp.com/

Documentation Conventions

Unless otherwise noted in the text, this guide uses the following symbolic conventions.

user-supplied values

Italic words or characters in syntax and command descriptions

represent values that you must supply. Italics are also used in text

for emphasis.

screen display Information that the system displays, commands that you must use

literally, and path names appear in this typeface.

Enter Key caps are presented with a special keycap font as shown in the

left column. (In this document, we refer to the Enter key. On your

keyboard, the key may be labeled either Enter or Return.)

Electrostatic Discharge (ESD) Precautions

Electrostatic charges can damage the integrated circuits on printed circuit boards. To

prevent such damage from occurring, observe the following precautions during board

unpacking and installation:

• Stand on a static-free mat.

• Wear a static strap to ensure that any accumulated electrostatic charge is discharged

from your body to ground.

• Create a common ground for the equipment you are working on by connecting the

static-free mat, static strap, and peripheral units to that piece of equipment.

• Keep uninstalled printed circuit boards in their protective antistatic bags.

• Handle printed circuit boards by their edges, once you have removed them from their

protective antistatic bags.

1ELSA GLoria Synergy+

This chapter describes the features and speciﬁcations of the ELSA GLoria Synergy+ AGP

graphics board.

8Chapter1

ELSA GLoria Synergy+

ELSA GLoria Synergy+ AGP Graphics Board

HP VISUALIZE Personal Workstation models are supplied with an ELSA GLoria

Synergy+™ AGP graphics board ﬁtted in the AGP accessory slot. There is a total of 8 MB

of video Synchronous Graphics RAM (SGRAM) memory installed on the graphics board

which cannot be upgraded.

The Permedia 2A graphics processor communicates directly with the Pentium III

processor along the AGP bus.

Features

• Optimized all-round capabilities in 2 D and 3 D.

• High resolution with 1900 x 1200 pixels in HiColor.

• 2D performance and high-power 3D hardware acceleration.

• Multi-screen support for Windows NT (with PCI ELSA GLoria Synergy+ graphics

boards).

• Supports 16: 10 wide-format monitors.

Speciﬁcations

• Supports basic AGP mode (66 MHz).

• Serial EEPROM video BIOS interface (up to 64 KB).

• AGP ATX form factor compliant.

• PERMEDIA 2A graphics processor.

• Pixel clock maximum frequency of 250 MHz.

• 3D coprocessor. Integrated GLINT Delta graphics setup processor.

• 3D standards. Hardware accelerated OpenGL, HEIDI, Direct3D.

• 4 MB of video SGRAM memory installed on the graphics board. Added to this, there is a

pre-installed 4 MB SO_DIMM video memory module, giving a total of 8 MB (this is the

maximum amount of video memory possible).

• Standards: VESA Video BIOS, DPMS, DDC2B, Plug & Play.

• Video standards: DirectDraw, ActiveMovie 1.0, DirectShow

(ActiveMovide 2.0).

Chapter 1 9

ELSA GLoria Synergy+

ELSA GLoria Synergy+ AGP Graphics Board

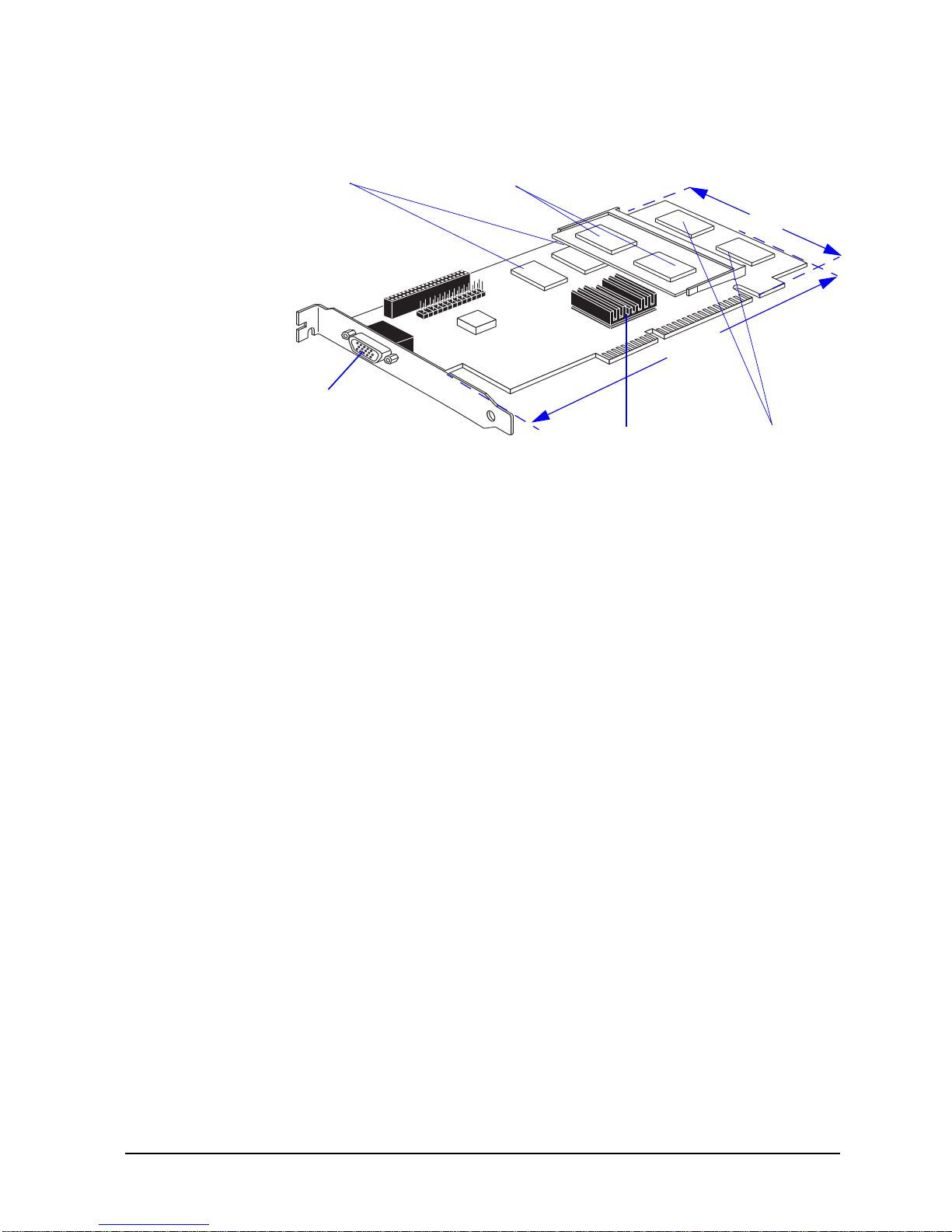

Figure 1-1. ELSA GLoria Synergy+ AGP Graphics Board

Video Memory

The video memory, also known as SGRAM, is a local block of RAM for holding major data

structures: Frame Buffer (double buffer), Z-Buffer and T-Buffer (Texture Buffer). The

Frame Buffer holds one frame steady on the screen while the next one is being processed,

while the Z-buffer stores depth information for each pixel.

Display

connector Permedia 2A

Graphics

processor

4 MB SO_DIMM

installed memory chips

172,1 mm

1 MB SGRAM memory

chips installed on the

graphics board

1 MB SGRAM memory

chips installed on the

graphics board

10 Chapter1

ELSA GLoria Synergy+

ELSA GLoria Synergy+ AGP Graphics Board

Available Video Resolutions

The number of colors supported is limited by the graphics device and the video memory.

The resolution/color/refresh-rate combination is limited by a combination of the display

driver, the graphics device, and the video memory. If the resolution/refresh-rate

combination is set higher than the display can support, you risk damaging the display.

The tables below summarize the 3D video resolutions which are supported.

Installing the Video Driver

For instructions on installing the latest video driver for the ELSA GLoria Synergy+

graphics board, go to the following web site:

www.hp.com/go/visualizesupport

This driver can also be found in the HP Tool and Support CD-ROM shipped with your

system.

Table 1-1. Support 3D Video Resolutions

Resolution Max. Refresh Rate (Hz) / Z-Buffer, Double Buffering

256 Colors Hi Color (32,768) TrueColor (16.7 million)

640×480 pixels 60, 70, 75, 80, 85, 100 60, 70, 75, 80, 85, 100 60, 70, 75, 80, 85, 100

800×600 pixels 60, 70, 75, 80, 85, 100 60, 70, 75, 80, 85, 100 60, 70, 75, 80, 85, 100

1024×768 pixels 60, 70, 75, 80, 85, 100 60, 70, 75, 80, 85, 100 60, 70, 75, 80, 85, 100

1152×864 pixels 60, 70, 75, 80, 85, 100 60, 70, 75, 80, 85, 100 —

1280×1024 pixels 60, 70, 75, 80, 85, 100 60, 70, 75, 80, 85, 100 —

1600×1024 pixels 60, 70, 75, 80, 85, 100 — —

1600×1000 pixels 60, 70, 75, 80, 85, 100 — —

1536×1152 pixels 60, 70, 75, 80, 85 — —

1600×1200 pixels 60, 70, 75, 80, 85 — —

1600×1280 pixels 60, 70, 75, 80, 85 — —
