Honeywell TC30PM Manuel utilisateur

Portable Evaporative Air Cooler

User Manual

Read and save these instructions before use

Przenosny Parowy Klimator

Instrukcja obsługi

Przeczytaj i zachowaj tę instrukcję przed użyciem

Draagbare Verdamping Luchtkoelers

Gebruiksaanwijzing

Lees de gebruiksaanwijzing zorgvuldig en

bewaar deze goed

Raffrescatori Evaporativi Portatili

Manuale Utente

Leggere attentamente le istruzioni prima

dell'utilizzo dell'apparecchio

Portátil por Evaporação Ventilador do Ar

Manual do Utilizador

Leia e guarde estas instruções antes da

utilização

Portabel Evaporativ Luftkylare

Luftkylare Användarmanual

Läs och spara dessa instruktioner innan användning

Transportabel Fordampende Luftkøler

Brugervejledning

Læs og gemme disse instrukser inden brug

Rafraîchisseur d'air par évaporation portatif

Mode d'emploi

Lire ces instructions avant l'utilisation et

les conserver

Taınabilir Buharlı Sogutucu Kullanma

Kılavuzu

Kullanmadan önce bu talimatları okuyun ve

saklayın

Tragbare Verdunstungs Luftkühler

Benutzerhandbuch

Lesen sie die anleitung vor dem gebrauch

und heben sie sie auf

Enfriador de Aire Evaporativo Portátil

Manual de Instrucciones

Lea y guarde estas instrucciones antes

de usar la unidad

Мобильная Климатическая Установка

Руководство пользователя

Прочтите и сохраните эту инструкцию перед

использованием

Siirrettävät Höyrystävät Ilmanjäähdyttimet

Käyttäjän Opas

Lue ohjeet ennen käyttöä ja säästä ne

Model / Modèle / Modelo / Modello /

Mallien / Modeller / Modell / Мoдэль :

TC30/50PM Series

www.honeywellaircomfort.com

info@honeywellaircomfort.com

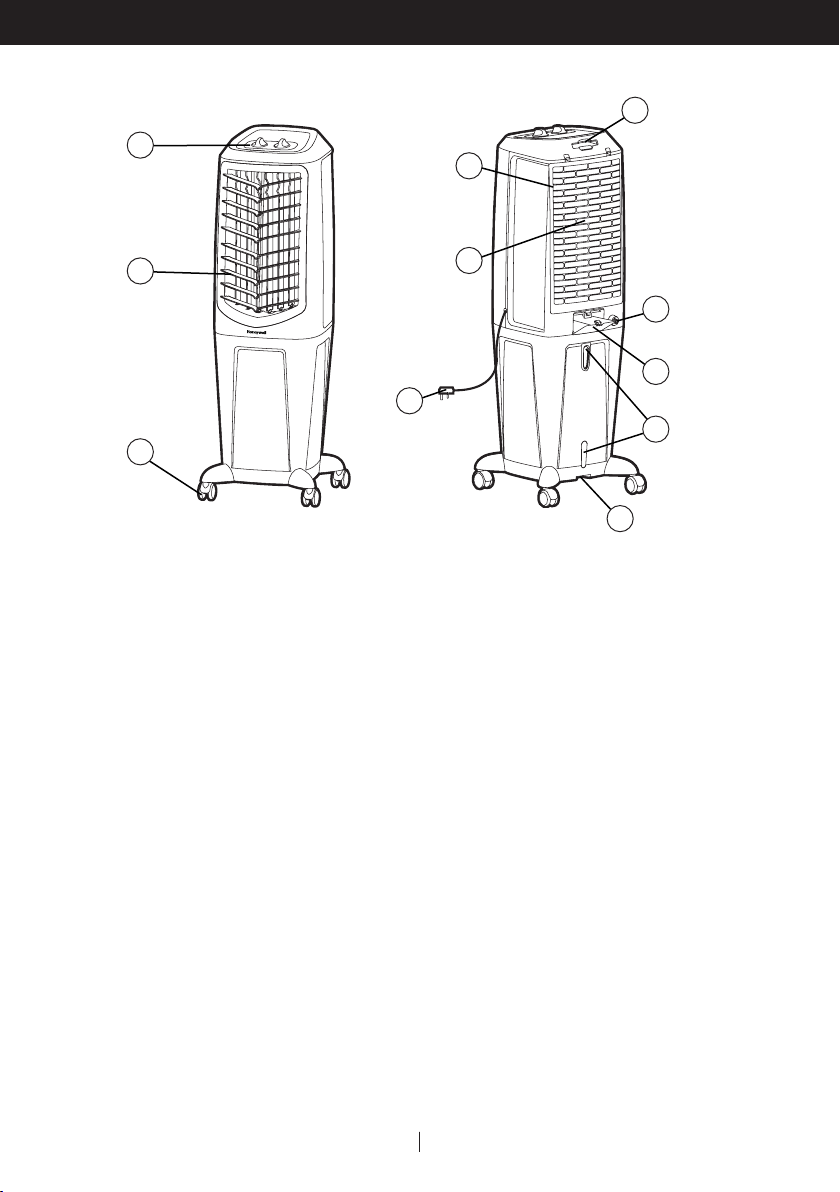

PARTS DESCRIPTION

1) Control Panel 7) Honeycomb Cooling Media

2) Louvers 8) Water Fill Door

3) Water Level Indicator 9) Power Cord & Plug

4) Casters 10) Drain Plug

5) Handle 11) Water Inlet Valve*

6) Rear Grill & Mesh Filter

*Applicable for models with Water Inlet Valve only.

WARNING -- READ AND SAVE THE AIR COOLER SAFETY & MAINTENANCE GUIDE AND USER

MANUAL BEFORE USING THIS PRODUCT. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY

DAMAGE AND/ OR IMPAIR ITS OPERATION AND VOID THE WARRANTY. IN CASE THERE IS

ANY INCONSISTENCY OR CONFLICT BETWEEN THE ENGLISH VERSION AND ANY OTHER

LANGUAGE VERSION OF THE CONTENT OF THIS MATERIAL, THE ENGLISH VERSION SHALL

PREVAIL.

USE & OPERATION

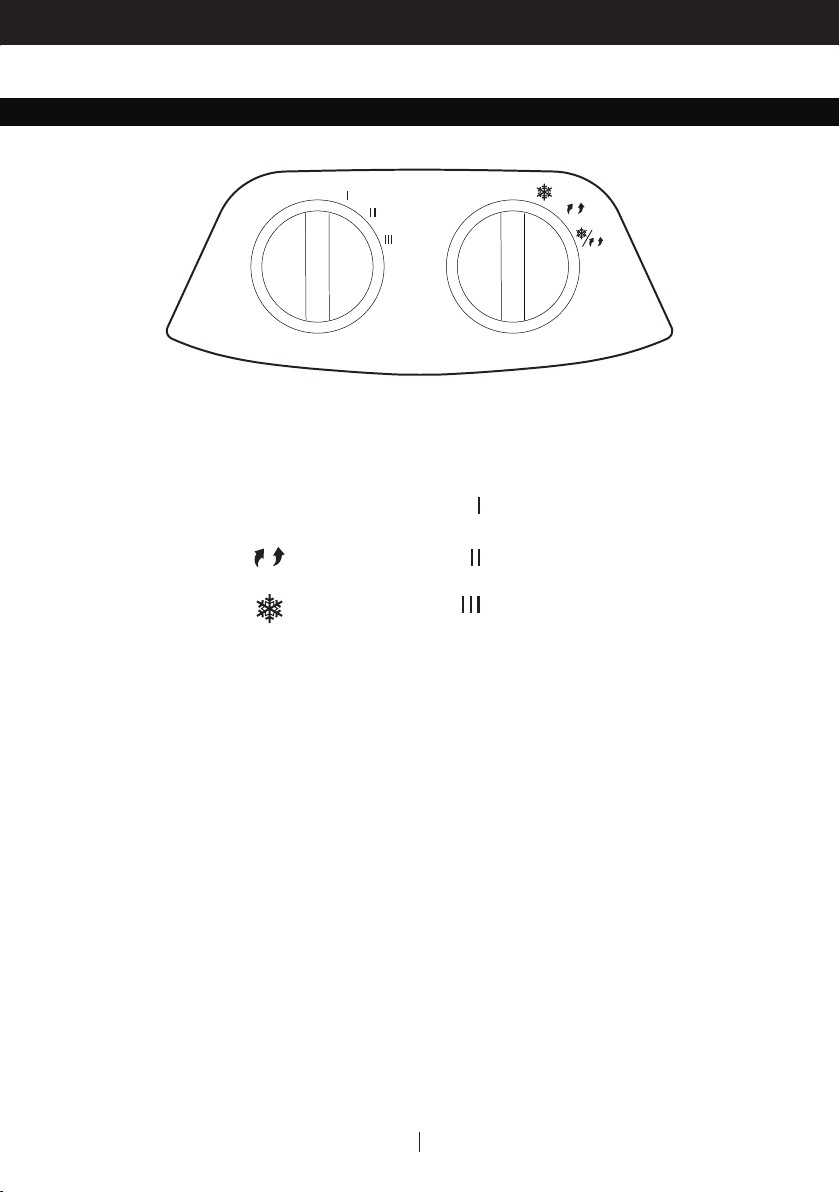

CONTROL PANEL

OOFF

Icons on Control Panel

Swing

Power OffO

Cool

= Low

= Medium

= High

USE & OPERATION (CONTINUED)

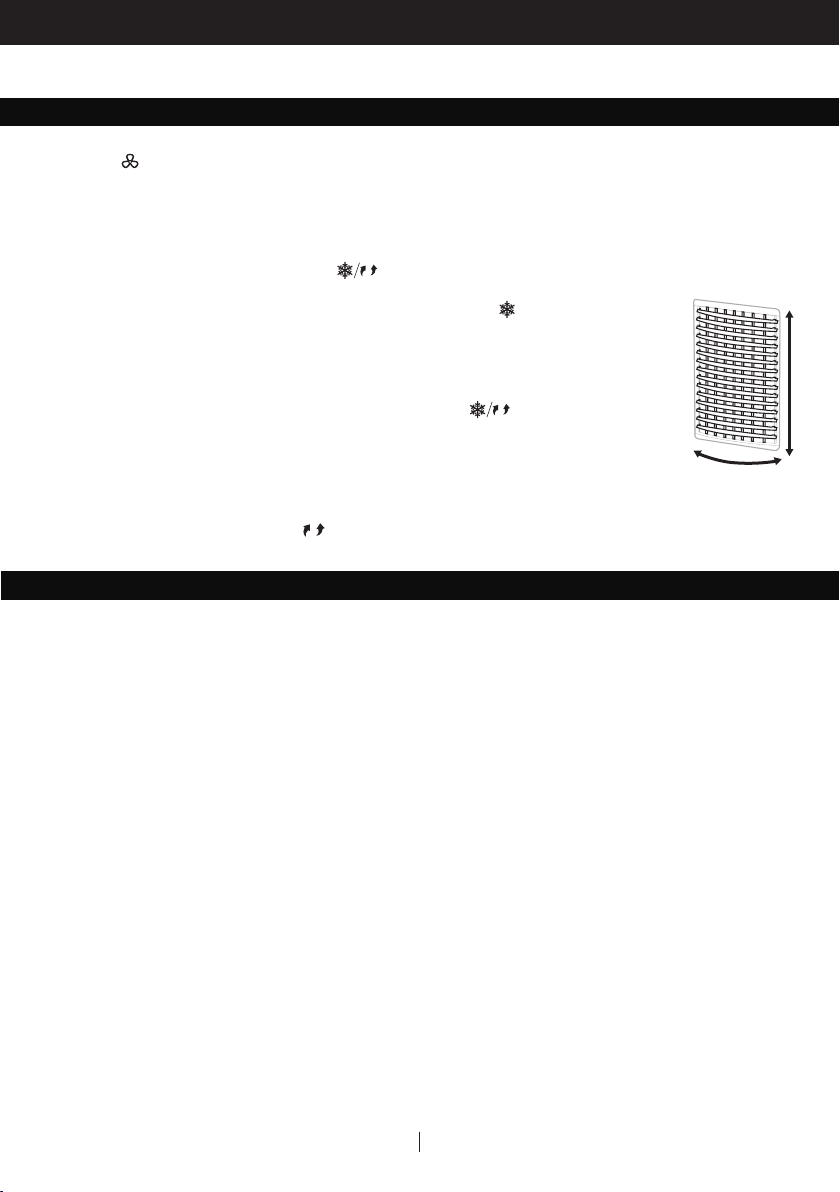

FUNCTION BUTTONS

SPEED

Connect to the power supply and turn the SPEED knob. The fan will start. Change the speed from

Low to High (|for Low, || for Medium and ||| for High fan speed). To switch off the unit, turn the

SPEED knob to O.

COOL / SWING

You must add water before operating the unit on Cool mode. Turn the COOL

position to activate evaporative cooling. The water pump will operate and you

will feel the cooler air after the Honeycomb Cooling Media is completely wet.

Turn the COOL / SWING position to activate evaporative cooling and

the movement of the louvers. The louvers will begin to move left to right

automatically. Vertical Air Flow - You can manually adjust the lever

located at the front of the unit to change vertical air ﬂow.

Turn the SWING position to activate the movement of the louvers.

Make sure to position the air cooler correctly before you set up and start using the product. Please

refer to the COOLER LOCATION section of the separate Safety & Maintenance Guide.

COOLER LOCATION

Louver

Movement

USE & OPERATION (CONTINUED)

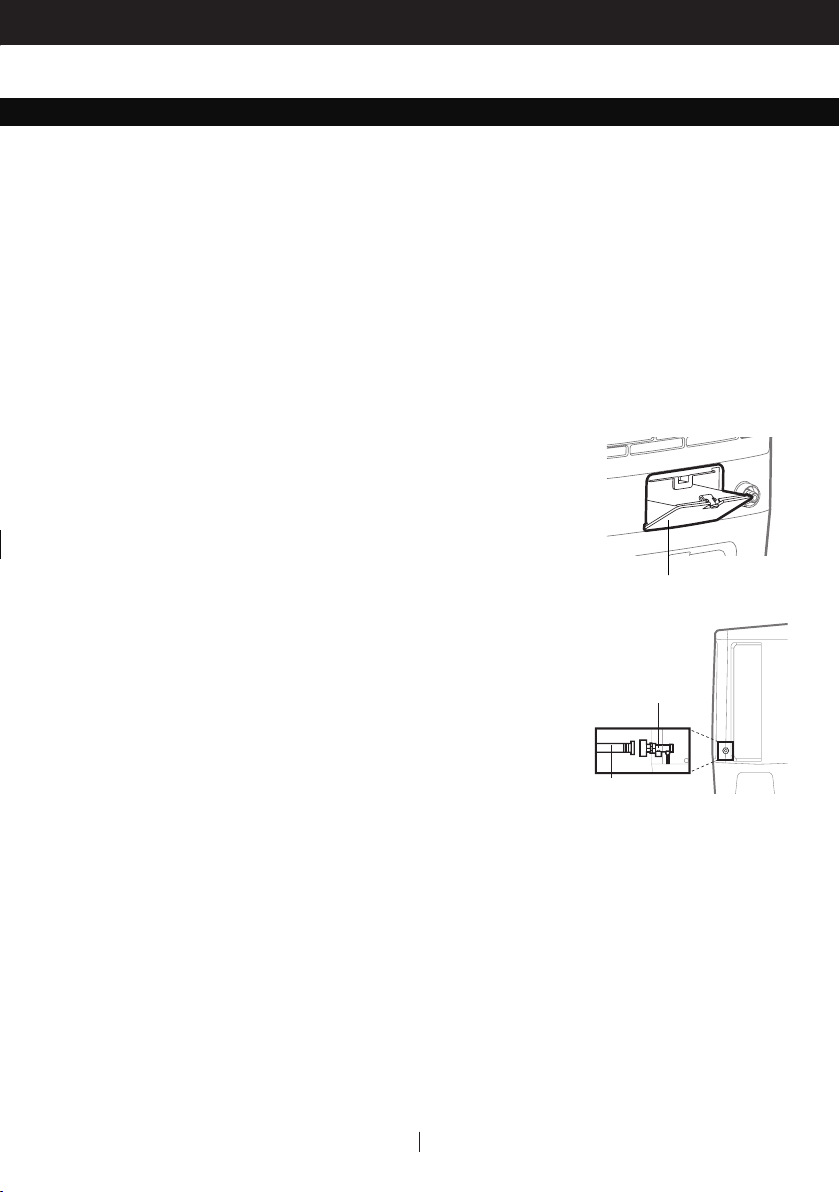

FILLING WITH WATER

*Applicable for models with Water Inlet Valve only.

It is ideal to use the Continuous Water Supply* Connection to run the unit for long periods of time

without refilling the tank. This also helps prevent pump failure in case the cooler is running with

inadequate water in the tank.

CAUTION: Unplug the unit from the electrical socket before emptying or refilling the water tank.

Open the Water Fill Door located on the back of the unit.

Continuous Water Supply Connection*:

For a continuous water supply, you will need a garden hose that is connected to a mains water supply.

Note: The garden hose is not included. Please make use of a garden hose which is compatible with

the unit connection.

Water Fill Door

Locate the male connector at one end of the garden hose. Insert the

garden hose connector into the water inlet valve of the cooler. Screw

and tighten the water inlet valve onto the threaded part of the garden

hose connector, making sure the hose connector is secured to ensure

there will be no leaks. If there is a leakage, the hose and the water inlet

valve may not be connected properly. Try to disconnect, replace and

tighten the water inlet valve again.

When the connection is secured, turn ON the water supply and

the water will ﬂow into the water tank of the cooler.

The cooler is now set so the water reﬁlls automatically.

When the water tank is full of water, the water inlet valve will

auto-matically stop the water supply from overﬂowing the water tank.

WARNING: The maximum water inlet pressure is 0.5 MPa.

•

Water Inlet Valve

Garden Hose

5EN

Below are instructions on how to clean and maintain your air cooler. If the cooler will not be used

for a long period of time, please refer to the STORAGE & MAINTENANCE GUIDELINES located in

the separate Safety & Maintenance Guide.

WARNING:

Before cleaning the unit, power OFF the unit and disconnect from the electrical socket.

CLEANING & DRAINING THE WATER TANK

• Move the unit to a location where the water can be drained. Remove the cap from the drain plug

located at the bottom of the unit. Allow the tank to empty.

• Refill the water tank with clean water, up to the maximum level and drain it completely.

• Use a damp cloth to remove the dirt and dust from the surface of the unit. Never use corrosive

elements or chemicals to clean this product.

• When the product is not in use, store the unit in a dry place out of direct sunlight.

USE & OPERATION (CONTINUED)

FILLING WITH WATER (CONTINUED)

The Water Level Indicator is located at the back of the unit. Reﬁll the water tank when water level

is low. Do not ﬁll water above the "Max." water level mark to avoid water droplets collecting on the

louvers. Check the water level in the tank before running the COOL function. Make sure there is water

in the tank by using the continuous water supply connection or by ﬁlling the tank up to the maximum

indicator level. Running the unit in COOL mode with inadequate water may cause pump failure.

Note: The water capacity refers to the total volume of water that can be contained within the air

cooler water tank and water distribution system. The water capacity in the tank at the “Max.” indicator

level may be lower than the actual water capacity of the air cooler.

WARNING: Do not fill water tank with dirty water or salt water. This can damage the unit and

Honeycomb media.

6EN

USE & OPERATION (CONTINUED)

WARNING:

Before cleaning the unit, switch the unit OFF and disconnect the power adapter from the unit and

electrical socket.

CLEANING THE MESH FILTER AND HONEYCOMB COOLING MEDIA

The appliance is supplied with a Mesh Filter and Honeycomb Cooling Media.

The Mesh Filter and Honeycomb Cooling Media are located inside the Rear Grill. See Figure 1

for instructions on how to remove them from the unit for cleaning and maintenance.

Do not run the unit in COOL mode with stale water in the tank. You must empty the water tank

and reﬁll with fresh water, especially if the tank has not been cleaned in a long time.

The cleaning frequency for the Honeycomb media depends on local air and water conditions.

In areas where the mineral content of water is high, mineral deposits may build up on the

Honeycomb Cooling Media and restrict air ﬂow. Draining the water tank and reﬁlling with fresh

water at least once a week will help reduce mineral deposits. If mineral deposits remain on the

Honeycomb Cooling Media, the media should be removed and washed under fresh water. The

media should be cleaned every two months or sooner, depending on your needs.

For best results allow the Honeycomb Cooling Media to dry after each use by turning off the cool

function 15 minutes before turning the unit off.

•

Carefully pull out the rear grill / mesh ﬁlter from the

cooler.

Rinse the rear grill / mesh ﬁlter with clean water and let

it dry before re-installing to the unit.

Carefully pull out the Honeycomb Media.

Replace or clean media with water and a damp cloth

as needed.

WARNING: DO NOT operate the Air Cooler when the

Rear Grill is removed from the Air Cooler, or if there is a

loose-ﬁtting Rear Grill. Doing so can cause serious

injury or dangerous electrical shock.

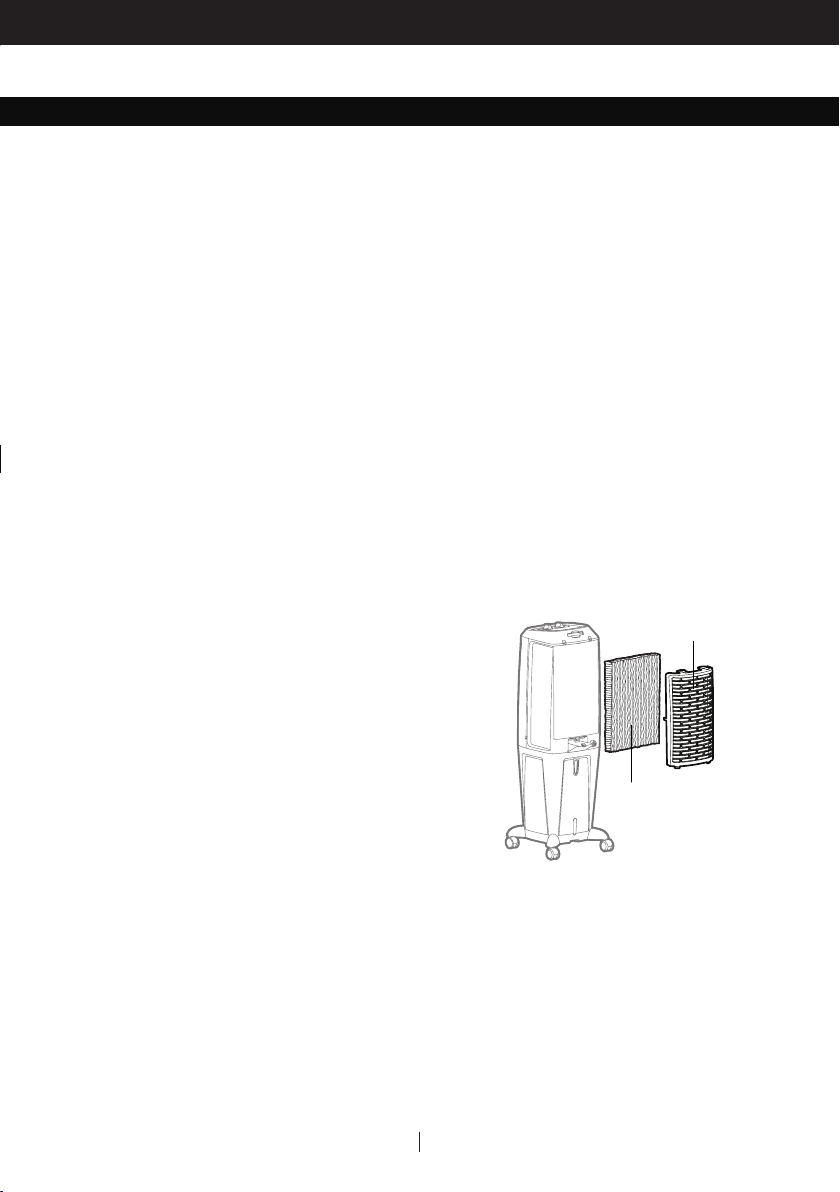

Removing the Mesh Filter and Honeycomb Cooling Media:

Figure 1:

Honeycomb Cooling Media

Rear Grill/

Mesh Filter

1FR

DESCRIPTION DES PIECES

1) Panneau de contrôle 7) Système de refroidissement

en nid d’abeilles

2) Grilles d'aération 8) Porte de remplissage d'eau

3) Indicateur de niveau d'eau 9) Cordon electrique

& prise

4) Roulettes 10) Bouchon de vidange

5) Poignée 11) Vanne de l’entrée d’eau*

6) Grille arrière & ﬁlter

AVERTISSEMENT -- LIRE ET SAUVEGARDER LE GUIDE DE SECURITE ET D'ENTRETIEN ET LE

MANUEL D'UTILISATION DU REFROIDISSEUR D'AIR AVANT D'UTILISER LE PRODUIT. NE PAS

SUIVRE CES INSTRUCTIONS POURRAIT ENDOMMAGER ET/OU PORTER ATTEINTE A SON

FONCTIONNEMENT ET ANNULER LA GARANTIE. EN CAS D'INCOHERENCE OU DE CONFLIT

ENTRE LA VERSION ANGLAISE ET TOUT AUTRE VERSION LINGUISTIQUE DU CONTENU DE CE

MATERIEL, LA VERSION ANGLAISE PRÉVAUDRA.

*Applicable uniquement pour les modèles avec la Vanne de l’entrée d’eau.

2FR

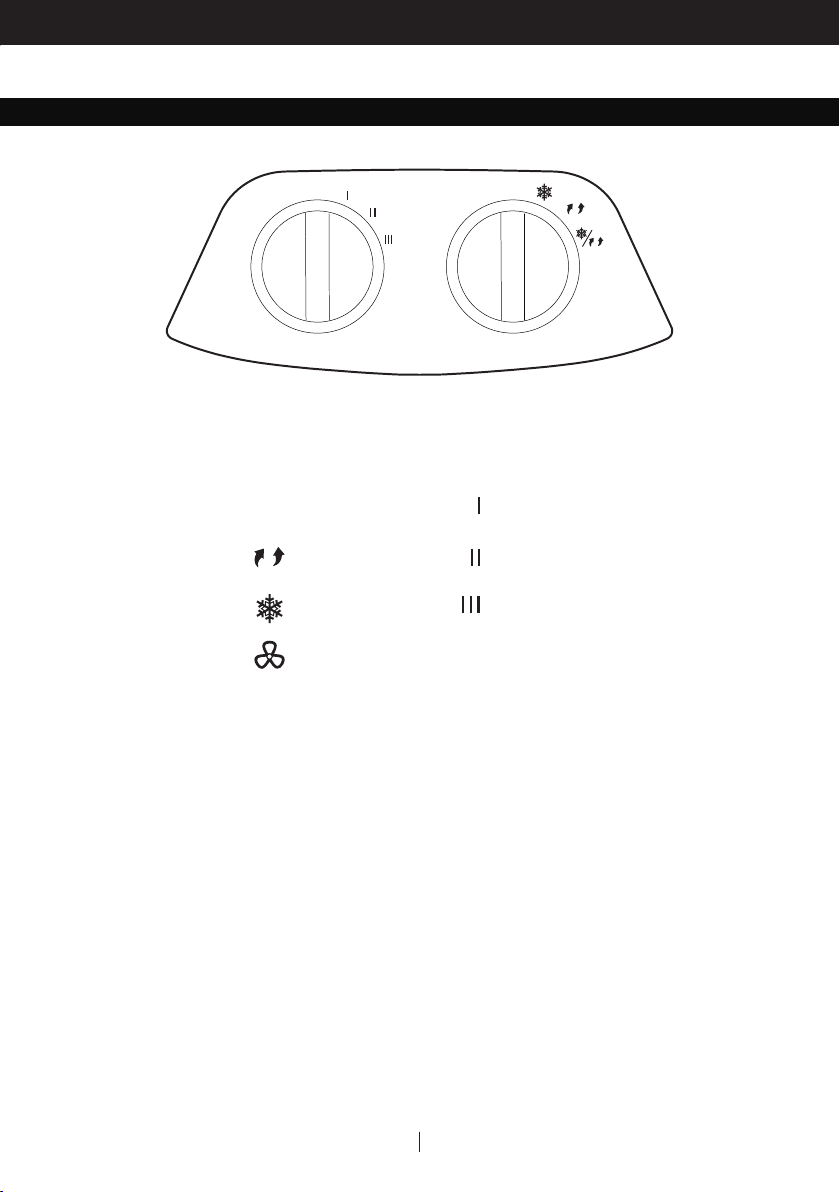

OOFF

UTILISATION ET FONCTIONNEMENT

PANNEAU DE COMMANDE

Icônes sur l’écran d’afﬁchage

Vitesse

Oscillation

ÉteindreO

Refroidissement

= Faible

= Moyenne

= Élevée

3FR

UTILISATION ET FONCTIONNEMENT (SUITE)

BOUTONS DE FONCTION

VITESSE

Connecter à l'alimentation électrique et tourner le bouton de la VITESSE. Le ventilateur démarrera.

Changer la vitesse de Faible à Élevée ( |pour Faible, || pour Moyen et ||| pour Haute vitesse de

ventilateur). Pour OFF l'unité, tourner le bouton de la VITESSE à o.

REFROIDISSEMENT / OSCILLATION

Vous devez ajouter de l'eau avant d'utiliser l'appareil en mode

REFROIDISSEMENT. Tourner le bouton REFROIDISSEMENT en position ON

pour activer le refroidissement par évaporation. La pompe à eau fonctionnera

en propulsant de l’air refroidi une fois que le système de refroidissement en nid

d’abeilles sera complètement trempé.

Tournez la position REFROIDISSEMENT/ OSCILLATION pour activer le

refroidissement par évaporation et le mouvement des persiennes. Les grilles

d’aération commenceront à osciller de gauche à droite automatiquement. —

Débit d’air vertical – il est possible de régler manuellement les grilles d’aération

verticales pour modiﬁer le débit d’air vertical.

Tournez la position OSCILLATION pour activer le mouvement des persiennes.

POSITION DU REFROIDISSEUR D’AIR

Veiller à placer le refroidisseur d’air comme il se doit avant de l’installer et de l’utiliser.

Il convient de se reporter à la section POSITION DU REFROIDISSEUR D’AIR (IMPORTANT à LIRE) du

Guide de sécurité et d’entretien.

Mouvement des

grilles d’aration

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Honeywell Climatiseur

Honeywell

Honeywell DLC203AE Series Manuel utilisateur

Honeywell

Honeywell CL152 Manuel utilisateur

Honeywell

Honeywell CO30XE Manuel utilisateur

Honeywell

Honeywell TC10PM Series Manuel utilisateur

Honeywell

Honeywell HW4CEDAWW0 Manuel utilisateur

Honeywell

Honeywell TC10PE Manuel utilisateur

Honeywell

Honeywell CL15AE Manuel utilisateur

Honeywell

Honeywell CO48PM Manuel utilisateur

Honeywell

Honeywell CO70PE Manuel utilisateur

Honeywell

Honeywell DCS2AE Manuel utilisateur

Honeywell

Honeywell CL201AE Manuel utilisateur

Honeywell

Honeywell HW4CEDVWW0 Manuel utilisateur

Honeywell

Honeywell CO60PM Series Manuel utilisateur

Honeywell

Honeywell CO60PM Series Manuel d'utilisation

Honeywell

Honeywell CS04XE Manuel utilisateur

Honeywell

Honeywell CHS122AE Manuel utilisateur

Honeywell

Honeywell CS07AE Manuel utilisateur

Honeywell

Honeywell HWAC-1217S Manuel utilisateur

Honeywell

Honeywell CL201AE Manuel utilisateur

Honeywell

Honeywell HF08CESWK Manuel utilisateur

Honeywell

Honeywell CL25AE Manuel utilisateur

Honeywell

Honeywell CL25AE Manuel utilisateur

Honeywell

Honeywell EH1682 Mode d’emploi

Honeywell

Honeywell CL25AE Mode d’emploi

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Samsung

Samsung AR KV Series Mode d’emploi

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Samsung

Samsung AS09HM3N Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur
