Honeywell CS04XE Manuel utilisateur

Portable Evaporative Air Cooler

User Manual

Read and save these instructions before use

www.honeywellaircoolers.com

E-mail: info@honeywellaircoolers.com

POWER

SPEED

MODE

COOL

SWING

Model: CS04XE

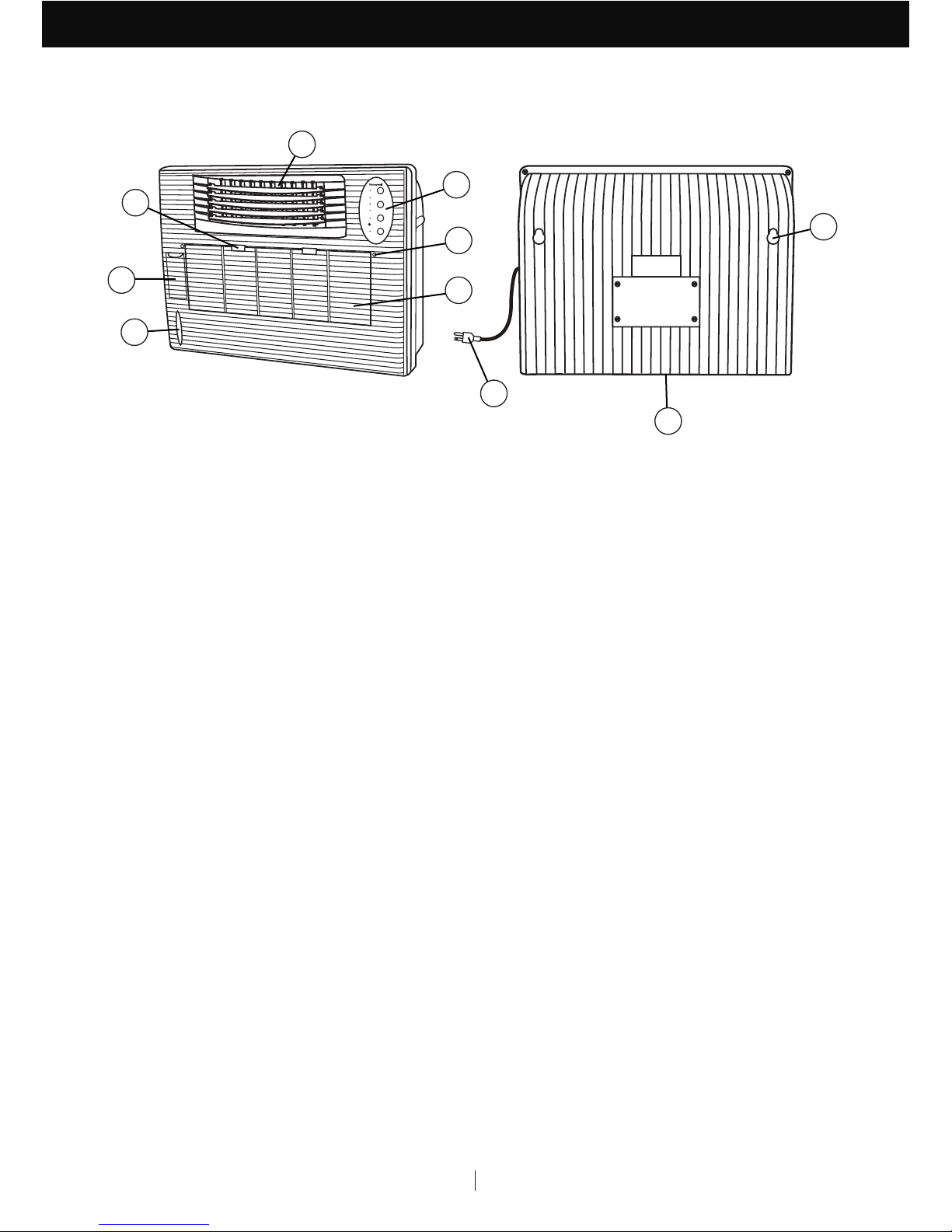

PARTS DESCRIPTION

1) Control Panel 6) Front Grill Screws

2) Louvers 7) Honeycomb Cooling Media

3) Front Grill 8) Mounting Holes

4) Water Fill Tray 9) Drain Plug

5) Water Level Indicator 10) Power Cord & Plug

POWER

SPEED

MODE

COOL

SWING

WARNING -- READ AND SAVE THE AIR COOLER SAFETY & MAINTENANCE GUIDE AND USER

MANUAL BEFORE USING THIS PRODUCT. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY

DAMAGE AND/ OR IMPAIR ITS OPERATION AND VOID THE WARRANTY. IN CASE THERE IS

ANY INCONSISTENCY OR CONFLICT BETWEEN THE ENGLISH VERSION AND ANY OTHER

LANGUAGE VERSION OF THE CONTENT OF THIS MATERIAL, THE ENGLISH VERSION SHALL

PREVAIL.

SPEED

POWER

MODE

COOL

SWING

USE & OPERATION

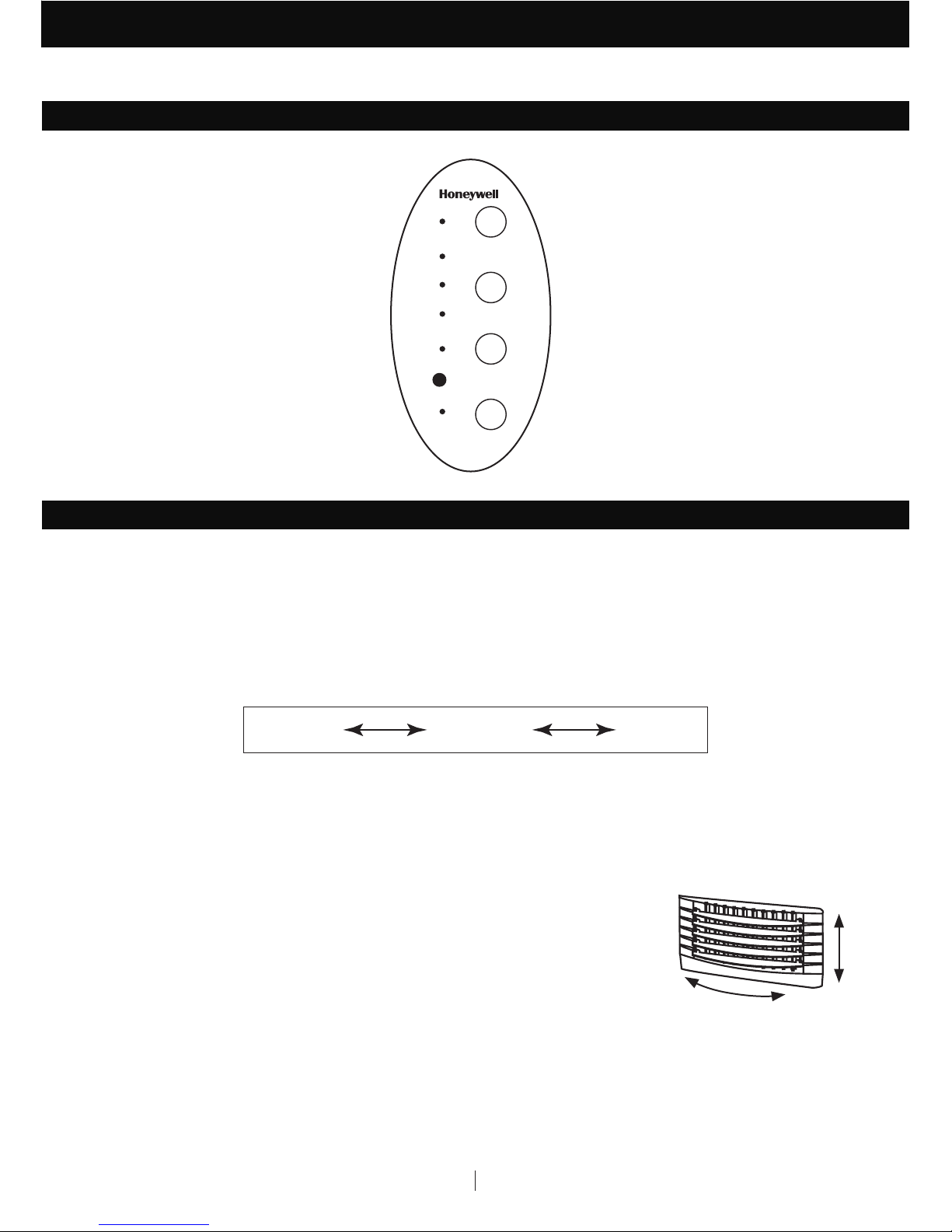

CONTROL PANEL

POWER

Press the POWER button to turn the unit on. The cooler will start automatically at medium speed.

After a few seconds the speed will switch to low. To turn the unit off, press the button again.

SPEED

Press the SPEED button repeatedly to change the speed between H - M - L.

The indicator light will show the selected speed:

FUNCTION BUTTONS

MODE

Press the MODE button until the COOL indicator light is illuminated on the control panel. This

activates evaporative cooling. The water pump will operate and you will feel the cooler air after the

Honeycomb Cooling Media is completely wet. When the COOL indicator light is switched OFF, the

unit can still function in a fan only mode (without evaporative cooling).

High (H) Medium (M) Low (L)

SWING

Press the SWING button until the SWING indicator light is illuminated on

the control panel. The louvers will begin to move left to right automatically.

Vertical Air Flow - You can manually adjust the louvers to change vertical

air ﬂow.

LOUVER

MOVEMENT

USE & OPERATION (CONTINUED)

REMOTE CONTROL

POWER :

ON / OFF

Low / Medium / High

Evaporative cooling ON / OFF

Controls the motion of the louvers

SPEED

MODE

SWING

NOTE:

•

The remote control requires AAA (2 x 1.5V) batteries for replacement.

Open the battery compartment at the back of the remote control and insert the batteries inside.

Care must be taken to insert the batteries according to the corr ect polarity (+ / –) markings

shown inside the battery compartment.

Always point the remote control signal transmitter towards the unit when operating. Make sure

that the signal path is not obstructed.

Remove the batteries if the unit is not going to be used for an extended period of time.

Do not drop the remote control.

Do not mix different types of batteries such as alkaline, carbon-zinc, or rechargeable batteries.

Do not mix old and new batteries.

Do not recharge the battery.

Exhausted batteries are to be removed from the product and safely disposed of as per local

regulations.

Do not dispose of batteries in ﬁre. Batteries may explode or leak.

WARNING: Caution for ingestion of the small battery. Keep away from children and animals.

CAUTION:

Unplug the unit from the electrical power outlet before emptying or reﬁlling the water tank.

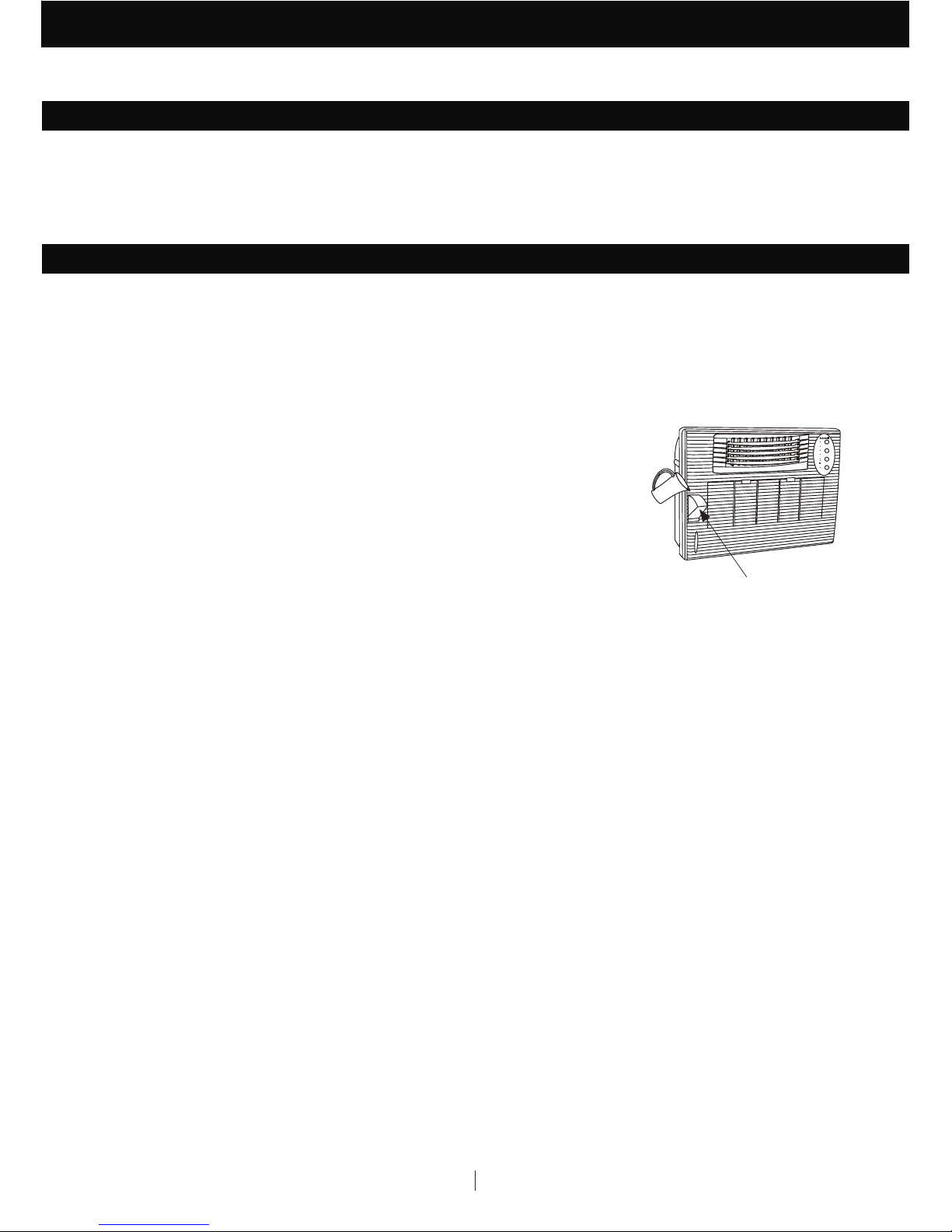

Open the Water Fill Door located on the front of the unit.

The Water Level Indicator is located at the front of the unit. Reﬁll the

water tank when water level is low. Do not fill water above the "Max."

water level mark to avoid water droplets collecting on the louvers.

Check the water level in the tank before running the COOL function.

Make sure that the water in the tank is above the minimum water level

mark. Running the unit in COOL mode with inadequate water may

cause pump failure.

Note: The water capacity refers to the total volume of water that can be contained within the air

cooler water tank and water distribution system. The water capacity in the tank at the “Max.” indicator

level may be lower than the actual water capacity of the air cooler.

WARNING: Do not ﬁll water tank with dirty water or salt water. This can damage the unit and Honeycomb

media.

USE & OPERATION (CONTINUED)

COOLER LOCATION

FILLING WITH WATER

Make sure to position the air cooler correctly before you set up and start using the product. Do not

move the unit from one place to another while the Unit is turned on. Please refer to the COOLER

LOCATION section of the separate Safety & Maintenance Guide.

POWER

SPEED

COOL

SWING

Water Fill Door

Move the unit to a location where the water can be drained. Remove the cap from the Drain plug

located at the bottom of the unit. Allow the tank to empty.

Reﬁll the water tank with clean water, up to the maximum level and drain it completely.

Use a damp cloth to remove the dirt and dust from the surface of the unit. Never use corrosive

elements or chemicals to clean this product.

When the product is not in use, store the unit in a dry place out of direct sunlight.

•

USE & OPERATION (CONTINUED)

Below are instructions on how to clean and maintain your air cooler. If the cooler will not be used for

a long period of time, please refer to the STORAGE & MAINTENANCE GUIDELINES located in the

separate Safety & Maintenance Guide.

WARNING:

Before cleaning the unit, switch the unit OFF and disconnect from the electrical socket.

CLEANING & DRAINING THE WATER TANK

USE & OPERATION (CONTINUED)

CLEANING THE HONEYCOMB COOLING MEDIA

The appliance is supplied with a Honeycomb Cooling Media.

The Honeycomb Cooling Media is located inside the Rear Grill. See Figure 1 for instructions on

how to remove them from the unit for cleaning and maintenance.

Do not run the unit in COOL mode with stale water in the tank. You must empty the water tank

and reﬁll with fresh water, especially if the tank has not been cleaned in a long time.

The cleaning frequency for the Honeycomb media depends on local air and water conditions.

In areas where the mineral content of water is high, mineral deposits may build up on the

Honeycomb Cooling Media and restrict air ﬂow. Draining the water tank and reﬁlling with fresh

water at least once a week will help reduce mineral deposits. If mineral deposits remain on the

Honeycomb Cooling Media, the media should be removed and washed under fresh water. The

media should be cleaned every two months or sooner, depending on your needs.

For best results allow the Honeycomb Cooling Media to dry after each use by turning off the cool

function 15 minutes before turning the unit off.

•

Remove all the screws from the Front Grill of the

Air Cooler.

Push down on the Latches and pull the Front Grill

away from the cooler.

Carefully slide out the Horizontal Bar from the

cooler.

Carefully pull out the Honeycomb Cooling Pad.

Replace or clean media with water and a damp

cloth as needed.

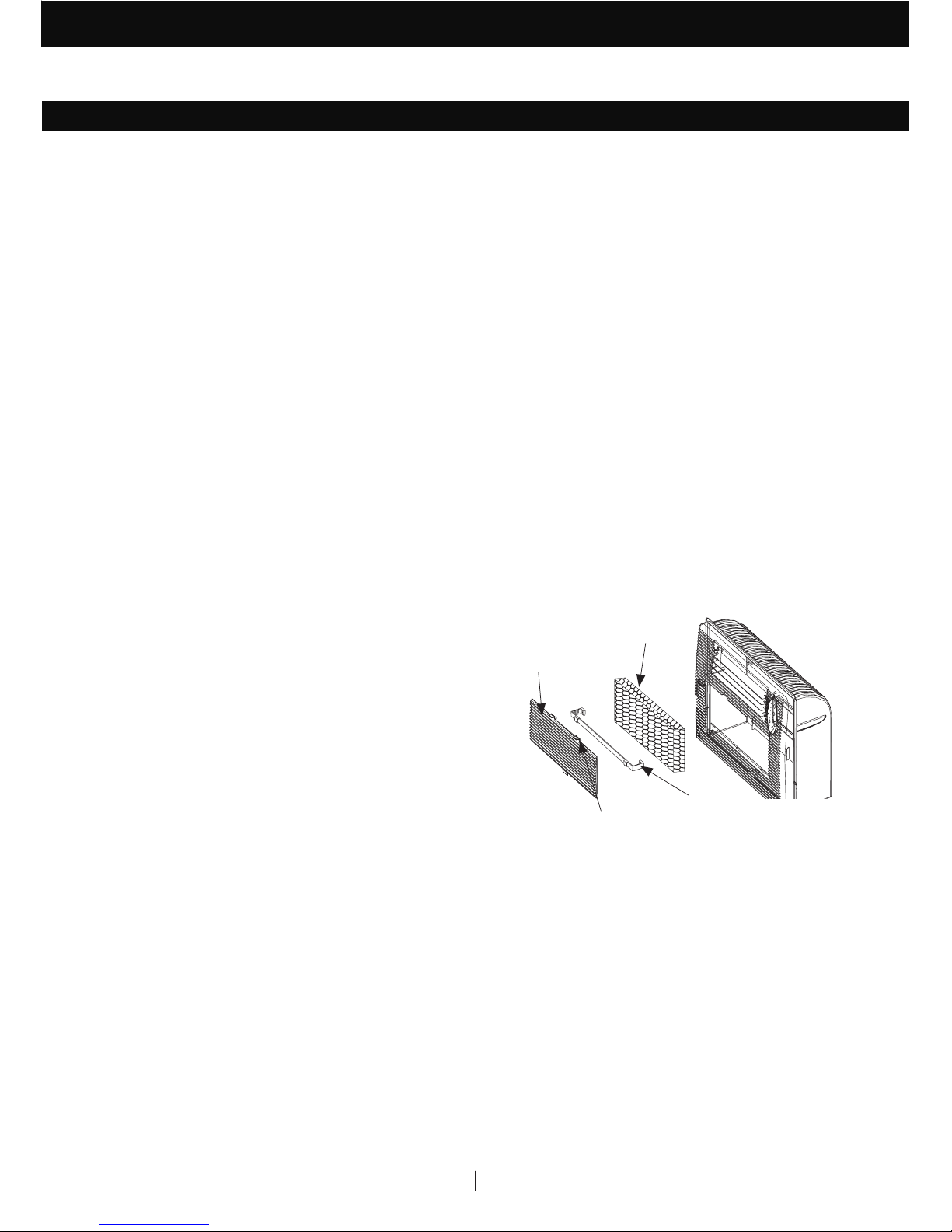

Removing the Honeycomb Cooling Media:

WARNING: DO NOT operate the Air Cooler when the

Front Grill or Honeycomb Cooling Media is removed

from the Air Cooler, or if there is a loose-ﬁtting Front

Grill or Honeycomb Cooling Media. Doing so can

cause serious injury or dangerous electrical shock.

Figure 1:

Rear Grill

Honeycomb

Cooling Media

Horizontal Bar

Latches

JMATEK Limited

Manulife Financial Centre,

Kwun Tong, Hong Kong

Phone: 85225595522

Email: [email protected]

Web: www.jmatek.com

Made in China

The Honeywell Trademark is used under license

from Honeywell International Inc.

Honeywell International Inc. makes no

representations or warranties with respect to this product.

This product is manufactured by Airtek Int'l Corp. Ltd.

(subsidiary of JMATEK Ltd.).
