Honeywell MN10CCS Manuel utilisateur

Model:

MN10CCS / MN10CHCS

MN12CCS / MN12CHCS

MN14CCS / MN14CHCS

Series

Customer Support:

Web: www.jmatek.com

USA: 1-800-474-2147 | [email protected]

CANADA^: 1-888-209-0999 | [email protected]

^ Canada Customer Support service available for models sold in Canada only.

Portable Air Conditioner

User Manual

Read and save these instructions before use

•

DO NOT operate the unit with a damaged plug or loose wall

outlet. If the supply cord is damaged, it must be replaced

by the manufacturer, its service agent or similarly qualiﬁed

persons in order to avoid a hazard.

DO NOT cover the air intake and exhaust when in use.

DO NOT place objects on or sit on the unit.

Always turn off and unplug the unit when cleaning or

servicing.

DO NOT use the appliance if it is damaged.

If service is needed contact an authorized service agent.

Unplug the unit when stored or not in use.

DO NOT pull or carry the appliance by the power cord.

DO NOT pinch the power cord in the door and DO NOT pull

it along edges or sharp corners.

DO NOT run the power cord under carpeting and rugs.

Use caution to prevent tripping on cord.

DO NOT use the device in the following cases:

- Near a ﬁre source

- In areas where gasoline, paint or other ﬂammable

goods are stored

- In an area where the water can be projected

DO NOT touch the plug or the device with wet hands.

Basic safety precautions should always be followed when

using electrical appliances.

SAFETY

READ AND SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND

KEEP FOR FUTURE REFERENCE. IN CASE THERE IS ANY

INCONSISTENCY OR CONFLICT BETWEEN THE ENGLISH

VERSION AND ANY OTHER LANGUAGE VERSION OF THE

CONTENT OF THIS MATERIAL, THE ENGLISH VERSION

SHALL PREVAIL.

WARNING:

SAFETY (CONTINUED)

This appliance has been manufactured for use in domestic

environments and should not be used for other purposes.

Only use the installation kit provided to install this unit.

DO NOT attempt to extend the Exhaust Hose or install

this unit using other methods other than that shown in

this manual. Improper installation will void any existing

warranties.

DO NOT use an extension cord with this unit.

This appliance can be used by children aged from 8 years

and above, and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the

hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by

children without supervision.

Never insert your ﬁngers or rods into the air outlet. Take

special care to warn children of these dangers.

The manufacturer is not liable for injury caused to

persons or property damage due to non-compliance

with maintenance instructions and improper use of the

appliance.

The appliance shall be installed in accordance with national

wiring regulations.

The appliance is not to be used by persons (including

children) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction.

Children should be supervised to ensure that they do not

play with the appliance.

•

THANK YOU

USER TIPS

Congratulations on your purchase of this Honeywell Portable Air Conditioner.

Regarding the information pertaining to the installation, handling, servicing, cleaning and disposal

of the appliance, please refer to the below paragraph of the manual.

Portable Air Conditioners are ideal for spot cooling. The compressor, condenser and evaporator are

housed in a compact unit. The air is dehumidiﬁed and cooled while a ﬂexible Exhaust Hose sends

heat outside. The air conditioner includes a window venting kit.

No permanent installation is needed. The unit is easy to move from room to room and offers a truly

ﬂexible air conditioning solution.

Auto Evaporation System - The unit automatically evaporates the condensate through the Exhaust

Hose. There is no need to empty the drainage tank except in humid conditions. Read and follow the

instructions carefully.

To ensure optimal efﬁciency of the product, keep doors and windows closed when it is used as an air

conditioner or dehumidiﬁer. If the product is being used with the fan function only, an open window

could improve air circulation.

Important:

Before installing the unit, place it UPRIGHT for 1 hour before use to allow the refrigerant to stabilize.

Manually adjust the air vent located at the top of the unit to adjust the direction of air ﬂow.

Follow installation instructions to set up the unit.

Plug the unit into a properly grounded circuit. DO NOT plug into an extension cord.

•

Cooling, Heating* and Dehumidifying

Operation Fan Operation

*Applicable for models with Heating feature only.

PARTS DESCRIPTION

910

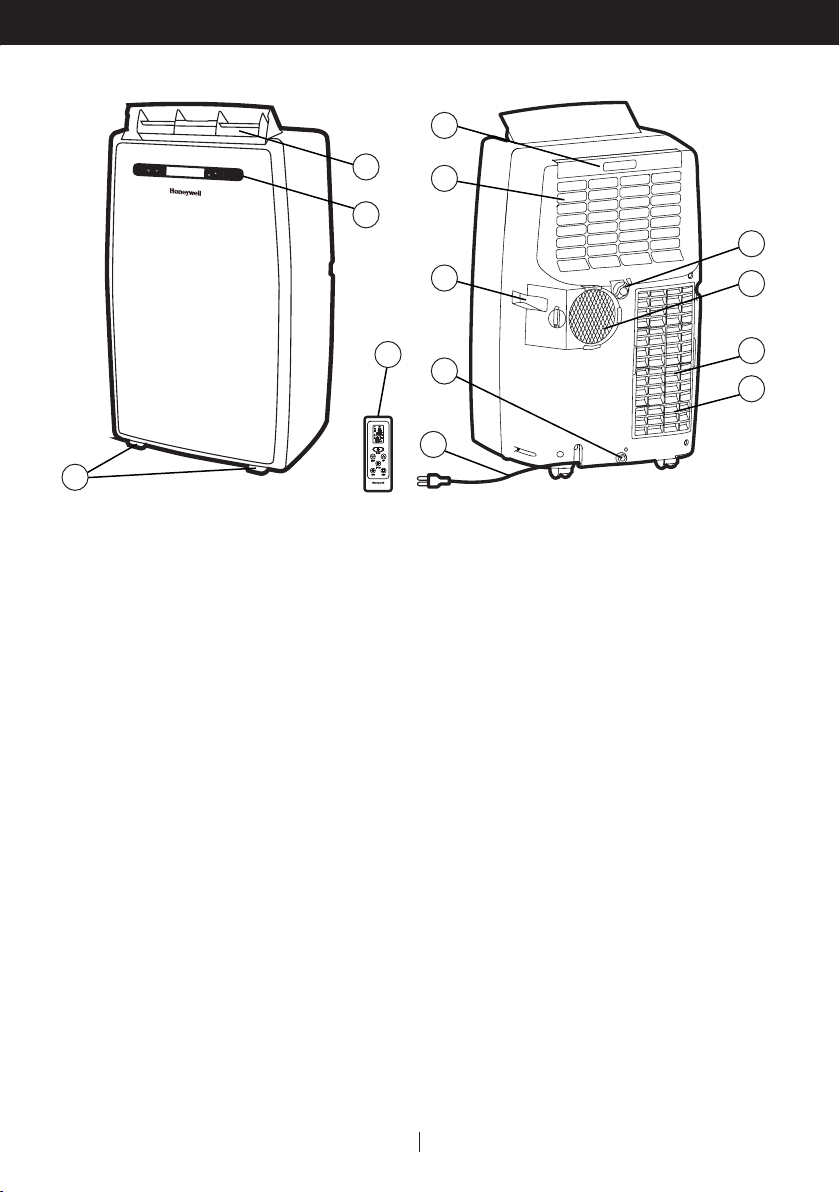

1) Control Panel

(Incl. Signal Receptor)

8) Power Supply Cord

2) Air Outlet 9) Remote Control

3) Handle 10) Lower Drain Plug with Plastic Cap

(Air Conditioning Mode)

4) Casters 11) Upper Drain Plug

(De-humidiﬁer Mode)

5) Upper Dust Filter 12) Lower Dust Filter

6) Upper Grill 13) Lower Grill

7) Exhaust Hose Connector

3EN

INSTALLATION

It is important that the installation instructions below are followed for successful installation of this

Portable Air Conditioner. Please call Customer Support if you have any difﬁculties or queries

regarding these installation procedures.

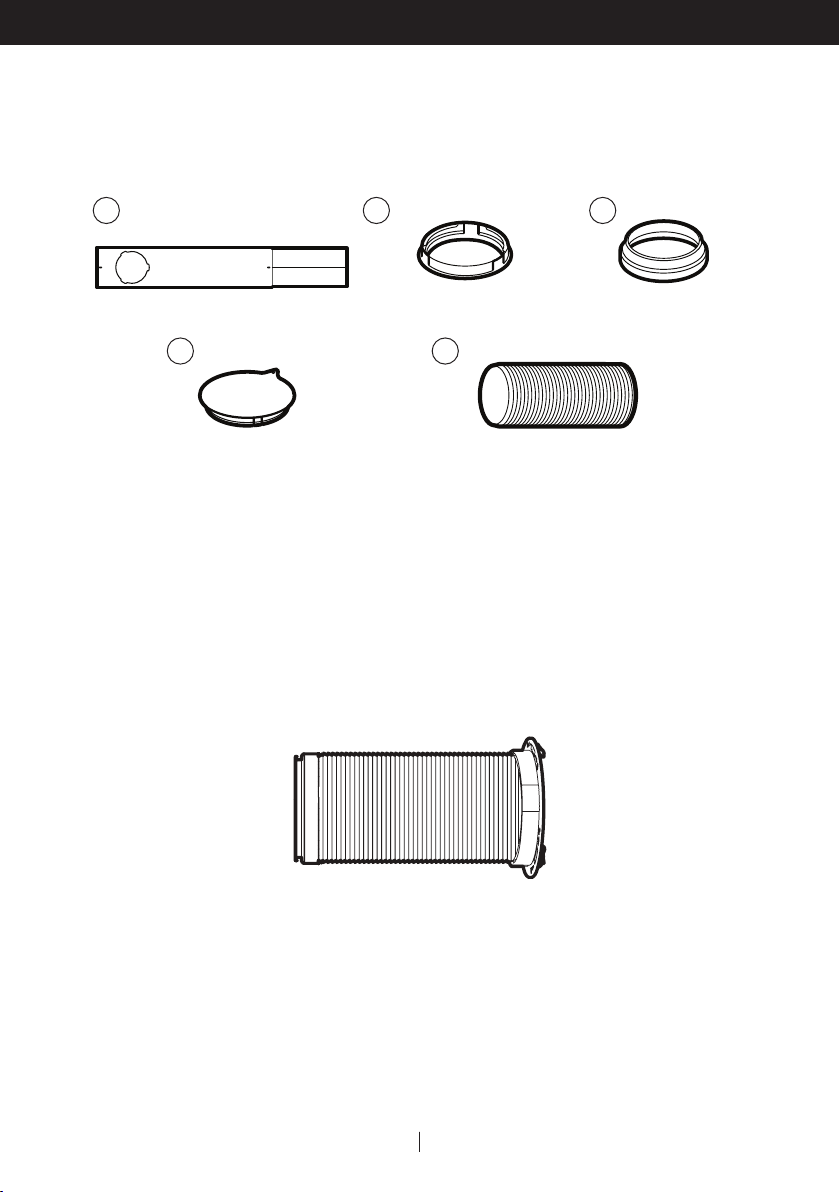

Installation Kit:

Installation Steps:

Exhaust Hose Connector, Exhaust Hose and window bracket panel adapter are pre-assembled

inside the package.

1. Window Bracket Kit (1 Set) 4. Hole Cover (1 Piece)

2. Window Bracket Panel Adapter (1 Piece) 5. Exhaust Hose (1 Piece)

3. Exhaust Hose Connector (1 Piece)

1 3

x1 x1

Hose:

Length: 12" to 47" (30 cm to 120 cm)

INSTALLATION (CONTINUED)

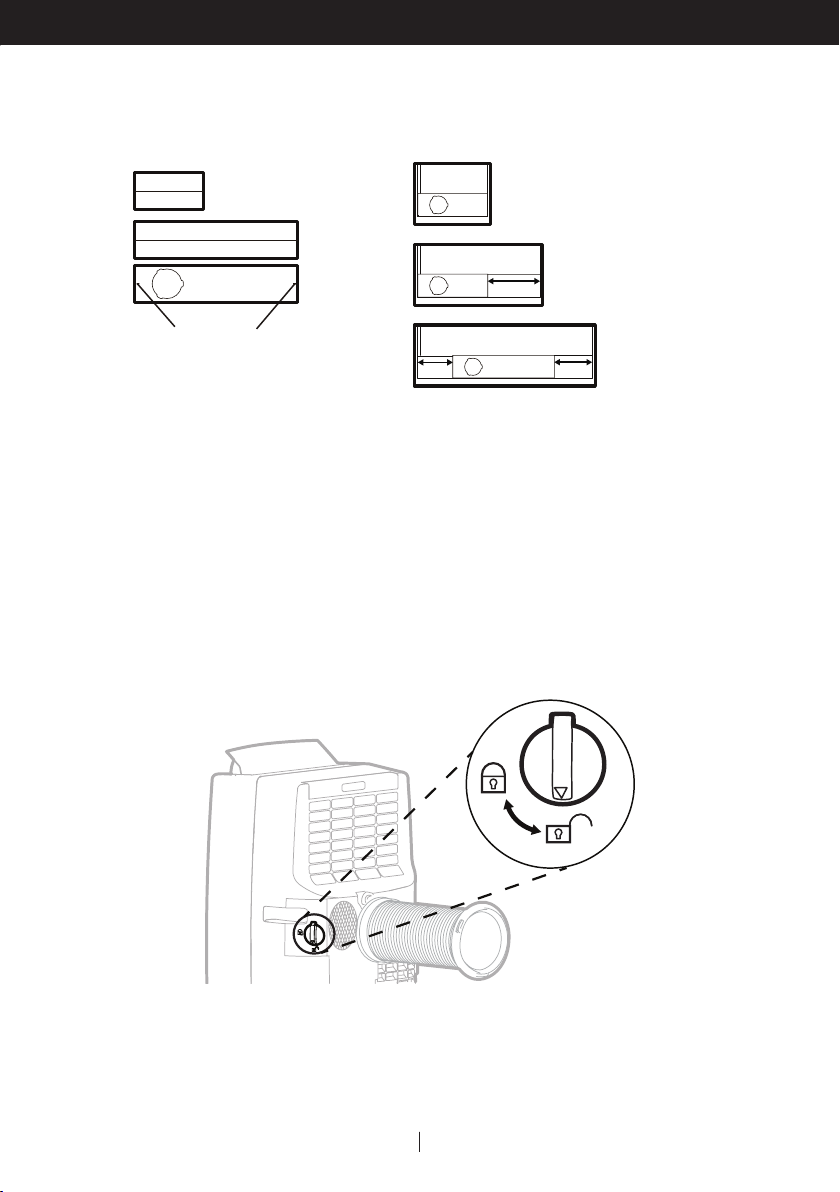

2. The Window Brackets allow you to install to windows and balcony doors of different heights or

width.

Adjustable Knobs

3. Connect the Exhaust Hose to the rear exhaust outlet on the back of the unit. Rotate clockwise to

ensure the knob mechanism is locked in place. Anticlockwise to unlock the knob mechanism.

Note: After setting the window bracket to the size of your window, please remove it from the window

and follow the instructions below.

To install the window bracket to the window frame, you need to adjust the height or width of the

window bracket by extending the length according to the height or width of the window. When the

length is set, tighten the Adjustable Knobs (preinstalled on the window bracket) to ensure the window

bracket is secured in the desired position. Use one or all three pieces of window bracket as needed.

19.7" (50 cm)

1 part

19.7" (50 cm) to

38.2" (97 cm)

2 parts

47.2" (1.2 m)

3 parts

5EN

INSTALLATION (CONTINUED)

4. Connect the window bracket to the window bracket panel adapter. Slide-in the window bracket

panel adapter then rotate clockwise until it is locked in place.

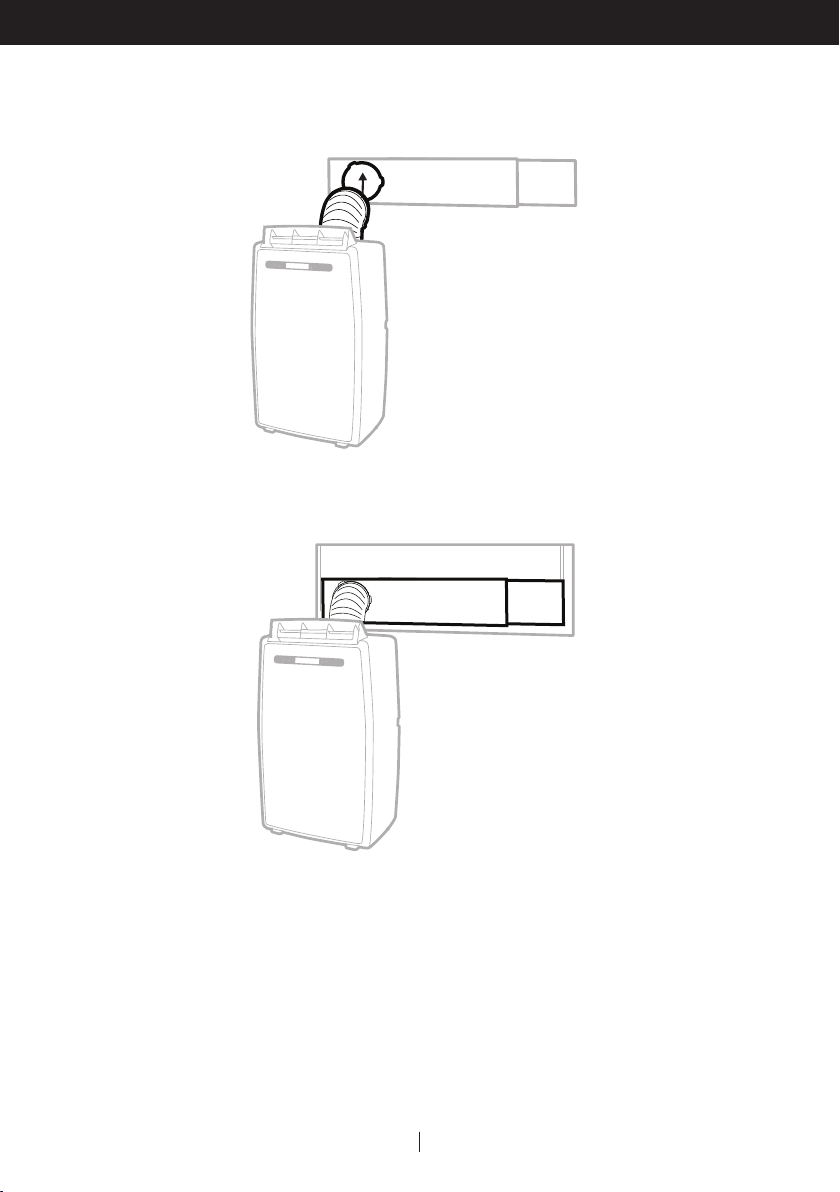

5. Connect the window bracket to the window.

6. The Portable Air Conditioner is now ready to use.

INSTALLATION (CONTINUED)

IMPORTANT: Do not replace or lengthen the Exhaust Hose as this could cause the unit to

malfunction.

The supplied Exhaust Hose has a diameter of 5" (12.7 cm) and can be extended from

12" to 47" (30 cm to 120 cm).

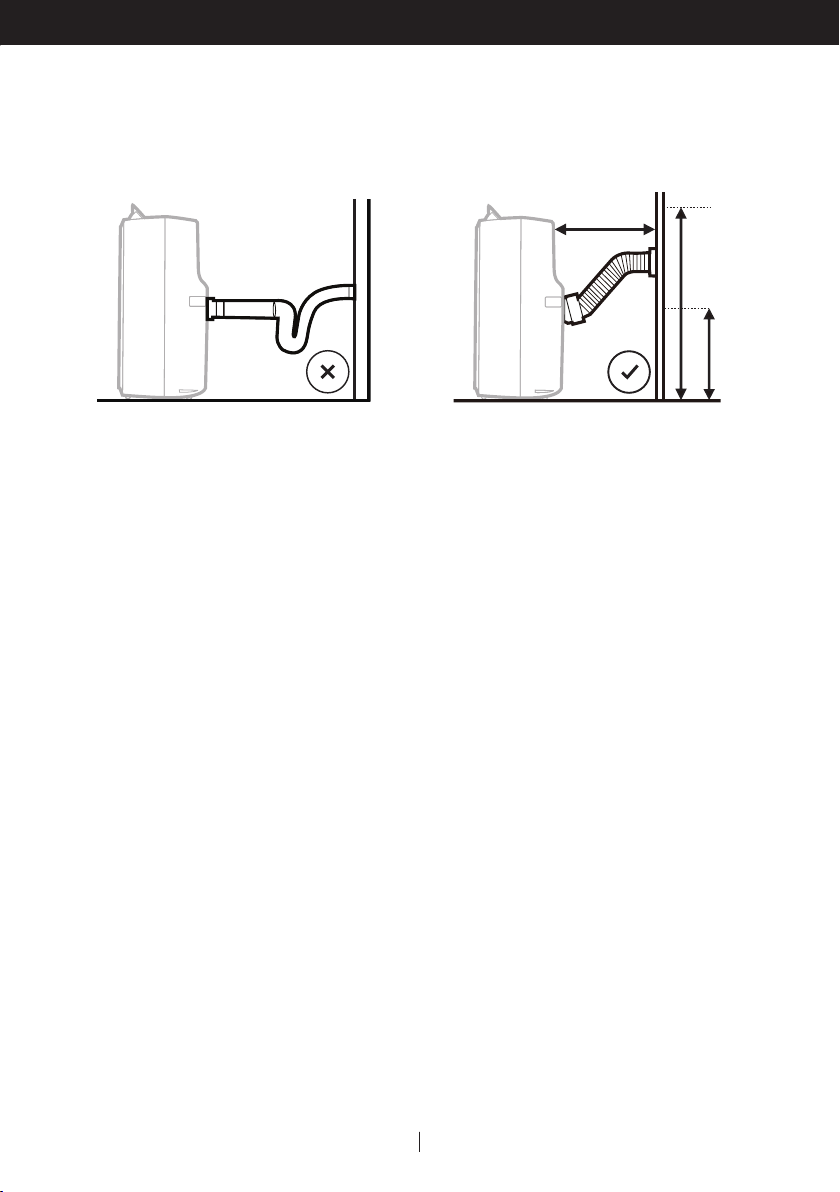

Do not bend (to the extent shown below) the Exhaust Hose. A bent hose will block exhaust air and

cause the unit to malfunction or shut-off.

Make sure the back of the unit is at least 20" (50 cm) away from the wall. Do not place the unit in

front of curtains or drapes as this could obstruct the airﬂow.

•

WARNING: Any warranties included with this product will be voided if an extra extension hose is

added to the originally provided installation kit or if the installation is performed differently than the

manufacturer's instructions, without proper consultation. Please contact Customer Support for help

with installation procedures if needed.

NOT RECOMMENDED RECOMMENDED

20" (50 cm)

MAX. 14" (36 cm)

MAX. 40" (102 cm)

MIN 35.6 cm

USE & OPERATION

CONTROL PANEL

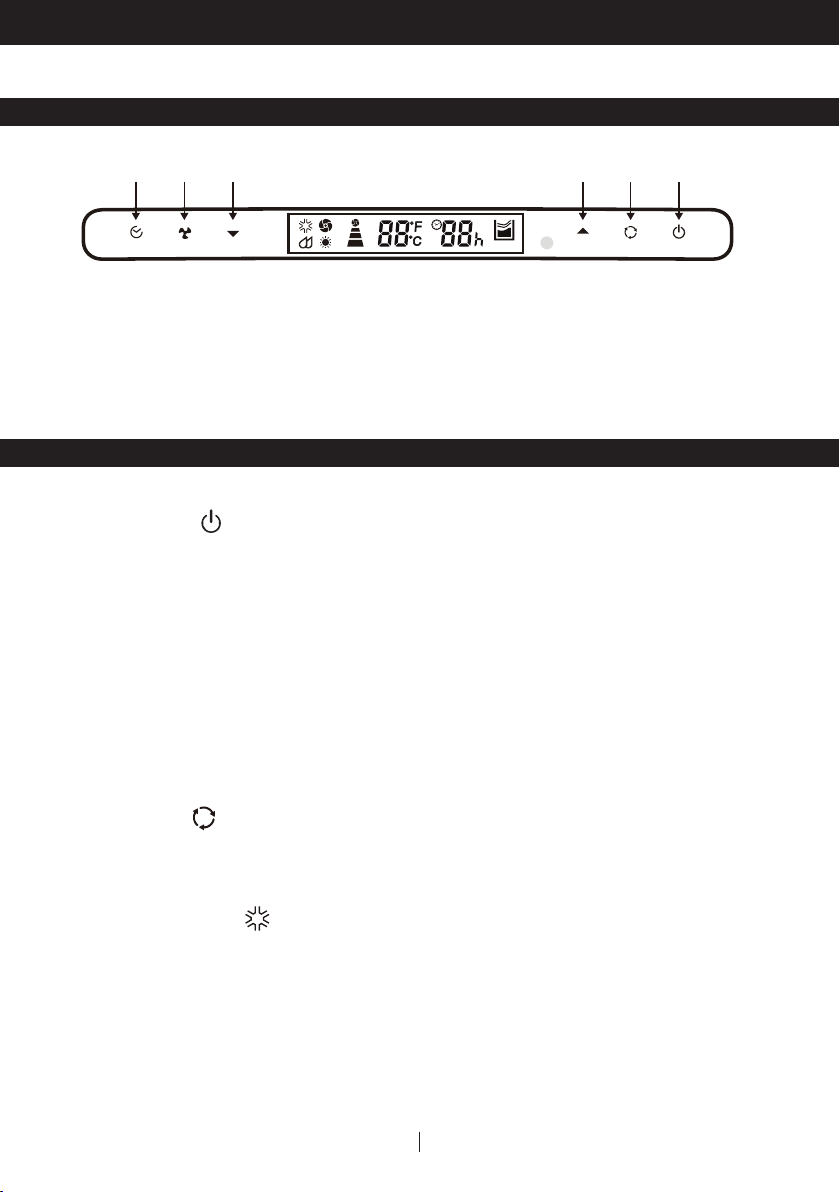

FUNCTION BUTTONS

1) Power Control / Standby Mode 4) Timer / Temperature Set Controls

2) Warning Light (when ﬂashing) 5) Fan Speed Control

3) Mode Control

(6) (5) (4) (4) (3) (1),(2)

The Power Control turns the unit on and off. When the unit is plugged in, this button lights up indicating it

is in a Standby Mode ready to be switched on anytime.

POWER CONTROL

Settings: Air Conditioning, Heating*, Dehumidifying, Fan.

The corresponding indicator light will illuminate to indicate the current mode setting.

MODE CONTROL

Air Conditioning Mode

Adjust fan speed and air temperature to suit your desired comfort level.

Temperature setting range is 16°C - 32°C (61°F - 89°F).

•

*Applicable for models with Heating feature only.

STOP

Condensation may accumulate in the unit.

If the internal tank becomes full, the Power Control light will ﬂash and the unit will not operate until

the unit has been drained (refer to Water Condensation Drainage).

After switching the air conditioner off, you must wait 3 minutes before switching it back on again.

WARNING LIGHT
