Honeywell R-CL201AE Manuel utilisateur

Portable Evaporative Air Cooler

User Manual (Refurbished)

Read and save these instructions before use

Model:

R-CL201AE/

R-CL201AEWW

1) Control Panel 6) Ice Compartment Lid

2) Handle 7) Water Level Indicator

3) Louvers 8) Remote Control

4) Power Cord & Plug 9) Water Fill Door

5) Casters 10) Drain Plug

PARTS DESCRIPTION

WARNING -- READ AND SAVE THE AIR COOLER SAFETY & MAINTENANCE GUIDE AND USER

MANUAL BEFORE USING THIS PRODUCT. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY

DAMAGE AND/ OR IMPAIR ITS OPERATION AND VOID THE WARRANTY. IN CASE THERE IS

ANY INCONSISTENCY OR CONFLICT BETWEEN THE ENGLISH VERSION AND ANY OTHER

LANGUAGE VERSION OF THE CONTENT OF THIS MATERIAL, THE ENGLISH VERSION SHALL

PREVAIL.

USE & OPERATION

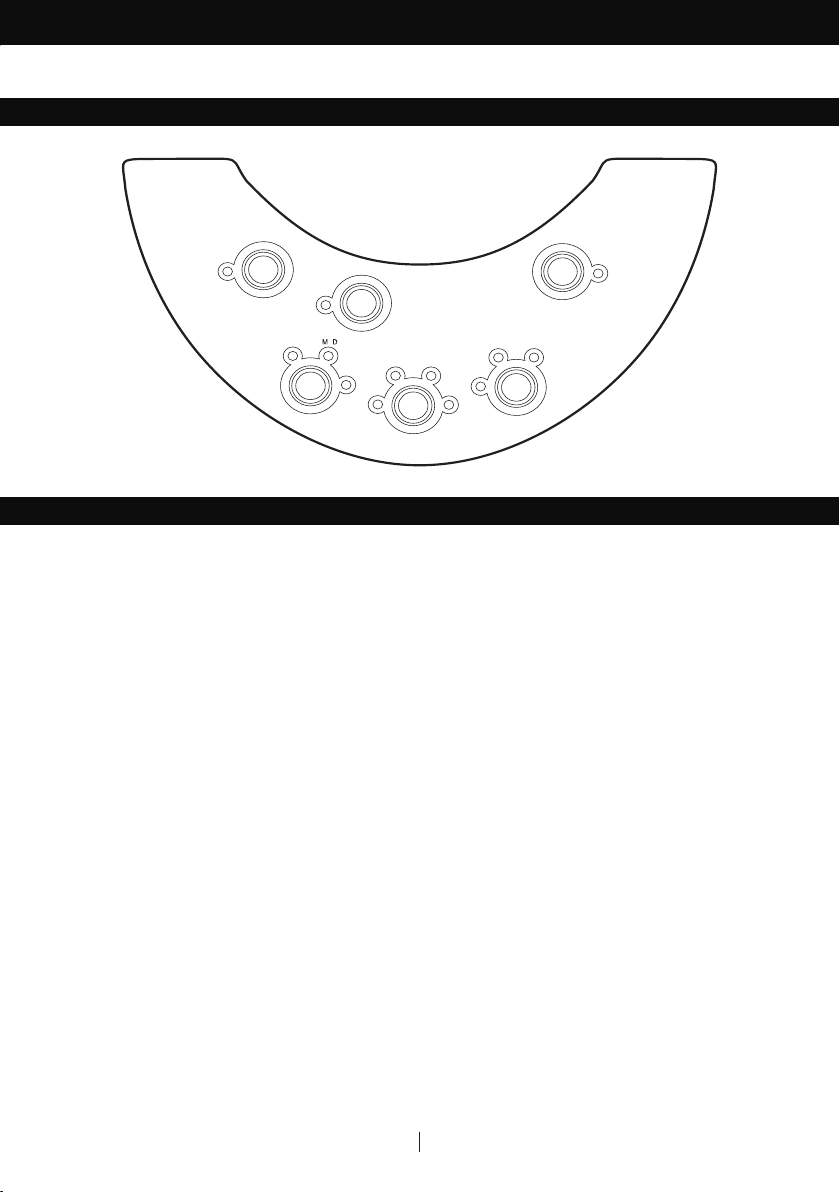

CONTROL PANEL

COOL

SWING POWER

SPEED

HIGH E

LOW

TIMER

1HR

2HR 4HR

8HR

MODE

NATURAL

NORMAL

SLEEP

FUNCTION BUTTONS

POWER

Press the POWER button to turn the unit on. The cooler will start automatically at medium speed.

After a few seconds the speed will switch to low. To turn the unit off, press the button again.

MODE

Press the MODE button to select your desired wind type: NORMAL - NATURAL - SLEEP.

NORMAL :You can select either High, Medium or Low fan speeds.

NATURAL The fan speed alternates between High, Medium, Low and Off to mimic a natural breeze.

SLEEP This mode is for comfort during the night. When the SLEEP mode is selected, the airﬂow

will randomly vary between High, Medium and Low.

SPEED

Press the SPEED button repeatedly to change the speed between High - Med - Low.

TIMER

Press the TIMER button until the desired time duration setting is selected. When the set time has

passed, the unit will automatically turn off (unit remains in Standby mode until power cord is

unplugged from electrical socket). The TIMER function allows you to program the unit for up to 8

hours of use.

USE & OPERATION (CONTINUED)

FUNCTION BUTTONS (CONTINUED)

In cooling mode, Honeywell Air Coolers provide cool, moist air through

the evaporation of water. There is a manual Water Regulator knob located

in the ice compartment of the unit. This allows you to adjust the amount

of water pumped over the Honeycomb Cooling Media, thus helping to

control cooling and humidiﬁcation levels.

When the Water Regulator is set to MIN, the water pump distributes a

minimal amount of water to the Honeycomb Cooling Media. This results in

less water evaporation and reduces the cooling effect.

When the Water Regulator is set to MAX, the water pump distributes the maximum amount of water

to the Honeycomb Cooling Media. This results in maximum water evaporation and greater cooling

performance.

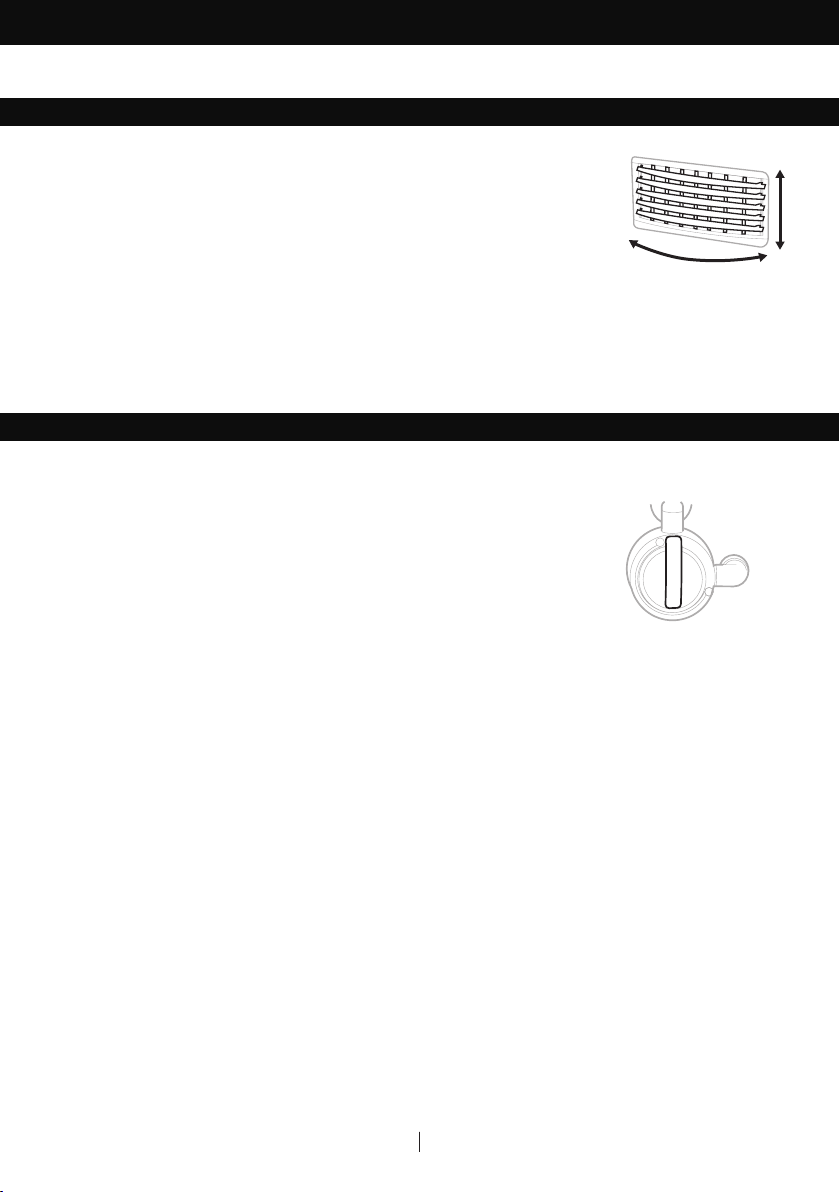

SWING

Press the SWING button until the SWING indicator light is illuminated on

the control panel. The louvers will begin to move left to right automatically.

Vertical Air Flow - You can manually adjust the louvers to change vertical

air ﬂow.

ROOM COOLING AND HUMIDIFYING

COOL

Press the COOL button until the COOL indicator light is illuminated on the control panel. This

activates evaporative cooling. The water pump will operate and you will feel the cooler air after the

Honeycomb Cooling Media is completely wet. When the COOL indicator light is switched OFF, the

unit can still function in a fan only mode (without evaporative cooling).

Water Regulator

MAX

MIN

Louver

Movement

USE & OPERATION (CONTINUED)

OPTIONAL REMOTE CONTROL

Make sure to position the air cooler correctly before you set up and start using the product. Please

refer to the COOLER LOCATION section of the separate Safety & Maintenance Guide.

COOLER LOCATION

NOTE:

TIMER

SPEED

COOL

MODE SWING

ON/OFF

•

Remotes are not a standard item included with your refurbished product.

The remote control requires AAA (2 x 1.5V) batteries for replacement.

Open the battery compartment at the back of the remote control and insert the batteries inside.

Care must be taken to insert the batteries according to the correct polarity (+ / –) markings

shown inside the battery compartment.

Always point the remote control signal transmitter towards the unit when operating. Make sure

that the signal path is not obstructed.

Remove the batteries if the unit is not going to be used for an extended period of time.

Do not drop the remote control.

Do not mix different types of batteries such as alkaline, carbon-zinc, or rechargeable batteries. Do

not mix old and new batteries. Do not recharge the battery.

Exhausted batteries are to be removed from the product and safely disposed of as per local

regulations.

Do not dispose of batteries in fire. Batteries may explode or leak.

WARNING: Caution for ingestion of the small battery. Keep away from children and animals.

POWER :

ON / OFF

Low / Medium / High

Controls cooling or fan option

Controls the motion of the louvers

Controls the Timer function for automatic off

Switch between Normal, Natural & Sleep

SPEED

COOL

TIMER

MODE

SWING

USE & OPERATION (CONTINUED)

CAUTION:

Unplug the unit from the electrical power outlet before emptying or

reﬁlling the water tank.

Open the Water Fill Door located on the side of the unit.

The Water Level Indicator is located at the front of the unit. Refill the

water tank when water level is low. Do not fill water above the "Max."

water level mark to avoid water droplets collecting on the louvers. Check

the water level in the tank before running the COOL function. Make

sure that the water in the tank is above the minimum water level mark.

Running the unit in COOL mode with inadequate water may cause

pump failure.

Note: If ice is available, you may add ice in the top ice compartment to

enhance the cooling performance.

Note: The water capacity refers to the total volume of water that can be

contained within the air cooler water tank and water distribution system.

The water capacity in the tank at the “Max.” indicator level may be lower

than the actual water capacity of the air cooler.

WARNING: Do not fill water tank with dirty water or salt water. This can

damage the unit and Honeycomb media.

FILLING WITH WATER

Ice Compartment

Water

Fill Door

USE & OPERATION (CONTINUED)

LOW WATER ALARM*

CLEANING & DRAINING THE WATER TANK

If the cooler will not be used for a long period of time, please refer to the STORAGE & MAINTENANCE

GUIDELINES located in the separate Safety & Maintenance Guide.

WARNING:

Before cleaning the unit, switch the unit OFF and disconnect from the electrical socket.

The unit is equipped with a low water sensor. In Cooling Mode, when water in the tank is below the

minimum level, you will hear a beeping sound and the indicator light will ﬂash continuously. The unit

will automatically pause evaporative cooling.

Reﬁll the water tank to deactivate the alarm in cooling mode. First switch OFF the unit and unplug

from the power outlet. Fill the water tank with water above the minimum water level mark. Plug in and

switch ON again.

To deactivate the alarm and continue using the unit as a fan (without evaporative cooling), switch the

unit OFF and then ON again. The Low Water Alarm will not activate in Fan only mode. The Low Water

Alarm will sound again if the COOL function is activated while the water tank is still empty.

*Applicable for models this feature only.

Move the unit to a location where the water can be drained. Remove the cap from the Drain plug

located at the bottom of the unit. Allow the tank to empty.

Reﬁll the water tank with clean water, up to the maximum level and drain it completely.

Use a damp cloth to remove the dirt and dust from the surface of the unit. Never use corrosive

elements or chemicals to clean this product.

When the product is not in use, store the unit in a dry place out of direct sunlight.

•

USE & OPERATION (CONTINUED)

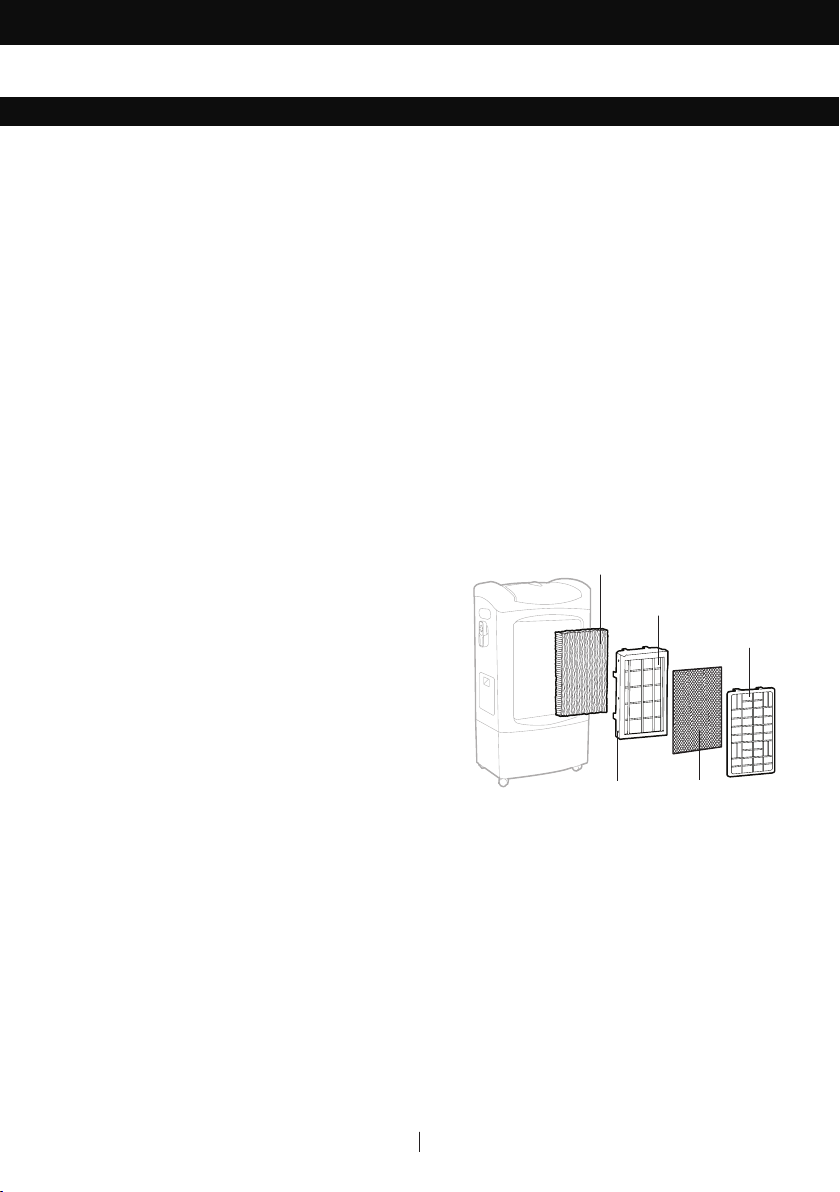

CLEANING THE CARBON DUST FILTER* AND HONEYCOMB COOLING MEDIA

The appliance is supplied with a Carbon Dust Filter* and Honeycomb Cooling Media.

The Carbon Dust Filter* and Honeycomb Cooling Media are located inside the Rear Grill. See Figure 1

for instructions on how to remove them from the unit for cleaning and maintenance.

Do not run the unit in COOL mode with stale water in the tank. You must empty the water tank and

reﬁll with fresh water, especially if the tank has not been cleaned in a long time.

The cleaning frequency for the Honeycomb media depends on local air and water conditions.

In areas where the mineral content of water is high, mineral deposits may build up on the

Honeycomb Cooling Media and restrict air ﬂow. Draining the water tank and reﬁlling with fresh

water at least once a week will help reduce mineral deposits. If mineral deposits remain on the

Honeycomb Cooling Media, the media should be removed and washed under fresh water. The

media should be cleaned every two months or sooner, depending on your needs.

For best results allow the Honeycomb Cooling Media to dry after each use by turning off the cool

function 15 minutes before turning the unit off.

•

Carefully push down and pull out the rear grill from

the cooler.

Pull out the Carbon Dust Filter* and clean with

water as needed.

Remove all the screws from the Rear Frame and

carefully pull it off the air cooler.

To release the Honeycomb Media, remove the

screws securing the Honeycomb on the Rear Frame

and slide the Honeycomb out of the frame.

Replace or clean media with water and a damp

cloth as needed.

Removing the Carbon Dust Filter*/ Honeycomb Cooling Media:

WARNING: DO NOT operate the Air Cooler when

the Rear Grill or Rear Frame is removed from the Air

Cooler, or if there is a loose-fitting Rear Grill or Rear

Frame. Doing so can cause serious injury or dangerous

electrical shock.

*Applicable for models with Carbon Dust Filter only.

Honeycomb

Cooling Media

Carbon Dust

Filter

Screws

Rear Grill

Figure 1:

Rear Frame
