Honeywell TC30PCE Manuel utilisateur

Portable Evaporative Air Cooler

User Manual

Read and save these instructions before use

Model:

TC30PE/ TC30PCE/

TC30PEU/ TC50PE/

TC50PCE/ TC50PEU

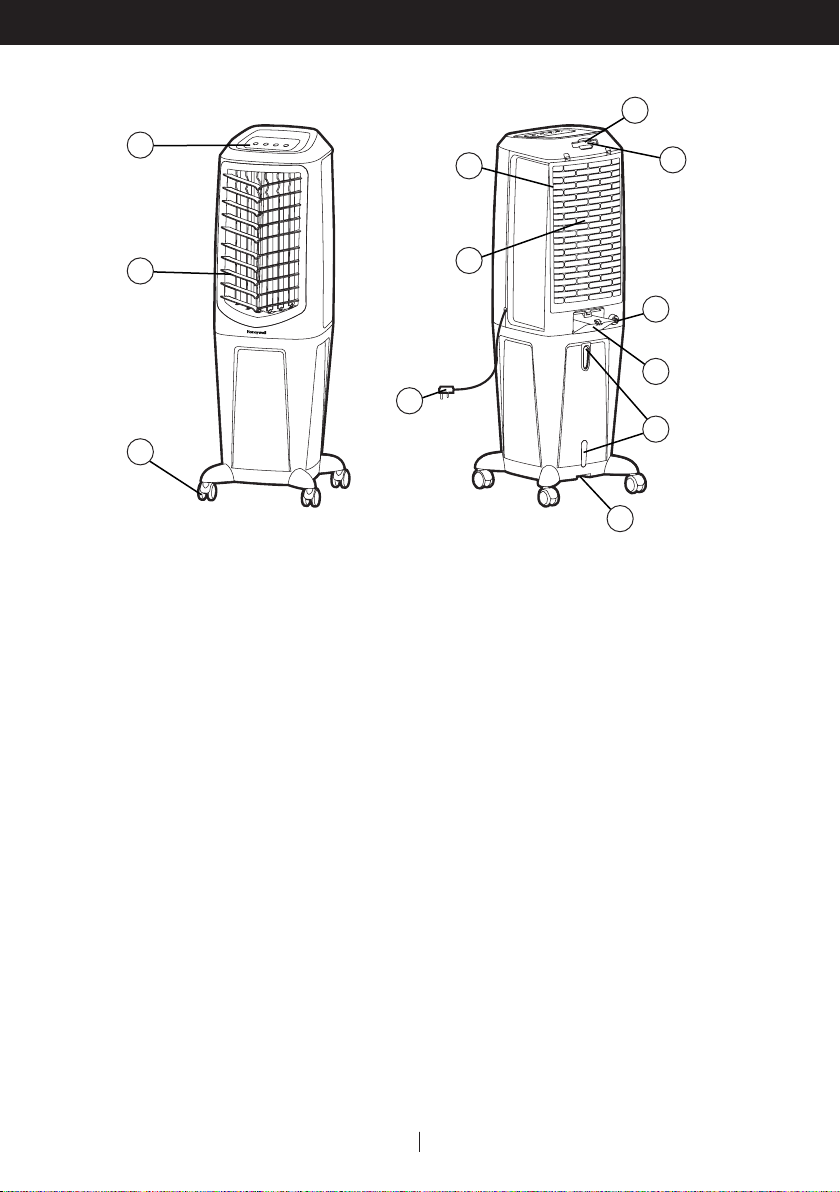

PARTS DESCRIPTION

1) Control Panel 7) Rear Grill & Mesh Filter

2) Louvers 8) Honeycomb Cooling Media

3) Water Level Indicator 9) Water Fill Door

4) Casters 10) Power Cord & Plug

5) Handle & Remote Control

Storage

11) Drain Plug

6) Remote Control 12) Water Inlet Valve*

*Applicable for models with Water Inlet Valve only.

WARNING -- READ AND SAVE THE AIR COOLER SAFETY & MAINTENANCE GUIDE AND USER

MANUAL BEFORE USING THIS PRODUCT. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY

DAMAGE AND/ OR IMPAIR ITS OPERATION AND VOID THE WARRANTY. IN CASE THERE IS

ANY INCONSISTENCY OR CONFLICT BETWEEN THE ENGLISH VERSION AND ANY OTHER

LANGUAGE VERSION OF THE CONTENT OF THIS MATERIAL, THE ENGLISH VERSION SHALL

PREVAIL.

USE & OPERATION

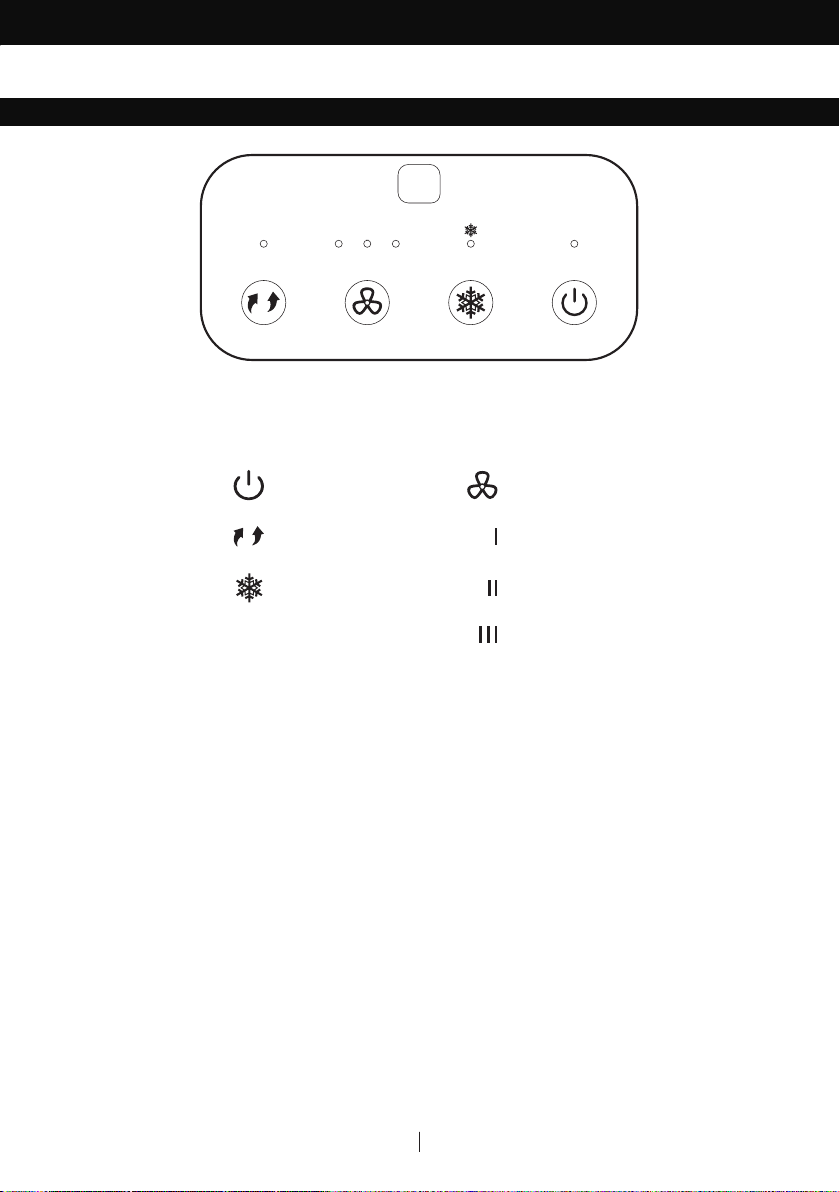

CONTROL PANEL

Icons on Display Screen

Swing

Power

Cool

Speed

= Low

= Medium

= High

I II III

USE & OPERATION (CONTINUED)

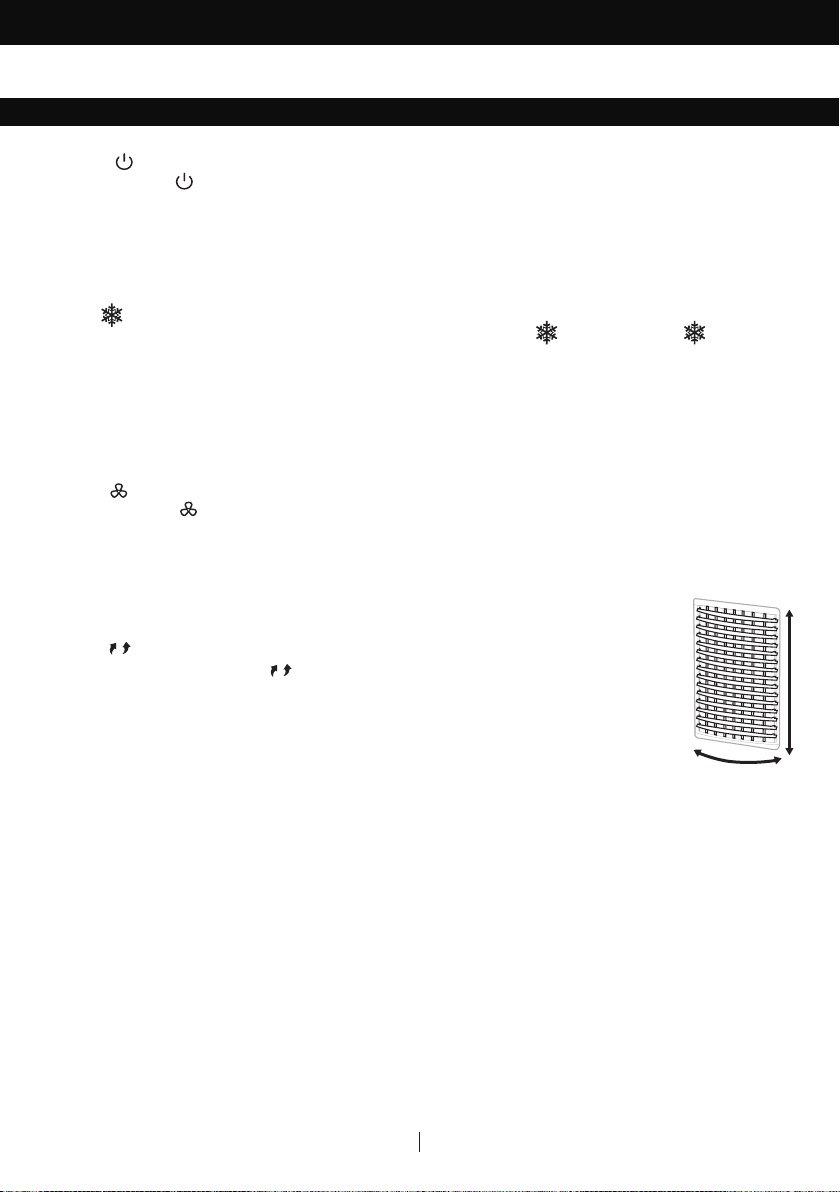

FUNCTION BUTTONS

POWER

Press the button to turn the unit on. The cooler will start automatically at medium speed. After a

few seconds the speed will switch to low. To turn the unit off, press the button again.

SWING

Press the SWING button until is illuminated on the display. The louvers will

begin to move left to right automatically. You can manually adjust the louvers

to change vertical air ﬂow.

SPEED

Press the SPEED button repeatedly to change the speed between | - || - |||.

The indicator light will show the selected speed.

COOL

You must add water before operating the unit in Cool mode. Press the button until

is illuminated on the display screen. The water pump will operate and you will feel the cooler air after

the Honeycomb Cooling Media is completely wet.

Louver

Movement

USE & OPERATION (CONTINUED)

REMOTE CONTROL

POWER :

ON / OFF

Low / Medium / High

Evaporative Cooling ON / OFF

Controls the motion of the louvers

SPEED

COOL

SWING

NOTE:

•

The remote control requires a CR2025 (1 x 3V) coin type or equivalent battery for replacement.

Open the battery compartment at the back of the remote control and insert the battery inside.

Care must be taken to insert the batteries according to the correct polarity (+ / –) markings

shown inside the battery compartment.

Always point the remote control signal transmitter towards the unit when operating. Make sure

that the signal path is not obstructed.

Remove the batteries if the unit is not going to be used for an extended period of time.

Do not drop the remote control.

Do not mix different types of batteries such as alkaline, carbon-zinc, or rechargeable batteries.

Do not mix old and new batteries.

Do not recharge the battery.

Exhausted batteries are to be removed from the product and safely disposed of as per

local regulations.

Do not dispose of batteries in ﬁre. Batteries may explode or leak.

This product contains a lithium button/coin cell battery. If a new or used lithium button/ coin

cell battery is swallowed or enters the body, it can cause severe internal burns and can lead to

death in as little as 2 hours. Always completely secure the battery compartment. If the battery

compartment does not close securely, stop using the product, remove the batteries, and keep it

away from children. If you think batteries might have been swallowed or placed inside any part of

the body, seek immediate medical attention.

The batteries shall be disposed of properly, including keeping them away from children.

Even used batteries may cause injury.

WARNING: Chemical Burn Hazard. Keep batteries away from children.

It is ideal to use the Continuous Water Supply* Connection to run the unit for long periods of time

without refilling the tank. This also helps prevent pump failure in case the cooler is running with

inadequate water in the tank.

CAUTION: Unplug the unit from the electrical socket before emptying or refilling the water tank.

Open the Water Fill Door located on the back of the unit.

Continuous Water Supply Connection*:

For a continuous water supply, you will need a garden hose that is connected to a mains water supply.

Note: The garden hose is not included. Please make use of a garden hose which is compatible with

the unit connection.

USE & OPERATION (CONTINUED)

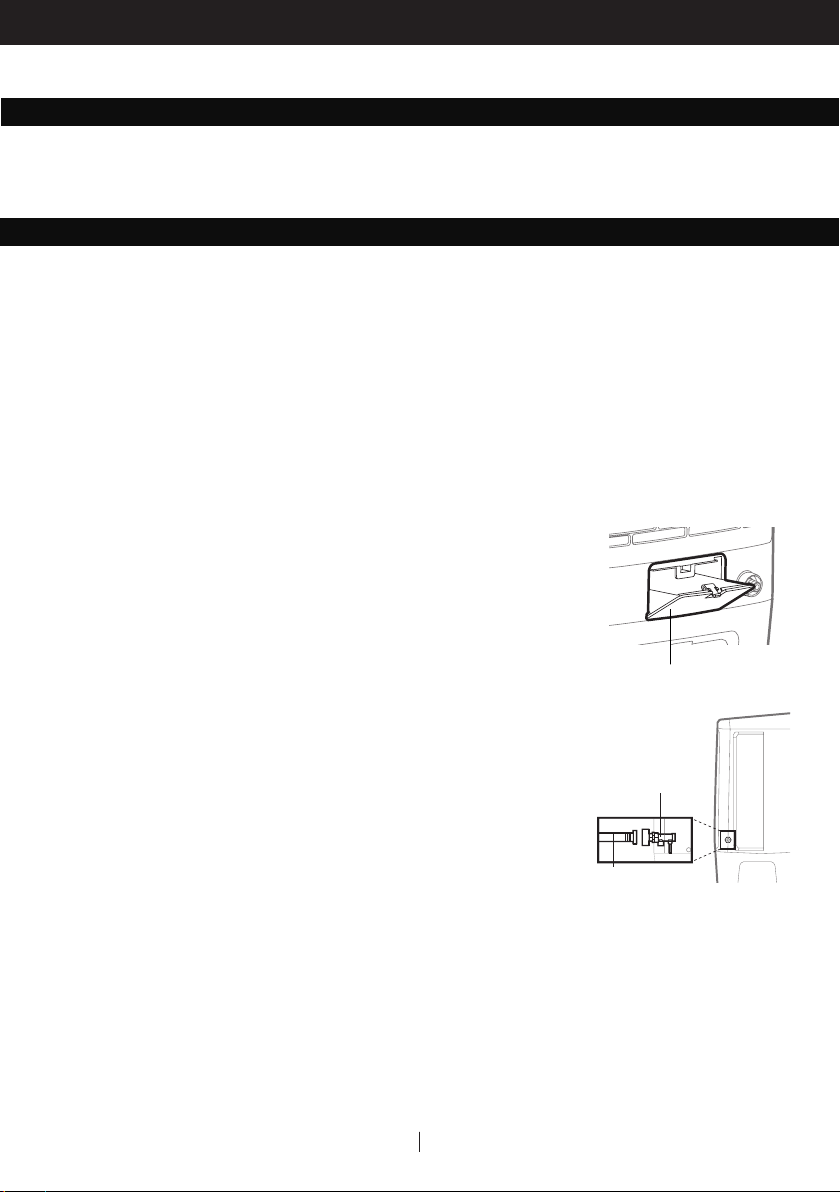

FILLING WITH WATER

Water Fill Door

Locate the male connector at one end of the garden hose. Insert the

garden hose connector into the water inlet valve of the cooler. Screw

and tighten the water inlet valve onto the threaded part of the garden

hose connector, making sure the hose connector is secured to ensure

there will be no leaks. If there is a leakage, the hose and the water inlet

valve may not be connected properly. Try to disconnect, replace and

tighten the water inlet valve again.

When the connection is secured, turn ON the water supply and

the water will ﬂow into the water tank of the cooler.

The cooler is now set so the water reﬁlls automatically.

When the water tank is full of water, the water inlet valve will

auto-matically stop the water supply from overﬂowing the water tank.

WARNING: The maximum water inlet pressure is 0.5 MPa.

•

Water Inlet Valve

Garden Hose

*Applicable for models with Water Inlet Valve only.

Make sure to position the air cooler correctly before you set up and start using the product. Please

refer to the COOLER LOCATION section of the separate Safety & Maintenance Guide.

COOLER LOCATION

6EN

USE & OPERATION (CONTINUED)

FILLING WITH WATER (CONTINUED)

The Water Level Indicator is located at the back of the unit. Reﬁll the water tank when water level

is low. Do not ﬁll water above the "Max." water level mark to avoid water droplets collecting on the

louvers. Check the water level in the tank before running the COOL function. Make sure there is water

in the tank by using the continuous water supply connection or by ﬁlling the tank up to the maximum

indicator level. Running the unit in COOL mode with inadequate water may cause pump failure.

Note: The water capacity refers to the total volume of water that can be contained within the air

cooler water tank and water distribution system. The water capacity in the tank at the “Max.” indicator

level may be lower than the actual water capacity of the air cooler.

WARNING: Do not fill water tank with dirty water or salt water. This can damage the unit and

Honeycomb media.

7EN

Below are instructions on how to clean and maintain your air cooler. If the cooler will not be used for

a long period of time, please refer to the STORAGE & MAINTENANCE GUIDELINES located in the

separate Safety & Maintenance Guide.

WARNING:

Before cleaning the unit, power OFF the unit and disconnect from the electrical socket.

CLEANING & DRAINING THE WATER TANK

• Move the unit to a location where the water can be drained. Remove the cap from the drain plug

located at the bottom of the unit. Allow the tank to empty.

• Refill the water tank with clean water, up to the maximum level and drain it completely.

• Use a damp cloth to remove the dirt and dust from the surface of the unit. Never use corrosive

elements or chemicals to clean this product.

• When the product is not in use, store the unit in a dry place out of direct sunlight.

USE & OPERATION (CONTINUED)

LOW WATER ALARM*

The unit is equipped with a low water sensor. In Cooling Mode, when water in the tank is below the

minimum level, you will hear a beeping sound and the indicator light will ﬂash continuously. The unit

will automatically pause evaporative cooling.

Reﬁll the water tank to deactivate the alarm in cooling mode. First switch OFF the unit and unplug

from the power outlet. Fill the water tank with water above the minimum water level mark. Plug in and

switch ON again.

To deactivate the alarm and continue using the unit as a fan (without evaporative cooling), switch the

unit OFF and then ON again. The Low Water Alarm will not activate in Fan only mode. The Low Water

Alarm will sound again if the COOL function is activated while the water tank is still empty.

*Applicable for models this feature only.

USE & OPERATION (CONTINUED)

WARNING:

Before cleaning the unit, switch the unit OFF and disconnect the power adapter from the unit and

electrical socket.

CLEANING THE MESH FILTER AND HONEYCOMB COOLING MEDIA

The appliance is supplied with a Mesh Filter and Honeycomb Cooling Media.

The Mesh Filter and Honeycomb Cooling Media are located inside the Rear Grill. See Figure 1 for

instructions on how to remove them from the unit for cleaning and maintenance.

Do not run the unit in COOL mode with stale water in the tank. You must empty the water tank

and reﬁll with fresh water, especially if the tank has not been cleaned in a long time.

The cleaning frequency for the Honeycomb media depends on local air and water conditions.

In areas where the mineral content of water is high, mineral deposits may build up on the

Honeycomb Cooling Media and restrict air ﬂow. Draining the water tank and reﬁlling with fresh

water at least once a week will help reduce mineral deposits. If mineral deposits remain on the

Honeycomb Cooling Media, the media should be removed and washed under fresh water. The

media should be cleaned every two months or sooner, depending on your needs.

For best results allow the Honeycomb Cooling Media to dry after each use by turning off the cool

function 15 minutes before turning the unit off.

•

Carefully pull out the rear grill / mesh ﬁlter from the

cooler.

Rinse the rear grill / mesh ﬁlter with clean water and let

it dry before re-installing to the unit.

Carefully pull out the Honeycomb Media.

Replace or clean media with water and a damp cloth

as needed.

WARNING: DO NOT operate the Air Cooler when the

Rear Grill is removed from the Air Cooler, or if there is a

loose-ﬁtting Rear Grill. Doing so can cause serious

injury or dangerous electrical shock.

Removing the Mesh Filter and Honeycomb Cooling Media:

Figure 1:

Honeycomb Cooling Media

Rear Grill/

Mesh Filter

JMATEK Limited

Rykadan Capital Tower,

Kwun Tong, Hong Kong

Email: [email protected]

Web: www.jmatek.com

Made in China

The Honeywell Trademark is used under license

from Honeywell International Inc.

Honeywell International Inc. makes no

representations or warranties with respect to this product.

This product is manufactured by Airtek Int'l Corp. Ltd.

(subsidiary of JMATEK Ltd.).
