Honeywell CL25AE Manuel utilisateur

OWNER’S MANUAL

Read and save these instructions before use

使用者操作手冊

在使用該產品前請詳讀本操作手冊

Model: CL25AE

機型: CL25AE

Power rating: 235 Watts

Voltage rating: 110 Volt AC, 60Hz

消耗功率:235 Watts

使用電壓:110 Volt AC, 60Hz

For product inquiries or support, visit www.honeywellaircoolers.com

有關產品查詢及資訊，請上www.honeywellaircoolers.com網站

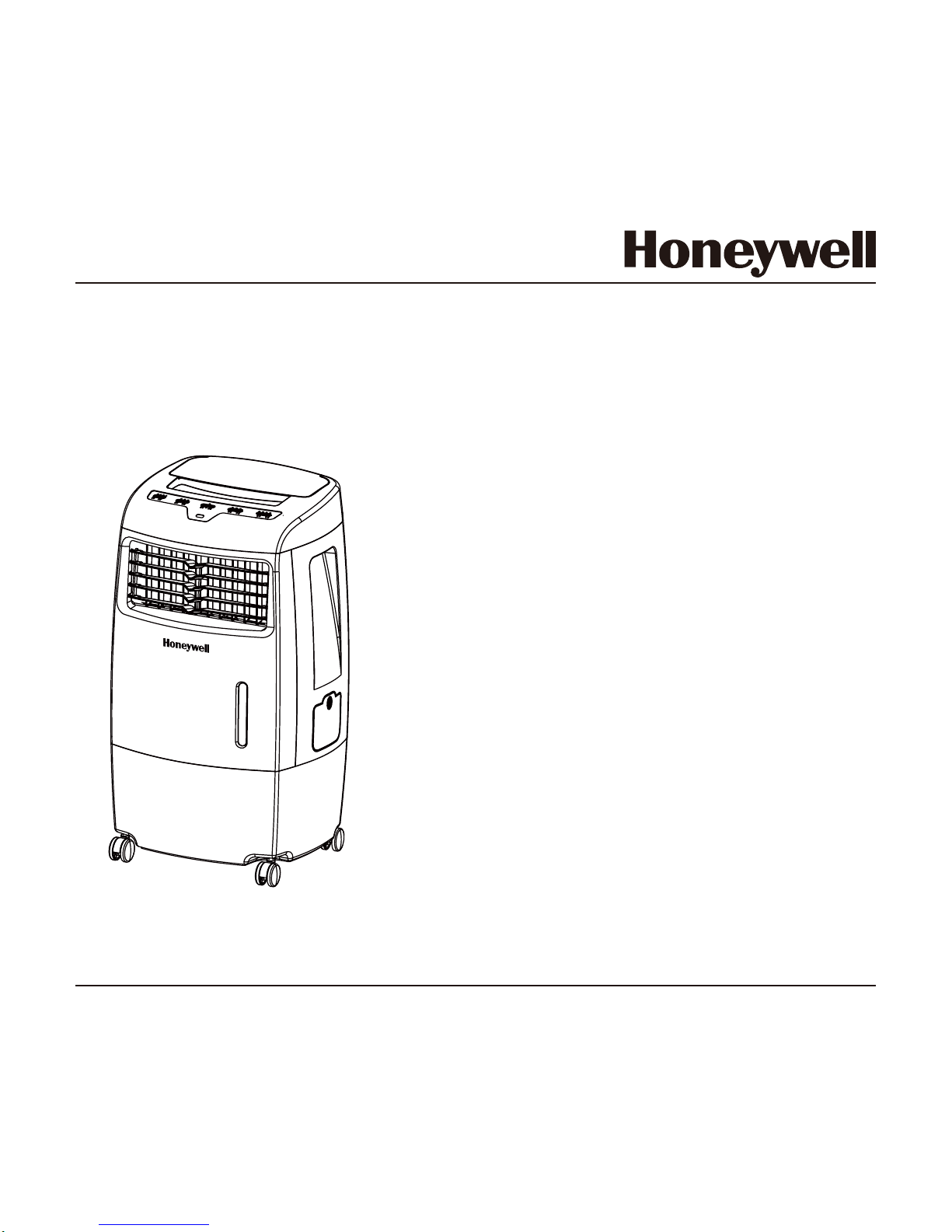

Portable Evaporative Air Cooler

for Indoor Use

移動式冷卻器(水冷器)

建議室內使用

Customer Support: 0800-888-753

消費者服務:0800-888-753

Made in P.R.C.

中國製造

QUICK START GUIDE

Fill with water and plug into a standard

power outlet.

Place near an open door or window.

Note : Evaporative air cooler requires cross ventilation.

Turn ON and enjoy the cooling breeze.

Note: Start with LOW speed and gradually increase

to higher speed for optimum cooling performance.

Note: Please make sure the household power voltage

matches the product specifications.

快速入門指引

請於水箱中加入乾淨的水，並插入標準的電源

插座後使用本設備。

使用本設備儘可能在一個寬敞的空間或靠近

門窗邊使用。

注意：本移動式冷卻器(水冷器)需要考慮室內空氣的循環

及交換。

啟動本設備的開關，並享受清涼的微風。

注意：開始請由低速逐步提高到更高的速度，以獲得最佳

的散熱性能。

注意：請詳閱產品規格及確認輸入電壓是正確的。

SECTION PAGE

1. THANK YOU .........................................................................................................

2. USER TIPS ...........................................................................................................

3. SAFETY ................................................................................................................

4. PARTS DESCRIPTION .........................................................................................

5. USE & OPERATION .............................................................................................

Control Panel ....................................................................................................

Function Buttons ................................................................................................

6. CLEANING & MAINTENANCE .............................................................................

7. TROUBLESHOOTING GUIDE .............................................................................

8. TECHNICAL SPECIFICATIONS ...........................................................................

9. ELECTRICAL WIRING DIAGRAM ........................................................................

Remote Control .................................................................................................. 11

Room Cooling And Humidifying ........................................................................... 12

Filling With Water ............................................................................................... 13

INDEX

Read all instructions carefully before setting up and operating the cooler, and

please keep this instruction manual for future reference. This manual is designed to

provide you with important information needed to setup, operate, maintain, and

troubleshoot your cooler. Failure to follow these instructions may damage and/or

impair its operation and void the warranty.

章節頁數

1. 感謝您購買本產品 .................................................................................................

2. 使用提示 ...............................................................................................................

3. 安全 ......................................................................................................................

4. 零件及部品 ..............................................................................................................

5. 使用及操作 ............................................................................................................

控制面板 ...........................................................................................................

功能鍵 ..............................................................................................................

6. 清潔及維護 ............................................................................................................

7. 疑難問題排除 .........................................................................................................

8. 技術規格 ................................................................................................................

9. 電路圖 ....................................................................................................................

遙控器 ............................................................................................................... 11

室內冷房及濕度 ................................................................................................. 12

注水 ................................................................................................................. 13

使用本設備之前請詳閱所有說明，並妥善保管此說明書，以備將來參考。本操作手冊

將為您提供所需的重要說明，包括操作、維護及故障排除等…若未參照本說明使用，

可能導致的損壞或損害其操作，將不在保固維修範圍內。

THANK YOU

Congratulations on your purchase of this versatile Honeywell Evaporative Air Cooler.

For optimum cooling from your cooler, fill the water tank to maximum level and load

ice inside the ice compartment before you turn on your air cooler.

Cooler Location (Important - Please Read!)

Place the cooler in front of an open door or window. Ensure that there is adequate

cross - ventilation in the room by leaving a door or window open opposite the cooler.

Following these guideline will ensure your cooler will work as effectively as possible.

Not an Air Conditioner (Important - Please Read!)

The evaporative air cooler is not an air conditioner as it does not use a compressor

or refrigerant gas. It should not be expected to cool as efficiently as a refrigerated air

conditioner.

感謝您購買本產品

恭喜並謝謝您購買Honeywell移動式冷卻器(水冷器)。為了讓冷卻器達到最佳的冷卻效

果，請注水至水箱內最高水位刻度，將冰塊放入置冰室，然後打開電源開關開始使用。

不是一般的冷凍空調器 (重要 - 請仔細閱讀！)

移動式冷卻器(水冷器)請放置在空氣流通的地方，靠近開放的門窗邊使用。確保有足夠

的空氣流通，或在房間裡留一個開放的門或開放的窗，相對會較涼爽及冷，『冷氣房可

不再此限制』。依循這些規則，將可確保您的冷卻器將達到最好的效能。

不是一般的冷凍空調器 (重要 - 請仔細閱讀！)

移動式冷卻器(水冷器)不是一般的冷凍空調器，它不使用壓縮機或製冷劑氣體(冷媒)。

不應該被預期有冷凍空調器冷卻的效率。

USER TIPS

Energy Efficient, No Compressor

Honeywell Evaporative Air Coolers are built to maximize energy efficiency and keep

costs low. Warm air is drawn into the cooler and enters the Honeycomb Cooling Media.

Water pumped from the tank pours over the honeycomb media. As the warm air passes

through the media, the water absorbs the heat, naturally cooling and humidifying the air.

A fan propels the cooled air out into the room. This no-compressor system cools natu-

rally, efficiently and inexpensively.

Pump

Water

Honeycomb Cooling Media

Evaporative Air Cooling Mechanism

Warm and

dry air

Cool and

humid air

使用提示

涼爽~節能~自然

蒸發式的空氣冷卻現象(汽化)，是最自然冷卻方式，類似一陣微風吹過湖面。微風降低了

溫度，讓人感覺有輕鬆的冷卻效果。移動式冷卻器(水冷器)的冷卻空氣，是經過水蒸發過

程(汽化)的現象。當細微的水分子碰到熱空氣，水分子因熱能而蒸發，熱空氣溫度同時也

下降了。這種化學物質的變化需要熱量是從水分子來的。

汲水幫浦

水

蜂巢式冷卻濾材Honeycomb

移動式冷卻器(水冷器)的蒸發冷卻機制

溫暖及乾燥

的空氣

涼爽和潮濕

的空氣

USER TIPS

The recommended maximum relative humidity level is 60% or

less, which allows a noticeable temperature decrease. The

temperature decrease will be greater in drier climates

because higher evaporation occurs when the humidity is low.

The evaporative air cooler should not be used in enclosed

spaces. It must be kept level and there must be water in the

water tank. The room should have doors and windows

opened to allow free air flow. The evaporative air cooler works

best when placed near an open window, so that outside air is

drawn into the evaporative air cooler, the air circulates in the

room, then exits via the door. The maximum cooling effect is

felt when a person is in the flow of air coming out of the

evaporative air cooler.

The evaporative air cooler can also be used to humidify dry

air during cool weather. To be used for humidification the

windows and doors should be closed to allow the humidified

air to accumulate.

When the product is used for the first time the Honeycomb Cooling Media will have an

odor which will dissipate in a few hours or so of initial use.

NOTE (Important - Please Read!)
