OWNER’S MANUAL
Read and save these instructions before use
Model: CHL30XC
Power rating: 252W (Cooling) / 2000W (Heating)
Voltage rating: 220-240V ~ 50 Hz
For product inquiries or support, visit
www.honeywellaircoolers.com
Portable Evaporative Air Cooler with Heater
for indoor use
Customer Service Center:
+44 (0)1477 539500 / www.scott-air-cooling.co.uk
Made in China

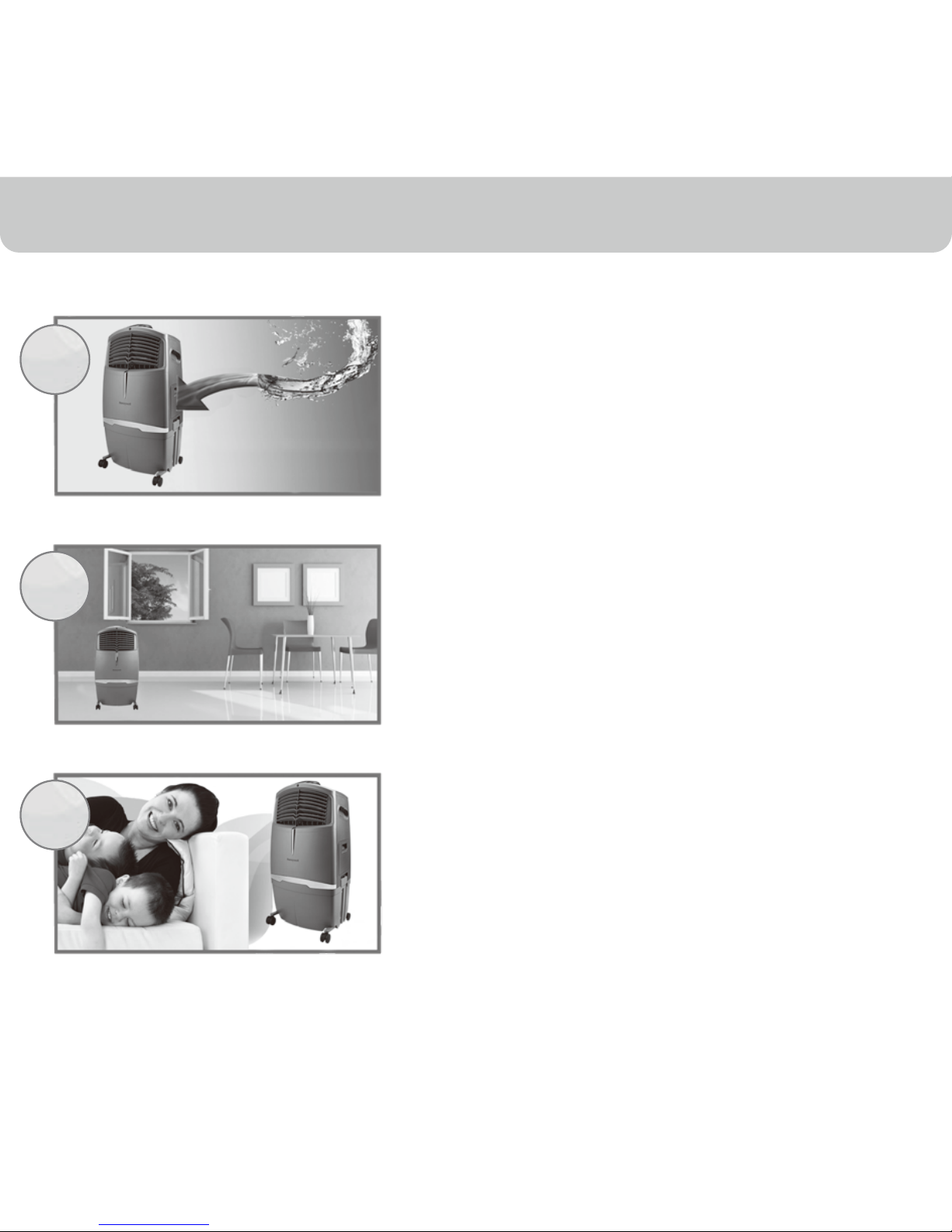

QUICK START GUIDE
Fill with water and plug into standard
power outlet.
Place near open door or window.
Note : Please make sure that the power outlet is
set to correct settings as per product specifications.
Note : Evaporative Air Coolers work on evaporative
cooling mechanism which requires cross ventillation.
Turn ON and enjoy the cooling breeze.
Note: Start with LOW speed and gradually increase
to higher speed for optimum cooling performance.
1
2
3
SECTION PAGE
1. THANK YOU ...........................................................................................................
2. USER TIPS .............................................................................................................
3. SAFETY RULES .....................................................................................................
4. PARTS DESCRIPTION ..........................................................................................
5. USE & OPERATION ...............................................................................................
6. CLEANING & MAINTENANCE ...............................................................................
7. TROUBLESHOOTING GUIDE ...............................................................................
8. TECHNICAL SPECIFICATIONS ............................................................................
9. ELECTRICAL WIRING DIAGRAM .........................................................................
2
3
5
8
9
Remote Control....................................................................................................
Function Buttons..................................................................................................
Room Cooling and Humidifying .............................................................................
13
Filling with Water.................................................................................................. 14
Control Panel ...................................................................................................... 9
10
12
15
17
19
19
INDEX
1
Read all instructions carefully before setting up and operating the unit, and please keep
this instruction manual for future reference. This manual is designed to provide you with
important information needed to setup, operate, maintain, and troubleshoot your cooler.
Failure to follow these instructions may damage and/or impair its operation and void the
warranty.
2
THANK YOU
Congratulations on your purchase of this versatile Honeywell Evaporative Air
Cooler and Heater. For optimum cooling & heating performance from your unit, fill
the water tank with water & ice (if available) to increase its cooling power and turn
off the Cool mode at least 15 minutes before you turn on the heater. The unit should
be positioned in a location that will create a Flow Through Air effect.The greatest
cooling effect will be felt if the unit is operated in a partly opened doorway or window.
Cooler Location - Indoors (Important - Please Read!)
Place the cooler in front of an open door or window. Ensure that there is adequate
cross - ventilation in the room by leaving a door or window open opposite the cooler.
Following these guidelines will ensure your cooler will work as effectively as possible.
Not an Air Conditioner (Important - Please Read!)
The evaporative air cooler is not an air conditioner as it does not use a compressor
or refrigerant gas. It should not be expected to cool as efficiently as a refrigerated air
conditioner.
3
USER TIPS
Energy Efficient, No Compressor
EVAPORATIVE AIR COOLER
Evaporative air cooling is the natural way of cooling, similar to a breeze blowing across a lake.
This breeze drops the temperature and has a relaxing cooling effect. The evaporative air cooler
cools the air by means of the evaporation of water. When water evaporates into the air, the result
is a mixture of air and water molecules. This chemical change requires heat which is taken from
the water molecules, resulting in cooler air propelled from the unit.
HEATER
A fan heater is a variety of convection heater that includes an electric fan to speed up the
airflow(air circulation). This reduces the thermal resistance between the heating element and the
surroundings and is faster than passive convection, allowing heat to be transferred more quickly.
They operate with considerable noise caused by the fan. They have a moderate risk of ignition
hazard in the event that they make unintended contact with furnishings. This type of heater is a
good choice for quick heating of enclosed space.
Pump
Water
Honeycomb Cooling Media

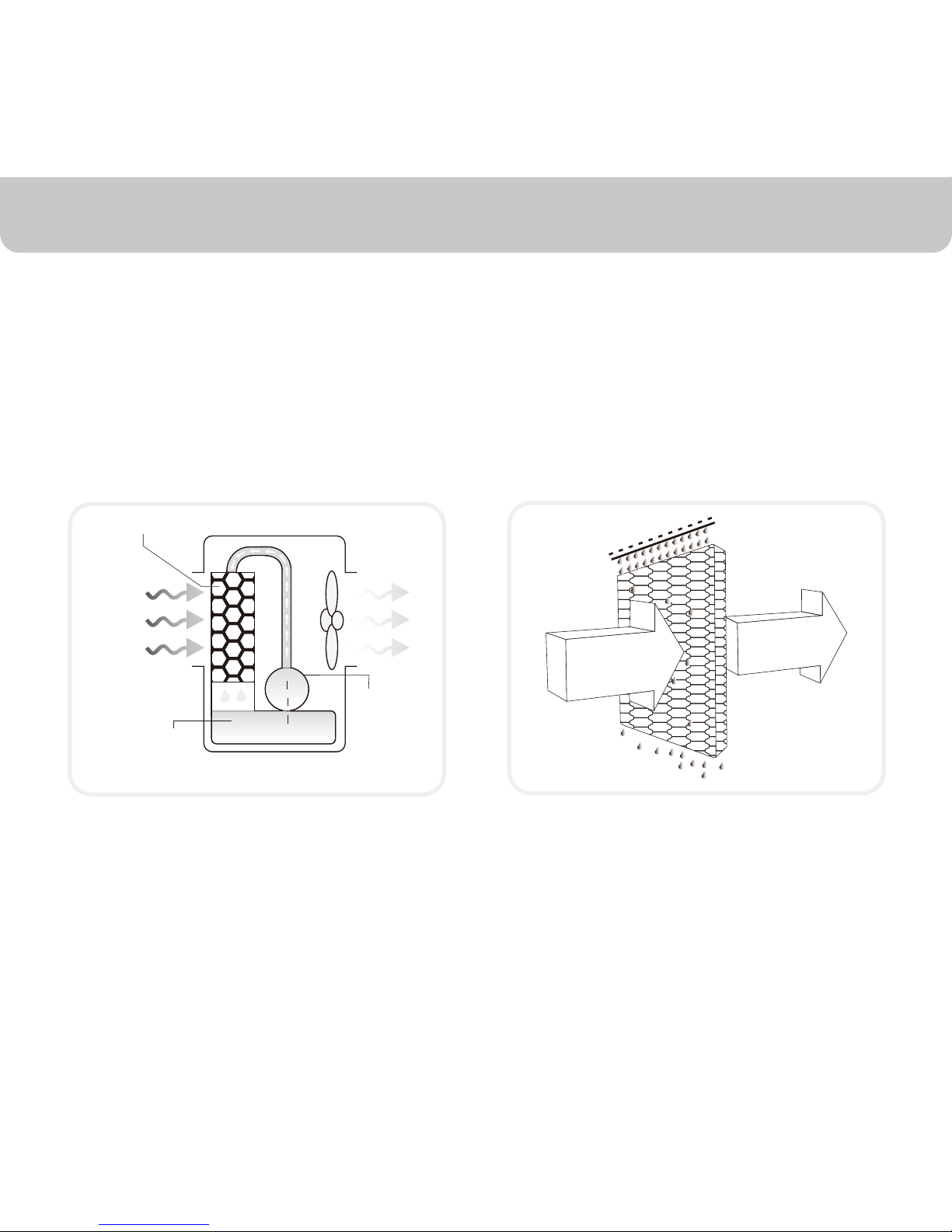

Evaporative Air Cooling Mechanism
Warm and
dry air
Cool and
humid air
4
USER TIPS
The recommended maximum relative humidity level is 60% or
less, which allows a noticeable temperature decrease. The
temperature decrease will be greater in drier climates because
higher evaporation occurs when the humidity is low.
The evaporative air cooler should not be used in enclosed
spaces. It must be kept level and there must be water in the
water tank. The room should have doors and windows opened
to allow free air flow. The evaporative air cooler works best
when placed near an open window, so that outside air is drawn
into the evaporative air cooler, circulates in the room, then
exits via the door. The maximum cooling effect is felt when a
person is in the flow of air coming out of the evaporative air
cooler.
The evaporative air cooler can also be used to humidify dry
air during cool weather. To be used for humidification the
windows and doors should be closed to allow the humidified
air to accumulate.
When the product is used for the first time the Honeycomb Cooling Media will have an
odor which will dissipate in a few hours or so of initial use.

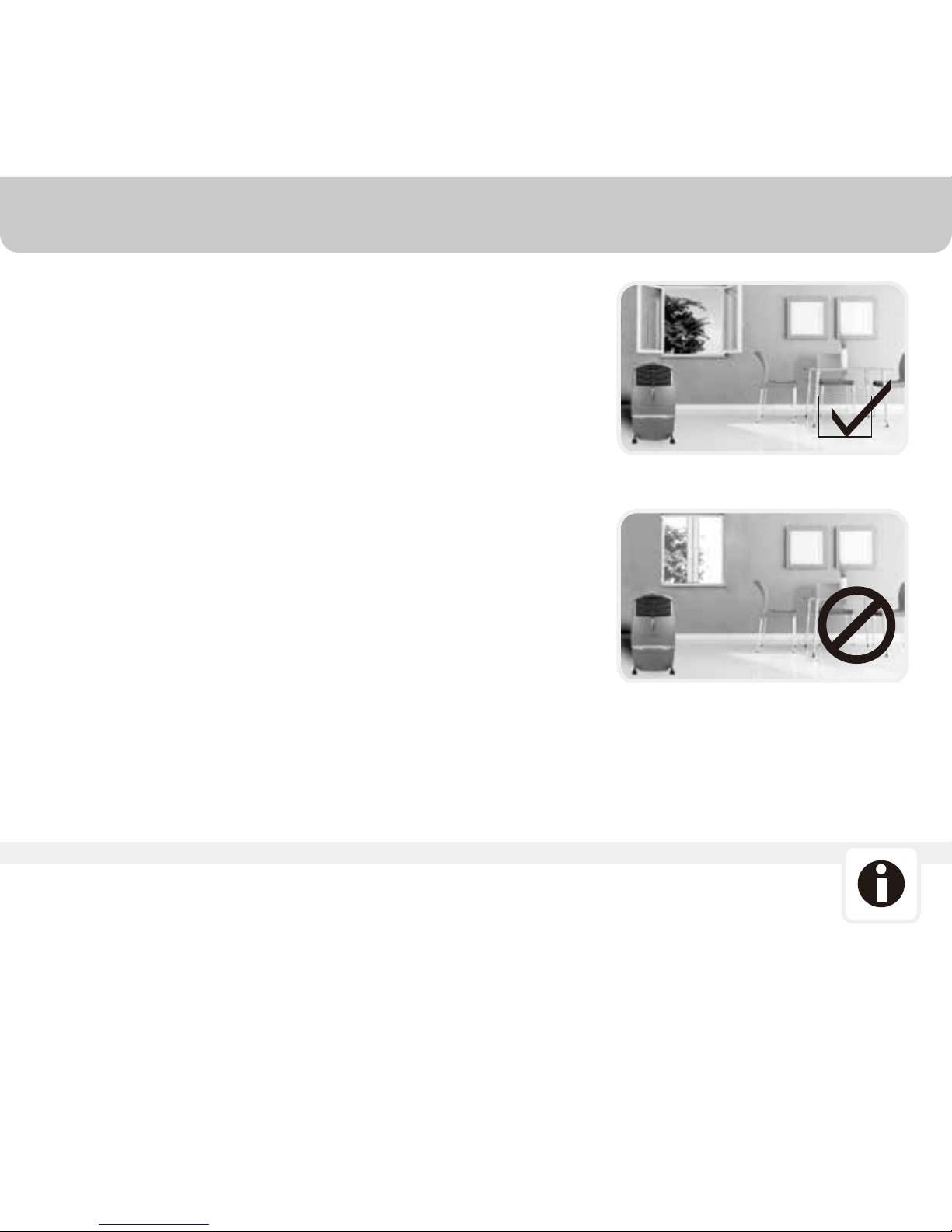

Room with open windows & door
(RECOMMENDED)
Room with closed windows & door
(NOT-RECOMMENDED)
NOTE
WATER LEVEL INDICATOR
220-240V AC 50Hz

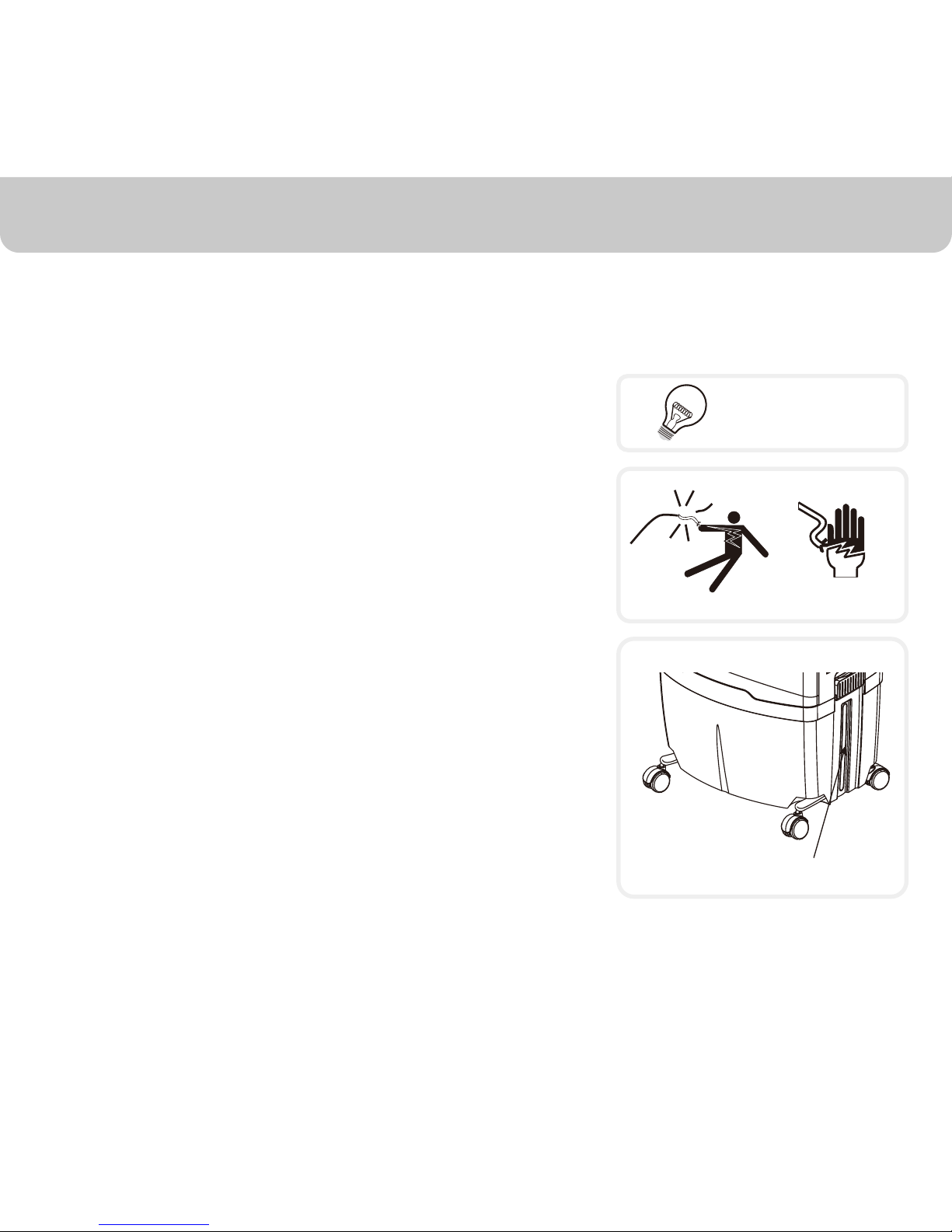

SHOCK HAZARD
5
SAFETY
READ AND SAVE THESE INSTRUCTIONS:
When using electrical appliances, basic safety precautions should always be followed:
Your cooler runs on 220-240 Volt AC, 50 Hz current. Check
the household voltage to ensure it matches the appliance's
rate specification.
Before operating the product remove it from its packaging
and check that it is in good condition.
DO NOT operate any product with a damaged cord or plug.
We recommend not using an extension cord with this
appliance.
DO NOT run power cord under carpeting, or cover it with
rugs or runners. Keep the cord away from areas where it
may be tripped over.
Always unplug the product before refilling the water tank.
Always unplug the appliance from the power source before
cleaning, servicing or relocating the unit.
Remove the power cord from the electrical receptacle by
grasping and pulling on the power cord plug-end only, never
pull the cord.
DO NOT use the product in areas where gasoline, paint or
other flammable goods and objects are stored.
When using the COOL setting, check the water tank to
ensure that it is full. Operation of this cooler on the COOL
setting with an empty tank may result in damage to the
water pump.
WARNING: To reduce the risk of fire or electric shock, do
not use this appliance with any solid state speed control
device.
•
•
•
•
•
•
•
•
•
•
FLOOR LEVEL
6
SAFETY
DO NOT attempt to repair or adjust any electrical or
mechanical functions of the cooler, as this may void the
warranty.
DO NOT cover the air inlet or outlet on the appliance as this
may cause motor damage.
DO NOT insert or allow objects to enter any ventilation or
exhaust opening as this may damage the product and could
cause electrical shock or fire.

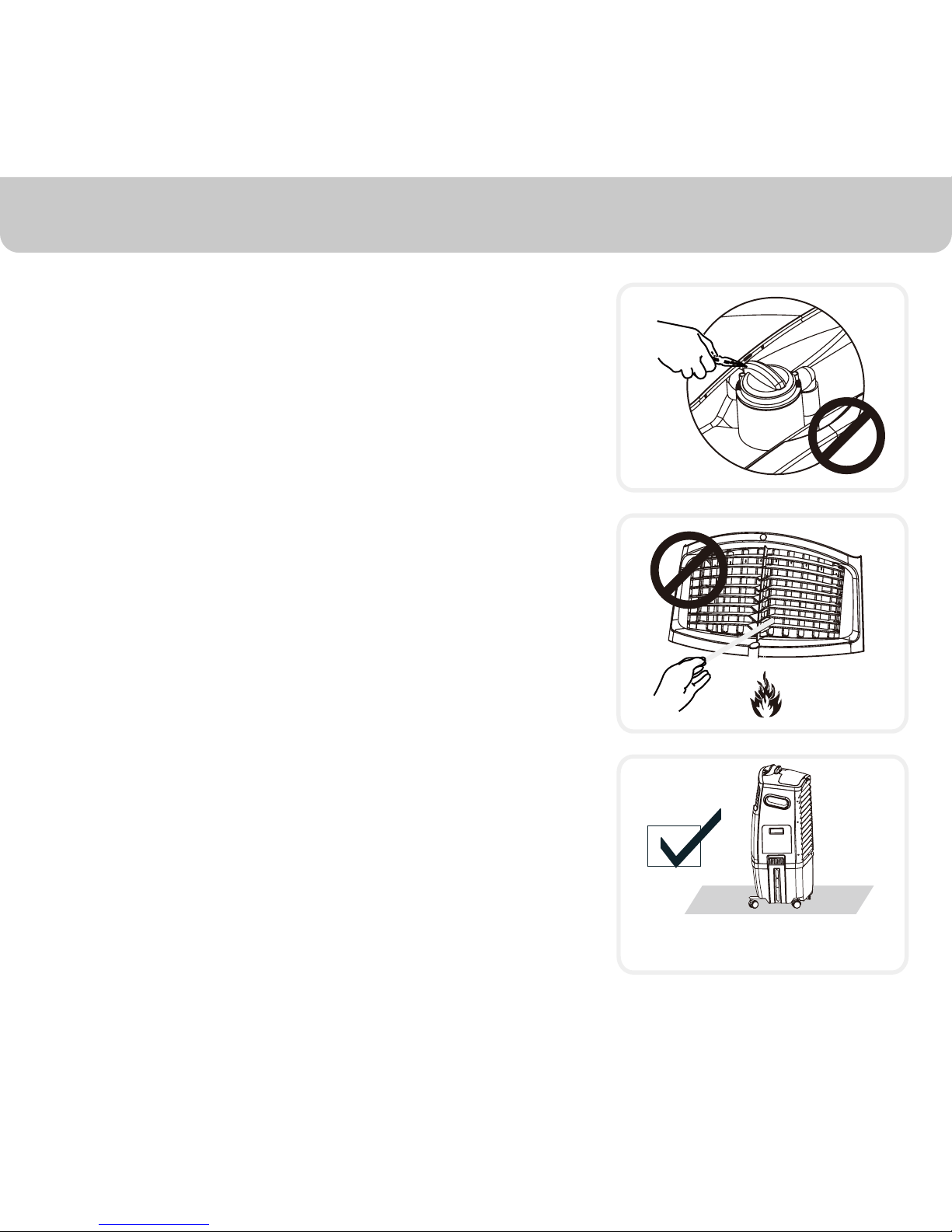

DO NOT operate with the Honeycomb Cooling Media
removed as this will overload and damage the motor.
DO NOT leave the operating appliance unattended for any
extended period of time.
DO NOT let children play with this appliance, packaging or
plastic bags.
If the unit is damaged or it malfunctions, do not continue to
operate it. Refer to the troubleshooting section and seek
professional advice.
Place the unit on a level floor.
This product is not intended for use in wet or damp
locations.
DO NOT use in bathrooms. Never locate the product where
it may fall into a bathtub or other water container.
Store in a dry area when not in use.
This appliance is not intended for use by persons (including
children or elderly) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instructions concerning
the use of the appliance by a person responsible for their
safety.
Always grip the side handles to move the cooler.
•
•
•
•
•
•
•
•
•
•
•
•
•
7
SAFETY RULES
•
•
•
•
•
•
WHEN OPERATING AS HEATER
DO NOT put any combustible item over the unit, when operating on the HEAT mode,
as it may catch fire.
DO NOT use this heater close to curtains and other combustible material and keep a
safe distance. Keep the appliance at least 15cm (6 inches) from walls and any other
thing, to permit a good air circulation.
Never immerse the product in water or any other liquid for any reasons. Do not use in
the shower, bath tub, or a swimming pool.
DO NOT use if you have wet hands.
Never use the appliance on or near hot surfaces.
The heater must not be located immediately below the socket outlet.
8
PARTS DESCRIPTION
ACCESSORIES
Remote Control (2 AAA Batteries not included)
6
1
11
12
17
14
15
16
13
2
4
3
5
8
9
19
18
10
7

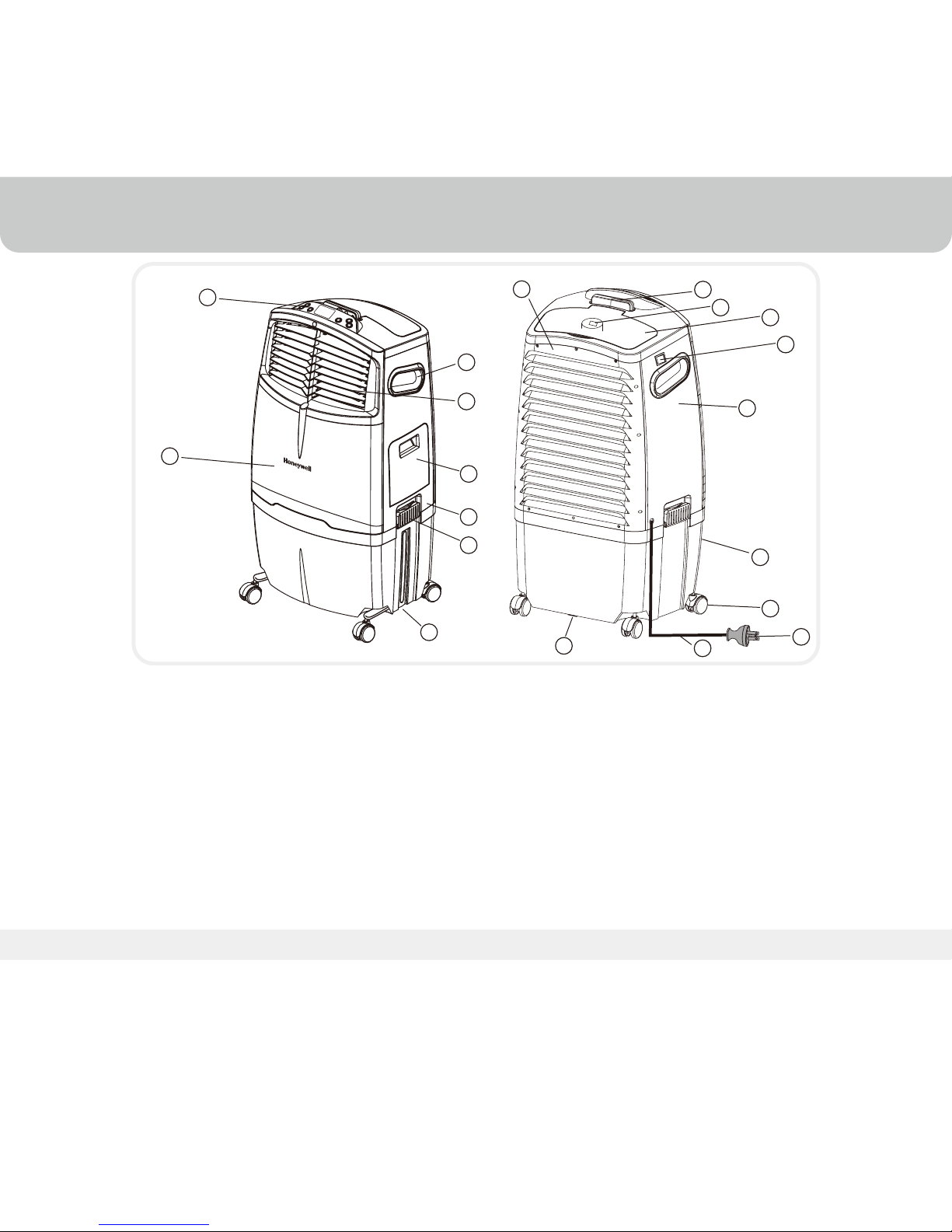

1 Control Panel
2 Handle
3 Louvers for Manual Adjustment
4 Left Side Panel
5 Water Tank
6 Power Cord
7 Power Plug
8 Casters
9 Ice Compartment Lid
10 Back Grill
11 Front Panel
12 Water Level Indicator
13 Remote Control Holder
14 Latch (To Detach Water Tank)
15 Right Side Panel
16 Water Fill Door
17 Water Drain Plug
18 Water Regulator
19 Power Switch
